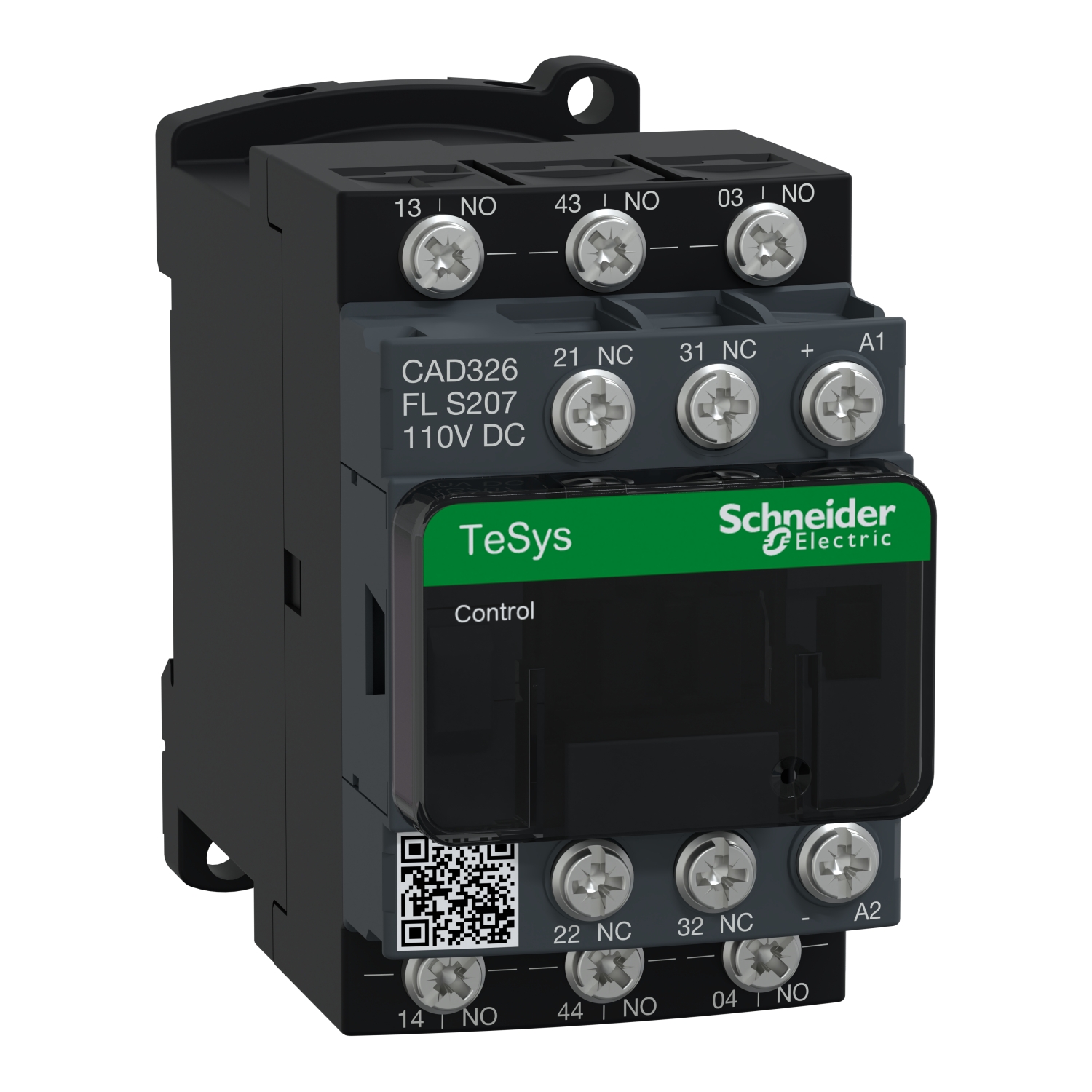

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate. Multi standards certified (IEC, UL, CSA, CCC, EAC, UKCA).
