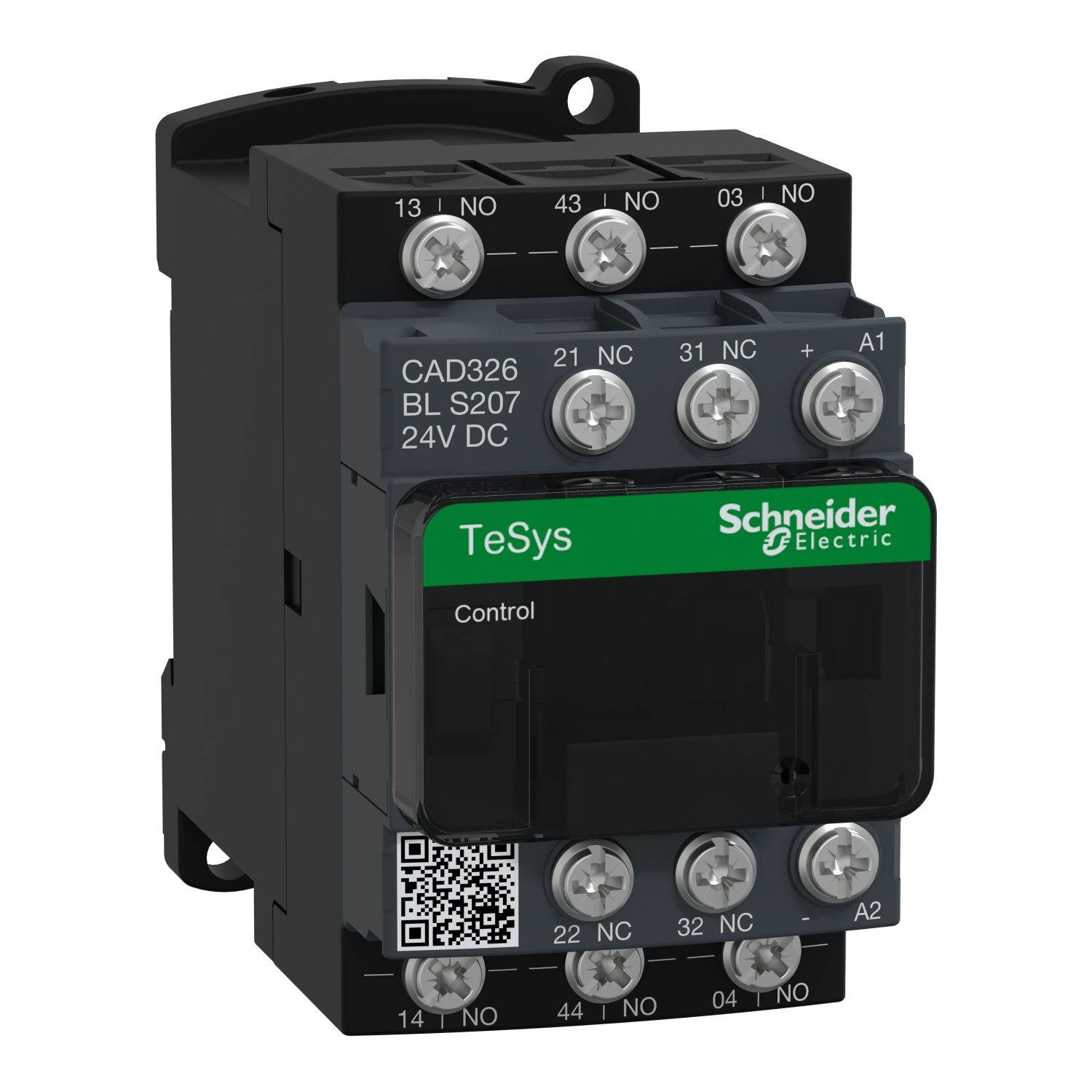

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate. Multi standards certified (IEC, UL, CSA, CCC, EAC, UKCA).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | CAD |
| Range | TeSys |
| Product name | TeSys CAD |
| Product or component type | control relay |
| Contactor application | control circuit |
| Range of product | TeSys D control relay |
| Complementary | |
| [Icw] rated short-time withstand current | 140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Depth | 93 mm |
| Width | 45 mm |
| Operating time | 28...42 ms coil de-energisation and NC closing, 57...77 ms coil energisation and NC opening, 14...25 ms coil de-energisation and NO opening, 65...88 ms coil energisation and NO closing |
| Compatibility code | CAD |
| Inrush power in W | 2.4-2.4 W (at 20 °C) |
| Mechanical durability | 30 Mcycles |
| Tightening torque | 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 |
| Maximum operating rate | 180 cyc/mn |
| Minimum switching voltage | 17 V |
| Utilisation category | AC-15, AC-14, DC-13 |
| Time constant | 40 ms |
| Coil technology | with integral suppression device |
| Pole contact composition | 3 NO + 2 NC |
| Connections - terminals | lugs-ring terminals (external diameter: 9.5 mm) |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Net weight | 0.32 kg |
| Associated fuse rating | 10 A gG conforming to IEC 60947-5-1 |
| Irms rated making capacity | 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1 |
| Insulation resistance | > 10 MOhm |
| Hold-in power consumption in W | 2.4-2.4 W at 20 °C |
| [Uc] control circuit voltage | 24 V DC |
| Control circuit type | DC low consumption |
| Mounting support | rail, plate |
| Control circuit voltage limits | 0.7...1.25 Uc (-40-70 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Height | 77 mm |
| [Ue] rated operational voltage | <= 690 V AC 25...400 Hz |
| Mechanical robustness | vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Operating altitude | 0...3000 m |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60-80 °C |
| Flame retardance | V0 conforming to UL 94 |
| Standards | CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 45545: R22 HL3 |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | UKCA, CE, EAC, CSA, UL, CCC, CB |
