Circuit breaker, ComPacT NSX500 TM DC EP, 50kA/1500VDC, 4 poles, TM-DC EP trip unit 250A

    Previous Product
Next Product

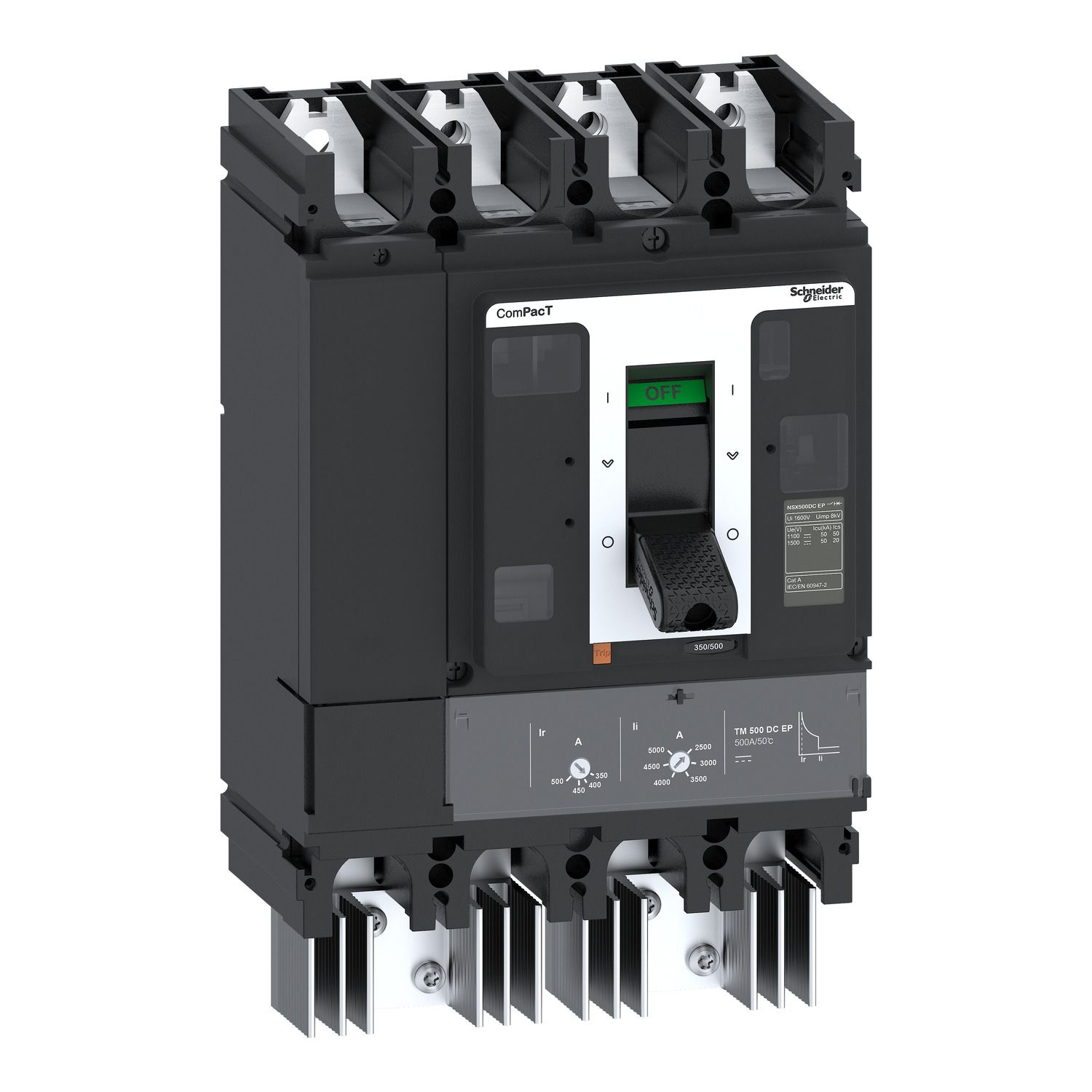

Picture of Circuit breaker, ComPacT NSX500 TM DC EP, 50kA/1500VDC, 4 poles, TM-DC EP trip unit 250A
Circuit breaker, ComPacT NSX500 TM DC EP, 50kA/1500VDC, 4 poles, TM-DC EP trip unit 250A
  • ComPacT NSX DC EP (Enhanced Performance) is designed for voltages from 1100VDC to 1500VDC
  • ComPacT NSX DC EP is dedicated to photovoltaic and marine applications
  • ComPacT NSX DC EP offers 8 current ratings (100A;125A;160A;200A;250A;320A;400A;500A)
  • The breaking capacity Icu is 50kA at 1100VDC and 50kA at 1500VDC
  • With heatsinks supplied as standard, the circuit breaker is optimized.
  • ComPacT NSX DC EP allows to save space in the enclosure
Manufacturer: Schneider Electric
SKU: C50F4TM250D3
GTIN: 3606481988614
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Declaration of conformity
This ComPacT NSX250 is a complete 4P fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 1500DC. The operational voltage is 1500VDC. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.
Old price: $3,984.20 inc GST
$2,665.92 inc GST
