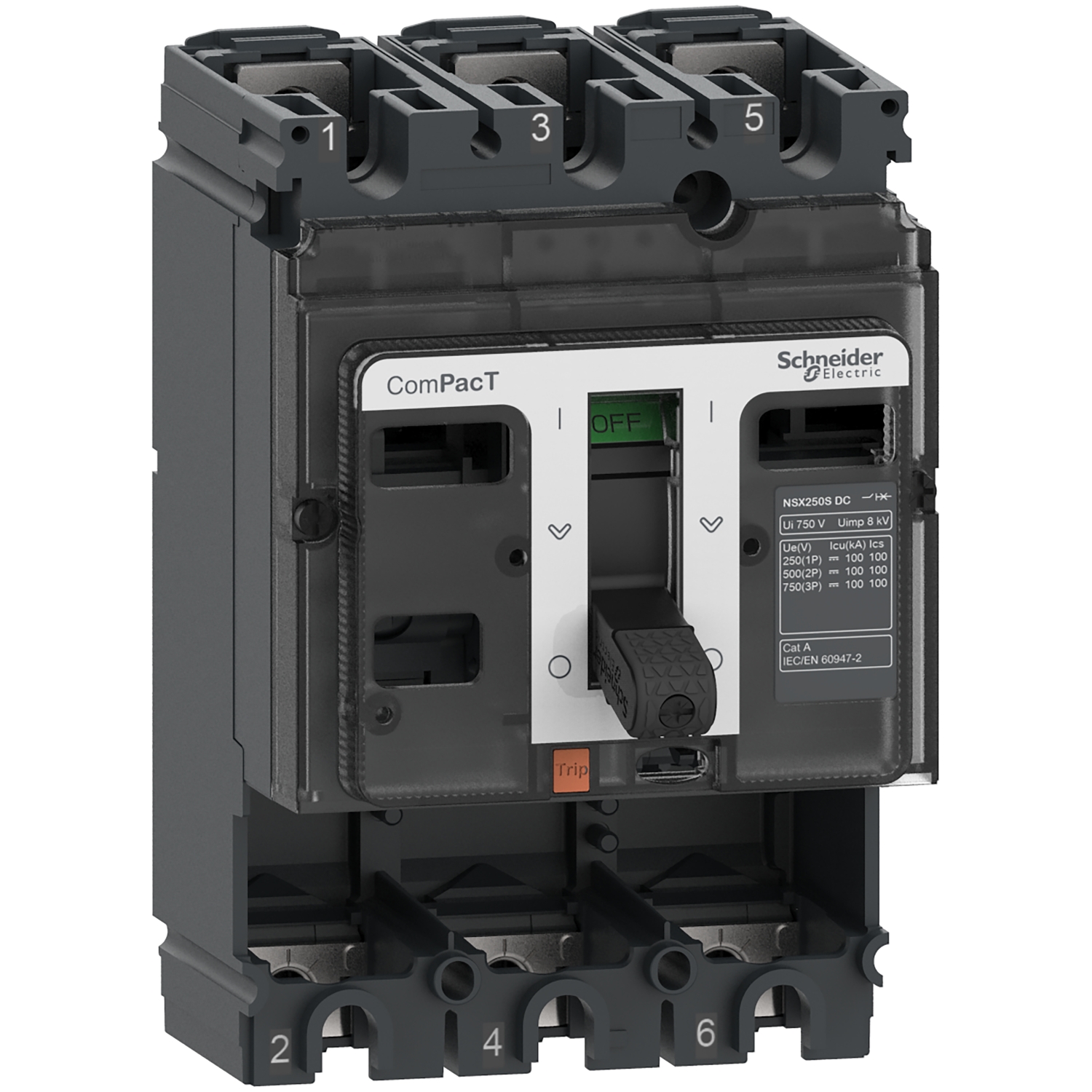

Circuit breaker basic frame, ComPacT NSX160S DC, 100kA/750VDC, 3 poles, 160A frame rating, without trip unit

Manufacturer: Schneider Electric

SKU: C16S3D

GTIN: 3606481994790

User guide

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $743.60 inc GST

Price: $497.56 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

It is a 3 poles basic frame for ComPacT NSX 160S DC circuit breaker, designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 100kA rms at 750VDC. The rated current is 160A and the operational voltage is 750VDC. This basic frame comes without trip unit (to be ordered separately) and can be equipped with a variety of optional functions and accessories. The dimensions are 161x105x86 mm (H x W x D). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name	Attribute value
Main
Device short name	NSX160S DC
Device application	distribution
Breaking capacity code	S 100 kA 750 V DC
Suitability for isolation	yes conforming to EN/IEC 60947-2
Breaking capacity	100 kA Icu at 750 V DC 3P conforming to IEC 60947-2, 100 kA Icu at 500 V DC 2P conforming to IEC 60947-2, 100 kA Icu at 24...125 V DC 1P conforming to IEC 60947-2, 100 kA Icu at 250 V DC 1P conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Range of product	ComPacT NSX100...250 DC new generation
Poles description	3P
Utilisation category	category A
Product name	ComPacT NSX DC new generation
Product or component type	basic frame
Network type	DC
[Ue] rated operational voltage	750 V DC conforming to IEC 60947-2
[In] rated current	160 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Protection type	without protection
Compatibility code	NSX160
Electrical durability	5000 cycles 750 V DC In conforming to IEC 60947-2, 5000 cycles 500 V DC In conforming to IEC 60947-2, 5000 cycles 250 V DC In conforming to IEC 60947-2, 10000 cycles 750 V DC In/2 conforming to IEC 60947-2, 10000 cycles 500 V DC In/2 conforming to IEC 60947-2, 10000 cycles 250 V DC In/2 conforming to IEC 60947-2
Upside connection	front
Downside connection	front
Connection pitch	35 mm
Height	161 mm
[Ics] rated service breaking capacity	100 kA at 750 V DC conforming to IEC 60947-2 (3P), 100 kA at 500 V DC conforming to IEC 60947-2 (2P), 100 kA at 24...125 V DC conforming to IEC 60947-2 (1P), 100 kA at 250 V DC conforming to IEC 60947-2 (1P)
Depth	86 mm
Width	105 mm
Mechanical durability	10000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage	750 V DC conforming to IEC 60947-2
Maximum breaking time	10 ms
Mounting support	backplate
Environment
Ambient air temperature for storage	-50-85 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to EN 50102
Standards	IEC 60947-2
Product certifications	ASTA, LCIE, KEMA, ASEFA
