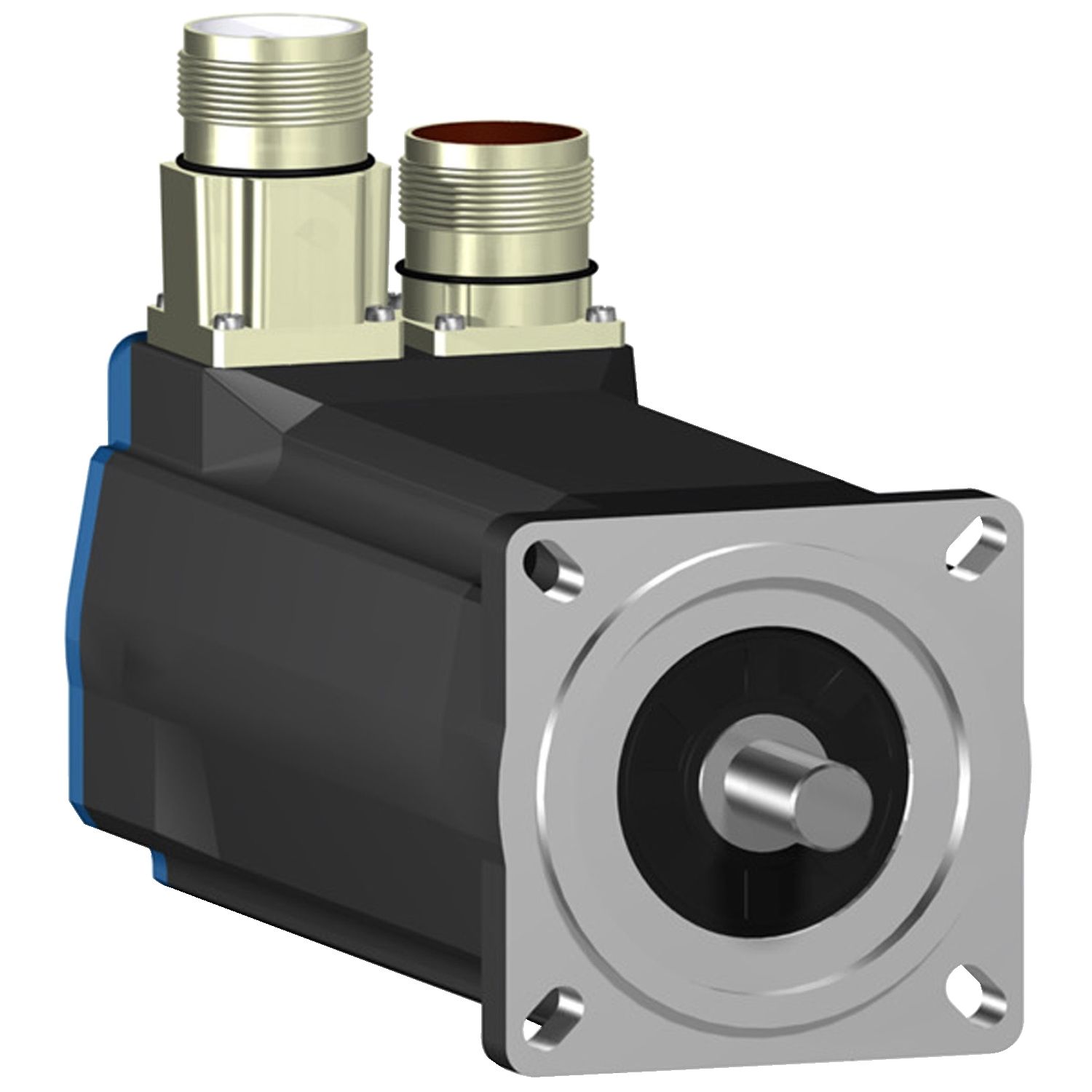

servo motor BSH, Lexium 05, 0.7N.m, 8000rpm, 70mm, keyed shaft, Sincos single turn, without brake, IP50, straight

Manufacturer: Schneider Electric

SKU: BSH0701T11A1A

GTIN: 3389118135949

Catalog

User guide

Environmental Disclosure

Declaration of conformity

Old price: $1,995.40 inc GST

Price: $2,873.38 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	1.4 N.m for LXM05BD17M2, 200...240 V, single phase, 1.4 N.m for LXM05BD10F1, 110...120 V, single phase, 1.4 N.m for LXM05AD17M2, 200...240 V, single phase, 1.4 N.m for LXM05AD10F1, 110...120 V, single phase, 1.4 N.m for LXM15LD13M3, 230 V, single phase, 1.4 N.m for LXM05CD10M3X, 200...240 V, three phase, 1.4 N.m for LXM05BD10M3X, 200...240 V, three phase, 1.4 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.4 N.m for LXM05BD17M3X, 200...240 V, three phase, 1.4 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.4 N.m for LXM15LD21M3, 230 V, three phase, 1.4 N.m for LXM05AD10M3X, 200...240 V, three phase, 1.4 N.m for LXM15LD13M3, 230 V, three phase, 1.4 N.m for LXM15LD10N4, 480 V, three phase, 1.4 N.m for LXM15LD10N4, 400 V, three phase, 1.4 N.m for LXM15LD10N4, 230 V, three phase, 0.91 N.m for LXM15LU60N4, 230 V, three phase, 0.7 N.m for LXM15LU60N4, 480 V, three phase, 0.7 N.m for LXM15LU60N4, 400 V, three phase, 1.4 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.4 N.m for LXM05CD17M2, 200...240 V, single phase, 1.4 N.m for LXM05CD10F1, 110...120 V, single phase, 1.3 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Device short name	BSH
Nominal speed	3000 rpm for LXM05AD17M2, 200...240 V, single phase, 8000 rpm for LXM15LD10N4, 400 V, three phase, 3000 rpm for LXM05CD10M3X, 200...240 V, three phase, 3000 rpm for LXM05BD10M3X, 200...240 V, three phase, 3000 rpm for LXM05AD10M3X, 200...240 V, three phase, 3000 rpm for LXM05CD10F1, 110...120 V, single phase, 3000 rpm for LXM05BD10F1, 110...120 V, single phase, 8000 rpm for LXM15LU60N4, 480 V, three phase, 8000 rpm for LXM15LU60N4, 400 V, three phase, 8000 rpm for LXM15LD10N4, 480 V, three phase, 6000 rpm for LXM15LU60N4, 230 V, three phase, 3000 rpm for LXM05AD10F1, 110...120 V, single phase, 5000 rpm for LXM15LD21M3, 230 V, three phase, 5000 rpm for LXM15LD13M3, 230 V, three phase, 5000 rpm for LXM15LD10N4, 230 V, three phase, 2500 rpm for LXM32.D18M2 at 6 A, 115 V, single phase, 5000 rpm for LXM15LD13M3, 230 V, single phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 5000 rpm for LXM32.U90M2 at 3 A, 230 V, single phase
IP degree of protection	IP50 standard
Product compatibility	LXM32.D18M2 at 115 V single phase, LXM32.U90M2 at 230 V single phase, LXM15LD13M3 at 230 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05CD10F1 at 110...120 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05BD10F1 at 110...120 V single phase, LXM15LD21M3 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM05AD17M2 at 200...240 V single phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM15LD10N4 at 400 V three phase, LXM15LU60N4 at 480 V three phase, LXM15LU60N4 at 400 V three phase, LXM15LD13M3 at 230 V three phase, LXM05CD10M3X at 200...240 V three phase, LXM05BD10M3X at 200...240 V three phase, LXM05AD10M3X at 200...240 V three phase, LXM15LU60N4 at 230 V three phase, LXM05AD10F1 at 110...120 V single phase
Peak stall torque	3.5 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 3.19 N.m for LXM05CD17M2, 200...240 V, single phase, 2.42 N.m for LXM05CD10F1, 110...120 V, single phase, 3.19 N.m for LXM05BD17M2, 200...240 V, single phase, 2.42 N.m for LXM05BD10F1, 110...120 V, single phase, 3.19 N.m for LXM05AD17M2, 200...240 V, single phase, 2.42 N.m for LXM05AD10F1, 110...120 V, single phase, 3.19 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.42 N.m for LXM05CD10M3X, 200...240 V, three phase, 3.19 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.42 N.m for LXM05BD10M3X, 200...240 V, three phase, 3.19 N.m for LXM15LD13M3, 230 V, single phase, 3.19 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.42 N.m for LXM05AD10M3X, 200...240 V, three phase, 3.19 N.m for LXM15LD21M3, 230 V, three phase, 3.19 N.m for LXM15LD13M3, 230 V, three phase, 2.91 N.m for LXM15LD10N4, 480 V, three phase, 2.91 N.m for LXM15LD10N4, 400 V, three phase, 2.91 N.m for LXM15LD10N4, 230 V, three phase, 1.9 N.m for LXM15LU60N4, 230 V, three phase, 1.9 N.m for LXM15LU60N4, 480 V, three phase, 1.9 N.m for LXM15LU60N4, 400 V, three phase, 3.5 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Nominal output power	400 W for LXM05AD17M2, 200...240 V, single phase, 380 W for LXM05CD10F1, 110...120 V, single phase, 380 W for LXM05BD10F1, 110...120 V, single phase, 380 W for LXM05AD10F1, 110...120 V, single phase, 400 W for LXM05CD10M3X, 200...240 V, three phase, 400 W for LXM05BD10M3X, 200...240 V, three phase, 400 W for LXM05AD10M3X, 200...240 V, three phase, 654 W for LXM15LD21M3, 230 V, three phase, 654 W for LXM15LD13M3, 230 V, three phase, 586 W for LXM15LU60N4, 480 V, three phase, 586 W for LXM15LU60N4, 400 V, three phase, 350 W for LXM32.D18M2 at 6 A, 115 V, single phase, 564 W for LXM15LD10N4, 230 V, three phase, 440 W for LXM15LU60N4, 230 V, three phase, 400 W for LXM05CD17M3X, 200...240 V, three phase, 400 W for LXM05BD17M3X, 200...240 V, three phase, 400 W for LXM05AD17M3X, 200...240 V, three phase, 1000 W for LXM15LD10N4, 480 V, three phase, 1000 W for LXM15LD10N4, 400 V, three phase, 654 W for LXM15LD13M3, 230 V, single phase, 400 W for LXM05CD17M2, 200...240 V, single phase, 400 W for LXM05BD17M2, 200...240 V, single phase, 500 W for LXM32.U90M2 at 3 A, 230 V, single phase
Speed feedback resolution	131072 points/turn
Maximum mechanical speed	8000 rpm
Nominal torque	1.25 N.m for LXM15LD10N4, 230 V, three phase, 1.23 N.m for LXM15LD10N4, 480 V, three phase, 1.23 N.m for LXM15LD10N4, 400 V, three phase, 0.7 N.m for LXM15LU60N4, 480 V, three phase, 0.7 N.m for LXM15LU60N4, 400 V, three phase, 0.7 N.m for LXM15LU60N4, 230 V, three phase, 1.36 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.25 N.m for LXM15LD13M3, 230 V, single phase, 1.25 N.m for LXM15LD21M3, 230 V, three phase, 1.25 N.m for LXM15LD13M3, 230 V, three phase, 0.94 N.m for LXM32.U90M2 at 3 A, 230 V, single phase
Electrical connection	straight connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	without
Mounting support	international standard flange
Complementary
Temperature copper hot	120 °C
Coefficient 1_2	-1.570084489146E-18 N.m/rpm²
Coefficient 1_1	-1.66666666653507E-05 N.m/rpm
Coefficient 1_4	-1.56043E-25 N.m/rpm4
Coefficient 1_3	7.23675596E-22 N.m/rpm3
Coefficient 1_6	0 N.m/rpm6
Coefficient 1_5	1.5E-29 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	70 mm
Stator inductance	12.3 mH at 20 °C
Centring collar depth	2.5 mm
Back emf constant	26 V/krpm at 120 °C
Maximum radial force Fr	660 N at 1000 rpm, 520 N at 2000 rpm, 460 N at 3000 rpm, 410 N at 4000 rpm, 380 N at 5000 rpm, 360 N at 6000 rpm
Saturation coefficient 1	5.103977903935E-18
Saturation coefficient 3	-2.3003844074E-19
Saturation coefficient 2	-0.00972060433826835
Switching frequency	8 kHz
Temperature magnet hot	100 °C
Continuous power	1.06 W
Circle diameter of the mounting holes	82 mm
Maximum permanent current	10.1 A
Torque constant	0.44 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	3.2 A
Range compatibility	Lexium 15, Lexium 32, Lexium 05
Stator resistance	3.3 Ohm at 20 °C
Feedback type	single turn SinCos Hiperface
Mounting holes diameter	5.5 mm
Shaft diameter	11 mm
Key width	18 mm
Centring collar diameter	60 mm
Sizing reference	BSH0701T
Net weight	2.2 kg
Maximum current Irms	9.9 A for LXM15LD10N4, 9.9 A for LXM15LU60N4, 9.9 A for LXM15LD21M3, 9.9 A for LXM15LD13M3, 9 A for LXM32.U90M2, 10 A for LXM32.D18M2
Length	154 mm
Shaft length	23 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	6
Rotor inertia	0.25 kg.cm²
Number of motor stacks	1
Stator electrical time constant	3.73 ms at 20 °C
