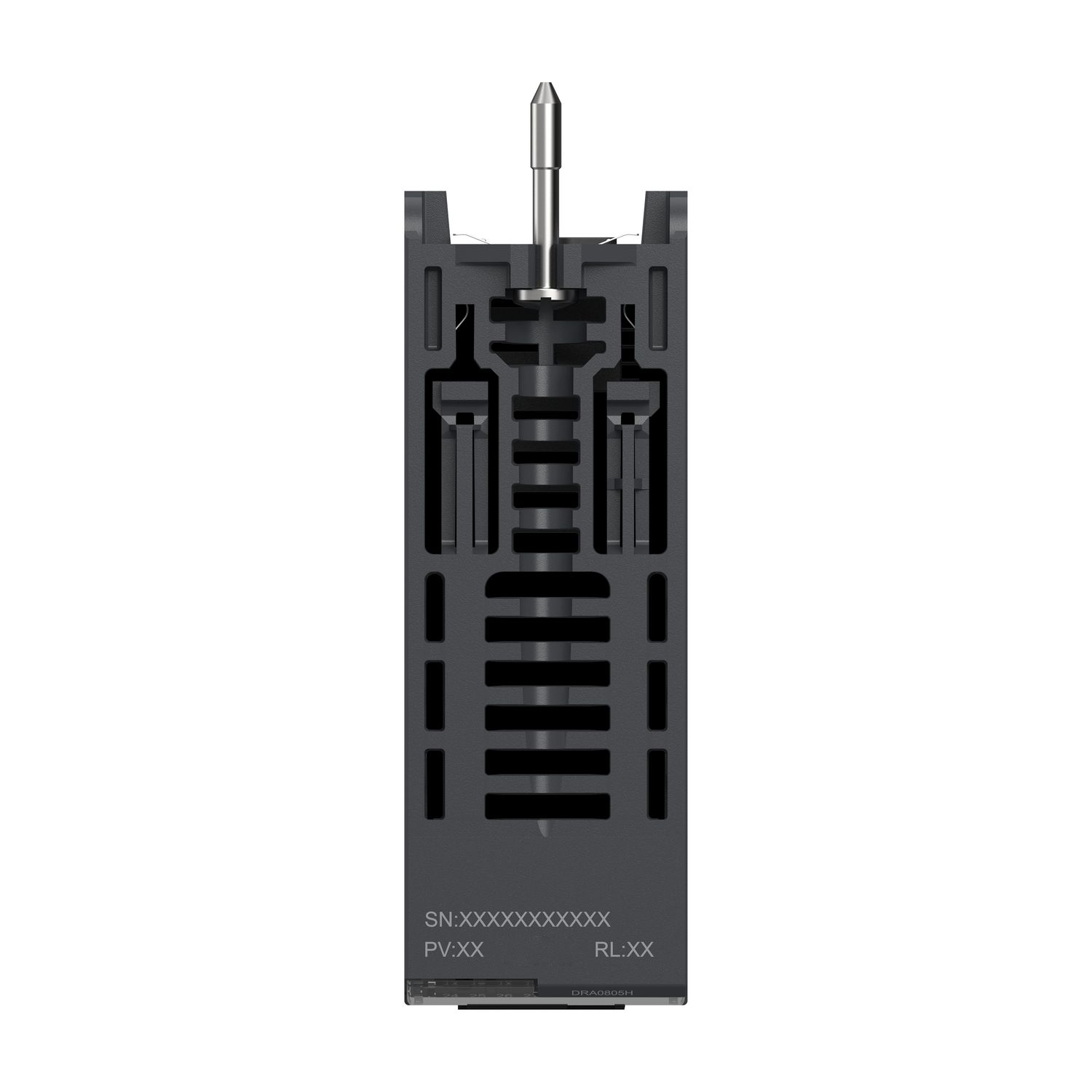

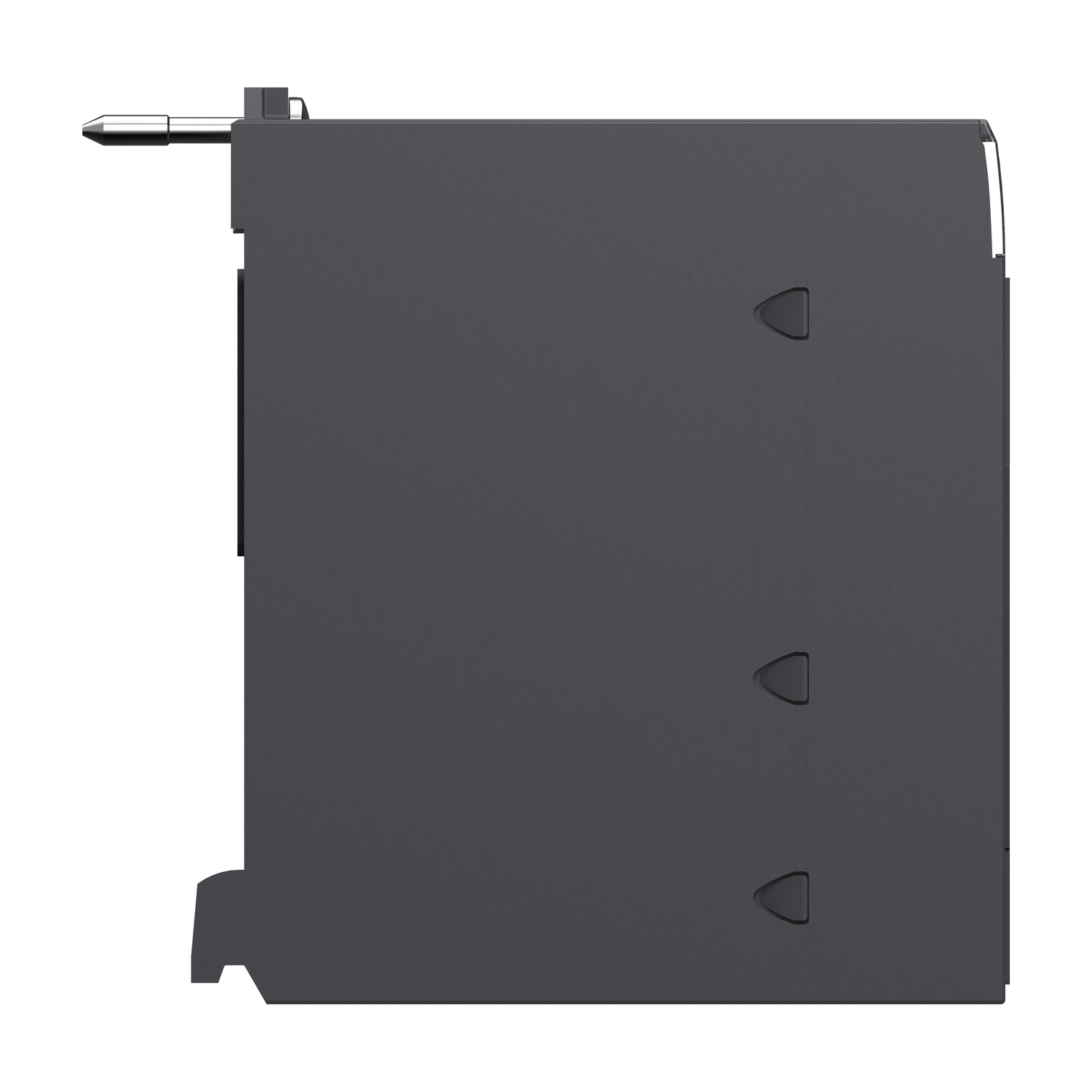

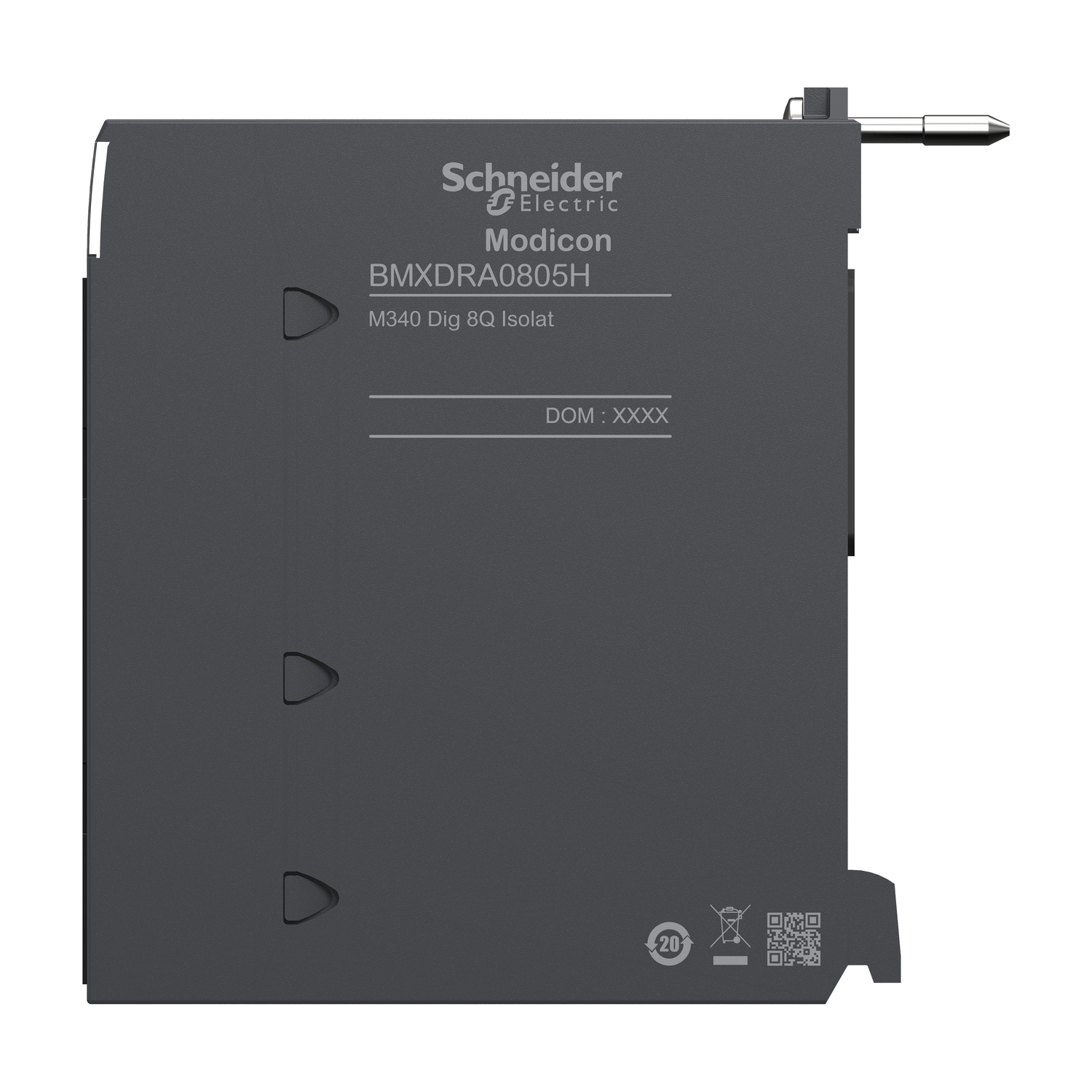

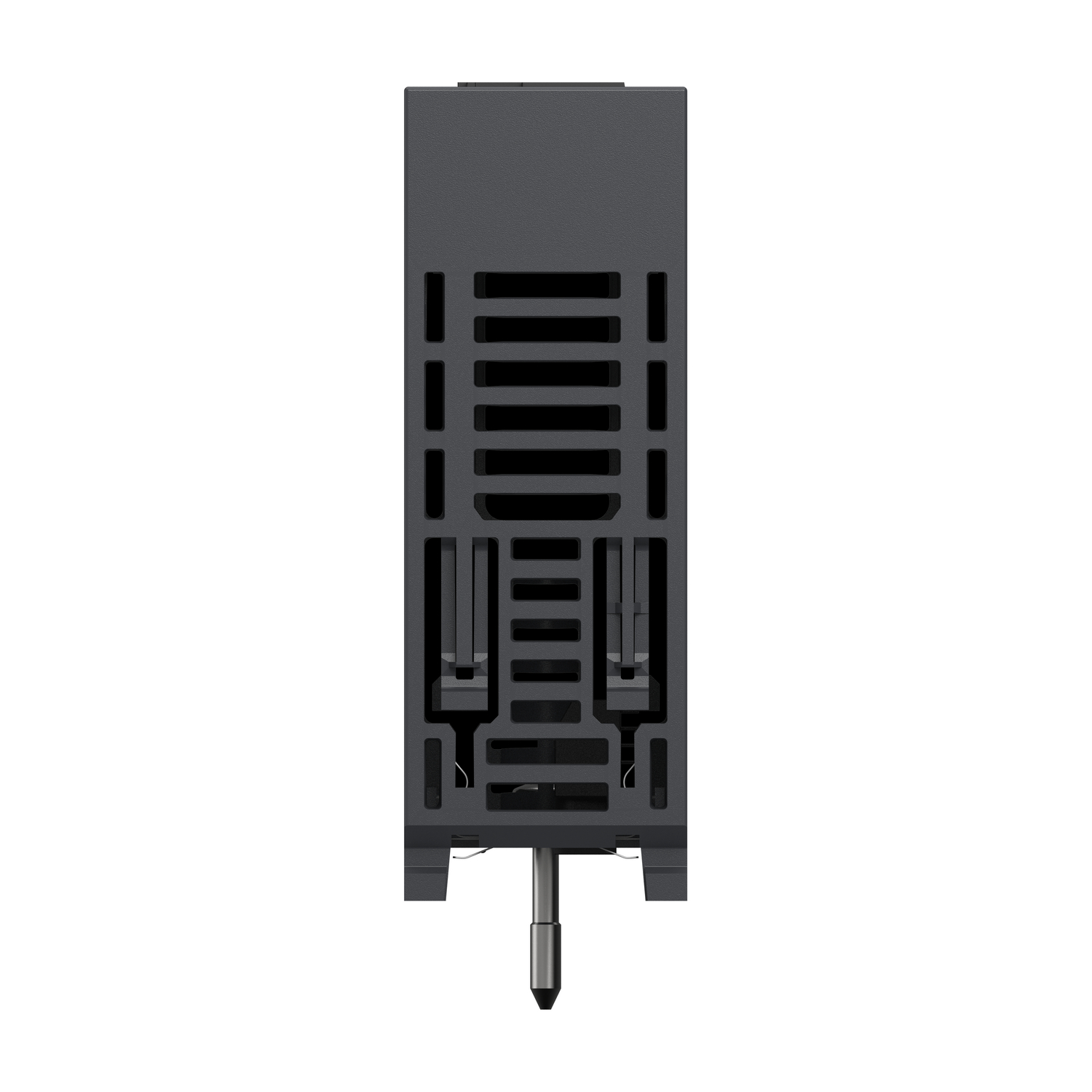

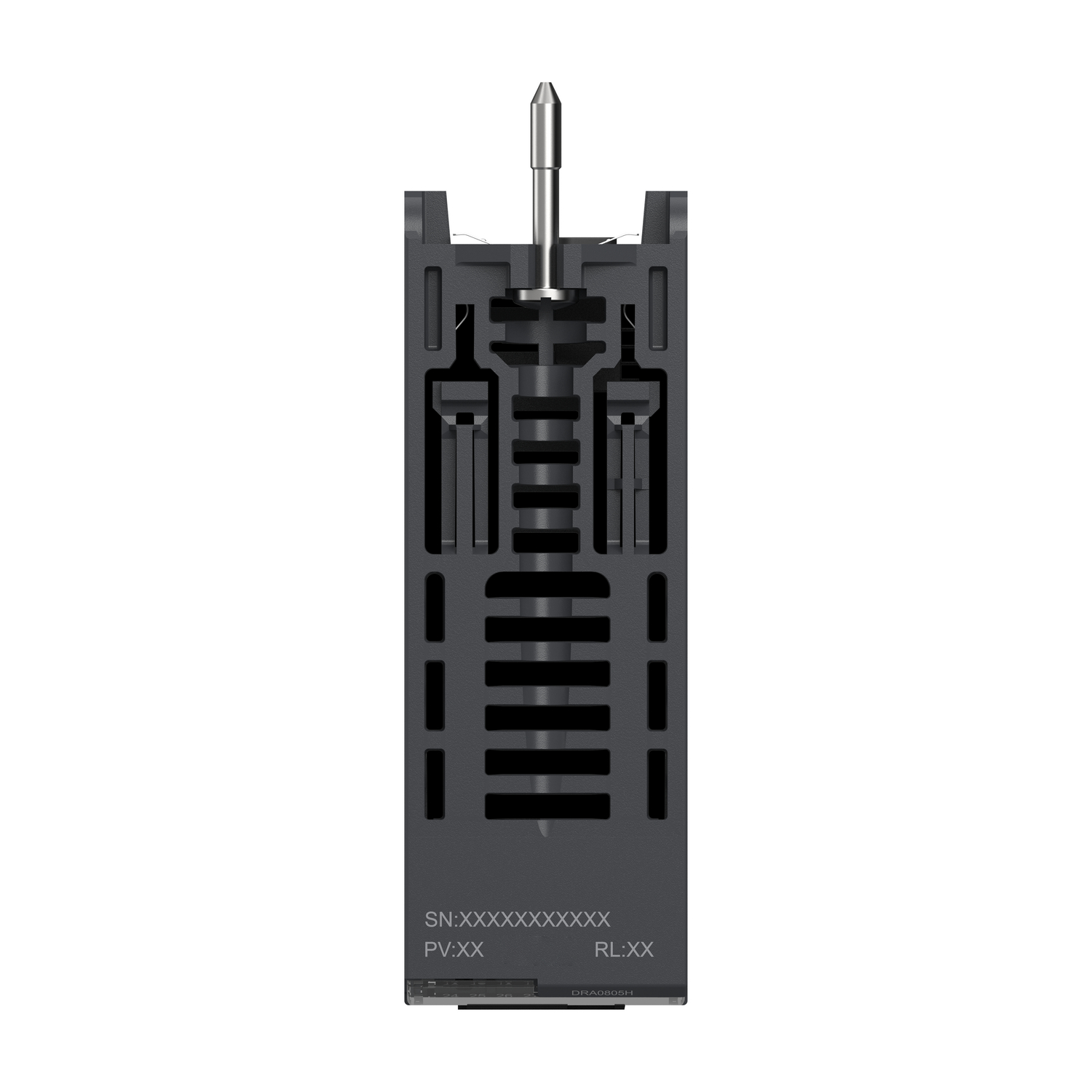

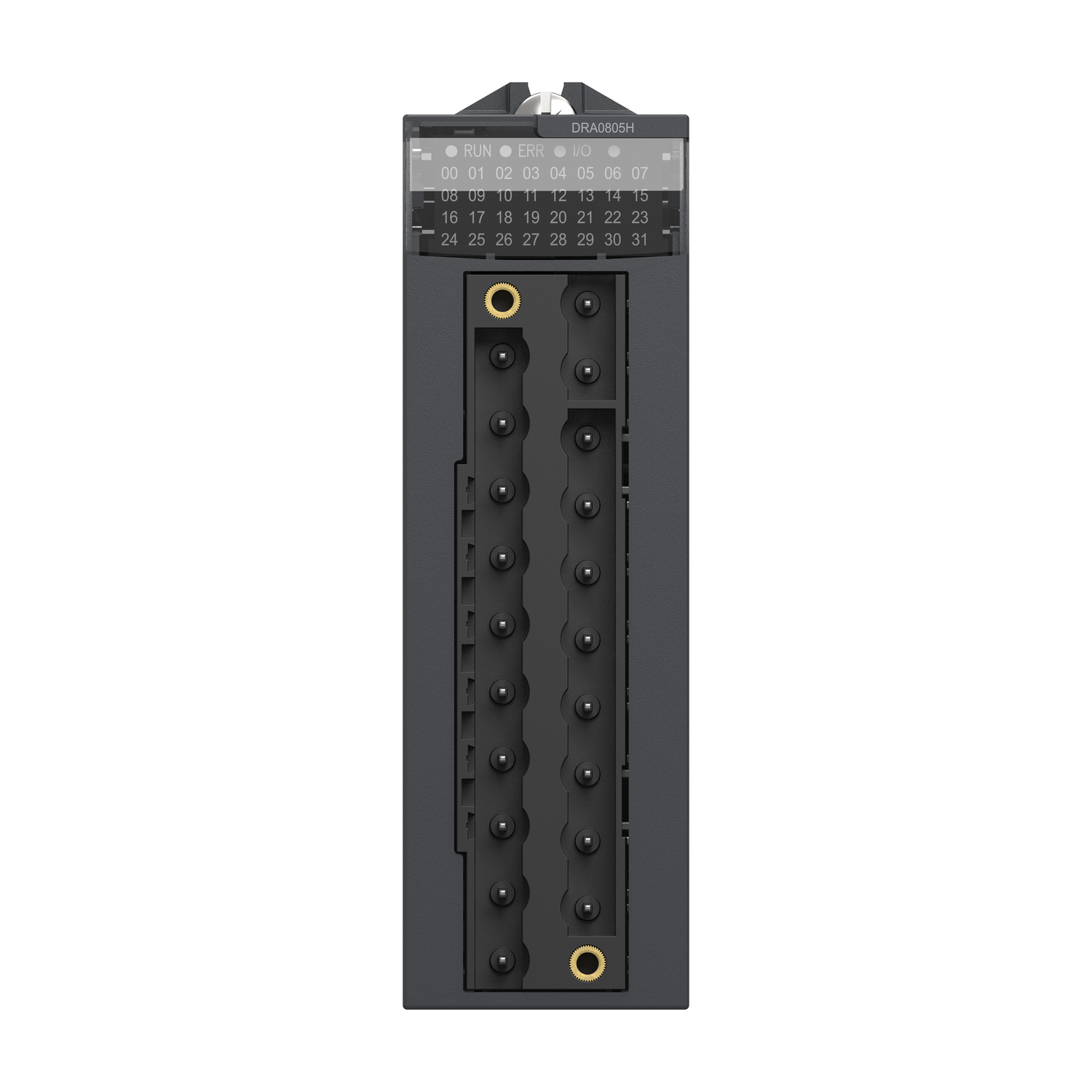

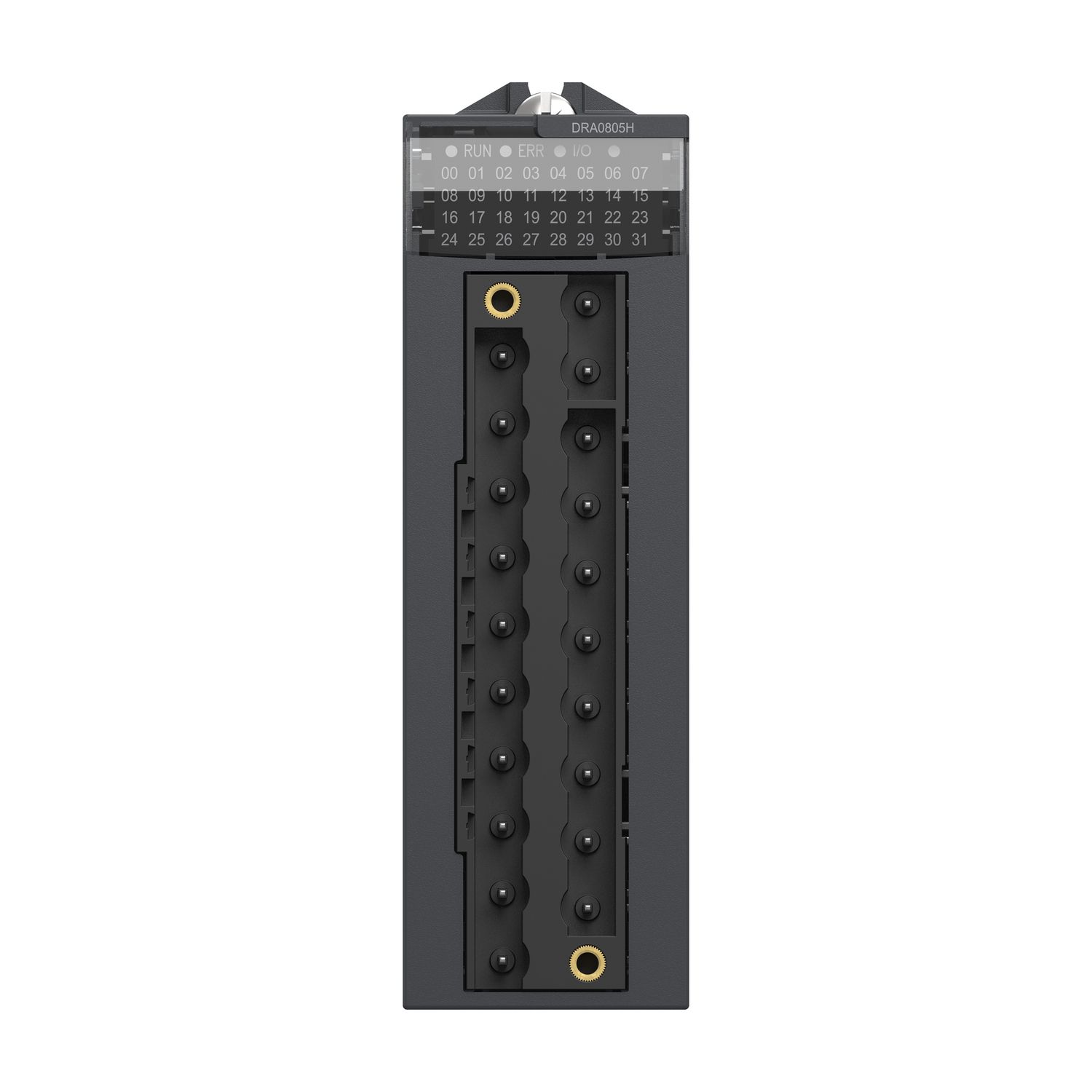

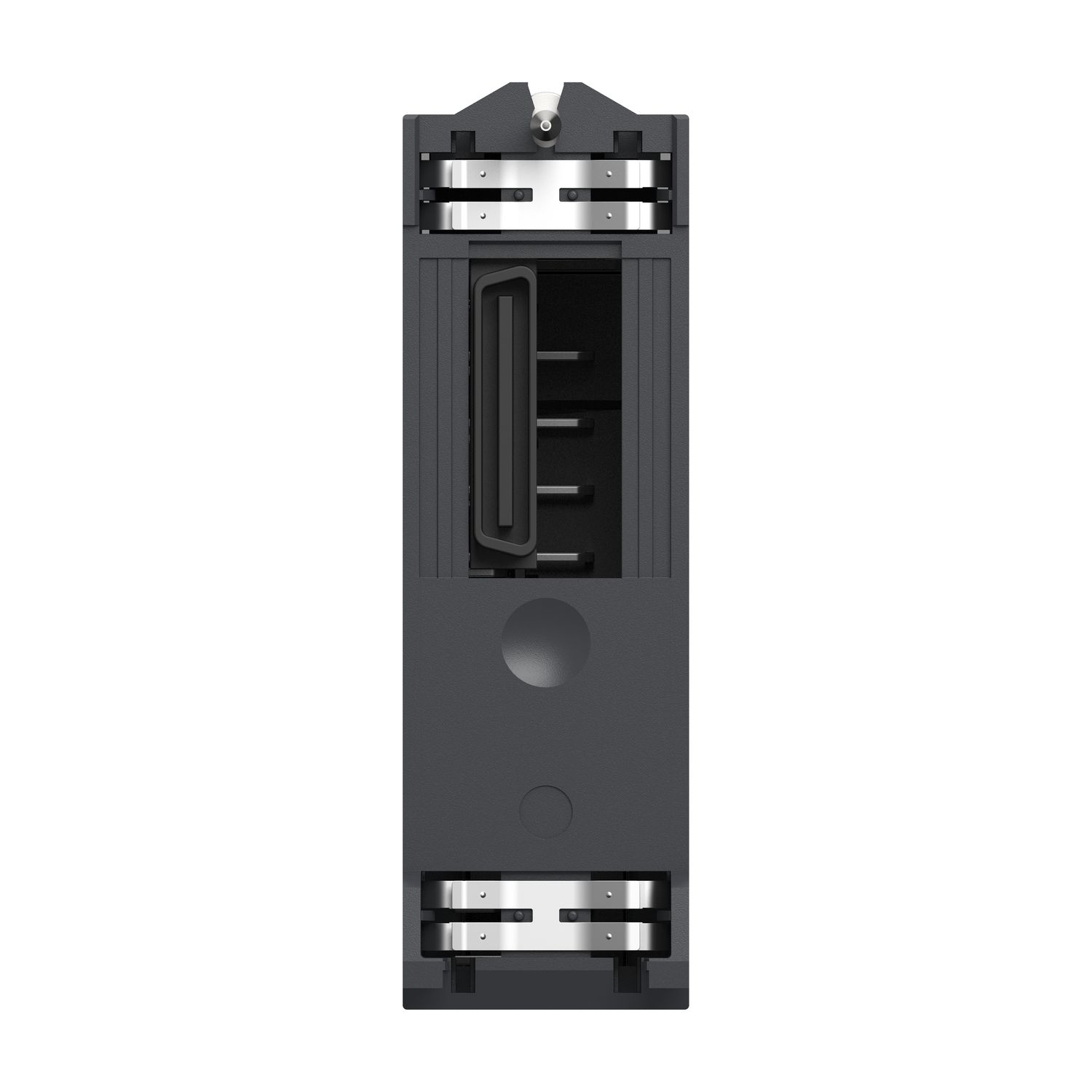

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product specific application | for severe environments |
| Product or component type | discrete output module |
| Discrete output voltage | 12...24 V 10...34 V DC, 24...240 V 19...264 V AC |
| Discrete output number | 8 conforming to EN/IEC 61131-2 |
| Range of product | Modicon X80 |
| Discrete output type | relay |
| Complementary | |
| Response time on output | < 8 ms deactivation, < 10 ms activation |
| Output overload protection | use 1 fast blow fuse per channel or group of channel |
| Output short-circuit protection | use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC |
| Typical current consumption | 79 mA at 3.3 V DC |
| Electrical durability | AC-12: 700000 cycles at 50 VA 24 V at -25-60 °C, AC-12: 700000 cycles at 30 VA 24 V at 70-70 °C, AC-15: 5000000 cycles at 6 VA 48 V at 70-70 °C (load factor 0.35 ), AC-15: 500000 cycles at 24 VA 24 V at -25-60 °C (load factor 0.35 ), AC-15: 500000 cycles at 14.4 VA 24 V at 70-70 °C (load factor 0.35 ), AC-15: 5000000 cycles at 10 VA 48 V at -25-60 °C (load factor 0.35 ), AC-12: 500000 cycles at 66 VA 48 V at 70-70 °C, AC-12: 500000 cycles at 220 VA 110...120 V at -25-60 °C, AC-12: 500000 cycles at 132 VA 110...120 V at 70-70 °C, AC-12: 500000 cycles at 110 VA 48 V at -25-60 °C, AC-15: 3000000 cycles at 50 VA 200...240 V at -25-60 °C (load factor 0.35 ), AC-15: 3000000 cycles at 30 VA 200...240 V at 70-70 °C, DC-12: 300000 cycles at 40 W 24 V at -25-60 °C, DC-12: 300000 cycles at 24 W 24 V at 70-70 °C, DC-13: 2000000 cycles at 6 W 24 V at 70-70 °C, DC-13: 2000000 cycles at 10 W 24 V at -25-60 °C, AC-15: 2000000 cycles at 24 VA 48 V at -25-60 °C (load factor 0.35 ), AC-15: 2000000 cycles at 14.4 VA 48 V at 70-70 °C (load factor 0.35 ), AC-15: 1500000 cycles at 50 VA 110...120 V at -25-60 °C (load factor 0.35 ), AC-15: 1500000 cycles at 30 VA 110...120 V at 70-70 °C (load factor 0.35 ), AC-15: 150000 cycles at 66 VA 110...120 V at 70-70 °C (load factor 0.35 ), AC-15: 150000 cycles at 110 VA 110...120 V at -25-60 °C (load factor 0.35 ), AC-15: 10000000 cycles at 6 VA 200...240 V at 70-70 °C, AC-15: 10000000 cycles at 6 VA 110...120 V at 70-70 °C (load factor 0.35 ), AC-15: 10000000 cycles at 10 VA 200...240 V at -25-60 °C (load factor 0.35 ), AC-15: 10000000 cycles at 10 VA 110...120 V at -25-60 °C (load factor 0.35 ), DC-13: 1000000 cycles at 24 W 24 V at -25-60 °C, DC-13: 1000000 cycles at 14.4 W 24 V at 70-70 °C, DC-12: 1000000 cycles at 24 W 24 V at -25-60 °C, DC-12: 1000000 cycles at 14.4 W 24 V at 70-70 °C, AC-15: 1000000 cycles at 66 VA 200...240 V at 70-70 °C, AC-15: 1000000 cycles at 110 VA 200...240 V at -25-60 °C (load factor 0.35 ), AC-12: 1000000 cycles at 66 VA 110...120 V at 70-70 °C, AC-12: 1000000 cycles at 50 VA 48 V at -25-60 °C, AC-12: 1000000 cycles at 30 VA 48 V at 70-70 °C, AC-12: 1000000 cycles at 220 VA 200...240 V at -25-60 °C, AC-12: 1000000 cycles at 132 VA 200...240 V at 70-70 °C, AC-12: 1000000 cycles at 110 VA 110...120 V at -25-60 °C, AC-15: 100000 cycles at 220 VA 200...240 V at -25-60 °C (load factor 0.35 ), AC-15: 100000 cycles at 132 VA 200...240 V at 70-70 °C |
| Net weight | 0.145 kg |
| Power dissipation in W | 2.7 W |
| [Ith] conventional free air thermal current | 3 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Minimum switching current | 10 mA 5 V DC |
| MTBF reliability | 2119902 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25-70 °C |
