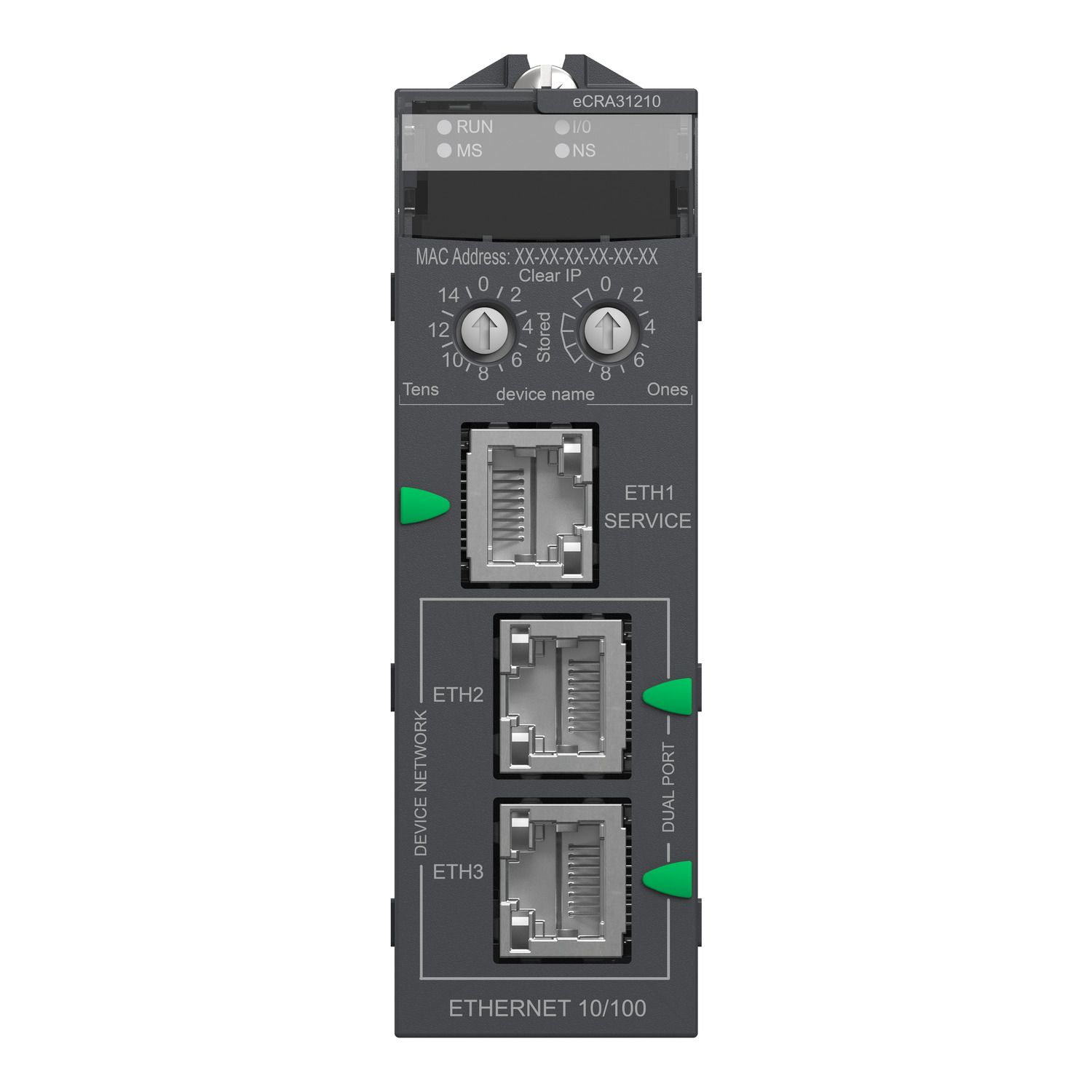

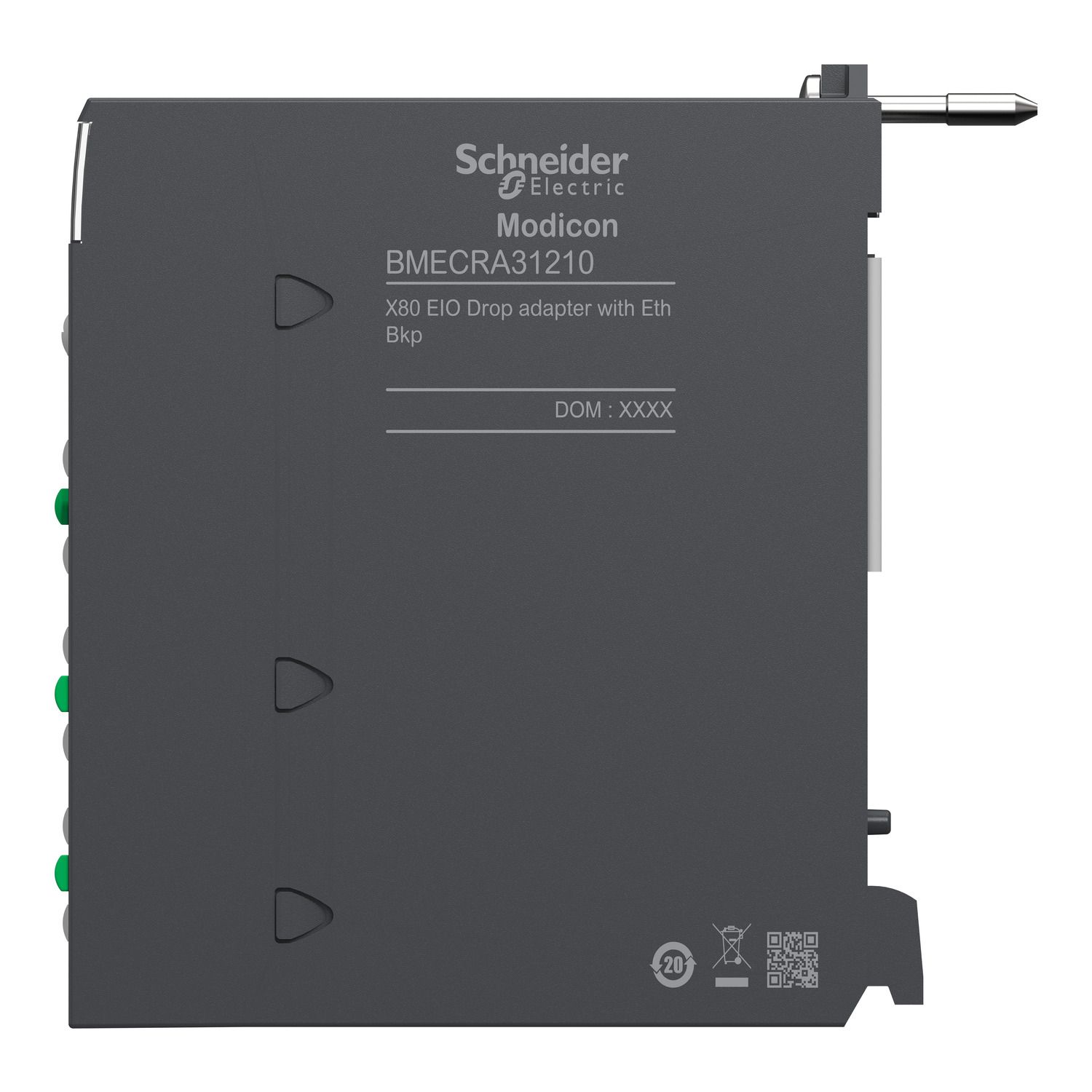

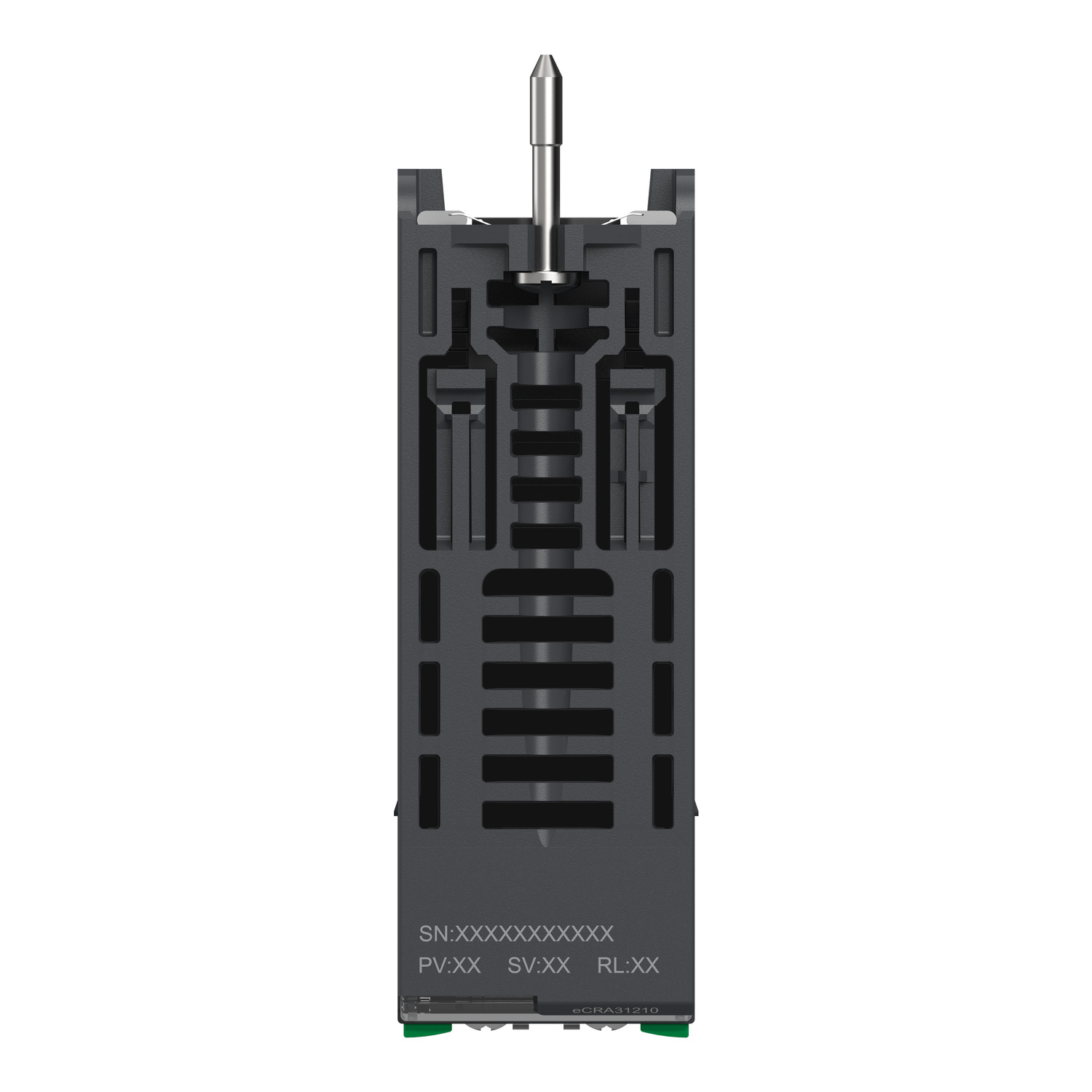

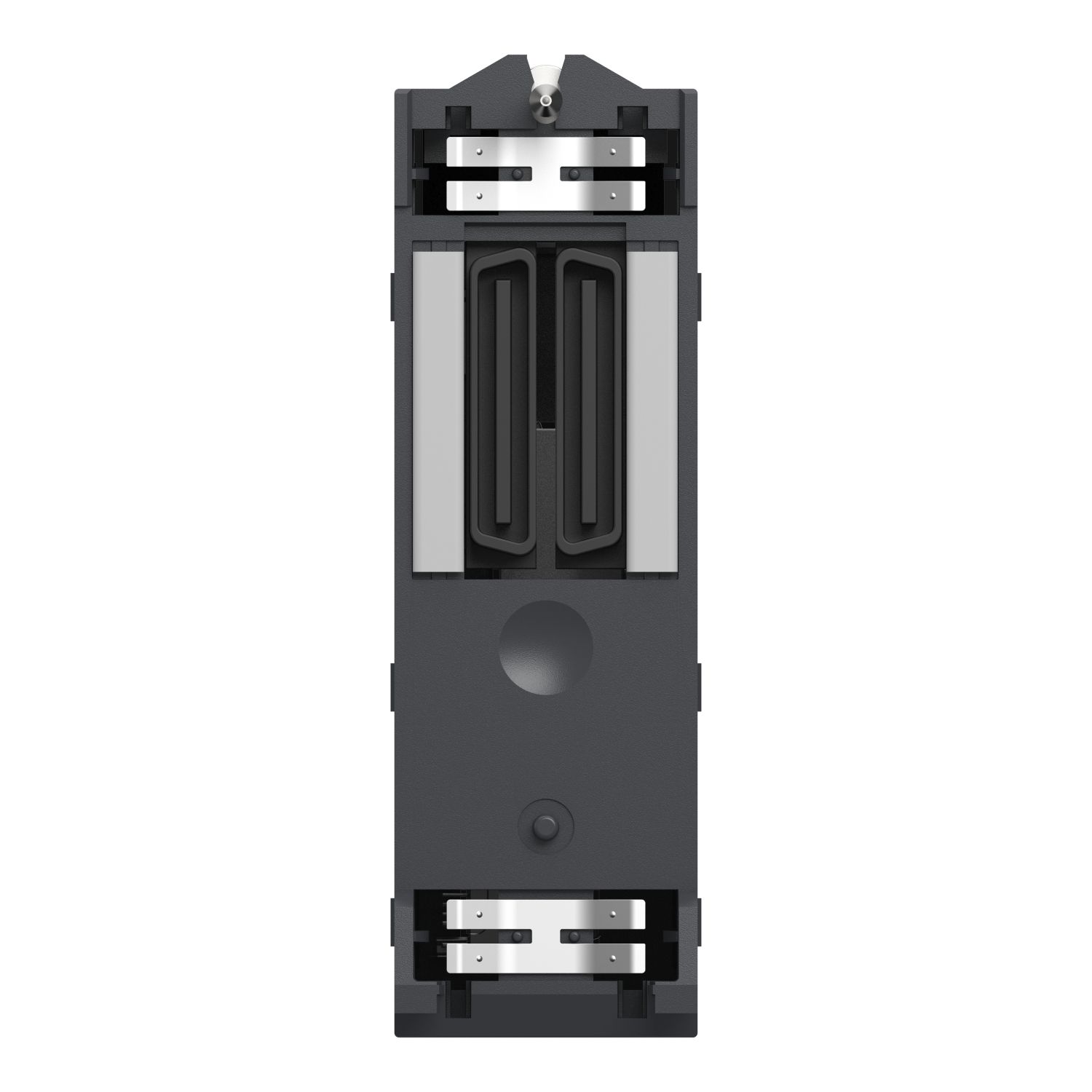

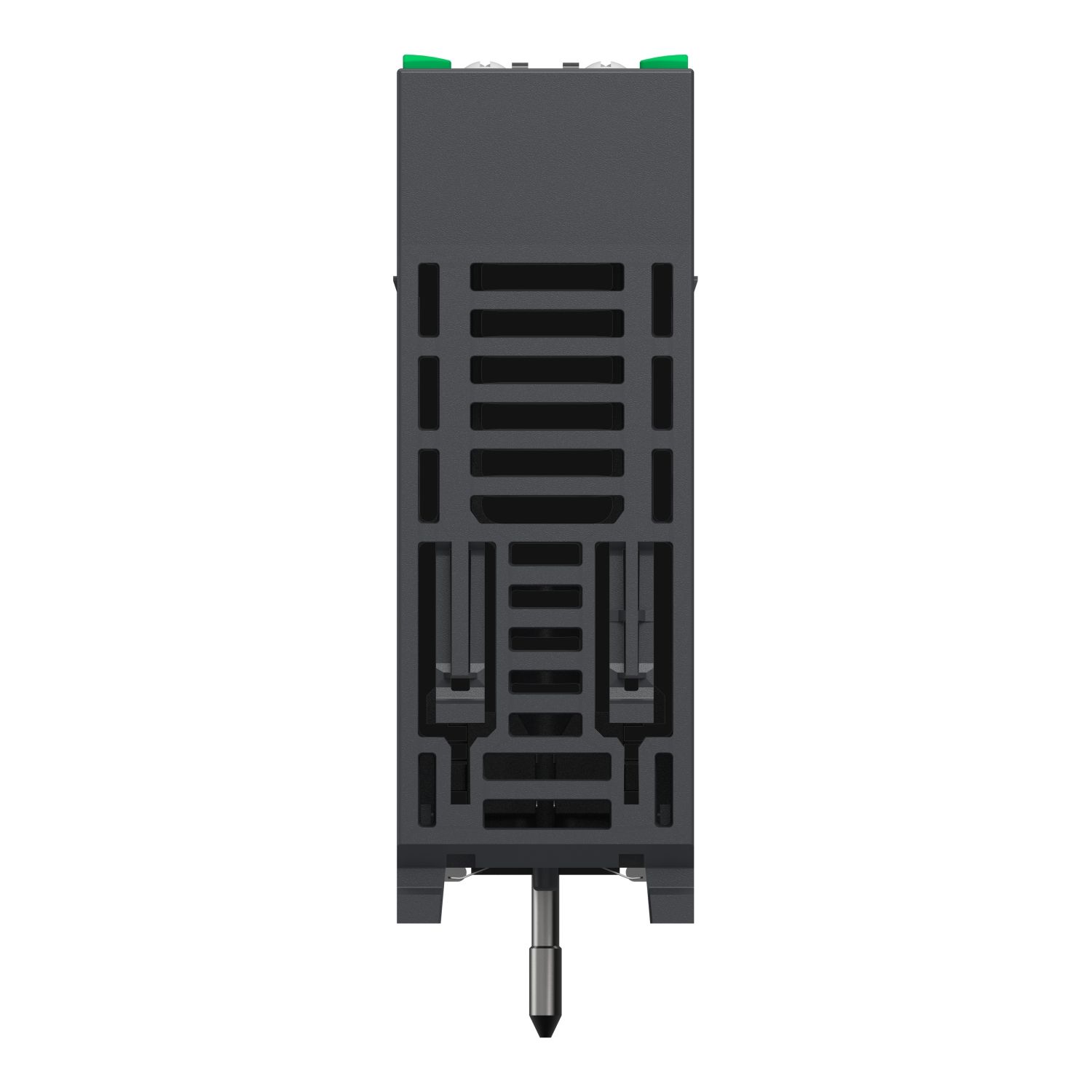

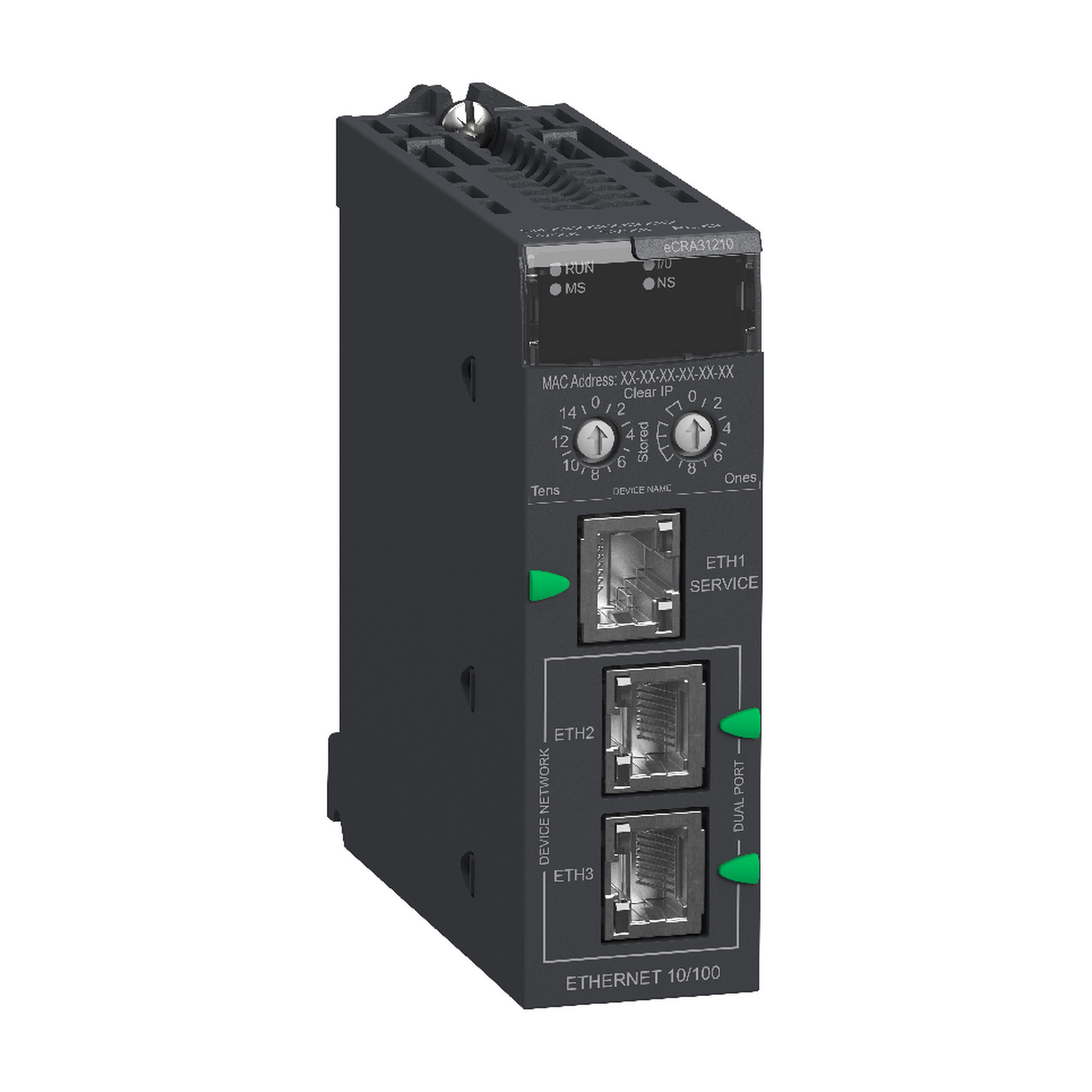

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with Ethernet backplane. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH and weighing module PMESWT. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | X80 Ethernet RIO drop adaptor |
| Range of product | Modicon X80 |
| Range compatibility | Modicon M580 |
| Product specific application | for remote I/O modules |
| Product or component type | I/O expansion module |
| Complementary | |
| Module format | standard |
| Relative humidity | 95-95 % without condensation |
| Input voltage | 3.3 V DC |
| Bus type | Ethernet across the remote backplane, bus X across the remote backplane |
| Number of port | 3 |
| Mounting mode | rack-mounted |
| Function available | I/O extension rack, non-interfering type 1, system time stamping, port mirroring, diagnostics for remote I/O devices (Device DDT), output modules are updated with the data received from remote I/O head adaptor, input data is collected and published to the remote I/O head adaptor, CCOTF (configuration change on the fly) |
| Connector type | 3 RJ45 |
| Topology | ring |
| Exchange mode | half duplex, full duplex, autonegotiation, auto MDIX |
| Communication service | SNMP agent, SNTP client, FDR client, FTP client, TFTP client, DHCP client, Modbus TCP server for module diagnostics, CIP Explicit messaging (server), Quality of Service (QoS), Ethernet RIO network, RSTP (Ring topology support), Ethernet/IP adapter |
| Height | 100 mm |
| Product compatibility | Ethernet switch module, PROFIBUS module (standalone CPU only), CANopen master module (standalone CPU only), weighing module, HART module, fiber converter modules, serial link module, AS-Interface module, frequency input module, motion control module, SSI encoder interface module, time-stamping module, counter module, 0-256 analog channel, 0-1024 discrete channel |
| Maximum altitude transport | 3000 m |
| Depth | 87.5 mm |
| Transmission rate | 10/100 Mbit/s |
| Width | 32 mm |
| Port Ethernet | 10/100BASE-TX |
| Cybersecurity | Syslog protocol support, enable/disable communication ports |
| Data recording | 10 ms time stamps |
| Local signalling | 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN) |
| Integrated connection type | 2 port for Ethernet RIO Network (RSTP), 1 port for service or distributed equipment |
| Communication port protocol | EtherNet/IP |
| Current consumption | 1800 mA |
| Net weight | 0.225 kg |
| Fixing mode | by screws |
| Communication network type | IPv4 (internet protocol) |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Ambient air temperature for operation | -0-60 °C |
| Operating altitude | <= 2000 m |
| Environmental characteristic | standard environment |
