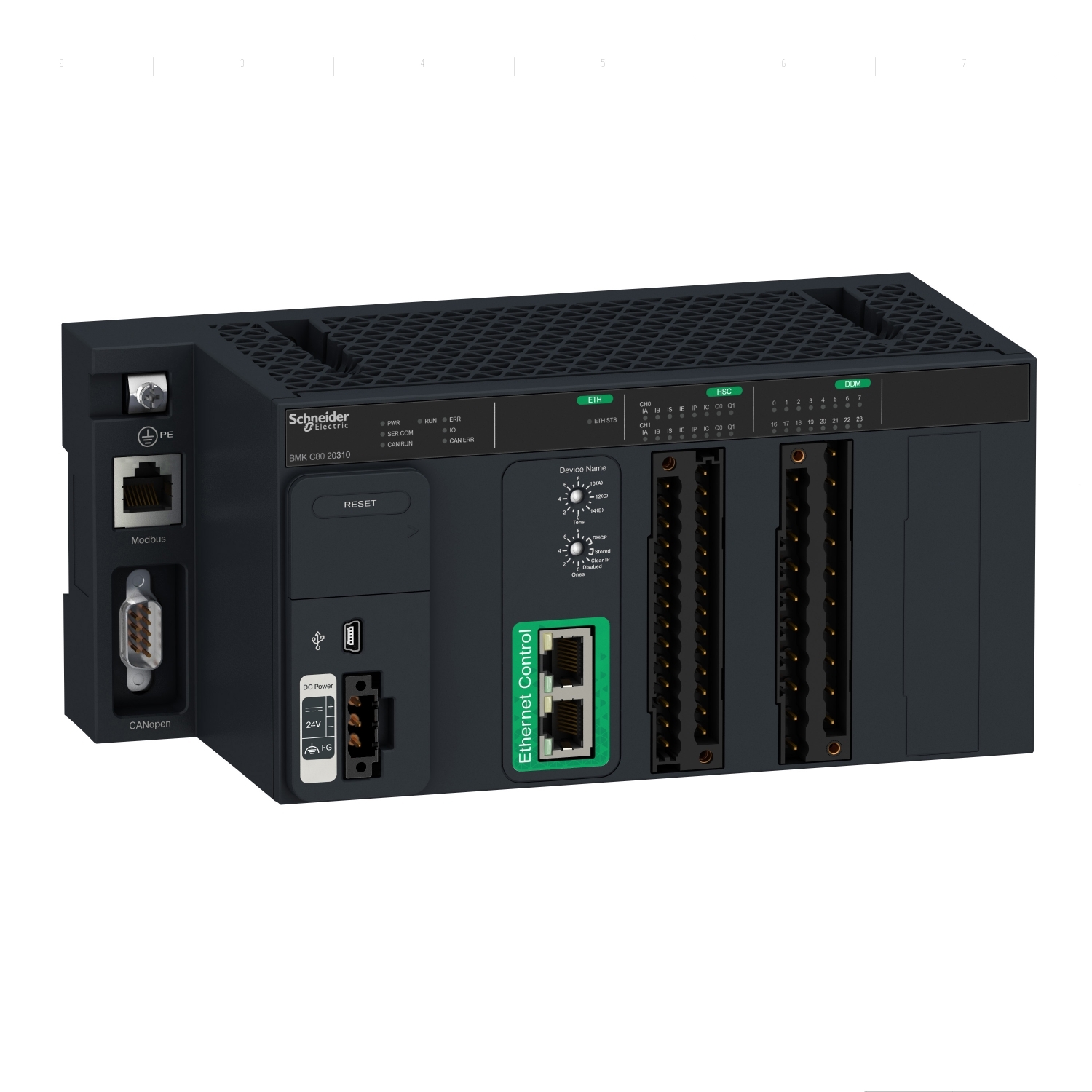

This controller is part of the Modicon MC80 range, an offer of compact processors. It features 8 discrete inputs and 8 discrete outputs, It does not support analog inputs. It provides Modbus, CANopen, and Ethernet connection. It has a 24 V power consumption. EcoStruxure Control Expert programming software is required to set up the Modicon MC80 controller. It weighs 0.980kg. It is fit for thermo solar and tower power applications. Modicon MC80 PLCs comply to IEC, UL, and CSA standards. It is compatible with terminal blocks for high-speed counter and discrete I/O modules. MC80 PLC can be mounted on DIN rails of 35mm wide or on panels. MC80 controllers are completely integrated with the other Modicon controllers, programmed and commissioned with EcoStruxure Control Expert. Modicon MC80 range features automated platform processors which are compact with discrete I/O functions, analog input functions, counting functions, and communication functions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon MC80 |
| Product specific application | thermo solar - tower power |
| Product or component type | processor module |
| Complementary | |
| Memory description | internal RAM 3590 kB program constants and symbols, internal RAM 128 kB data, internal RAM 3840 kB |
| Bus length | 0-100 m, communication port: Ethernet, 0-2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0-20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0-1000 m serial link isolated with external isolation tap, 0-15 m serial link non isolated, 0-10 m serial link non isolated |
| Maximum counting frequency | 60000 Hz |
| Realtime clock | with |
| Number of counter | 2 |
| [Us] rated supply voltage | 24 V - 15...20 % DC |
| Function available | memory retention without battery |
| Input compatibility | 24-24 V 2/3-wire sensor PNP, incremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2-wire/3-wire proximity sensor |
| Discrete output voltage | 19...30 V DC |
| Discrete output current | 500 mA per output |
| Number of inputs | 3-3 high speed, 3-3 auxiliary |
| Protection type | short-circuit protection for output, overload protection for output |
| Communication port protocol | 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices |
| Discrete input voltage | 19...30 V DC |
| Discrete input type | type 3 |
| Number of outputs | 2 positive |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product compatibility | BMXFTB20... terminal block discrete I/O module, BMXFTB28... terminal block high-speed counter module |
| Execution time per instruction | 0.08 µs mixed, 0.06 µs Boolean |
| Sensor power supply | 19-30 V DC |
| Isolation voltage | 1500 V DC |
| Nominal output current | 0.5 A per output |
| Communication service | RSTP support for Ethernet, SNMP for Ethernet, FDR client for Ethernet, Service Data Object (SDO) for CANopen, Process Data Object (PDO) for CANopen, send/receive character string for character mode, diagnostics for Modbus, read/write variables for Modbus |
| Current consumption | <= 700 mA |
| Discrete input current | 5 mA |
| Discrete input number | 8 positive logic (sink) |
| Counter functions | freelarge counting, loop (modulo) counting, measure time periods, one shot counting, frequency meter, ratio count, count events |
| Discrete output number | 8 positive |
| Integrated connection type | USB port: mini B USB connector |
| Logic input | positive (sink) |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 0-95 % |
| Vibration resistance | 3 gn |
| Marking | CE |
| Ambient air temperature for operation | -25-70 °C |
| Standards | IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | RCM |
