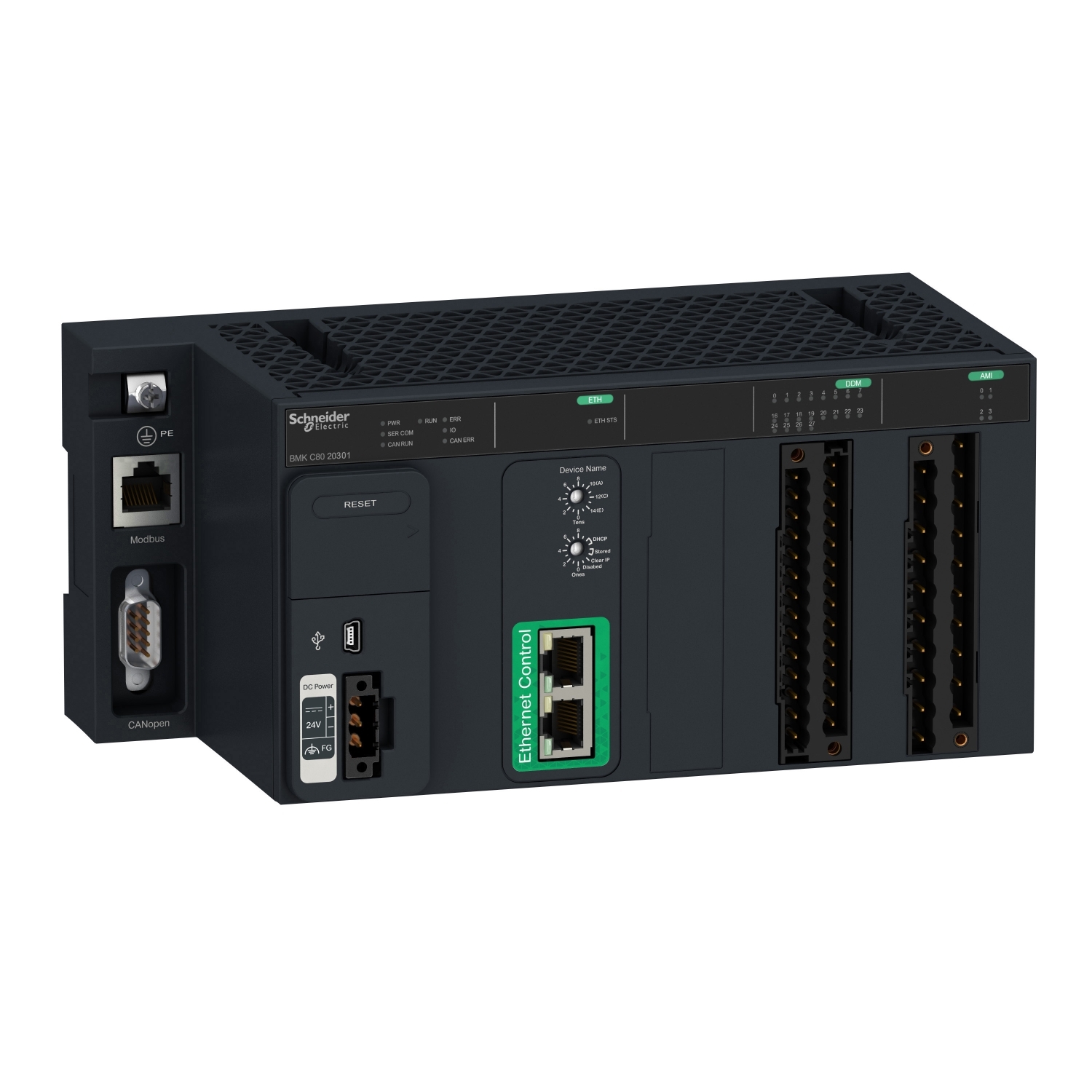

This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. It integrates 4 channels for analog inputs in addition to discrete I/O channels. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.05kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal blocks with 20 or 28 pins Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon MC80 |
| Product specific application | thermo solar - parabolic through |
| Product or component type | processor module |
| Complementary | |
| Memory description | internal RAM 3590 kB program constants and symbols, internal RAM 128 kB data, internal RAM 3840 kB |
| Bus length | 0-100 m, communication port: Ethernet, 0-2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0-20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0-1000 m serial link isolated with external isolation tap, 0-15 m serial link non isolated, 0-10 m serial link non isolated |
| Realtime clock | with |
| Analogue input resolution | 16 bits |
| Fast read cycle time | 1.3 ms + 1.3 ms x number of channels used |
| [Us] rated supply voltage | 24 V - 15...20 % DC |
| Function available | memory retention without battery |
| Discrete output voltage | 19...30 V DC |
| Discrete output current | 10 A per module, 2 A per output |
| Protection type | short-circuit protection for output, overload protection for output |
| Communication port protocol | 2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices |
| Discrete input voltage | 19...30 V DC |
| Discrete input type | type 3 |
| Analogue input type | voltage, input range: - 10...10 V, current, input range: - 20...20 mA |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product compatibility | BMXFTB28... terminal block discrete I/O module, BMXFTB20... terminal block analog input module |
| Nominal read cycle time | 6.5 ms for 4 channels |
| Execution time per instruction | 0.08 µs mixed, 0.06 µs Boolean |
| Isolation voltage | 1500 V DC |
| Analogue input number | 4 |
| Communication service | RSTP support for Ethernet, SNMP for Ethernet, FDR client for Ethernet, Service Data Object (SDO) for CANopen, Process Data Object (PDO) for CANopen, send/receive character string for character mode, diagnostics for Modbus, read/write variables for Modbus |
| Current consumption | <= 700 mA |
| Discrete input current | 2.4 mA |
| Discrete input number | 8 positive logic (sink) |
| Discrete output number | 12 positive |
| Integrated connection type | USB port: mini B USB connector |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 0-95 % |
| Vibration resistance | 3 gn |
| Marking | CE |
| Ambient air temperature for operation | -25-70 °C |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | RCM |
