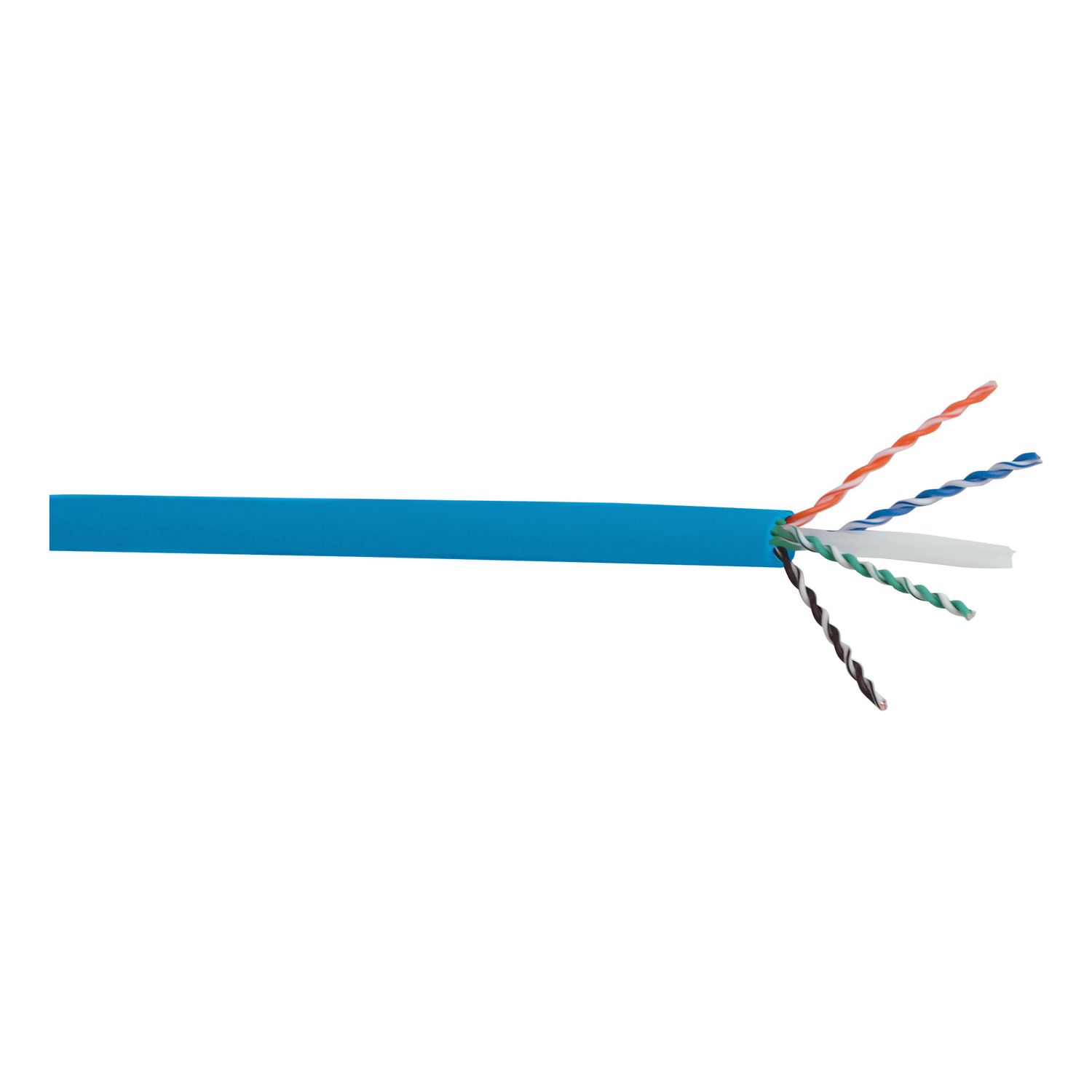

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Actassi |
| Cable shielding type | U/UTP |
| Product or component type | copper cable |
| Colour tint | blue |
| Complementary | |
| Communication network category | 6<sub>A</sub> |
| Wire insulation material | PE |
| Cable weight | 17 kg |
| Maximum loop resistance | 72 Ohm |
| Type of cable | 4 pair cables |
| Cable outer diameter | 7.3 mm |
| Cable length | 305 m |
| Attenuation | Guaranteed: 45.3 dB @ 500 MHz per 100 m cable, Guaranteed: 40.1 dB @ 400 MHz per 100 m cable, Guaranteed: 34.3 dB @ 300 MHz per 100 m cable, Guaranteed: 31.1 dB @ 250 MHz per 100 m cable, Guaranteed: 27.6 dB @ 200 MHz per 100 m cable, Guaranteed: 9.1 dB @ 100 MHz per 100 m cable, Guaranteed: 15 dB @ 62.5 MHz per 100 m cable, Guaranteed: 10.5 dB @ 31.25 MHz per 100 m cable, Guaranteed: 9.4 dB @ 25 MHz per 100 m cable, Guaranteed: 8.4 dB @ 20 MHz per 100 m cable, Guaranteed: 7.5 dB @ 16 MHz per 100 m cable, Guaranteed: 5.9 dB @ 10 MHz per 100 m cable, Guaranteed: 5.3 dB @ 8 MHz per 100 m cable, Guaranteed: 3.8 dB @ 4 MHz per 100 m cable, Guaranteed: 2.1 dB @ 1 MHz per 100 m cable |
| Conductor material | solid bare copper |
| Minimum return loss | Guaranteed: 15.2 dB at 500 kHz, Guaranteed: 15.9 dB at 400 kHz, Guaranteed: 16.8 dB at 300 kHz, Guaranteed: 17.3 dB at 250 kHz, Guaranteed: 18 dB at 200 kHz, Guaranteed: 20.1 dB at 100 kHz, Guaranteed: 21.5 dB at 62.5 kHz, Guaranteed: 23.6 dB at 31.25 kHz, Guaranteed: 24.3 dB at 25 kHz, Guaranteed: 25 dB at 20 kHz, Guaranteed: 25 dB at 16 kHz, Guaranteed: 25 dB at 10 kHz, Guaranteed: 24.5 dB at 8 kHz, Guaranteed: 23 dB at 4 kHz, Guaranteed: 20 dB at 1 kHz |
| Capacitance unbalance | 330 pF / 100 m |
| AWG gauge | AWG 23 |
| Input impedance | 100 Ohm (+/- 22 %) at 100-250 MHz, 100 Ohm (+/- 15 %) at 1-100 MHz |
| Power sum attenuation to alien crosstalk ratio far-end [PSAACRF] | 24.2 dB at 500 MHz, 26.2 dB at 400 MHz, 28.7 dB at 300 MHz, 30.2 dB at 250 MHz, 32.2 dB at 200 MHz, 38.2 dB at 100 MHz, 42.3 dB at 62.5 MHz, 48.3 dB at 31.25 MHz, 50.2 dB at 25 MHz, 52.2 dB at 20 MHz, 54.1 dB at 16 MHz, 58.2 dB at 10 MHz, 60.1 dB at 8 MHz, 66.2 dB at 4 MHz |
| Near end crosstalk [NEXT] | Guaranteed: 33.8 dB at 500 MHz , Guaranteed: 35.3 dB at 400 MHz , Guaranteed: 37.1 dB at 300 MHz , Guaranteed: 38.3 dB at 250 MHz , Guaranteed: 39.8 dB at 200 MHz , Guaranteed: 44.3 dB at 100 MHz , Guaranteed: 47.4 dB at 62.5 MHz , Guaranteed: 51.9 dB at 31.25 MHz , Guaranteed: 53.3 dB at 25 MHz , Guaranteed: 54.8 dB at 20 MHz , Guaranteed: 56.2 dB at 16 MHz , Guaranteed: 59.3 dB at 10 MHz , Guaranteed: 60.8 dB at 8 MHz , Guaranteed: 65.3 dB at 4 MHz , Guaranteed: 74.3 dB at 1 MHz |
| Power sum alien near-end crosstalk [PSANEXT] | 52 dB at 500 MHz, 53.5 dB at 400 MHz, 55.3 dB at 300 MHz, 56.5 dB at 250 MHz, 58 dB at 200 MHz, 65.6 dB at 100 MHz, 65.6 dB at 62.5 MHz, 67 dB at 31.25 MHz, 67 dB at 25 MHz, 67 dB at 20 MHz, 67 dB at 16 MHz, 67 dB at 10 MHz, 67 dB at 8 MHz, 67 dB at 4 MHz, 67 dB at 1 MHz |
| Environment | |
| Flame retardance | CM |
| Standards | ISO/IEC 11801 Ea, ANSI/TIA-568-C.2 |
| Ambient air temperature for operation | 75-75 °C |
