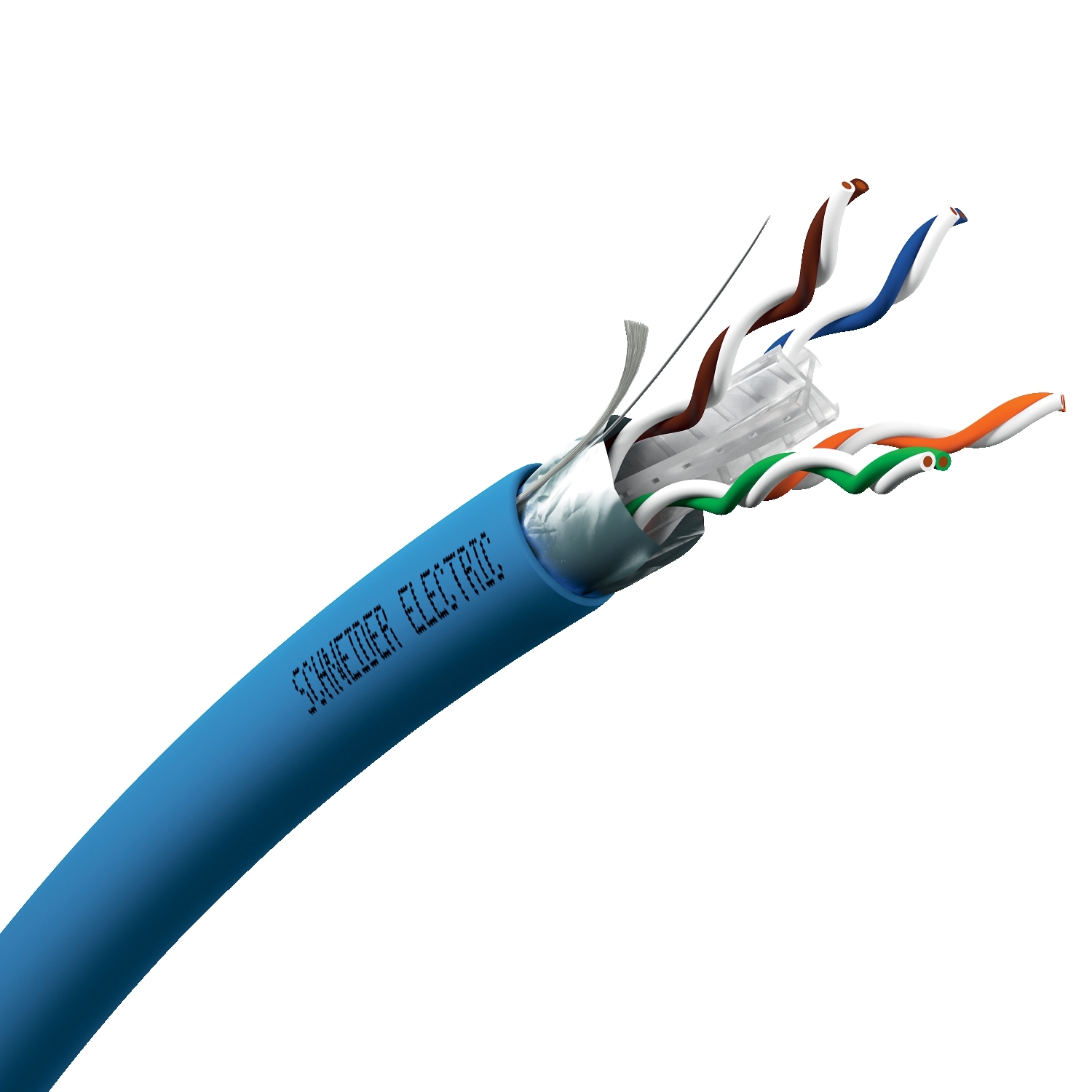

This cable Actassi Cat 6A 4-pair cable is a high quality product delivering excellent network performance when using in conjunction with other Actassi Cat 6A products. The Cat 6A cable consists of 4 pairs of solid insulated copper 23 AWG. The cable provides a significant margin above the Category 6A Alien Crosstalk (ANEXT).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Actassi |
| Cable shielding type | F/UTP |
| Product or component type | copper cable |
| Colour tint | blue |
| Complementary | |
| Minimum return loss | Guaranteed: 15.2 dB at 500 kHz, Guaranteed: 15.9 dB at 400 kHz, Guaranteed: 16.8 dB at 300 kHz, Guaranteed: 17.3 dB at 250 kHz, Guaranteed: 18 dB at 200 kHz, Guaranteed: 20.1 dB at 100 kHz, Guaranteed: 21.5 dB at 62.5 kHz, Guaranteed: 23.6 dB at 31.25 kHz, Guaranteed: 24.3 dB at 25 kHz, Guaranteed: 25 dB at 20 kHz, Guaranteed: 25 dB at 16 kHz, Guaranteed: 25 dB at 10 kHz, Guaranteed: 24.5 dB at 8 kHz, Guaranteed: 23 dB at 4 kHz, Guaranteed: 20 dB at 1 kHz |
| Communication network category | 6<sub>A</sub> |
| Wire insulation material | PE |
| Capacitance unbalance | 330 pF / 100 m |
| AWG gauge | AWG 23 |
| Cable weight | 17 kg |
| Maximum loop resistance | 72 Ohm |
| Input impedance | 100 Ohm (+/- 22 %) at 100-250 MHz, 100 Ohm (+/- 15 %) at 1-100 MHz |
| Type of cable | 4 pair cables |
| Power sum attenuation to alien crosstalk ratio far-end [PSAACRF] | 24.2 dB at 500 MHz, 26.2 dB at 400 MHz, 28.7 dB at 300 MHz, 30.2 dB at 250 MHz, 32.2 dB at 200 MHz, 38.2 dB at 100 MHz, 42.3 dB at 62.5 MHz, 48.3 dB at 31.25 MHz, 50.2 dB at 25 MHz, 52.2 dB at 20 MHz, 54.1 dB at 16 MHz, 58.2 dB at 10 MHz, 60.1 dB at 8 MHz, 66.2 dB at 4 MHz |
| Cable outer diameter | 7.3 mm |
| Cable length | 305 m |
| Attenuation | Guaranteed: 45.3 dB @ 500 MHz per 100 m cable, Guaranteed: 40.1 dB @ 400 MHz per 100 m cable, Guaranteed: 34.3 dB @ 300 MHz per 100 m cable, Guaranteed: 31.1 dB @ 250 MHz per 100 m cable, Guaranteed: 27.6 dB @ 200 MHz per 100 m cable, Guaranteed: 9.1 dB @ 100 MHz per 100 m cable, Guaranteed: 15 dB @ 62.5 MHz per 100 m cable, Guaranteed: 10.5 dB @ 31.25 MHz per 100 m cable, Guaranteed: 9.4 dB @ 25 MHz per 100 m cable, Guaranteed: 8.4 dB @ 20 MHz per 100 m cable, Guaranteed: 7.5 dB @ 16 MHz per 100 m cable, Guaranteed: 5.9 dB @ 10 MHz per 100 m cable, Guaranteed: 5.3 dB @ 8 MHz per 100 m cable, Guaranteed: 3.8 dB @ 4 MHz per 100 m cable, Guaranteed: 2.1 dB @ 1 MHz per 100 m cable |
| Near end crosstalk [NEXT] | Guaranteed: 33.8 dB at 500 MHz , Guaranteed: 35.3 dB at 400 MHz , Guaranteed: 37.1 dB at 300 MHz , Guaranteed: 38.3 dB at 250 MHz , Guaranteed: 39.8 dB at 200 MHz , Guaranteed: 44.3 dB at 100 MHz , Guaranteed: 47.4 dB at 62.5 MHz , Guaranteed: 51.9 dB at 31.25 MHz , Guaranteed: 53.3 dB at 25 MHz , Guaranteed: 54.8 dB at 20 MHz , Guaranteed: 56.2 dB at 16 MHz , Guaranteed: 59.3 dB at 10 MHz , Guaranteed: 60.8 dB at 8 MHz , Guaranteed: 65.3 dB at 4 MHz , Guaranteed: 74.3 dB at 1 MHz |
| Power sum alien near-end crosstalk [PSANEXT] | 52 dB at 500 MHz, 53.5 dB at 400 MHz, 55.3 dB at 300 MHz, 56.5 dB at 250 MHz, 58 dB at 200 MHz, 65.6 dB at 100 MHz, 65.6 dB at 62.5 MHz, 67 dB at 31.25 MHz, 67 dB at 25 MHz, 67 dB at 20 MHz, 67 dB at 16 MHz, 67 dB at 10 MHz, 67 dB at 8 MHz, 67 dB at 4 MHz, 67 dB at 1 MHz |
| Conductor material | solid bare copper |
| Environment | |
| Flame retardance | CM |
| Standards | ANSI/TIA-568-C.2, ISO/IEC 11801 Ea |
| Ambient air temperature for operation | 75-75 °C |
