This MNs product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 220VAC to 240VAC with a 50/60Hz frequency. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MNs |
| Product compatibility | iDPN, C120, C40, IDc, ID C40, DT60, DT40, DPN Vigi, ITG40, C60 |
| Control type | delayed |
| Range | Acti9 |
| Product or component type | undervoltage release |
| 9 mm pitches | 2 |
| Range of product | DPN Vigi, DPN, C120, C60, Clario, Librio, ProDis, ID |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m bottom |
| Depth | 73.5 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Colour | white |
| Local signalling | action indicator |
| Compatibility code | MNs |
| Mounting mode | fixed |
| Connections - terminals | screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible |
| Wire stripping length | 9 mm for bottom connection |
| Net weight | 66 g |
| Comb busbar and distribution block compatibility | top: YES |
| Range compatibility | Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 82.5 mm |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | ASEFA, KEMA, ASTA, LCIE |
Only registered users can write reviews
Related products
Miniature circuit breaker (MCB), Acti9, C120N, 1P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18358
Miniature circuit breaker (MCB), Acti9, C120N, 1P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$100.76 inc GST
$35.18 inc GST

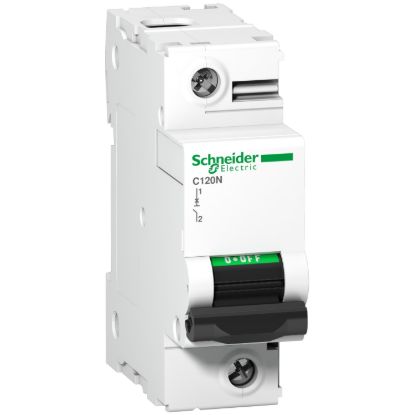

Miniature circuit breaker (MCB), Acti9, C120N, 1P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18357
Miniature circuit breaker (MCB), Acti9, C120N, 1P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$100.76 inc GST
$35.18 inc GST
Miniature circuit breaker (MCB), Acti9, C120N, 2P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18362
Miniature circuit breaker (MCB), Acti9, C120N, 2P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$218.24 inc GST
$76.20 inc GST

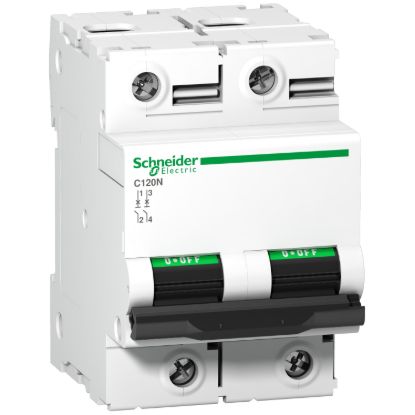

Miniature circuit breaker (MCB), Acti9, C120N, 2P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18361
Miniature circuit breaker (MCB), Acti9, C120N, 2P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$218.24 inc GST
$76.20 inc GST

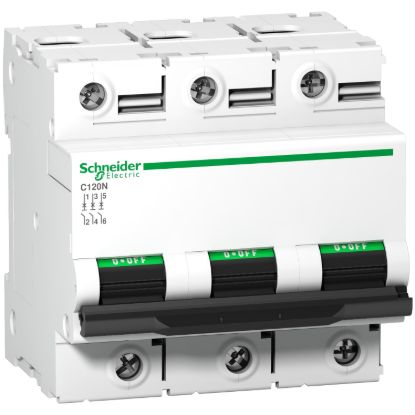

Miniature circuit breaker (MCB), Acti9, C120N, 3P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18367
Miniature circuit breaker (MCB), Acti9, C120N, 3P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$272.80 inc GST
$95.25 inc GST
Miniature circuit breaker (MCB), Acti9, C120N, 3P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18365
Miniature circuit breaker (MCB), Acti9, C120N, 3P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$272.80 inc GST
$95.25 inc GST
Miniature circuit breaker (MCB), Acti9, C120N, 4P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
A9N18374
Miniature circuit breaker (MCB), Acti9, C120N, 4P, 100A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
$545.60 inc GST
$190.50 inc GST

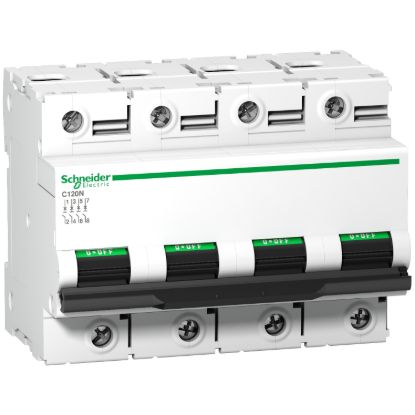

Miniature circuit breaker (MCB), Acti9, C120N, 4P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
