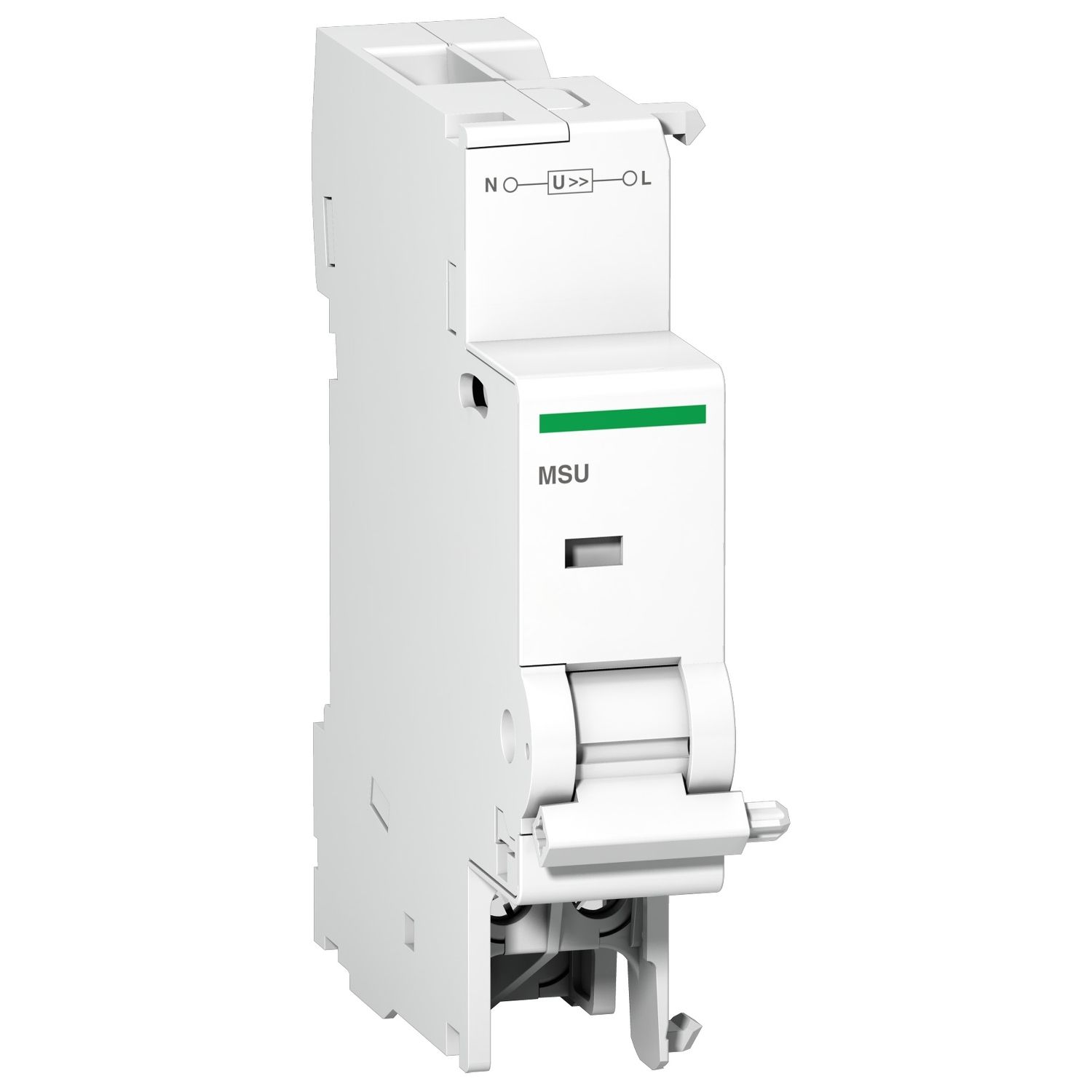

This MSU product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 230VAC with a 50/60Hz frequency. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MSU |
| Product compatibility | DT40, ITG40, DPN Vigi, iDPN, C60, C40, C120, ID C40, IDc |
| Threshold tripping voltage | 400 V 0.07...0.2 s, 350 V 0.25...0.75 s, 300 V 1...5 s, 275 V 3...15 s, 255 V |
| Range | Acti9 |
| Product or component type | overvoltage release |
| 9 mm pitches | 2 |
| Range of product | ID, DPN Vigi, Librio, Clario, C120, ProDis, DPN |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m bottom |
| Depth | 73.5 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Colour | white |
| Local signalling | action indicator |
| Compatibility code | MSU |
| Mounting mode | fixed |
| Connections - terminals | screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible |
| Wire stripping length | 10 mm for bottom connection, 9 mm |
| Net weight | 66 g |
| Comb busbar and distribution block compatibility | top: YES |
| Range compatibility | Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 82.5 mm |
| Environment | |
| Quality labels | CE |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN 50550 |
| Ambient air temperature for operation | -25-50 °C |
