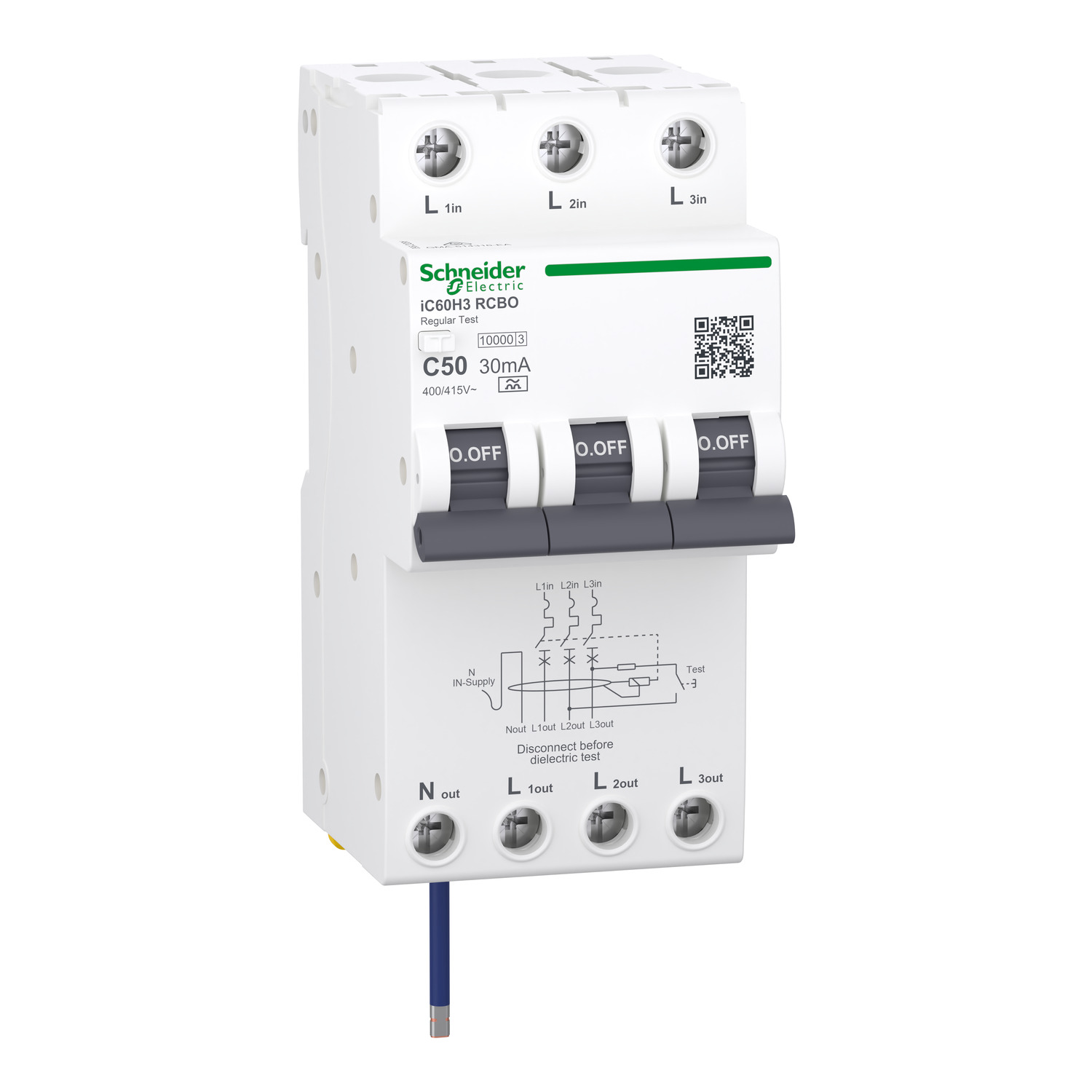

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+Ns circuit breaker with 3 protected pole,50A In rated current and C tripping curve The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with AS/NZS 61009.1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400/ 415 VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz/60Hz It is DIN rail or Chassis mountable. The width in 9mm pitches is 6. The product color is white (RAL9003). The dimensions are (W) 54mm x (H) 112mm x (D) 77.2mm. The weight is 462g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) The operating temperature is from -5°C to +60°C. The storage temperature is from -25°C to +70°C.
