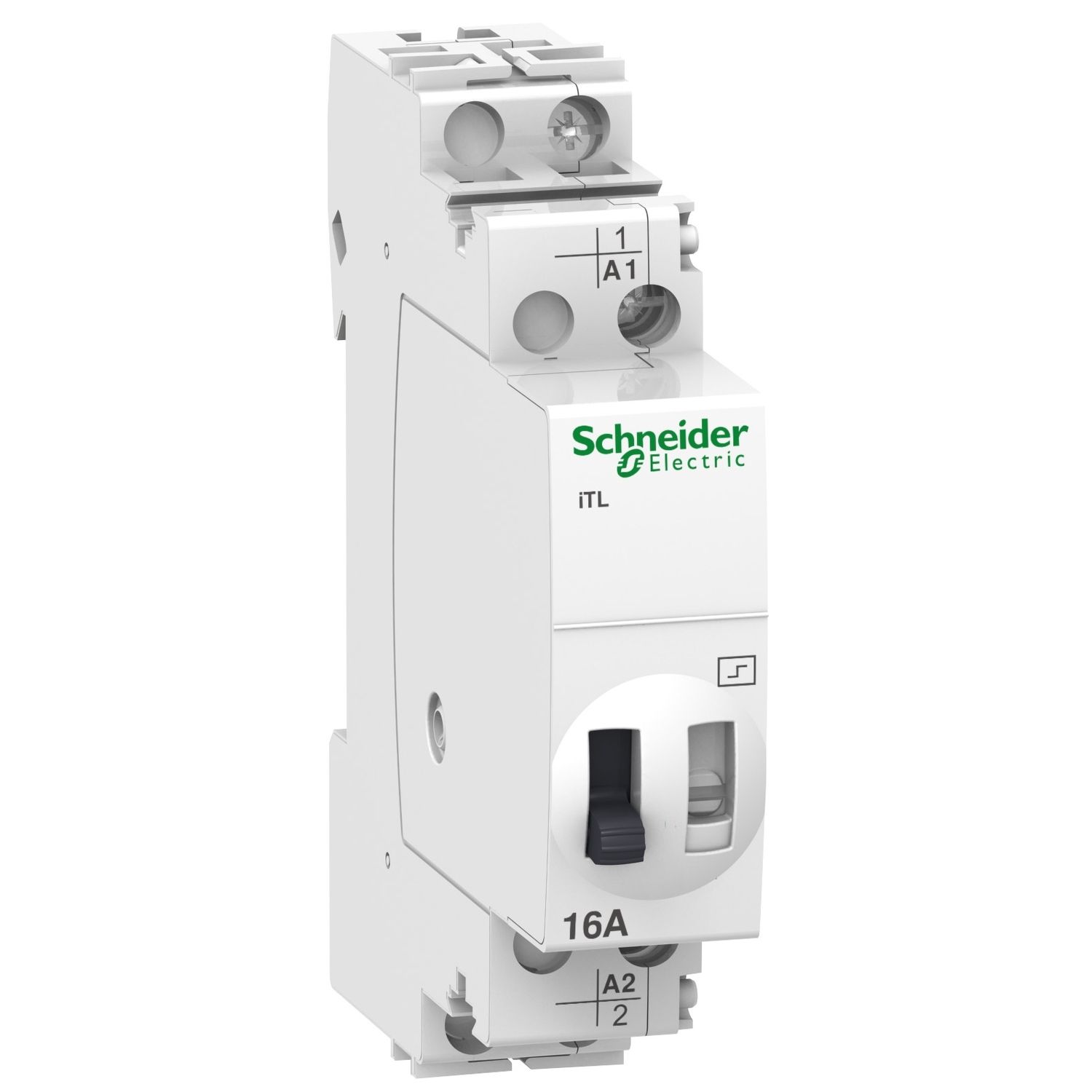

This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 24VAC or 12VDC control voltage. Electrical endurance goes up to 200000 cycles AC-21 or 100000 cycles AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | standard |
| Network type | AC |
| Device short name | iTL |
| Range | Acti9 |
| Range of product | iTL |
| Poles description | 1P |
| Pole contact composition | 1 NO |
| Product name | Acti9 iTL |
| Product or component type | impulse relay |
| [Uc] control circuit voltage | 12 V DC, 24 V AC 50/60 Hz |
| [In] rated current | 16 A |
| Complementary | |
| Compatibility code | iTL |
| Electrical durability | AC-22: 100000 cycles, AC-21: 200000 cycles |
| Control signal type | impulse |
| Switching frequency | 100 switching operations/day, 5 switching operations/minute |
| Connections - terminals | power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible with ferrule, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid with cable end, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible with ferrule, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid with cable end, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid |
| Height | 84 mm |
| Market segment | small commercial, residential |
| 9 mm pitches | 2 |
| Range compatibility | Acti 9 iATLc+c, Acti 9 iETL iTL 16, Acti 9 iATLs, Acti 9 iATLm, Acti 9 iATLc+s, Acti 9 iATLc, Acti 9 iATEt |
| Tightening torque | 1-1 N.m |
| Mounting mode | fixed |
| Impulse duration | 50 ms...1 s |
| Control type | remote and manual control, coil deconnection |
| Wire stripping length | 11 mm |
| Remote control type | illuminated push-button 3 mA |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Depth | 60 mm |
| Width | 18 mm |
| Local signalling | ON/OFF indication |
| Mounting support | DIN rail |
| Network frequency | 50/60 Hz |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| Tropicalisation | 2 |
| Quality labels | CEBEC, IMQ, KEMA, NF, VDE |
| Product certifications | GOST |
| IP degree of protection | IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening) |
| Pollution degree | 3 |
| Noise level | 60 dB |
| Ambient air temperature for operation | -20-50 °C |
| Standards | EN 669-2-2, EN 669-1 |
