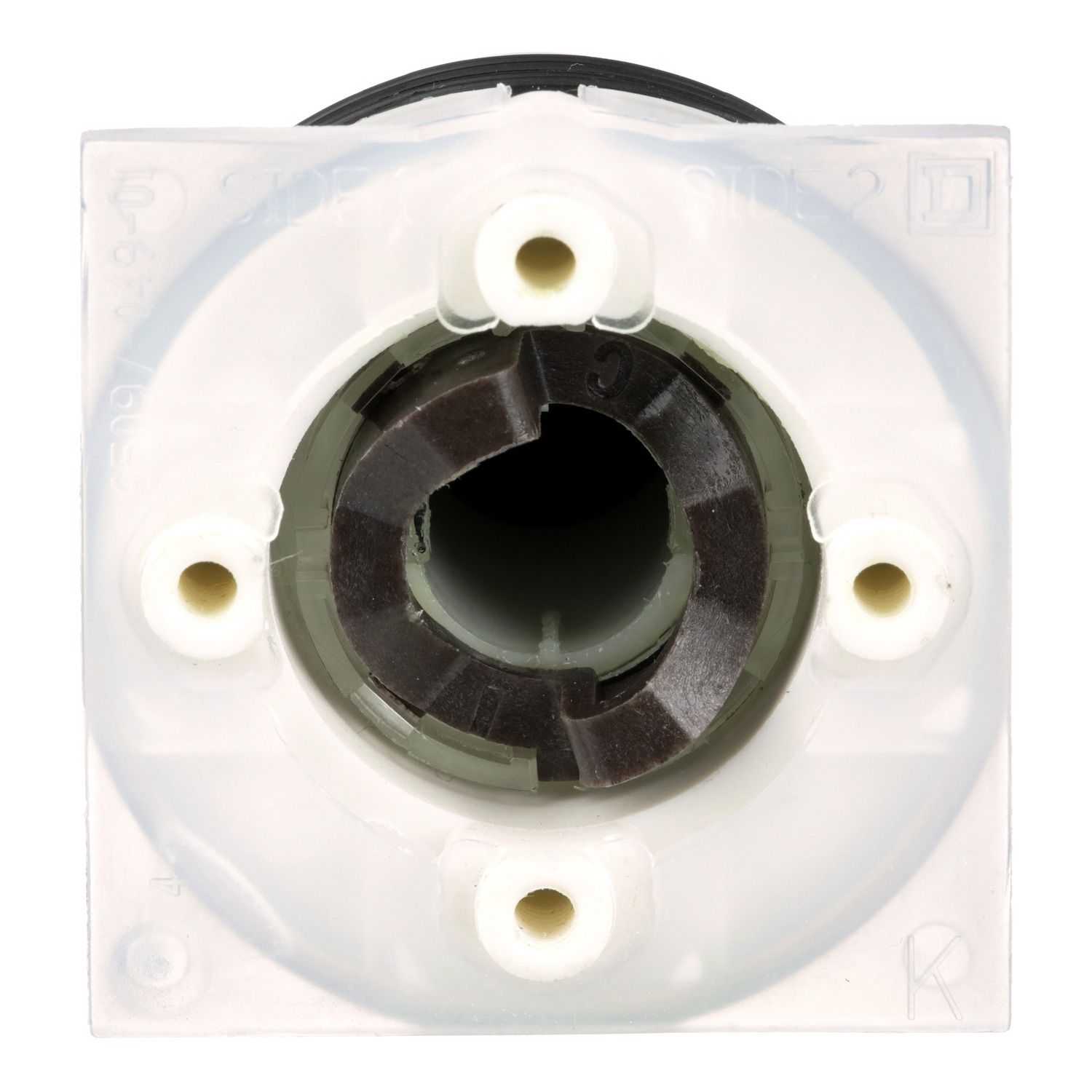

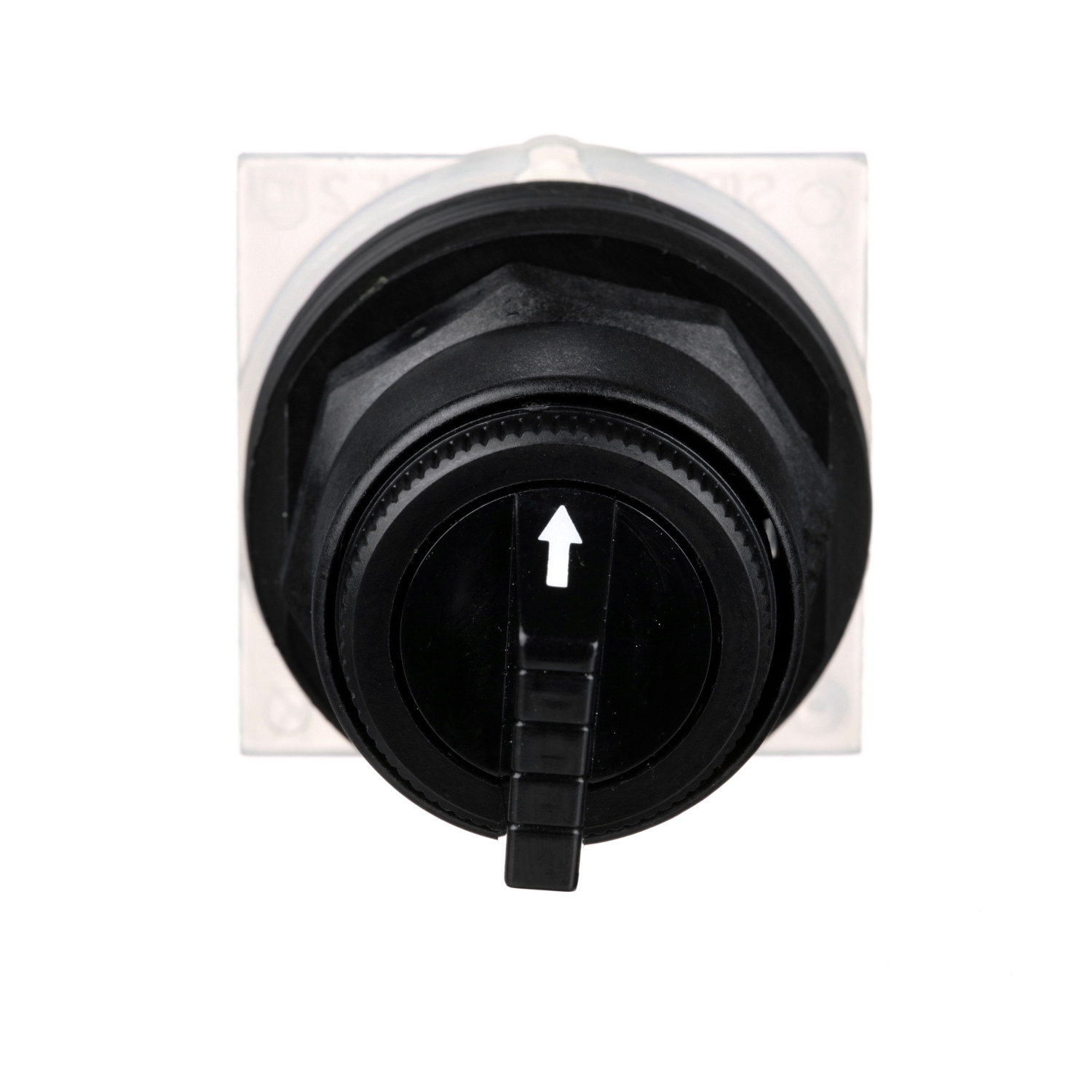

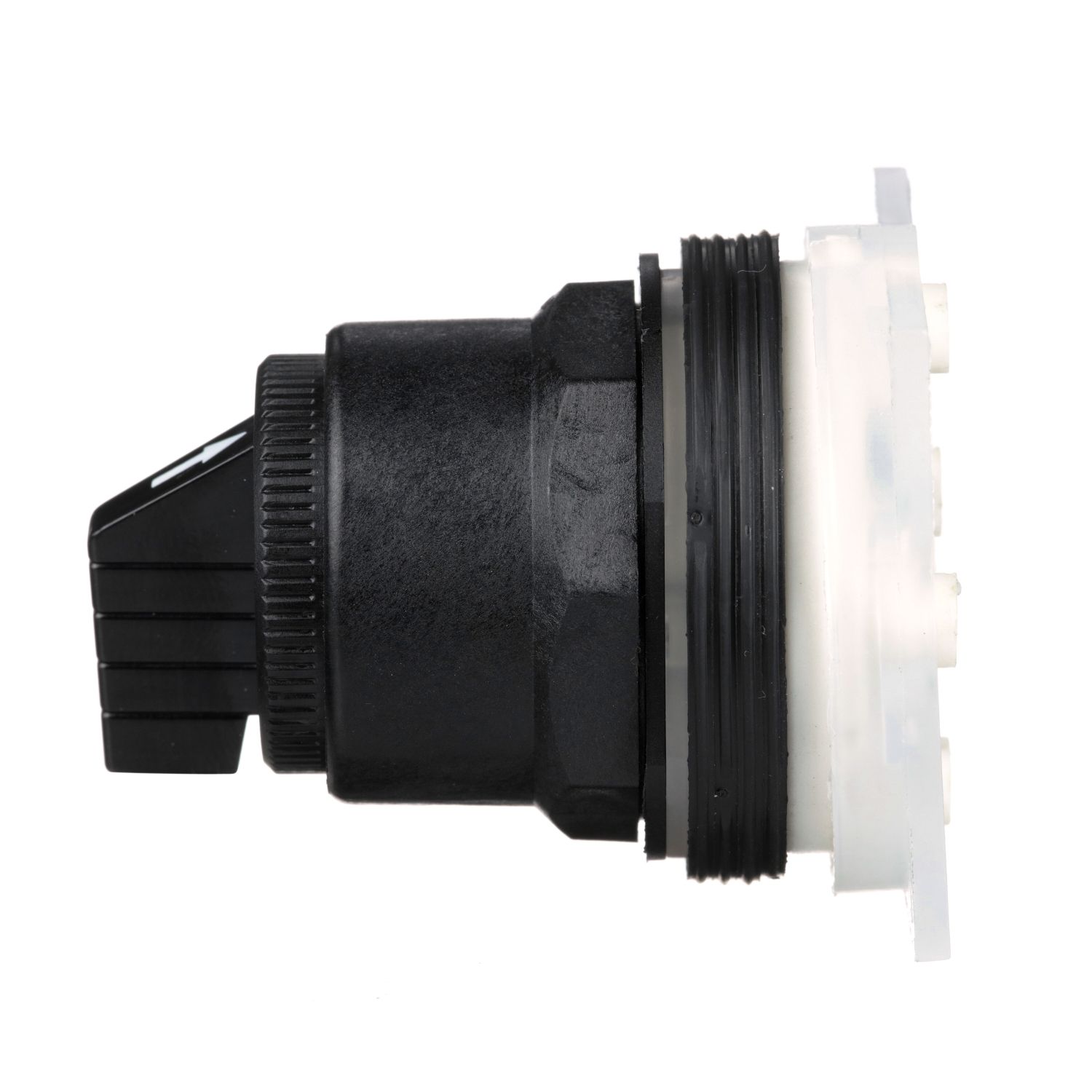

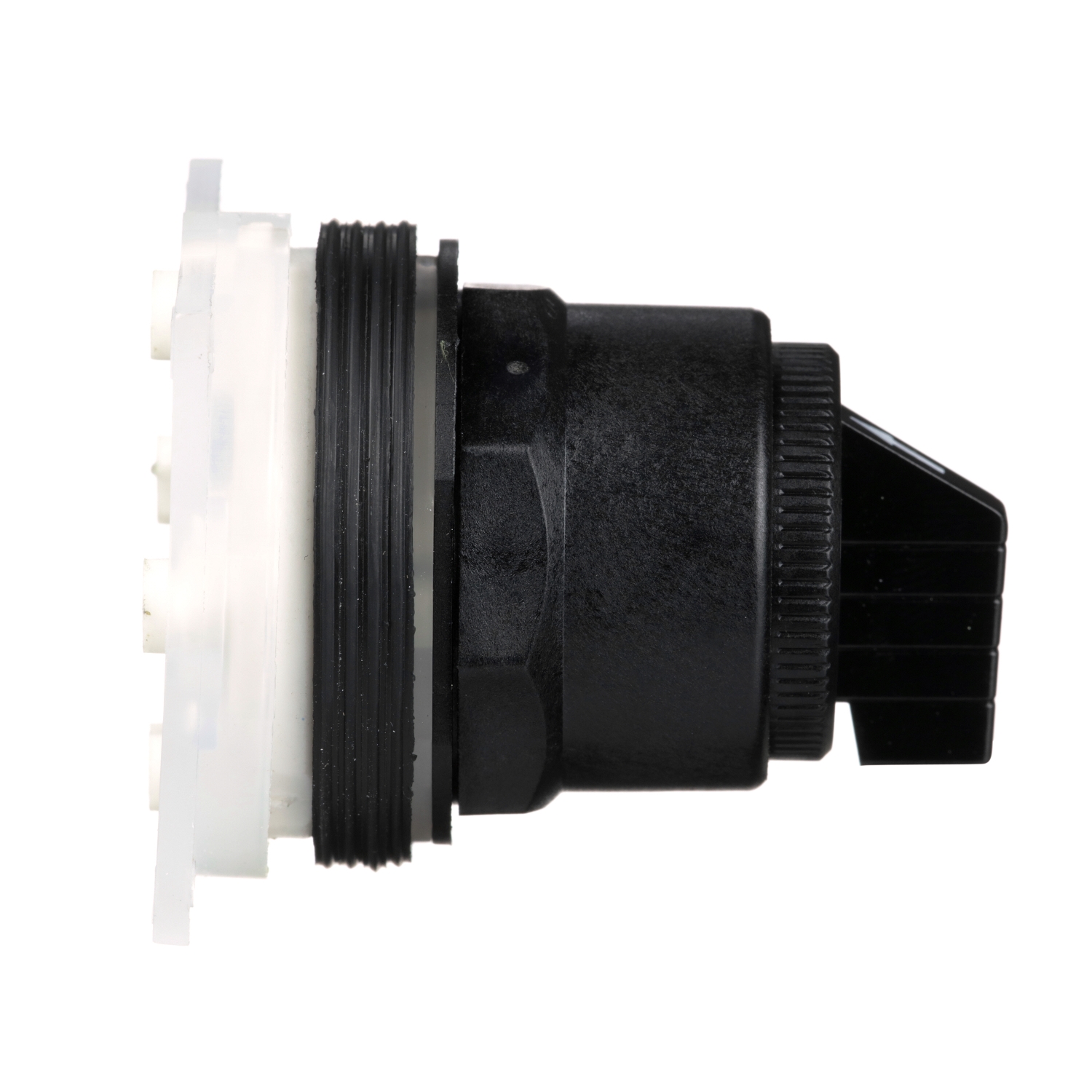

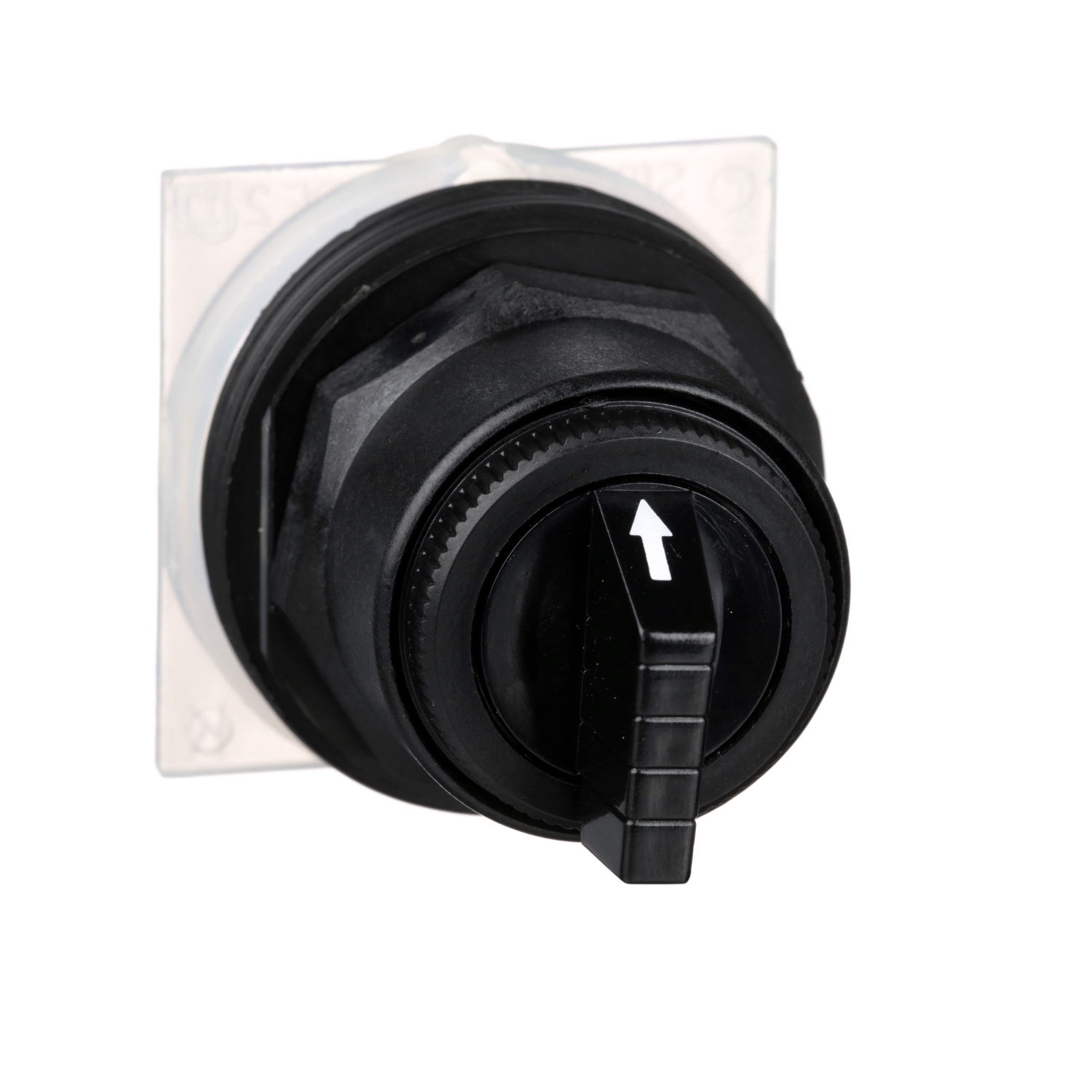

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, Cam C, stay put
Manufacturer: Schneider Electric
SKU: 9001SKS43B
GTIN: 785901524373
Old price: $168.96 inc GST
$102.80 inc GST
Supported cards
Supported cards
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for selector switch
Range of product Harmony 9001SK
Complementary
Type of operator stay put
Compatibility code 9001SK
Operator position information 3 positions
Bezel material plastic
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Cap/operator or lens colour black
Operator profile standard handle
Mounting diameter 30 mm
Cam profile 3
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
