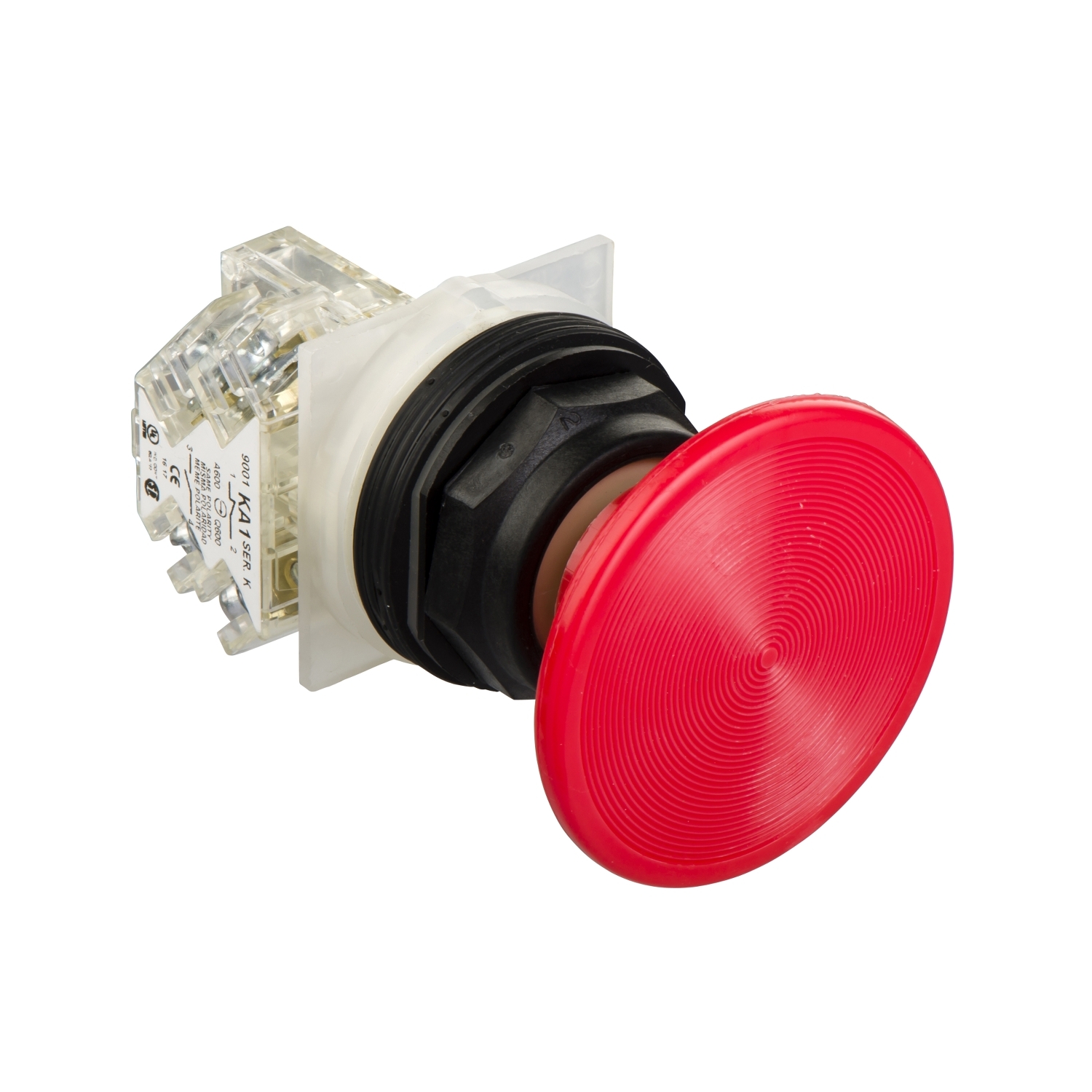

Push-button head, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, spring return
Manufacturer: Schneider Electric
SKU: 9001SKR24R
GTIN: 785901039716
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 35mm mushroom head. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Old price: $131.56 inc GST
$80.04 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Operator additional information screw-on plastic with set screw
Range of product Harmony 9001SK
Product or component type head for push-button
Device short name 9001SK
Complementary
Operator profile mushroom Ø 35 mm
Shape of signaling unit head round
Cap/operator or lens colour red
Size 30 mm
Device presentation basic element
Contacts type and composition without contact block
Bezel material plastic
Mechanical durability 5000000 cycles
Type of operator spring return
Environment
Product certifications CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR, CE
Ambient air temperature for operation -25-70 °C
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
IP degree of protection IP66, IP65/IP66
Ambient air temperature for storage -40-70 °C
Overvoltage category class II conforming to IEC 61140
NEMA degree of protection NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Protective treatment TC
Contractual warranty
Warranty 18
