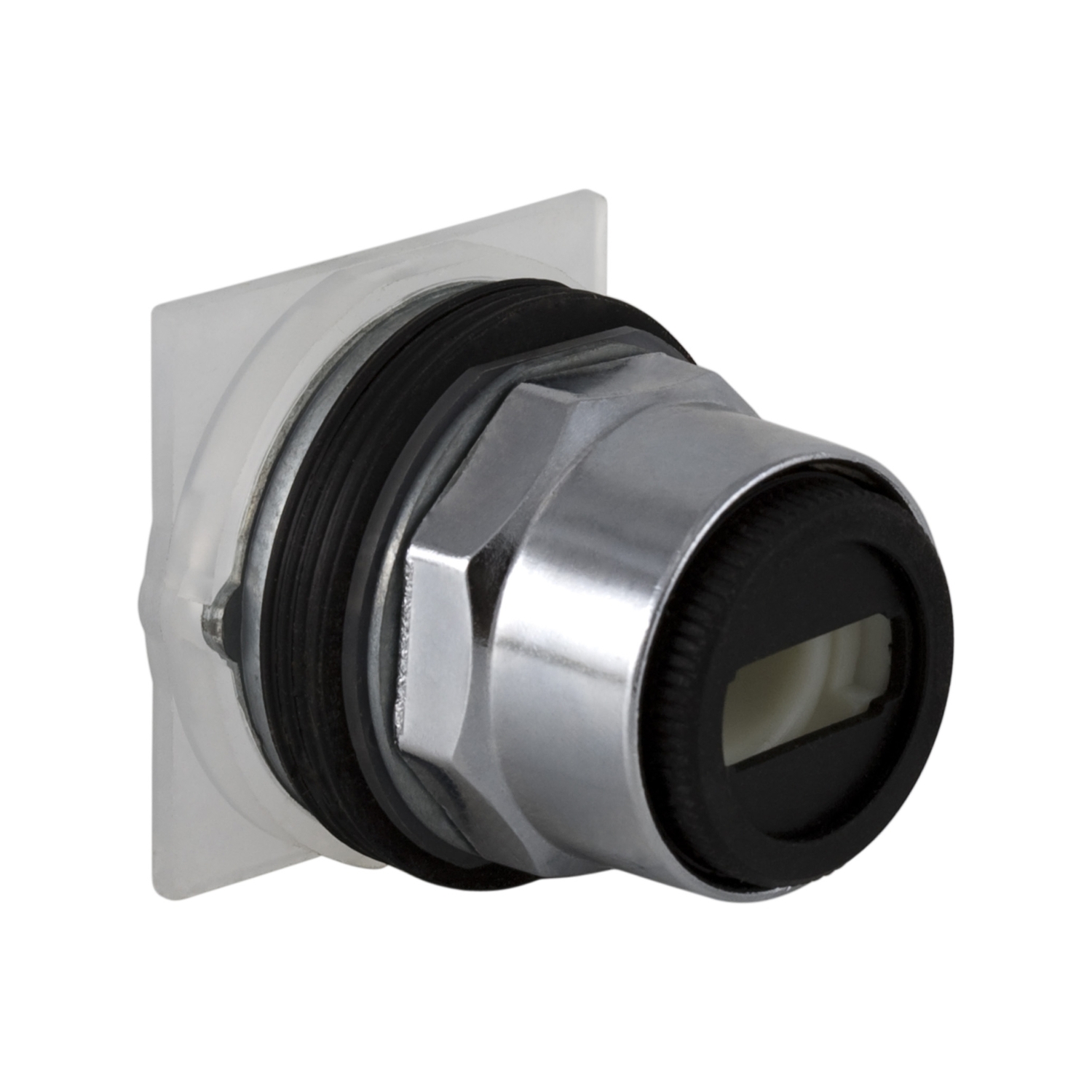

This Harmony 9001SK selector switch head, without a handle, has 3 positions and operates with a stay put mechanism. It has a chromium-plated metal bezel. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It complies with UL listed file E42259 CCN NKCR, CE, and CSA LR24590 class 3211 03 certifications Dedicated contact blocks, cap, and handle need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | K |
| Operator profile | without cap without knob |
| Product or component type | head for selector switch |
| Type of operator | maintained |
| Range of product | Harmony 9001K |
| Complementary | |
| Type of operator | stay put |
| Operator position information | 3 positions |
| Bezel material | metal |
| Contacts type and composition | without contact block |
| Device presentation | basic element |
| Size | 30 mm |
| Operator profile | without handle |
| Mounting diameter | 30 mm |
| Cam profile | 3 |
| Environment | |
| NEMA degree of protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product certifications | CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR |
