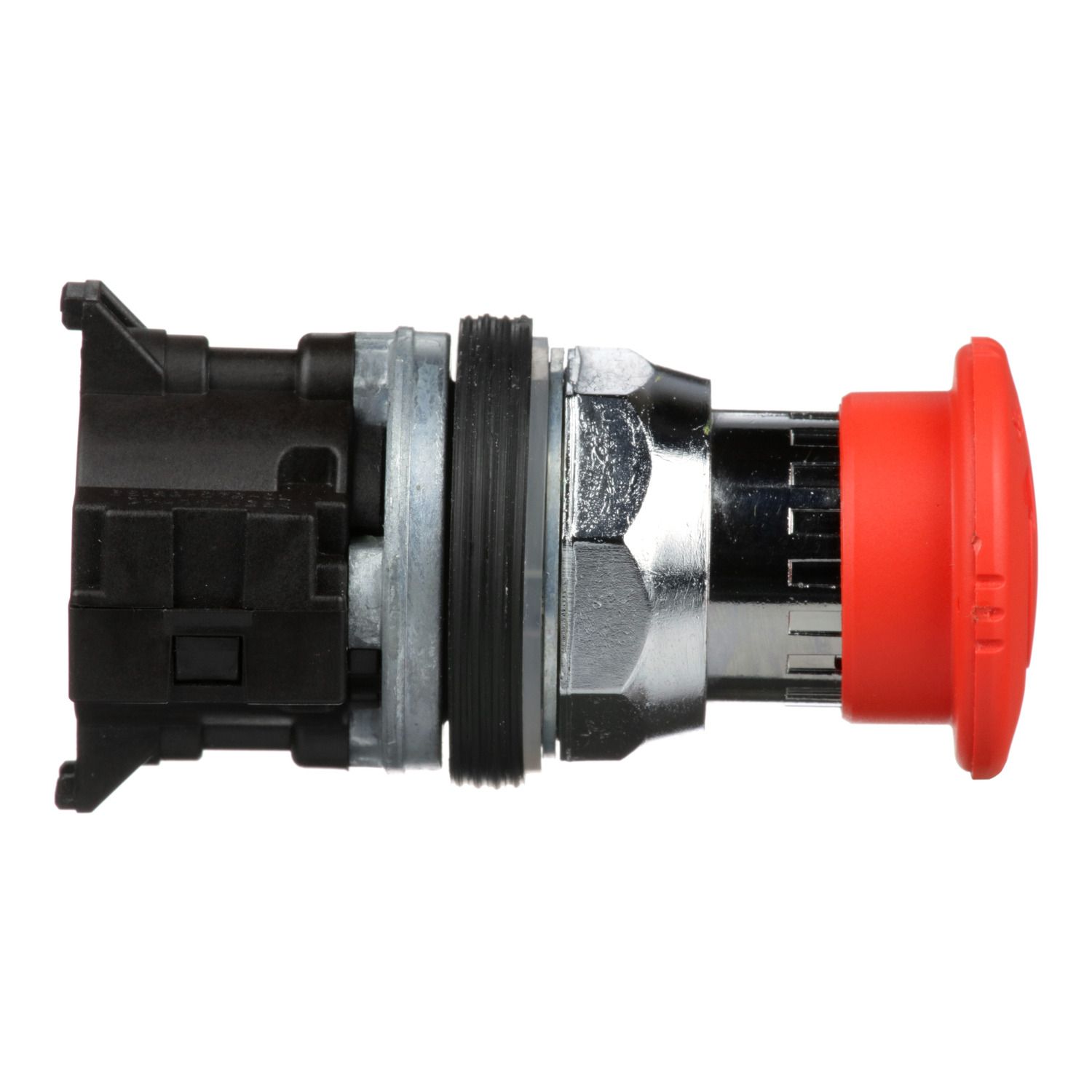

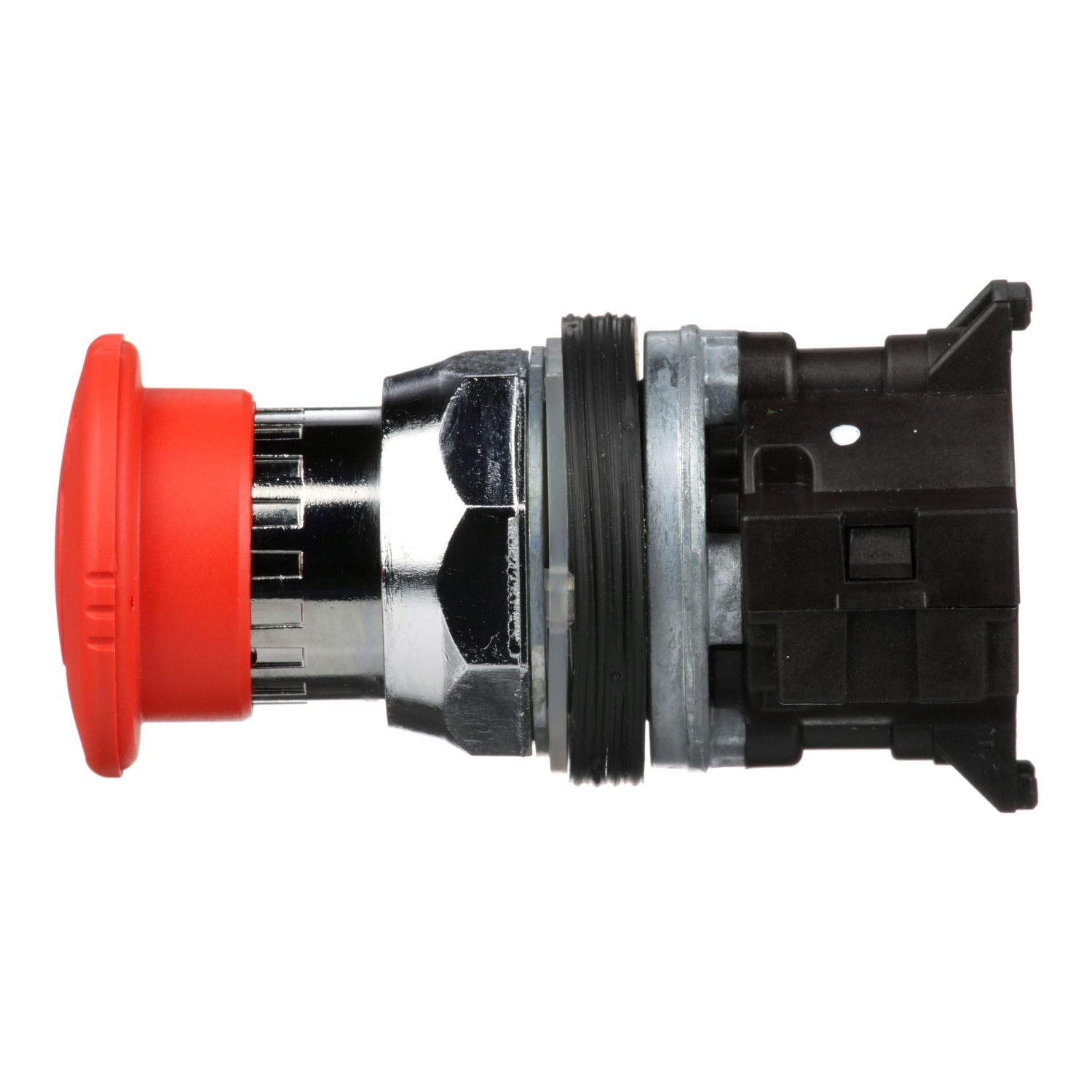

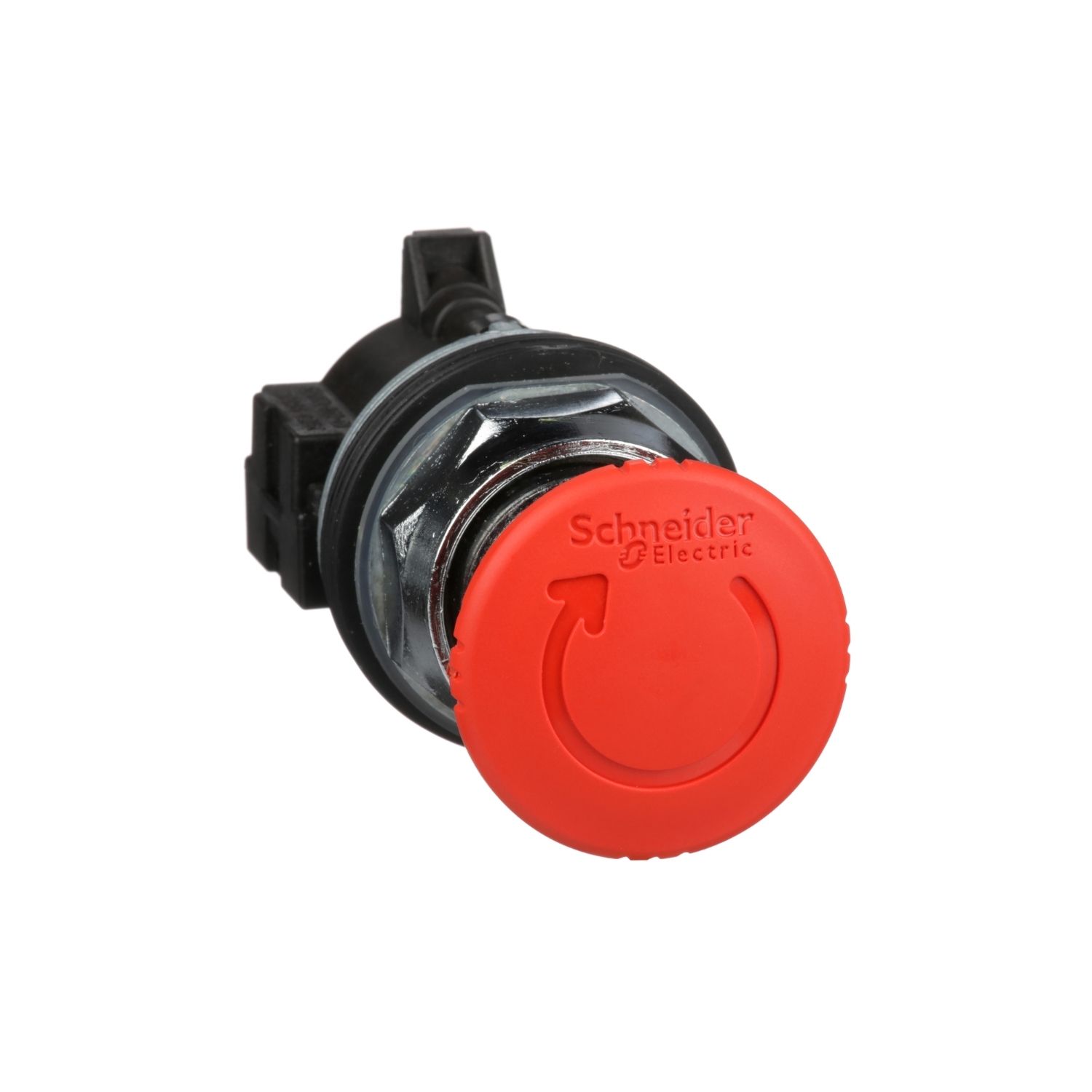

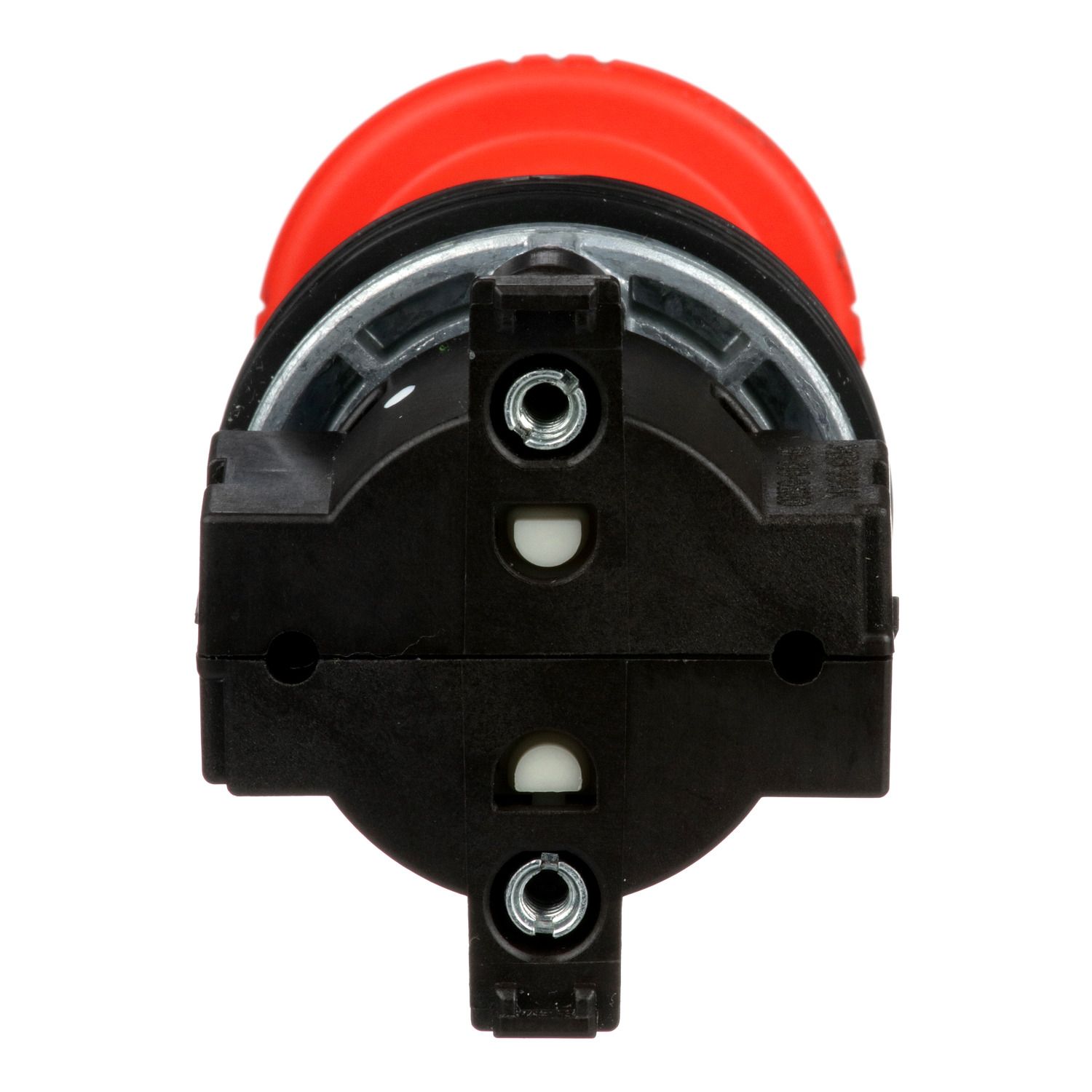

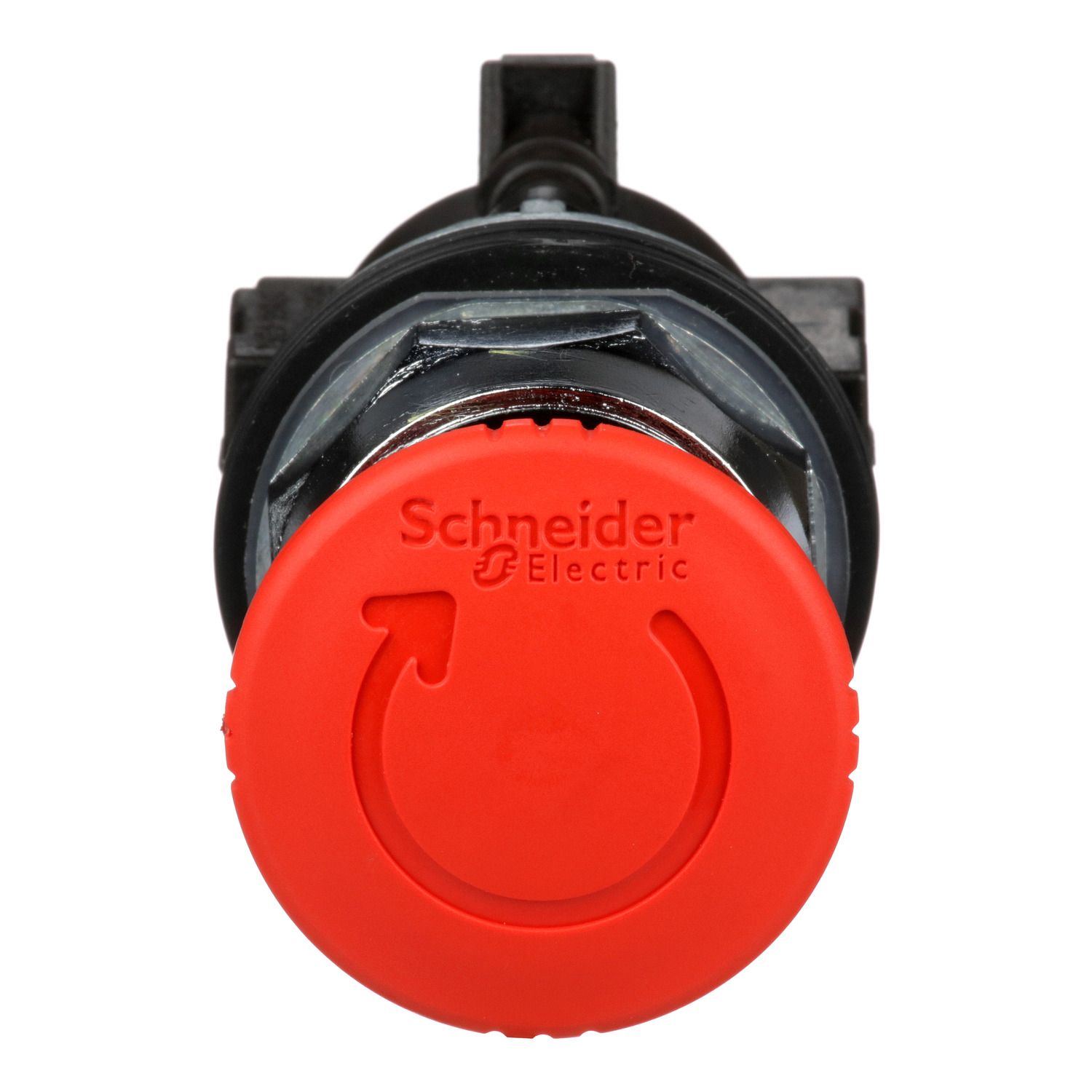

Emergency stop head, Harmony 9001K, switching off, metal, red mushroom 40mm, 30 mm, trigger latching turn to release
Manufacturer: Schneider Electric
SKU: 9001KR16
GTIN: 785901623113
Old price: $174.24 inc GST
$106.01 inc GST
Supported cards
Supported cards
This red push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 40mm, unmarked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions turn to release operator and it is supplied without contacts. It weighs 141g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Product compatibility contact block 9001KA..
Operator profile red mushroom Ø 40 mm, unmarked
Product or component type head for emergency switching off push-button
Type of operator turn to release trigger action
Range of product Harmony 9001K
Complementary
CAD overall depth 116 mm
CAD overall width 40 mm
Operating position any position
Type of operator turn to release
Compatibility code 9001K
Mechanical durability 5000000 cycles
Operator position information 2 positions
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
CAD overall height 40 mm
Size 30 mm
Net weight 0.141 kg
Head material plastic
Cap/operator or lens colour red
Shape of signaling unit head round
Operator profile mushroom Ø 40 mm
Mounting diameter 30 mm
Environment
Protective treatment TC
NEMA degree of protection NEMA 6, NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Standards UL 60947-5-5, CSA C22.2 No 14, JIS C 852, JIS C 4520, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN, IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Product certifications NEMA, UL 508
