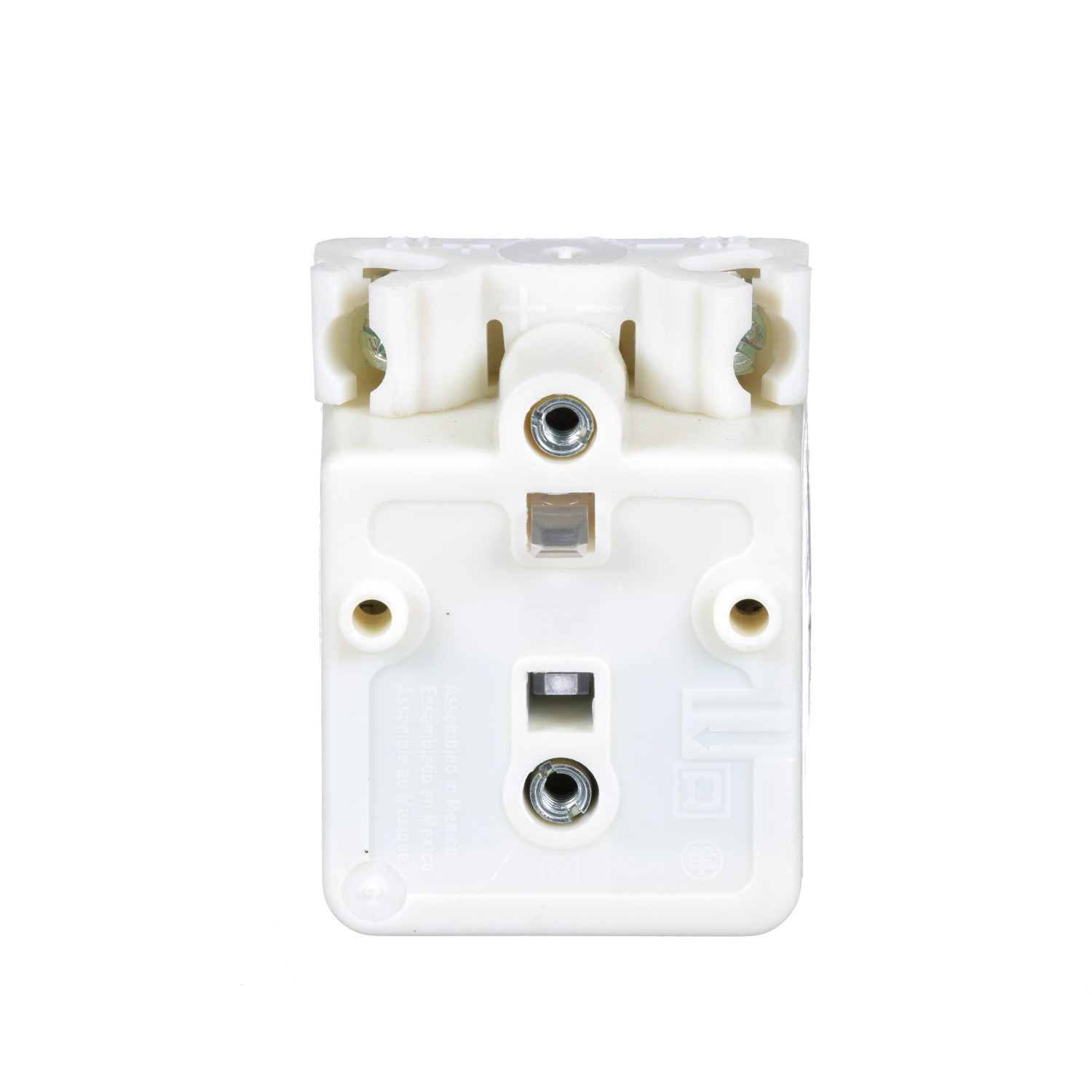

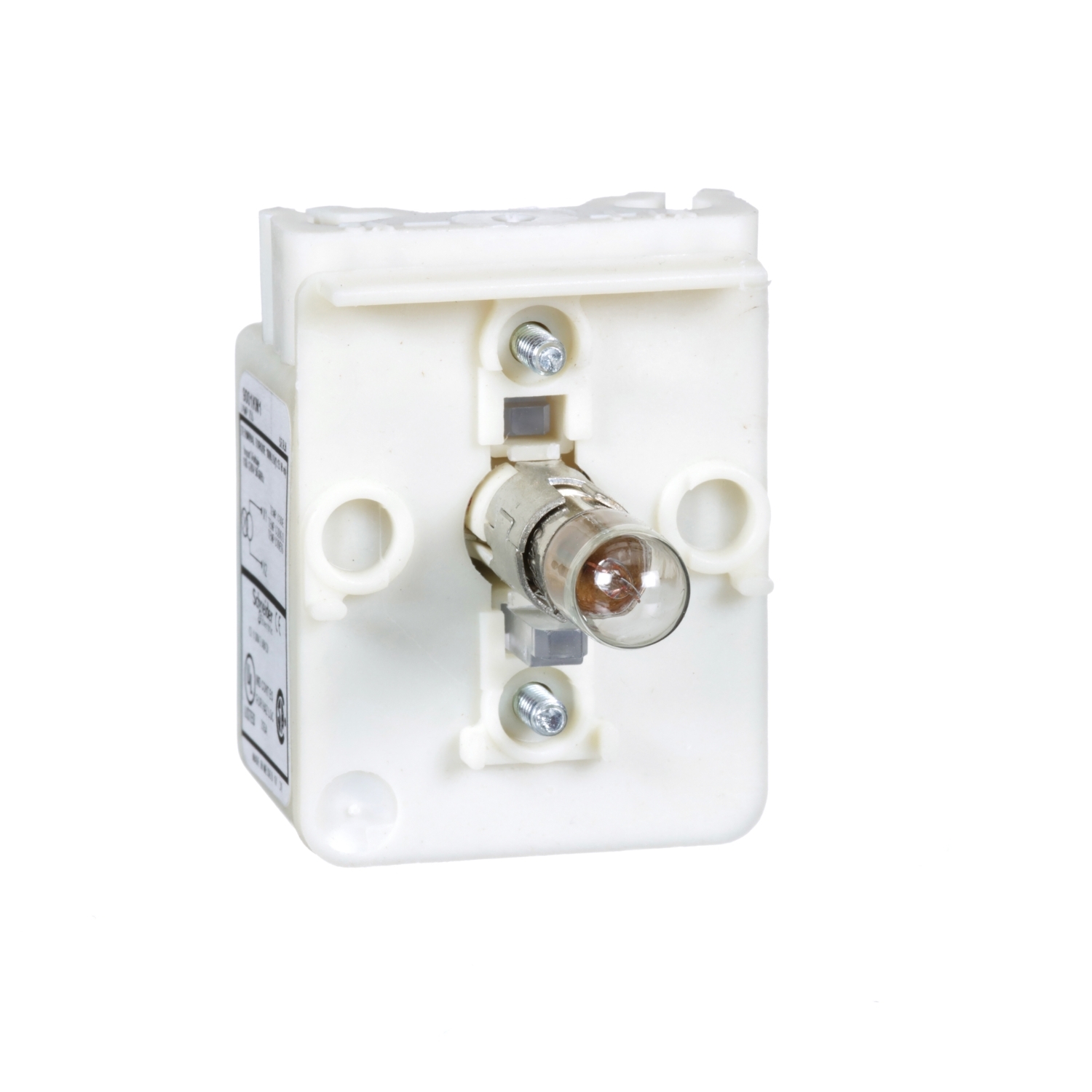

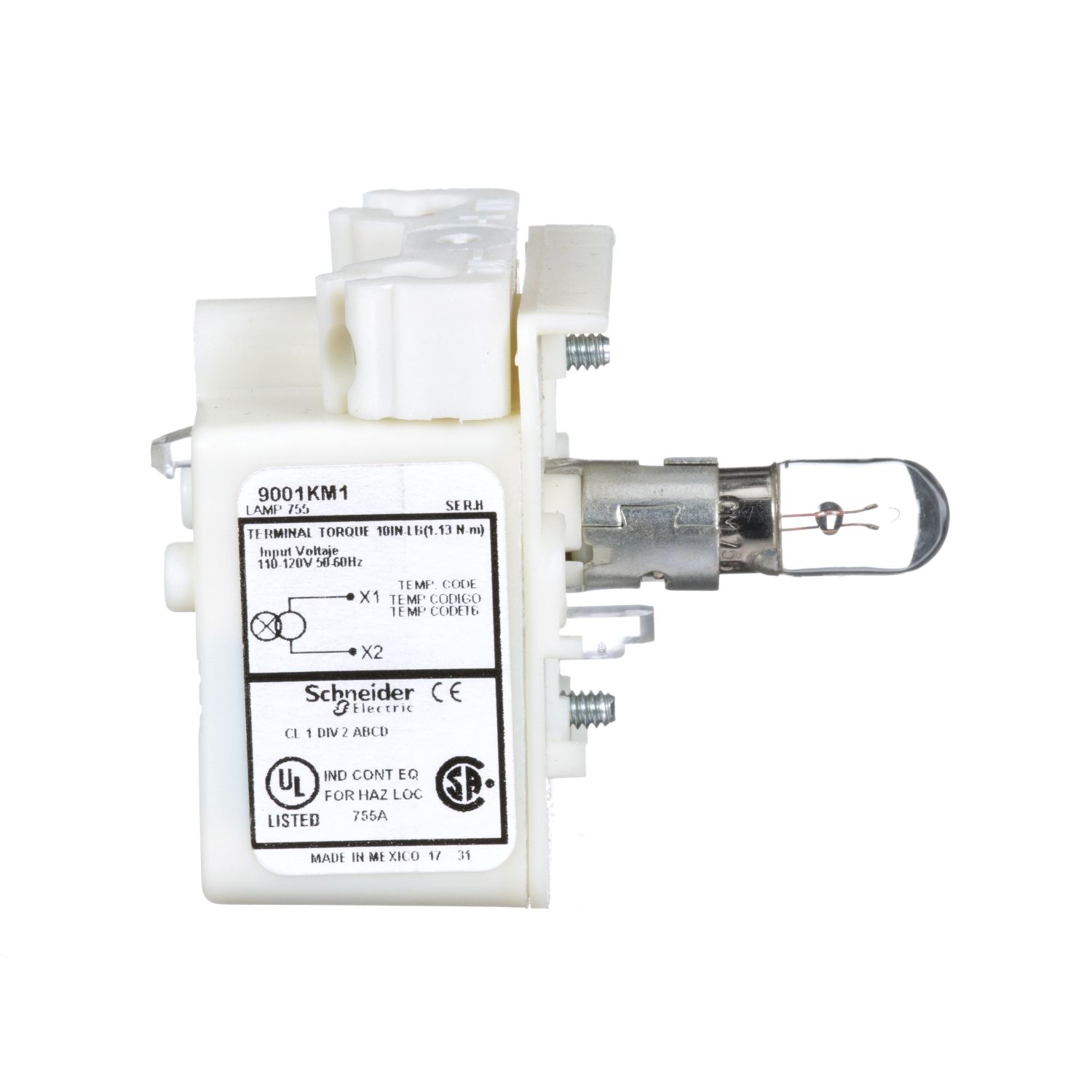

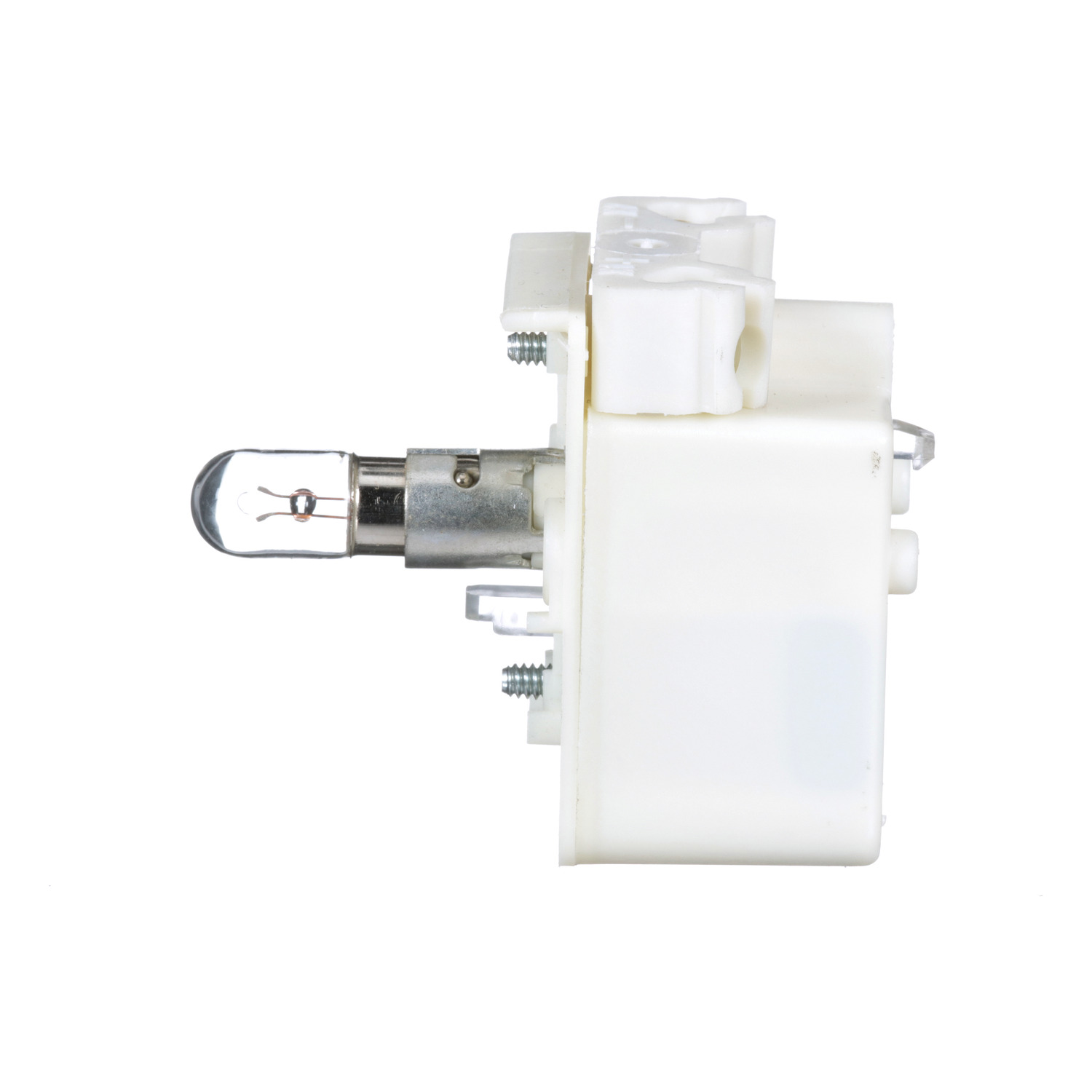

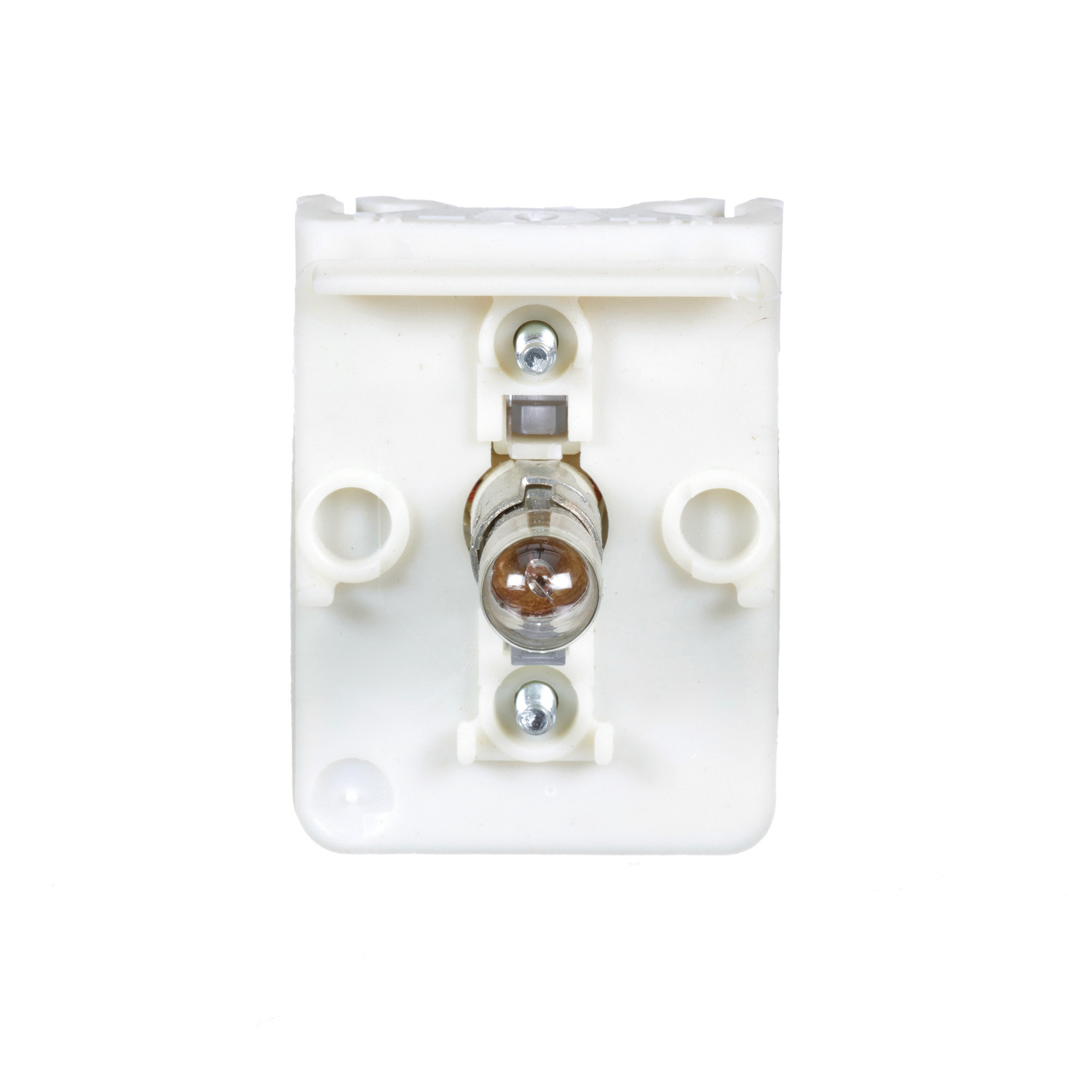

Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 110...120V
Manufacturer: Schneider Electric
SKU: 9001KM1
GTIN: 785901725237
This light blocks is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is supplied with 120V AC via integral transformer and includes a BA 9s 6 V bulb incandescent. It is compatible with pilot lights and illuminated pushbuttons of Harmony 9001K and Harmony 9001SK ranges. It weighs 144g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Old price: $230.89 inc GST
$140.47 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type light block
Bulb base BA 9s
Range of product Harmony 9001K, Harmony 9001SK
Device short name 9001K
Light block supply direct via integral transformer 6 V
Complementary
Supply frequency 50...60 Hz
Light source incandescent bulb
Light block supply via integral transformer
Net weight 0.144 kg
Size 30 mm
[Us] rated supply voltage 120 V AC, 110...120 V
Compatibility code 9001K
Environment
Standards IEC 60947-5-4, IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, IEC 60947-1, UL 508, JIS C 852
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class class II conforming to IEC 61140
Ambient air temperature for operation -25-70 °C
IP degree of protection IP10 conforming to IEC 60529
Protective treatment TC
Product certifications UL 508, NEMA
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for storage -40-70 °C
Contractual warranty
Warranty 18
