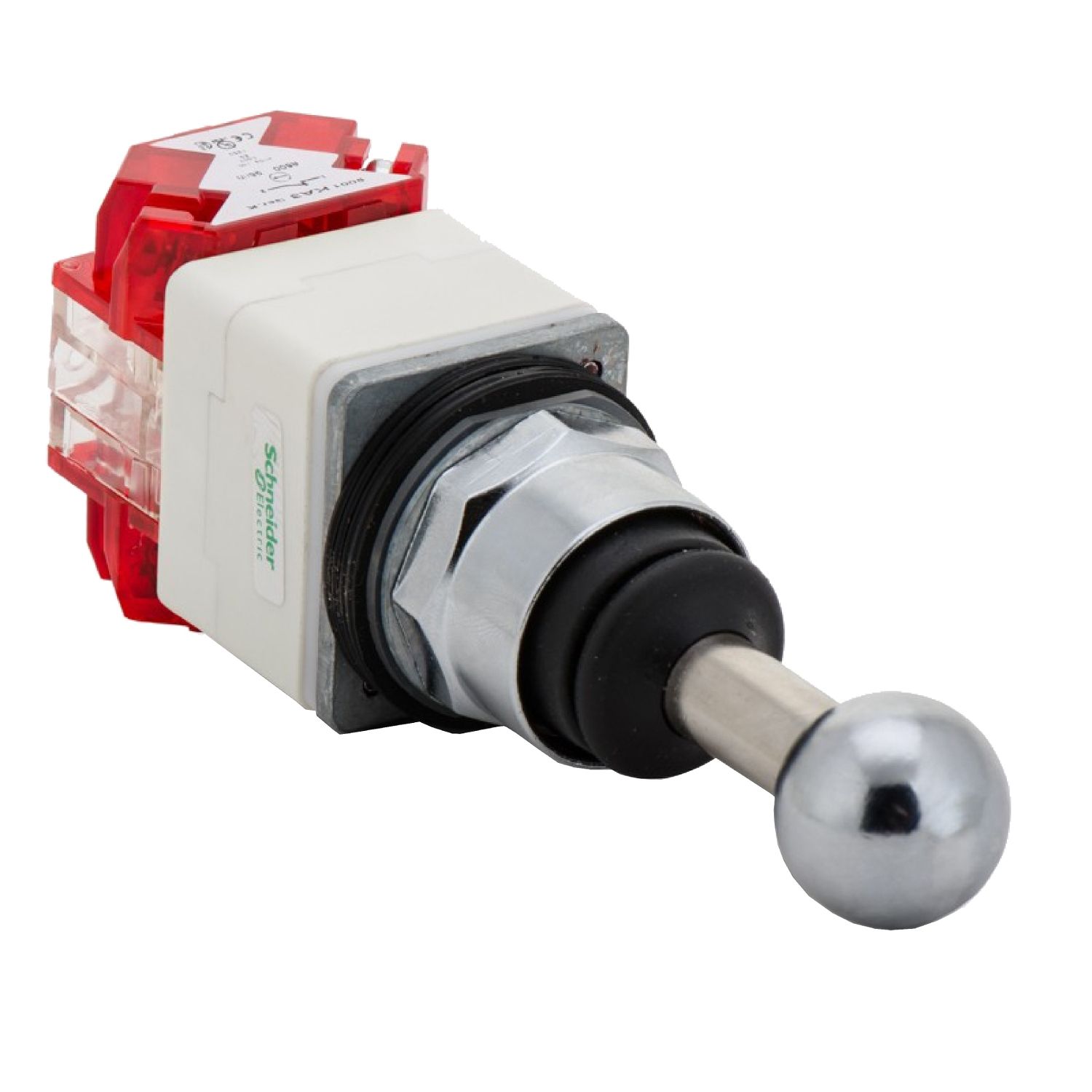

Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, spring return to center, Vertical
Manufacturer: Schneider Electric
SKU: 9001K71
GTIN: 785901236863
Old price: $498.30 inc GST
$303.17 inc GST
Supported cards
Supported cards
This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile 80 mm long operating shaft
Sale per indivisible quantity 1
Product or component type head for joystick controller
Type of operator spring return
Range of product Harmony 9001K
Complementary
Return to centre
Operating position horizontal
Type of operator spring return
Compatibility code 9001K
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Net weight 0.372 kg
Operator direction information 2 directions
Shape of signaling unit head octagonal
Mounting diameter 30 mm
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, JIS C 852, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
