Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Mureva plug |
| Plug, socket category | low voltage |
| Outlet standard | industrial |
| Range | Mureva |
| Poles description | 3P + N + E |

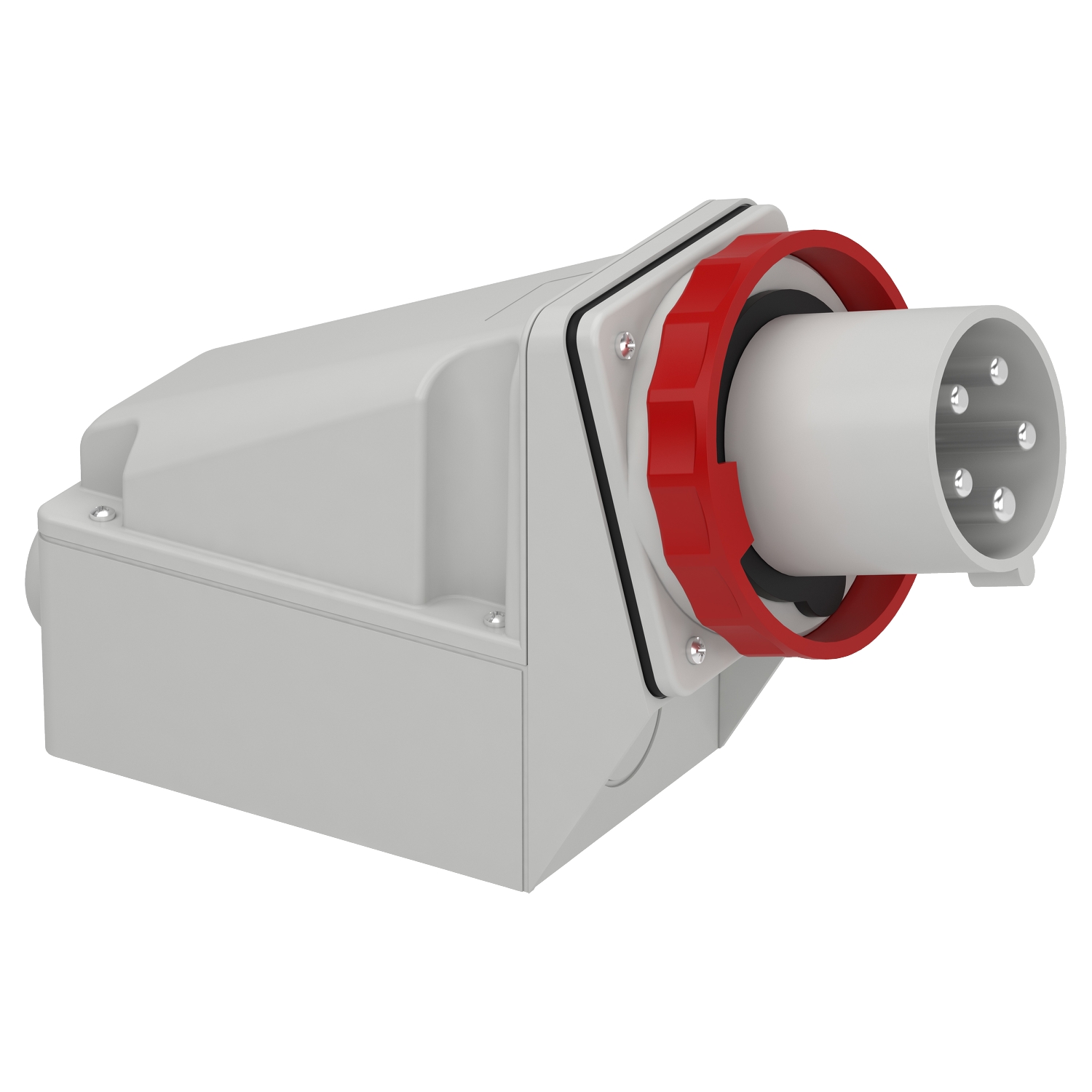

| Product name | Mureva Industrial Plug |
| Product or component type | plug |
| Network type | AC |
| Complementary | |
| Colour | grey (RAL 7035) |
| Compatibility code | Mureva plug |
| Cable cross section | 6-25 mm² |
| Mounting mode | wall-mounted |
| Thread type | Pg 36 |
| Plug, socket material | self-extinguishing engineering polymer |
| Base dimension | 104 x 162 mm |
| Plug, socket, control station shape | angled |
| Contacts material | pins: nickel plated brass |
| Height | 281 mm |
| [Ue] rated operational voltage | 380...415 V |
| Depth | 180 mm |
| Market segment | small commercial |
| Width | 104 mm |
| [In] rated current | 63 A |
| Cable entry | cable gland |
| Voltage colour | red |
| Net weight | 1.097 kg |
| Ground lug clockwise position | 6 h |
| Connections - terminals | captive screws |
| Network frequency | 50/60 Hz |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 90-90 % at 20-20 °C, 70-70 % at 30-30 °C, 50-50 % at 40-40 °C |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-40 °C, 35-35 °C ( 86400 s ) |
| IK degree of protection | IK08 conforming to EN 62262 |
| Operating altitude | 2000 m |
| Standards | EN 60309-1, EN 60309-2 |
