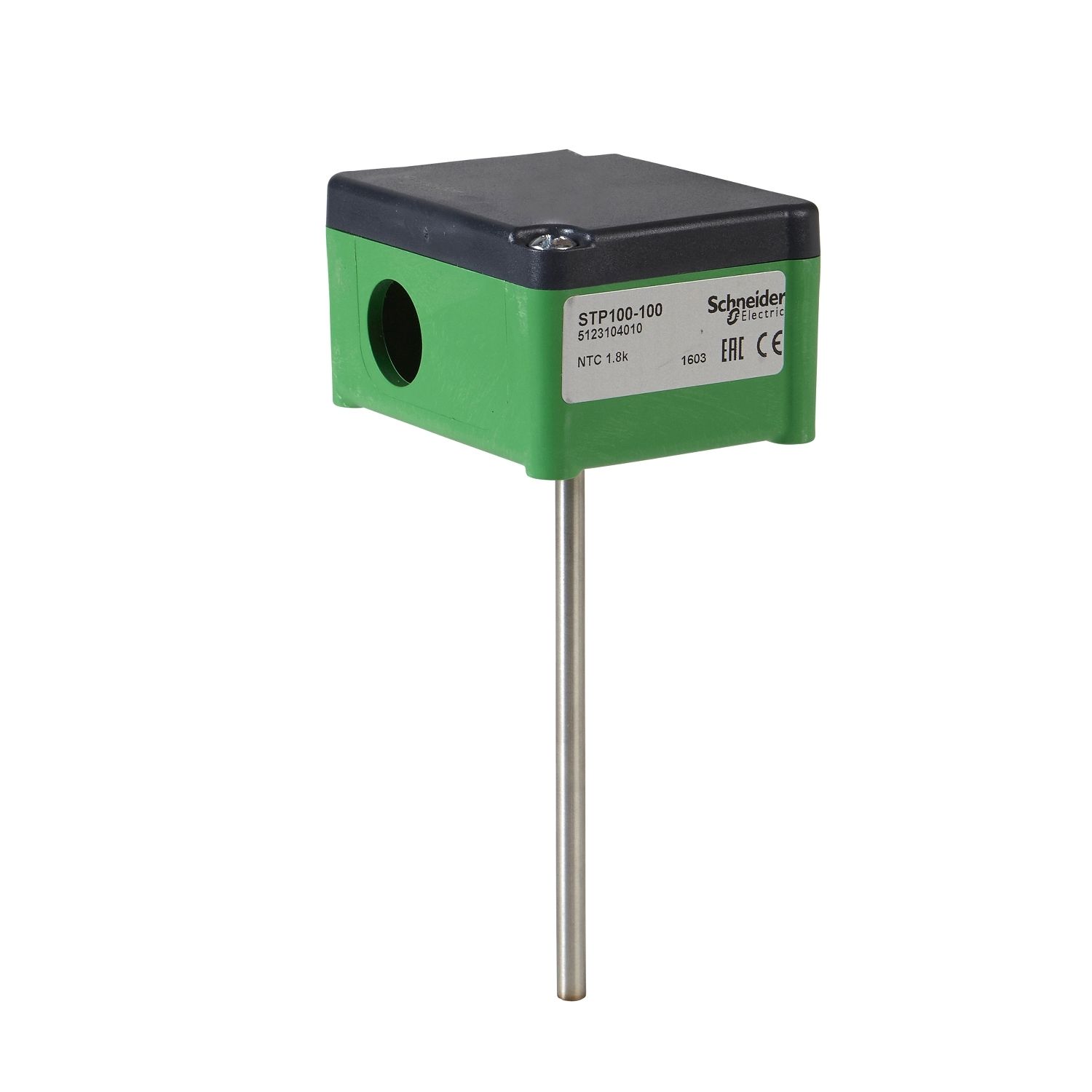

SpaceLogic STP 100 is an immersion temperature sensor. These sensors are designed for immersion mounting in pipe systems with a separate pocket/well.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | pipe immersion |
| Product compatibility | Vista |
| Depth | 44 mm |
| Colour | grey and white |
| Output type | resistive output |
| Width | 65 mm |
| Sensor type | 1.8 kOhm NTC temperature |
| Net weight | 0.104 kg |
| Location | plant room |
| Ambient air temperature for operation | -10-150 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Standards | EN 50081-1, EN 50082-2 |
| Mounting support | pipe |
| Range of product | STP100 |
| Height | 84 mm |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.3 °C |
| Number of cables | 1 <0.02 m |
| Material | stainless steel: immersion tube, PA (polyamide): connection box |
| Length | 100-100 mm for side sensor |
| Former part number | 5123104010 |
| Time constant | 24000 ms stainless steel PN 25 without contact paste, 23000 ms brass PN 16 without contact paste, 20000 ms stainless steel PN 25 with contact paste, 19000 ms brass PN 16 with contact paste |
