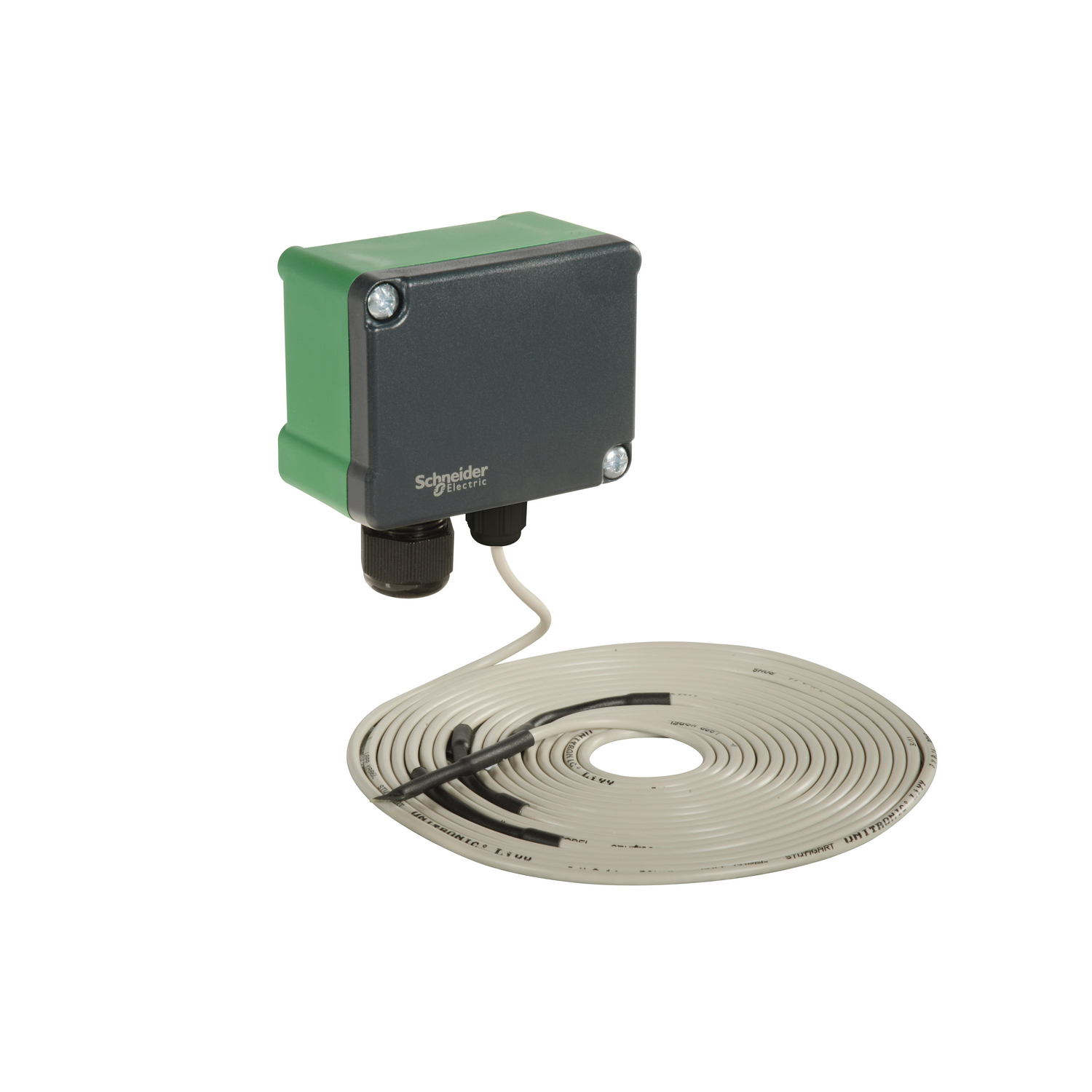

SpaceLogic STD 591 series are duct temperature sensors. STD 550 is intended for measuring air temperature in fan coil applications or exhaust ducts.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | duct |
| Product compatibility | Continuum |
| Depth | 44 mm |
| Colour | black and green |
| Output type | resistive output |
| Width | 65 mm |
| Sensor type | 10 kOhm NTC temperature |
| Net weight | 0.19 kg |
| Location | plant room |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Standards | EN 50081-1, EN 50082-2 |
| Mounting support | duct |
| Range of product | STD591 |
| Height | 84 mm |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.2 °C |
| Material | PA (polyamide): connection box |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Former part number | 5123086010 |
| Time constant | 80000 ms 3 l/min, 120000 ms 1 l/min |
| Environment | |
| Product certifications | CE |
