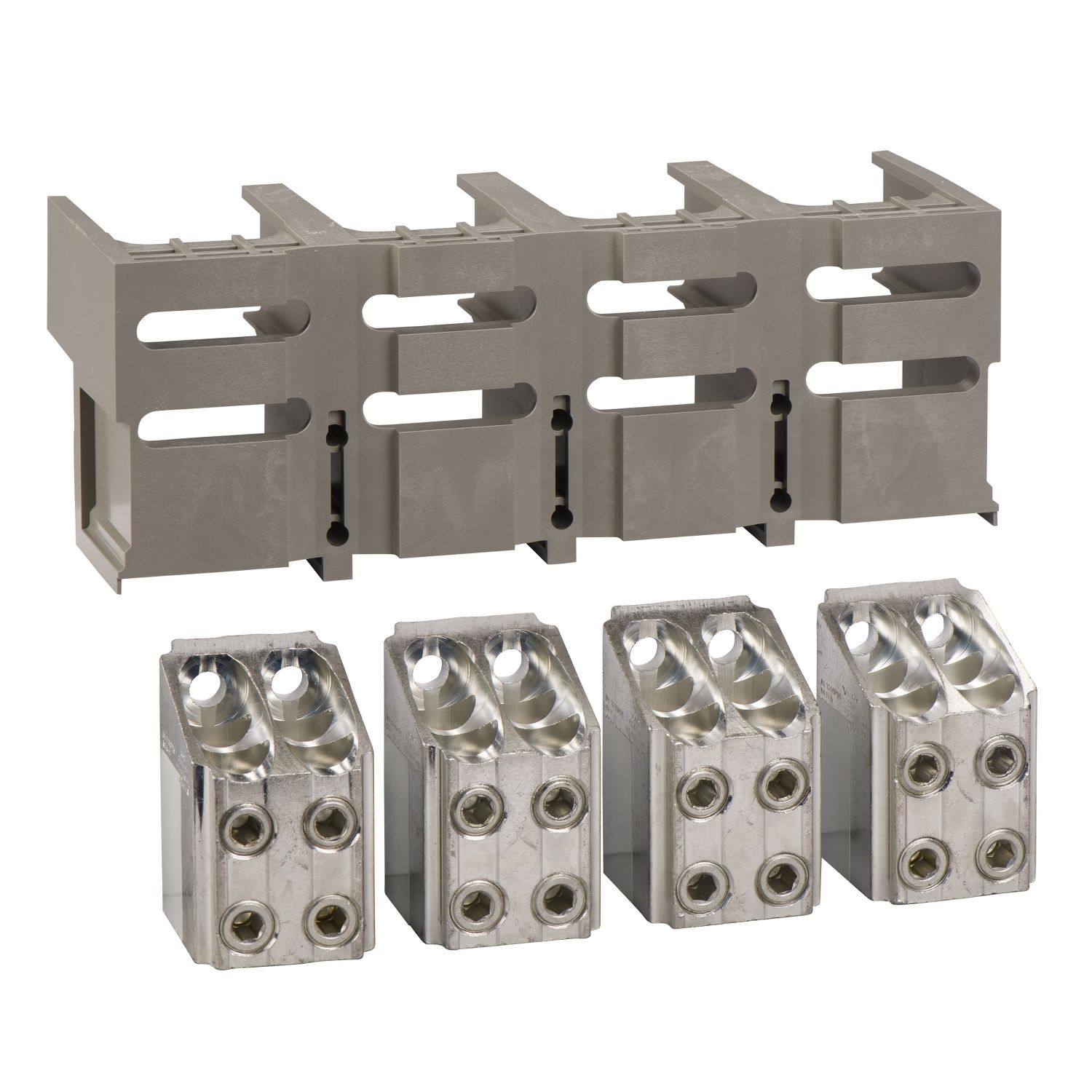

This accessory is a special set of bare cable connectors and terminal shield for 4 poles fixed front-connected Compact NSX 630b to 1600. The bare cable connectors can receive up to four 240mm² copper or aluminium cables. The terminal shield insulates power connection points. The rated current is up to and includes 1250 A. They are sold by set of 4 parts.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | front bare cable connectors |
| Quantity per set | set of 4 |
| Poles description | 4P |
| Range | ComPacT |
| Product or component type | bare cable connector |
| Accessory / separate part category | connection accessory |
| Range compatibility | ComPact ComPact NS630b...1600 circuit breaker |
| Range of product | ComPact NS630b...1600 |
| Complementary | |
| Mounting mode | fixed |
| [In] rated current | 1250-1250 A |
| Accessory / separate part category | spare part for Compact NS630b...1600 |
| Connections - terminals | cable (connector) 4 cable(s) 240-240 mm² |
| Conductor material | aluminium |
