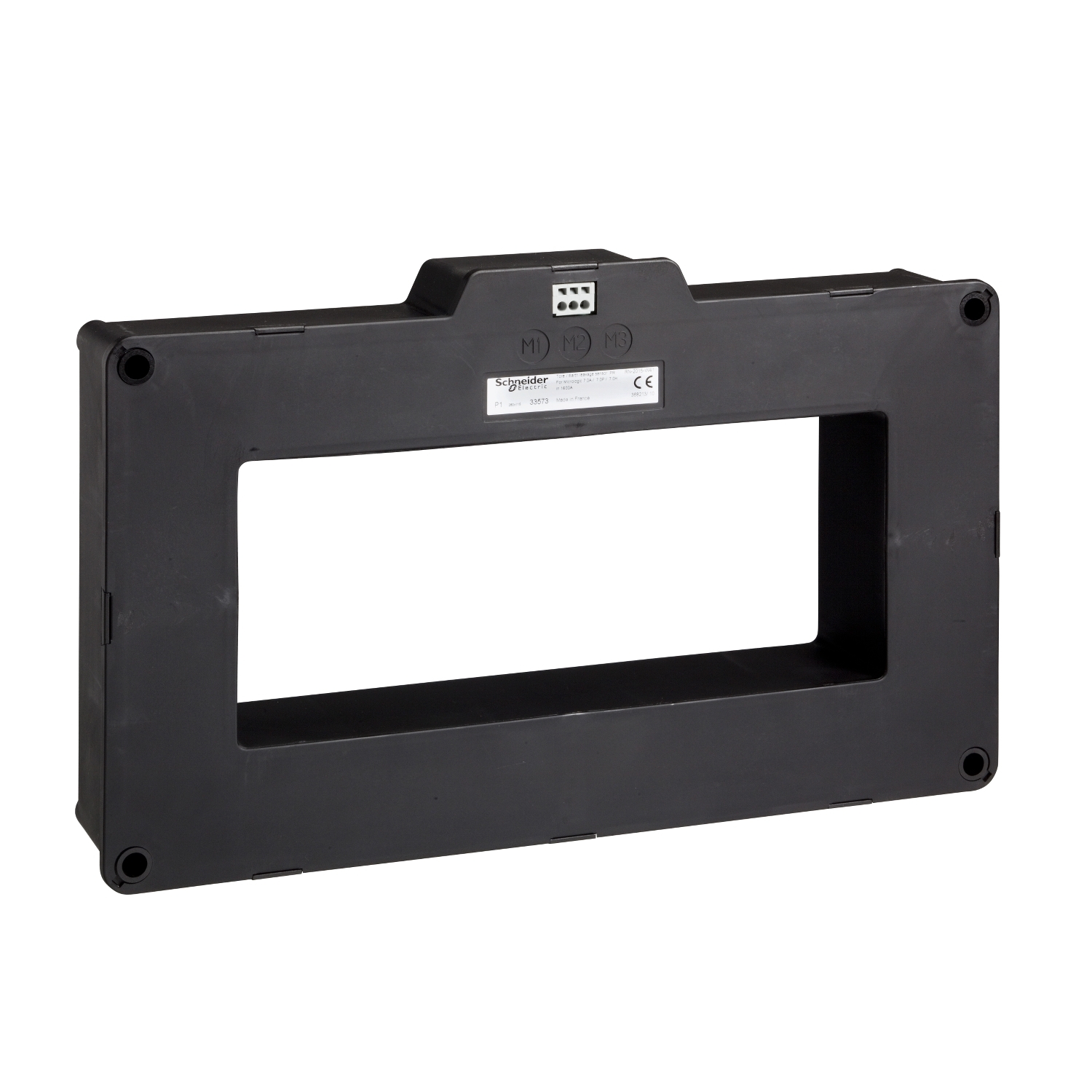

This is a rectangular sensor for earth leakage protection for Compact NS 1600b to 3200 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 3200 A. The inside dimensions are 470mm (W) x 160mm (H) x 72mm (D). The external dimensions are 572mm (W) x 281mm (H) x 72mm (D). The weight is 18 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | sensor + Vigi cable |
| Device application | power supply |
| Range | MasterPacT |
| Product or component type | rectangular sensor |
| Range compatibility | ComPact ComPact NS1600b...3200, Masterpact MasterPact NW |
| Range of product | ComPact NS1600b...3200 |
| Complementary | |
| Current transformer type | earth leakage protection |
| [In] rated current | 3200 A, 2500 A, 2000 A, 1600 A, 1250 A, 1000 A, 800 A |
| Width | outside: 572 mm, inside: 470 mm |
| Height | outside: 281 mm, inside: 160 mm |
| Accessory / separate part category | spare part for MasterPact NW, spare part for Compact NS1600b...3200 |
| Depth | 72 mm |
