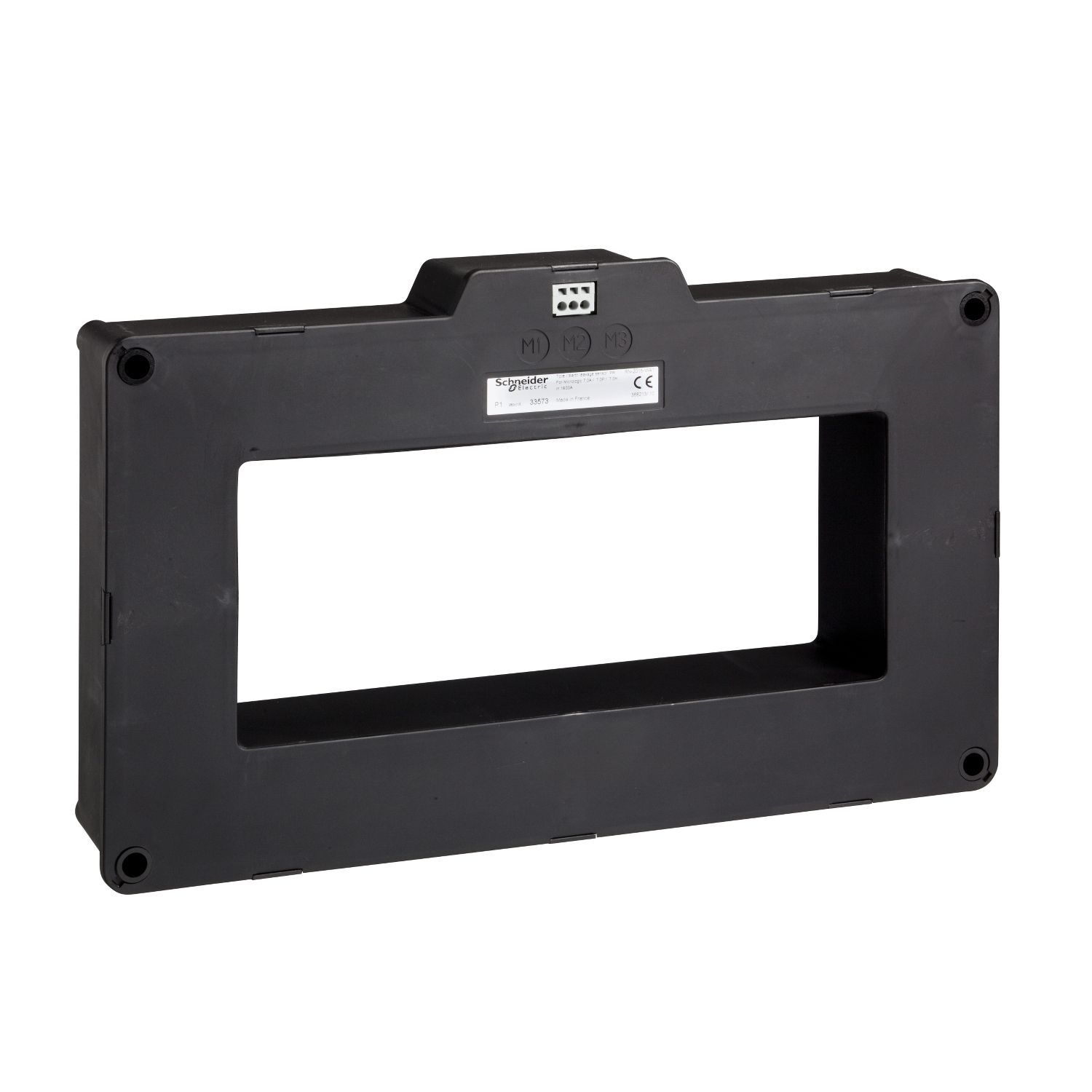

This is a rectangular sensor for earth leakage protection for Compact NS 630b to 1600 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 1600 A. The inside dimensions are 280mm (W) x 115mm (H) x 71mm (D). The external dimensions are 381mm (W) x 233mm (H) x 71mm (D). The weight is 14 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | sensor + Vigi cable |
| Device application | power supply |
| Range | MasterPacT |
| Product or component type | rectangular sensor |
| Range compatibility | ComPact ComPact NS630b...1600, Masterpact MasterPact NW, Masterpact MasterPact NT |
| Range of product | ComPact NS630b...1600 |
| Complementary | |
| Current transformer type | earth leakage protection |
| [In] rated current | 1600 A, 1250 A, 1000 A, 800 A, 630 A |
| Width | outside: 381 mm, inside: 280 mm |
| Height | outside: 216 mm, inside: 115 mm |
| Accessory / separate part category | spare part for Compact NS630b...1600, spare part for MasterPact NW, spare part for MasterPact NT |
| Depth | 71 mm |
