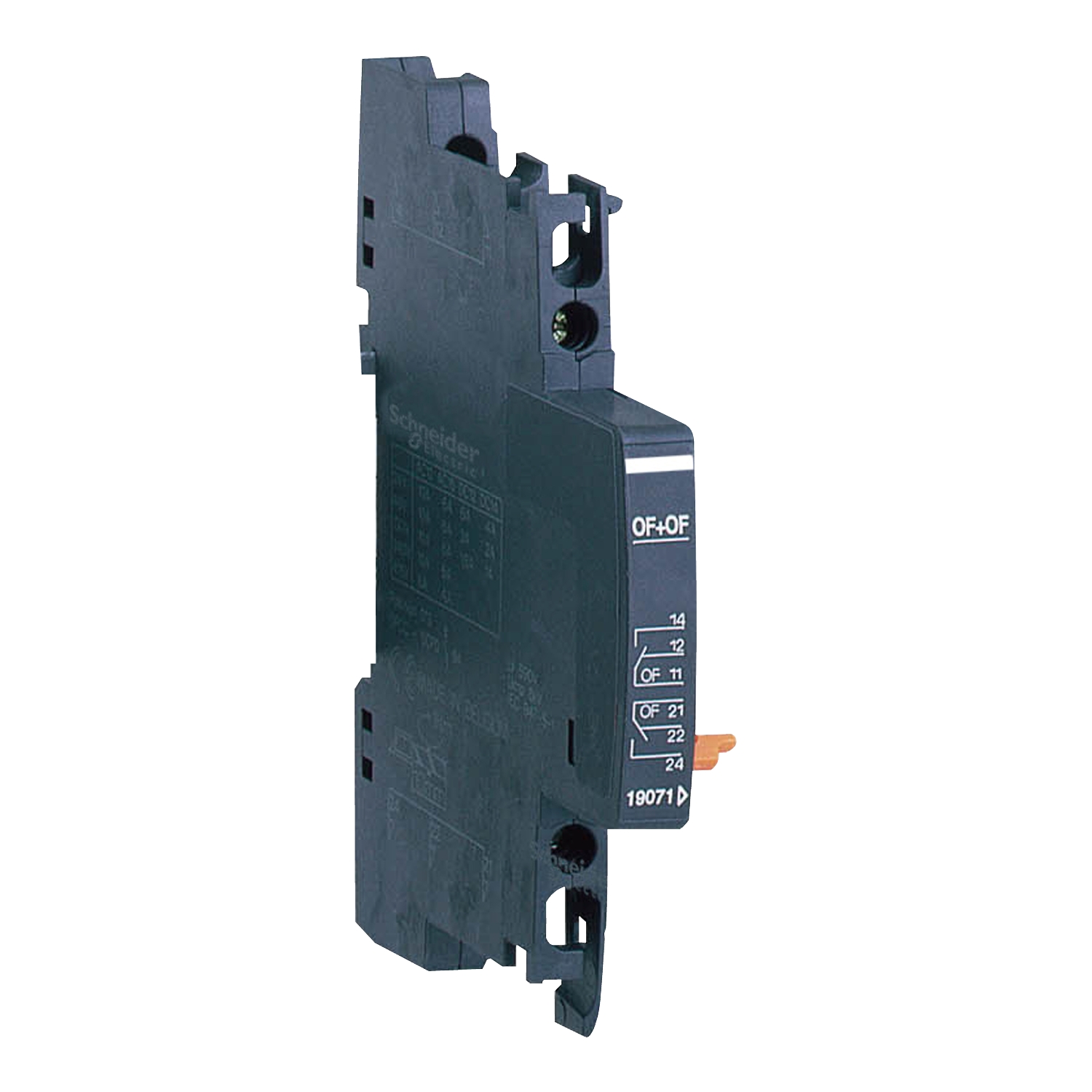

This Acti9 NG125 electrical auxiliary is a double open/close contact mounted on DIN rail. It is dedicated to Acti9 NG125, NG125NA and NG125LMA. It is used for remote indication of the position of the associated device. The 2 contacts changeover indicates "open" or "closed" position of the associated device. The width in 9mm pitches is 1. The operating frequency is 50Hz or 60Hz. It also works on direct current. The In rated operational current is from 1A (mini) up to 6A (maxi) depending on the rated voltage. The Ue rated operational voltage is up to 415VAC and 130VDC. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | OF and OF |
| [In] rated current | 0.1-3 A at <= 48 V, DC, 0.1-1 A at 130 V, DC, 0.1-6 A at <= 240 V, AC 50/60 Hz, 0.1-3 A at 415 V, AC 50/60 Hz |
| Signal contacts composition | 2 C/O |
| Range | Acti9 |
| Product or component type | double OC contact |
| 9 mm pitches | 1 |
| Range of product | NG125 |
| Complementary | |
| Product compatibility | NG125 |
| Tightening torque | 1-1 N.m |
| Depth | 75.5 mm |
| Market segment | small commercial |
| Width | 15.3 mm |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-5-1 |
| Compatibility code | OF and OF |
| Electrical durability | 10000 cycles conforming to EN/IEC 60947-5-1 |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1 |
| Wire stripping length | 10 mm |
| Connections - terminals | plate terminal2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal2 cable(s) 2.5-2.5 mm² - flexible, plate terminal2 cable(s) 2.5-2.5 mm² - rigid, plate terminal1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal1 cable(s) 0.5-1.5 mm² - flexible, plate terminal1 cable(s) 0.5-2.5 mm² - rigid |
| Range compatibility | Acti 9 Acti9 NG125, Acti 9 Acti9 NG125LMA, Acti 9 Acti9 NG125NA |
| Mounting support | DIN rail |
| Height | 102.8 mm |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | ASTA, KEMA, ASEFA, LCIE |
