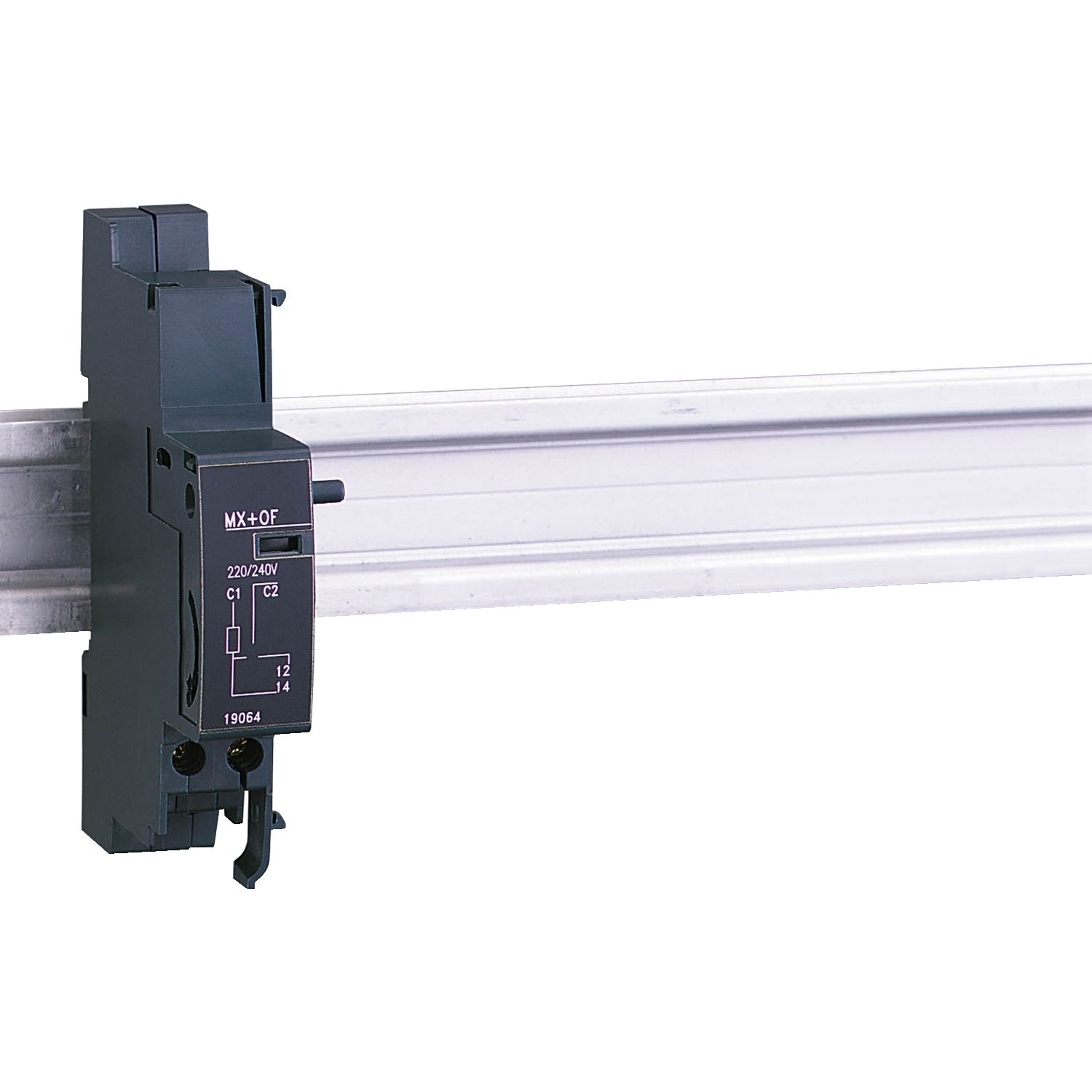

This Acti9 MX+OF electrical auxiliary is a shunt trip release device with open/close auxiliary contact. It is dedicated to NG125. This device includes an open/close contact OF to indicate the open or closed position of the circuit breaker. It is provided with a self-interrupting contact. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The rated operational current is 6A up to 240VAC, 3A for more than 240VAC, 2A up to 48VDC and 1A at 130VDC. The Uc control circuit voltage is 48…130VAC or 48VDC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MX + OF |
| Product compatibility | NG125 |
| Signal contacts composition | 1 C/O |
| Range | Acti9 |
| Product or component type | shunt trip release with OC contact |
| 9 mm pitches | 2 |
| Range of product | NG125 |
| [Uc] control circuit voltage | 48 V DC, 48...130 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m |
| Depth | 69 mm |
| Market segment | small commercial |
| Width | 27 mm |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-5-1 |
| Local signalling | action indicator |
| Compatibility code | MX + OF |
| Electrical durability | 10000 cycles conforming to EN/IEC 60947-5-1 |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1 |
| Connections - terminals | plate terminal - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal - 2 cable(s) 2.5-2.5 mm² - rigid, plate terminal - 2 cable(s) 2.5-2.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-2.5 mm² - rigid |
| Wire stripping length | 10 mm |
| Range compatibility | Acti 9 Acti9 NG125, Acti 9 Acti9 NG125NA, Acti 9 Acti9 NG125LMA, Acti 9 Vigi NG125 |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 103 mm |
| Environment | |
| Overvoltage category | II |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| IP degree of protection | IP4 conforming to EN/IEC 60947-5-1, IP20 B conforming to EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | LCIE, ASEFA, ASTA, KEMA |
