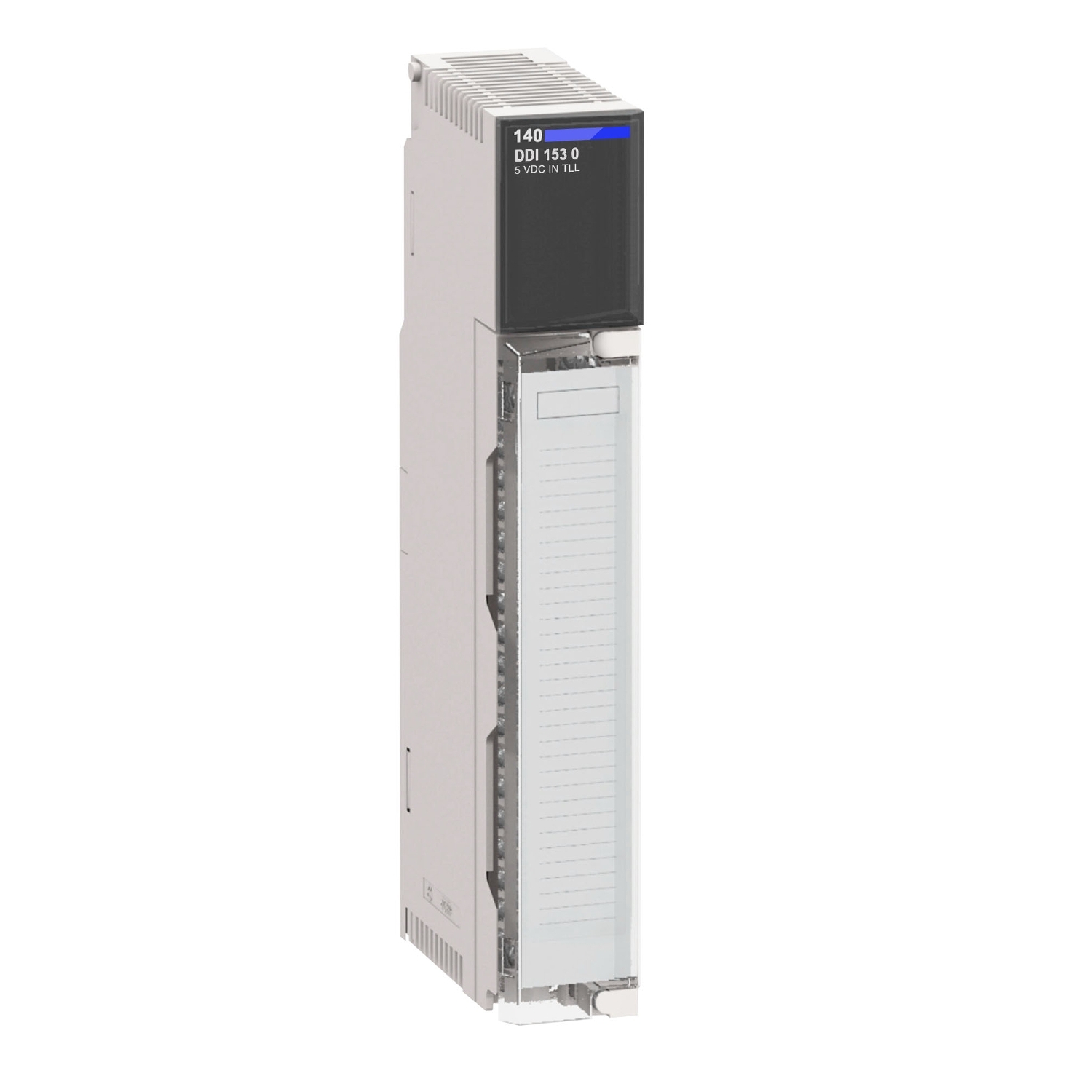

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 24 |
| Product or component type | dc discrete input modules |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Input voltage | 125 V 2.5-2.5 mA DC |
| Module format | standard |
| Local signalling | 24 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active) |
| Addressing requirement | 2 input words |
| Bus current requirement | 200 mA |
| Net weight | 0.3 kg |
| Input voltage limits | 88...150 V |
| Marking | CE |
| Isolation between group | 700 Vrms DC for 1 minute |
| Response time | 0.7 ms from state 1 to state 0, 0.7 ms from state 0 to state 1 |
| Absolute maximum voltage | 156.25 V including ripple |
| Isolation between group and bus | 2500 Vrms DC for 1 minute |
| Group of channels | 3 |
| Power dissipation | 1 W + (0.62 x number of points on) |
| Logic input | positive (sink) |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | CSA C22.2 No 142, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | FM Class 1 Division 2, C-Tick |
