Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

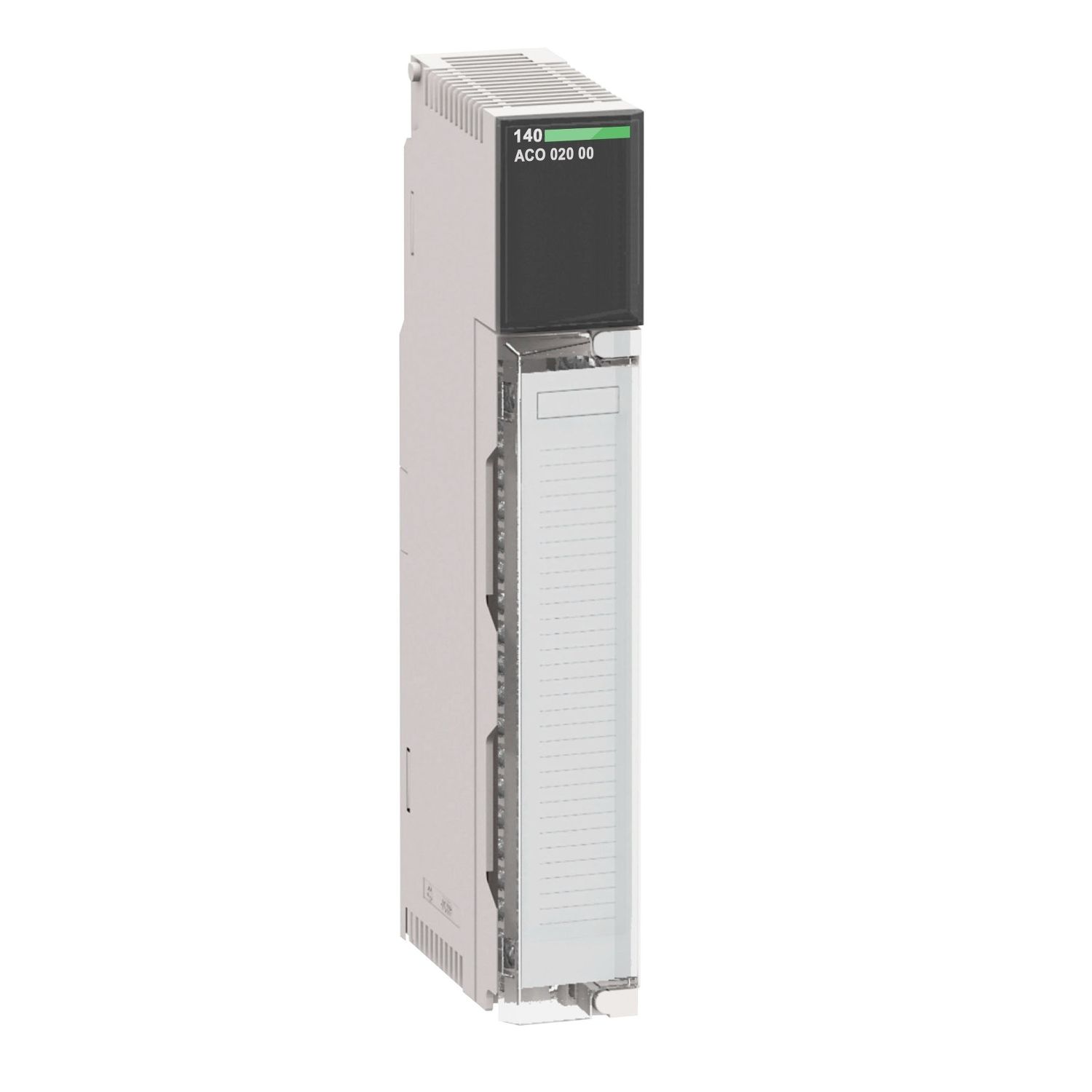

| Product or component type | analogue output module |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Update time | 3 ms |
| Module format | standard |
| Local signalling | 4 LEDs (red) for channel fault, 4 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active) |
| Addressing requirement | 4 output words |
| Absolute accuracy error | +/- 0.20 % of full scale at 25 °C |
| Bus current requirement | 480 mA |
| Analogue output number | 4 |
| Maximum power dissipation in W | 5.3 W |
| External power requirement | 12...30 V |
| Isolation between channels | 750 V for 1 minute DC, 500 V 47...63 Hz AC |
| Analogue output range | 4...20 mA 0...4096 counts, 12 bits bipolar current |
| Net weight | 0.3 kg |
| Accuracy drift according to temperature | +/- 0.007 % of full scale/°C maximum, +/- 0.004 % of full scale/°C |
| Marking | CE |
| Linearity | +/- 1 LSB |
| Loop voltage | 12-30 V DC |
| Setting time | 900 µs to +/- 0.1 % of the final value |
| Maximum voltage drop | <30 V 20 mA |
| Fault type | open circuit 4...20 mA |
| Environment | |
| Operating altitude | <= 5000 m |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | UL 508, CSA C22.2 No 142 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | cUL, FM Class 1 Division 2 |
