Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

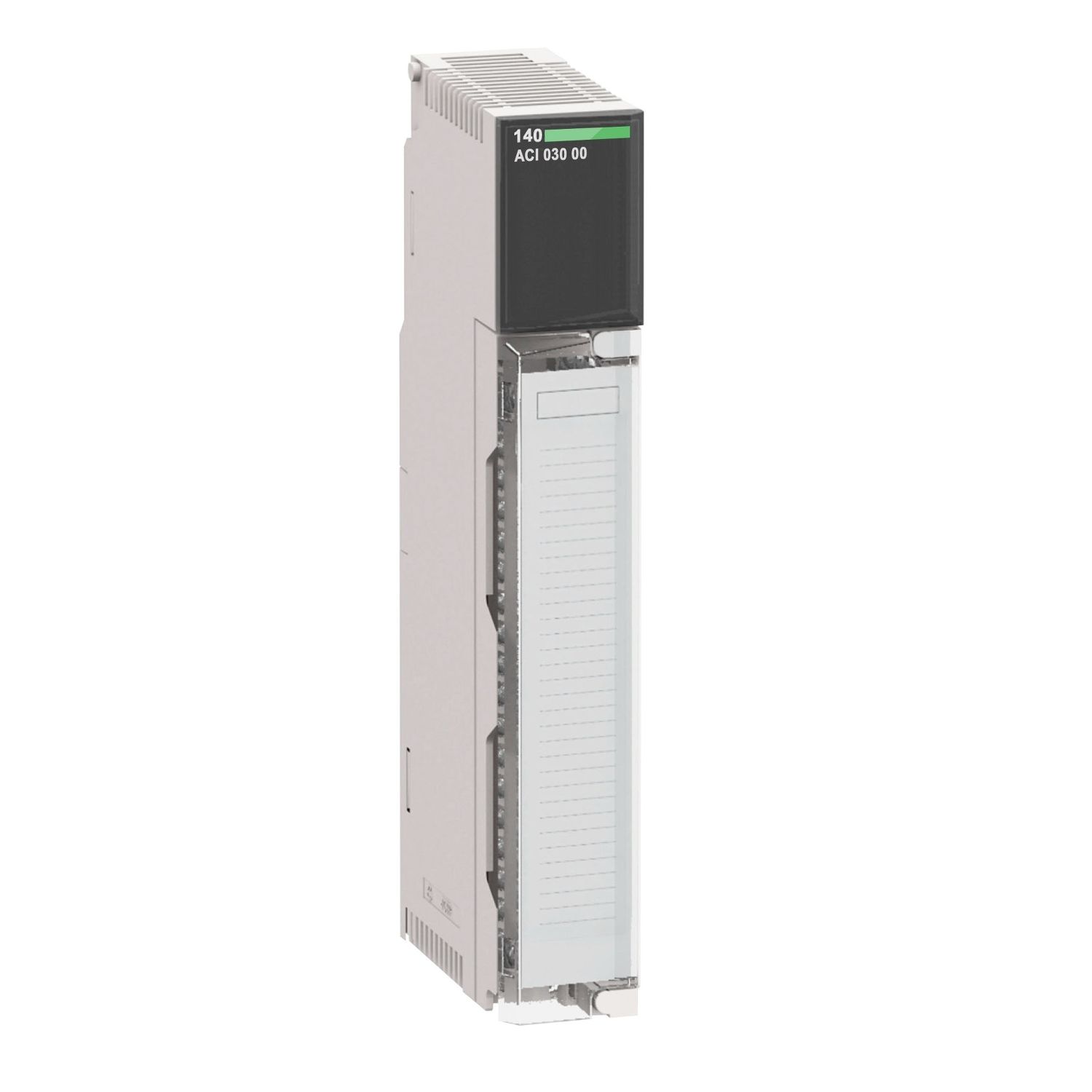

| Product or component type | analogue input module |
| Type of filter | single pole low pass - 3 dB at 15 Hz +/- 20 % |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Isolation between channels and bus | 3000 V DC for 60 s, 1000 V DC |
| Module format | standard |
| Common mode rejection | > - 72 dB 60 Hz |
| Linearity error | +/- 0.04 % |
| Absolute maximum input | 25 mA, 50 V DC |
| Local signalling | 8 LEDs (red) for channel fault, 8 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active) |
| Absolute accuracy error | +/- 0.1 % of full scale maximum, +/- 0.05 % of full scale |
| Addressing requirement | 9 input words |
| Bus current requirement | 240 mA |
| Linear measuring range | 4...20 mA, 1...5 V |
| Power dissipation in W | 2 W |
| Update time | 5 ms |
| Analogue input number | 8 |
| Input type | differential |
| Net weight | 0.3 kg |
| Accuracy drift according to temperature | <= 0.005 % of full scale/°C, +/- 0.0025 % of full scale/°C |
| Analogue input resolution | 12 bits |
| Marking | CE |
| Isolation between channels | 30 V DC |
| Fault type | undervoltage range 1...5 V, broken wire 4...20 mA |
| Input impedance | > 20 MOhm voltage, 250 Ohm current +/- 0.01 % |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | CSA C22.2 No 142, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | cUL, FM Class 1 Division 2 |
