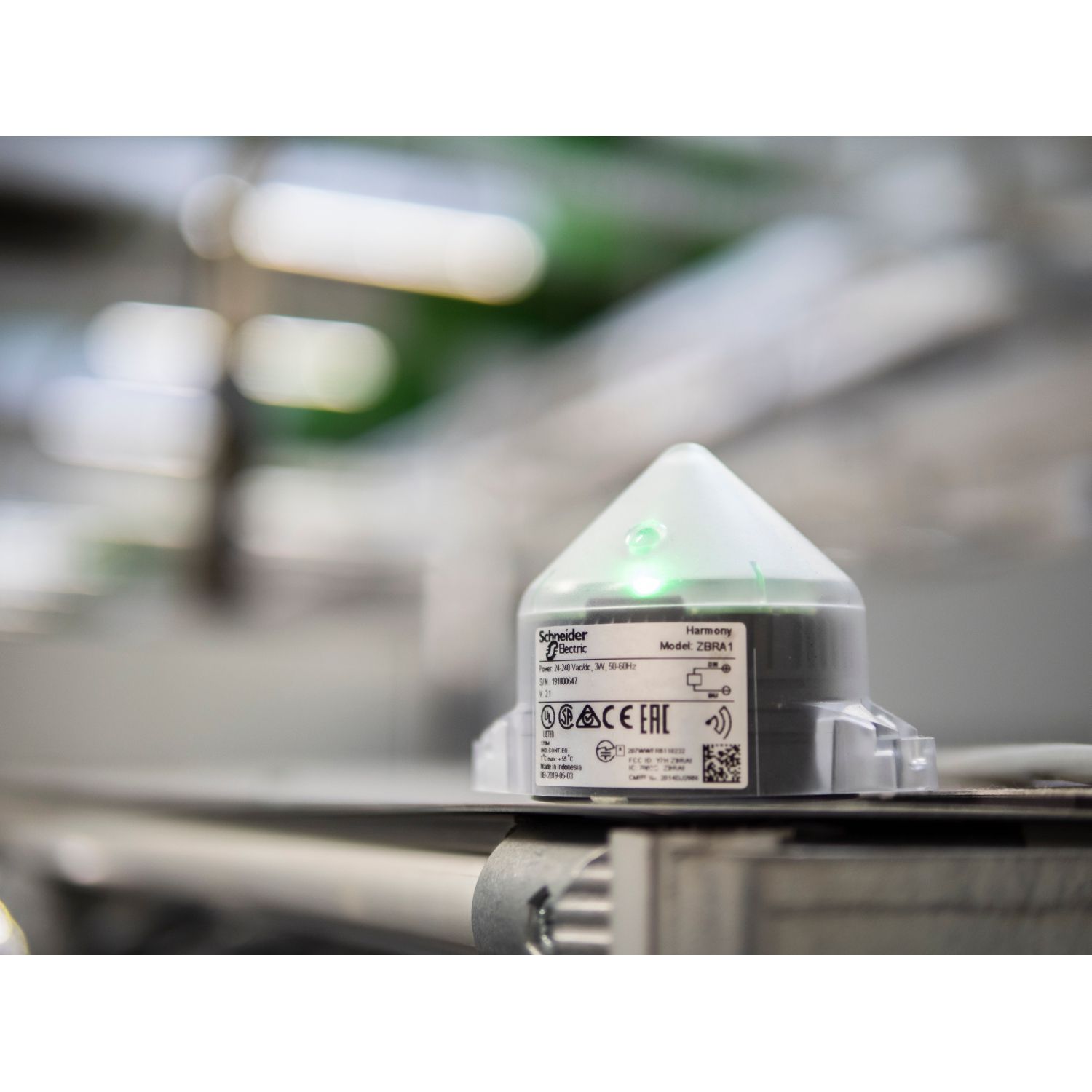

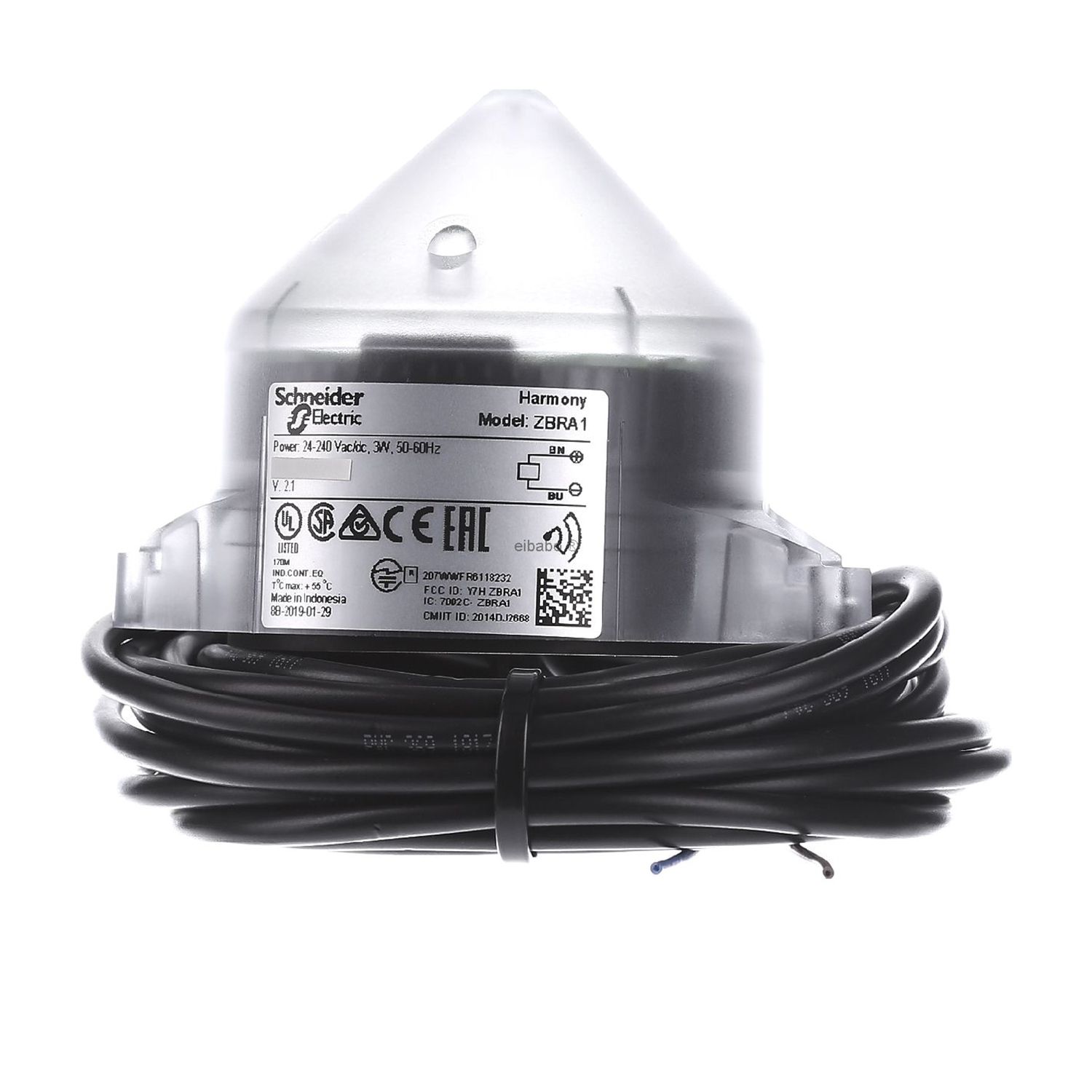

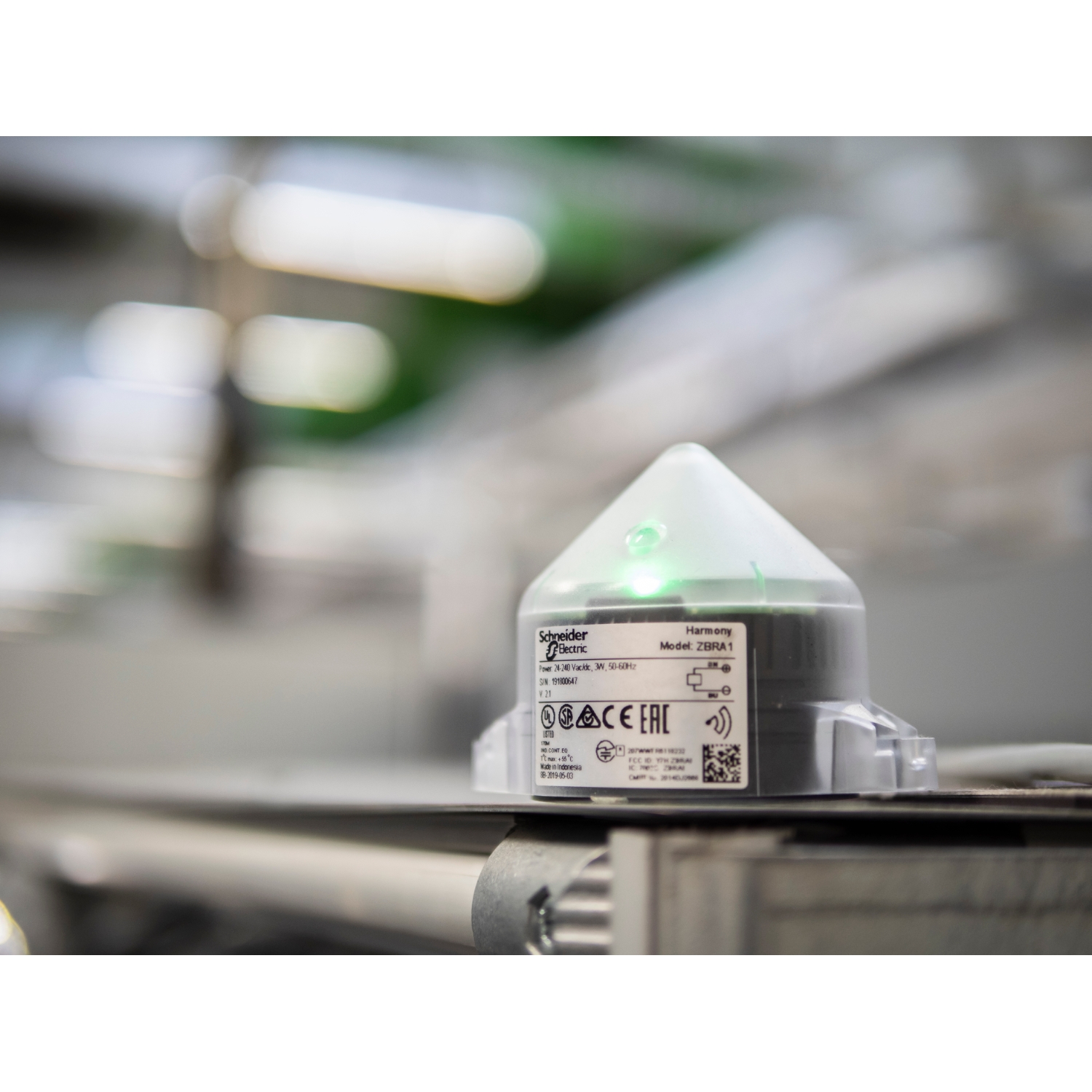

This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission frequency | 2405 MHz for receiver, 2405 MHz for transmitter |
| Device short name | ZBRA |
| Level or class | 5M00G7W |
| Colour of cover | transparent |
| Material | polycarbonate |
| Product or component type | wireless and batteryless range |
| Colour of base of enclosure | black (RAL 9011) |
| Range of product | Harmony XB5R |
| Product destination | Wireless Schneider Electric ecosystem devices |
| Control station application | transceiver (emission and reception) |
| Antenna type | omnidirectional |
| Complementary | |
| Bandwidth | 5-5 MHz |
| CAD overall width | 93 mm |
| Maximum power consumption in W | 4 W AC/DC |
| Tightening torque | 0.6-0.6 N.m conforming to IEC 60947-1 |
| Operating position | vertical |
| Housing material | self-extinguishing plastic |
| Number of channels | 1 |
| Max power consumption in W | 1 mW |
| Maximum sensing distance | 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Rated short-duration power frequency withstand voltage | 4 kV 50 Hz conforming to IEC 60947-5-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| CAD overall height | 67 mm |
| Net weight | 0.2 kg |
| Emission power | 3 mW |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Antenna gain | 0 dBi |
| Status LED | 1 LED green for emission signal, 1 LED green for power ON |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Modulation Technique | O-QPSK |
| Short-circuit protection | 0.4 A fuse type fast blow |
| Electrical connection | 2 conductors cable 0.34-0.34 mm² - flexible - 5 m conforming to IEC 60947-1 |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Environment | |
| Radio agreement | ICASA, category 1 conforming to ETSI EN 300 440-1, FCC, category 2 conforming to ETSI EN 300 440-1, ARIB T66, class 2 conforming to ETSI EN 301 489-3, ANATEL, type III conforming to ETSI EN 301 489-3, SRRC, RSS |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Relative humidity | 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to NF C 20030 |
| Vibration resistance | 6 gn (f= 55-150 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, immunity to microbreaks and voltage drops conforming to IEC 61000-4-11, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to IEC 61000-6-2 |
| IP degree of protection | IP65 conforming to IEC 60529 55 °C 0.1 m |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Product certifications | C-Tick, CE, CSA, GOST, UL, BT 2006/95/EC, CCC |
