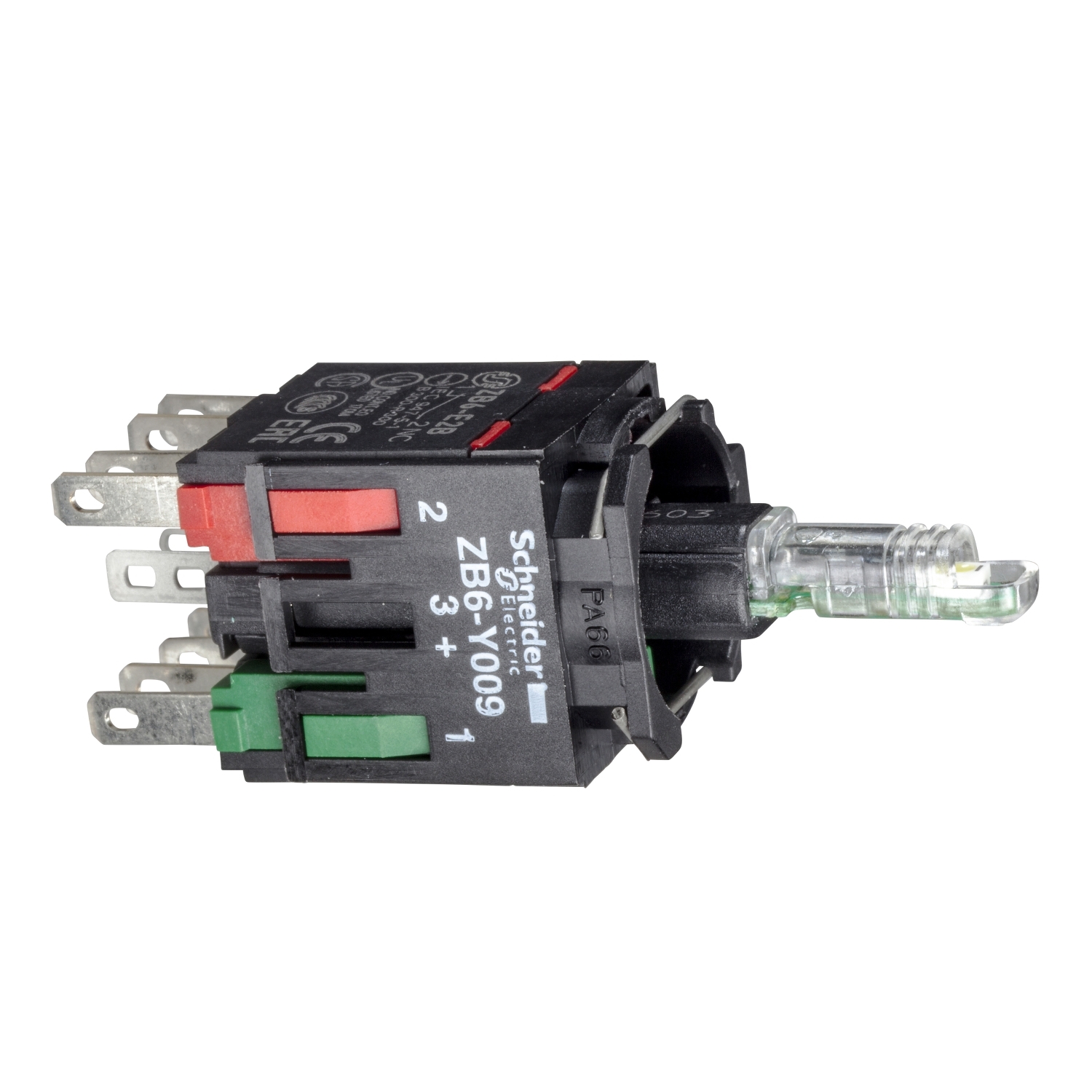

This Harmony ZB6ZB45B is a red light block with body/fixing collar with integral LED 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bulb base | integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
| Device short name | ZB6 |
| Light source colour | red |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | Faston connector, connection size: 2.8 x 0.5 mm |
| Fixing collar material | plastic |
| Product or component type | complete body for illuminated push-button |
| Light source | LED |
| Range of product | Harmony XB6 |
| Complementary | |
| CAD overall depth | 51 mm |
| CAD overall width | 24 mm |
| Electrical reliability | λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN/IEC 60947-5-4 |
| Compatibility code | ZB6 |
| Supply voltage limits | 6-30 V AC/DC |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300 |
| Signalling type | steady |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Surge withstand | 2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5 |
| Electrical durability | 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Current consumption | 15 mA |
| CAD overall height | 18 mm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| Net weight | 0.009 kg |
| Positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 2 mm (NO changing electrical state), 1 mm (NC changing electrical state) |
| Short-circuit protection | 6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Operating force | 2.5 N NC changing electrical state, 1.6 N NO changing electrical state |
| Terminals description ISO n°1 | (11-12)NC |
| Contacts usage | standard |
| Environment | |
| Electromagnetic emission | class B conforming to IEC 55011 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6, 6 kV on contact (on metal parts) conforming to IEC 61000-2-6 |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C 4520, EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-1, JIS C 852, CSA C22.2 No 14 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CSA, UL, CCC, GOST |
