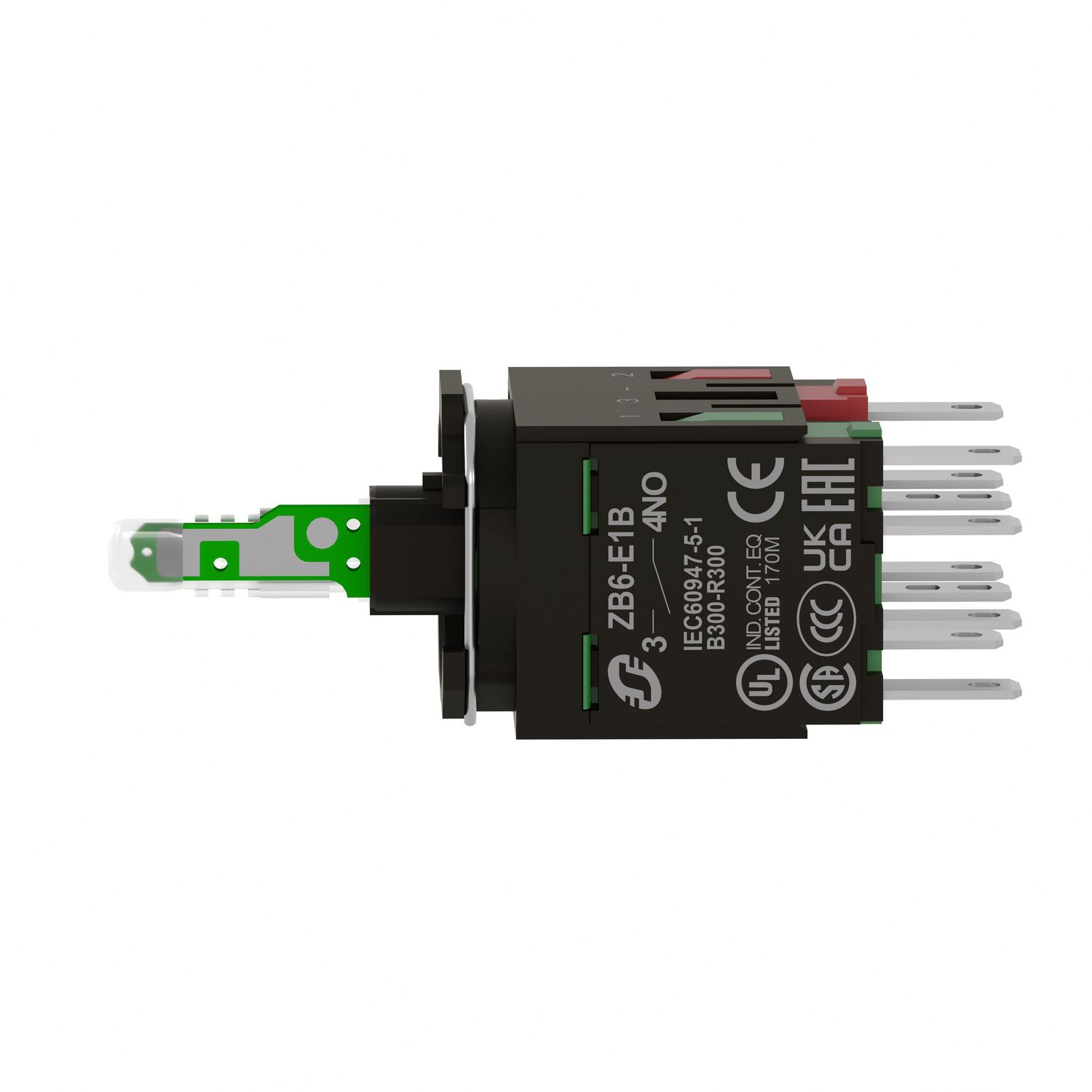

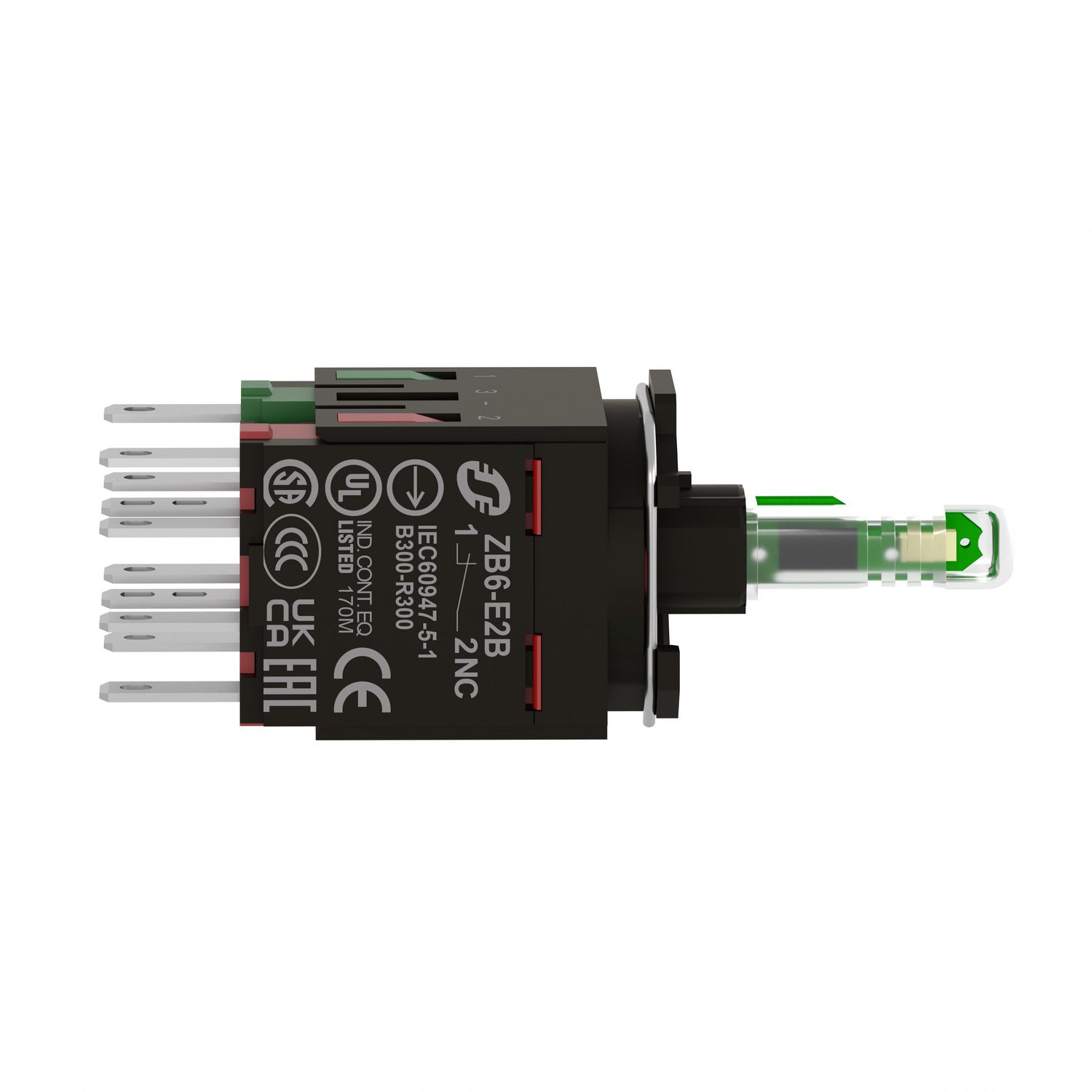

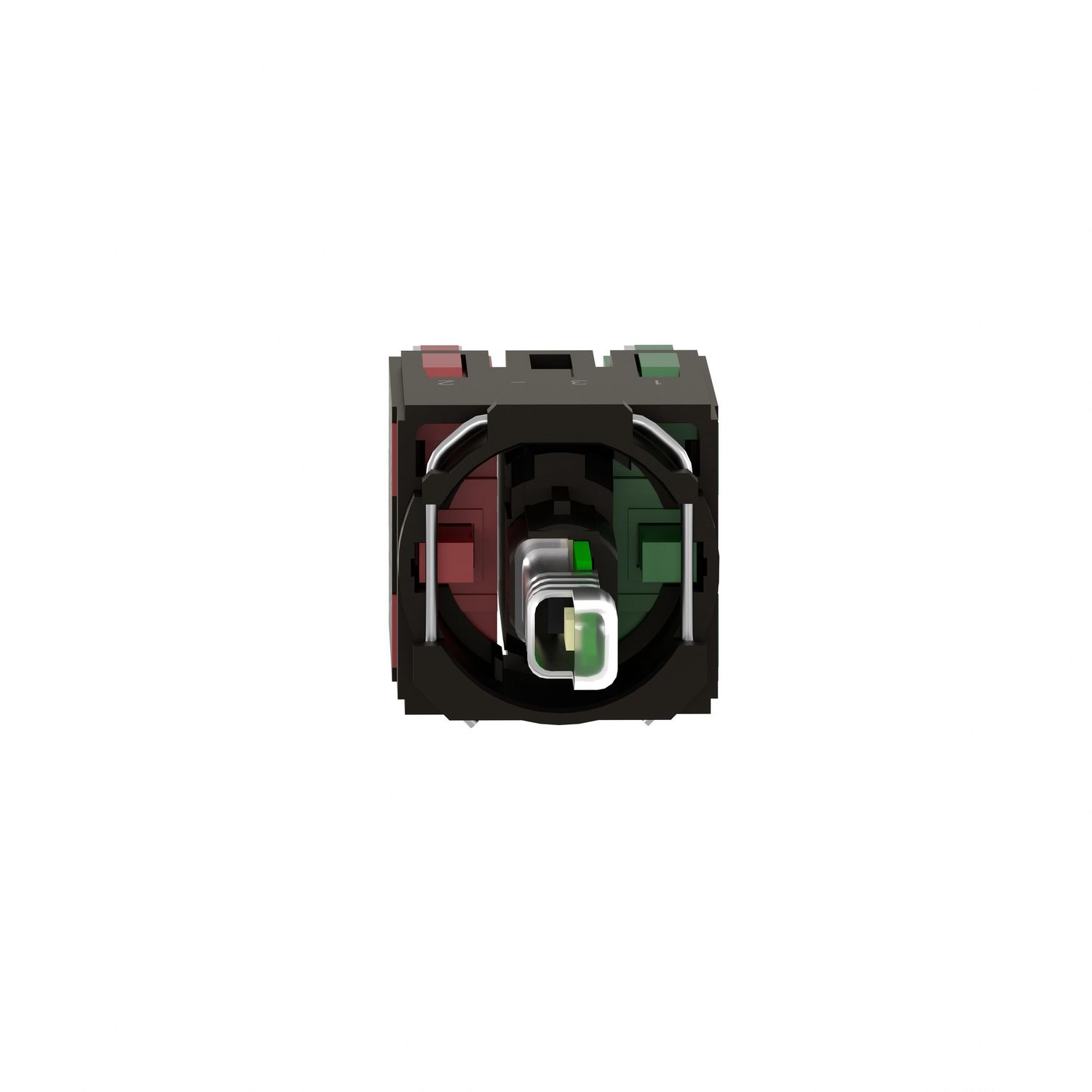

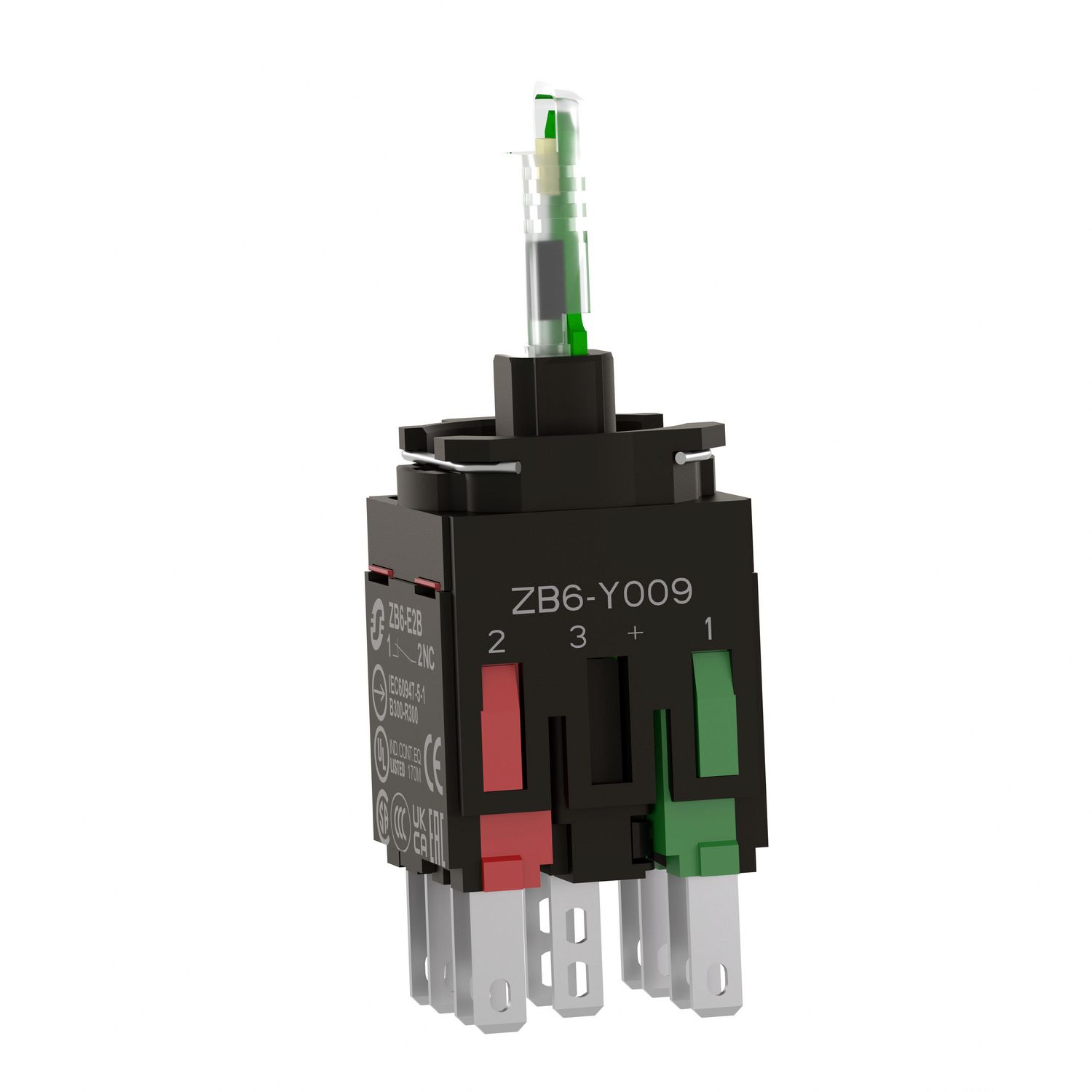

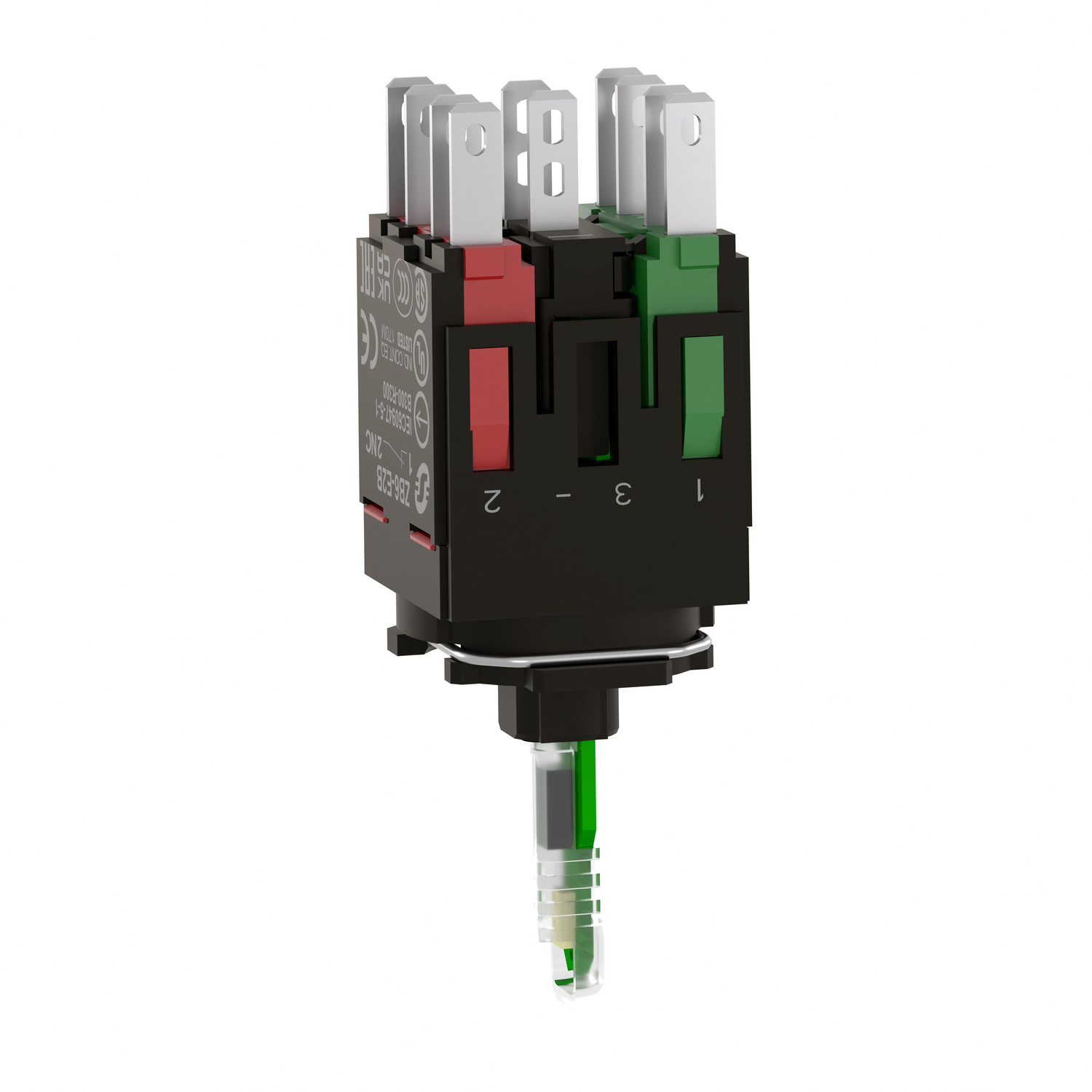

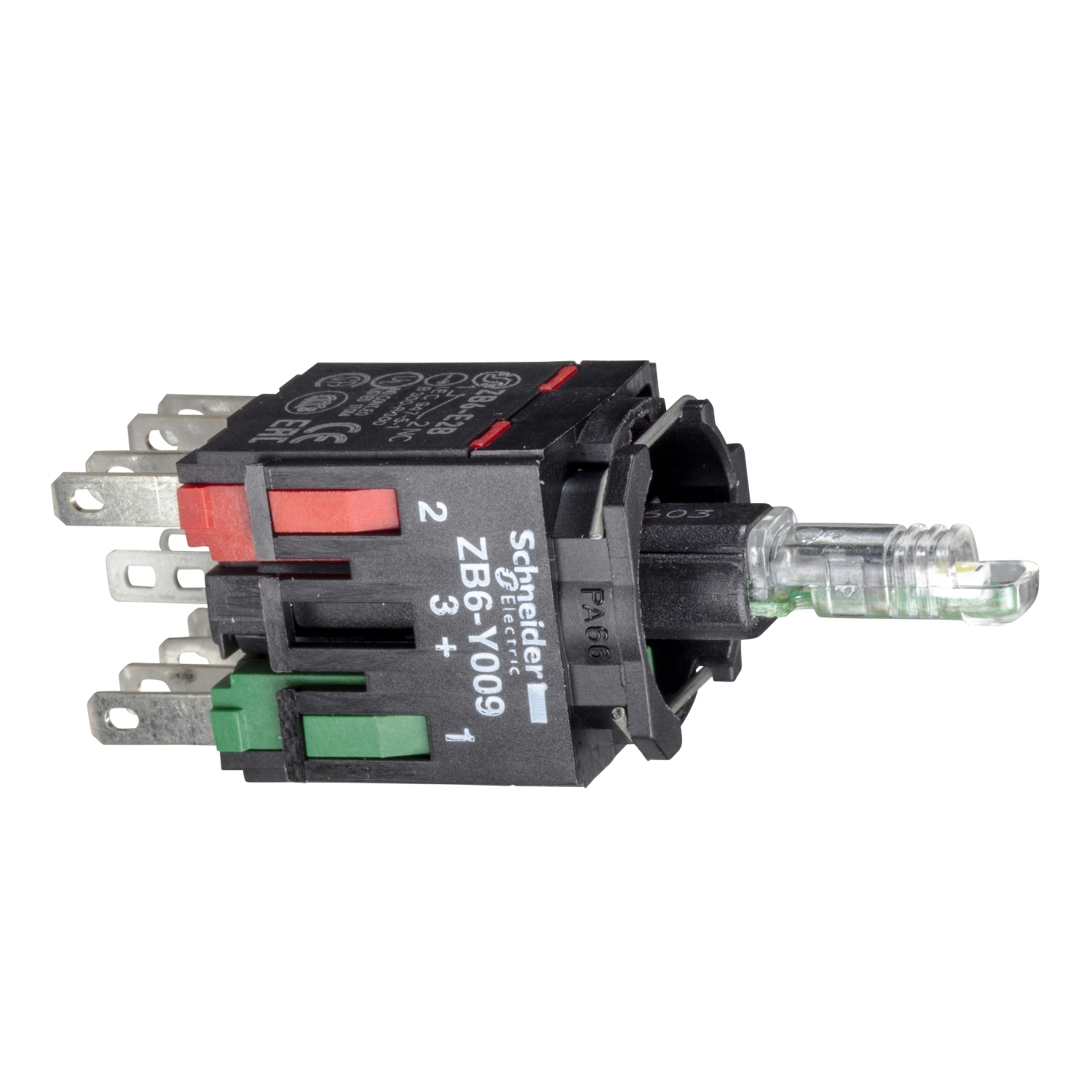

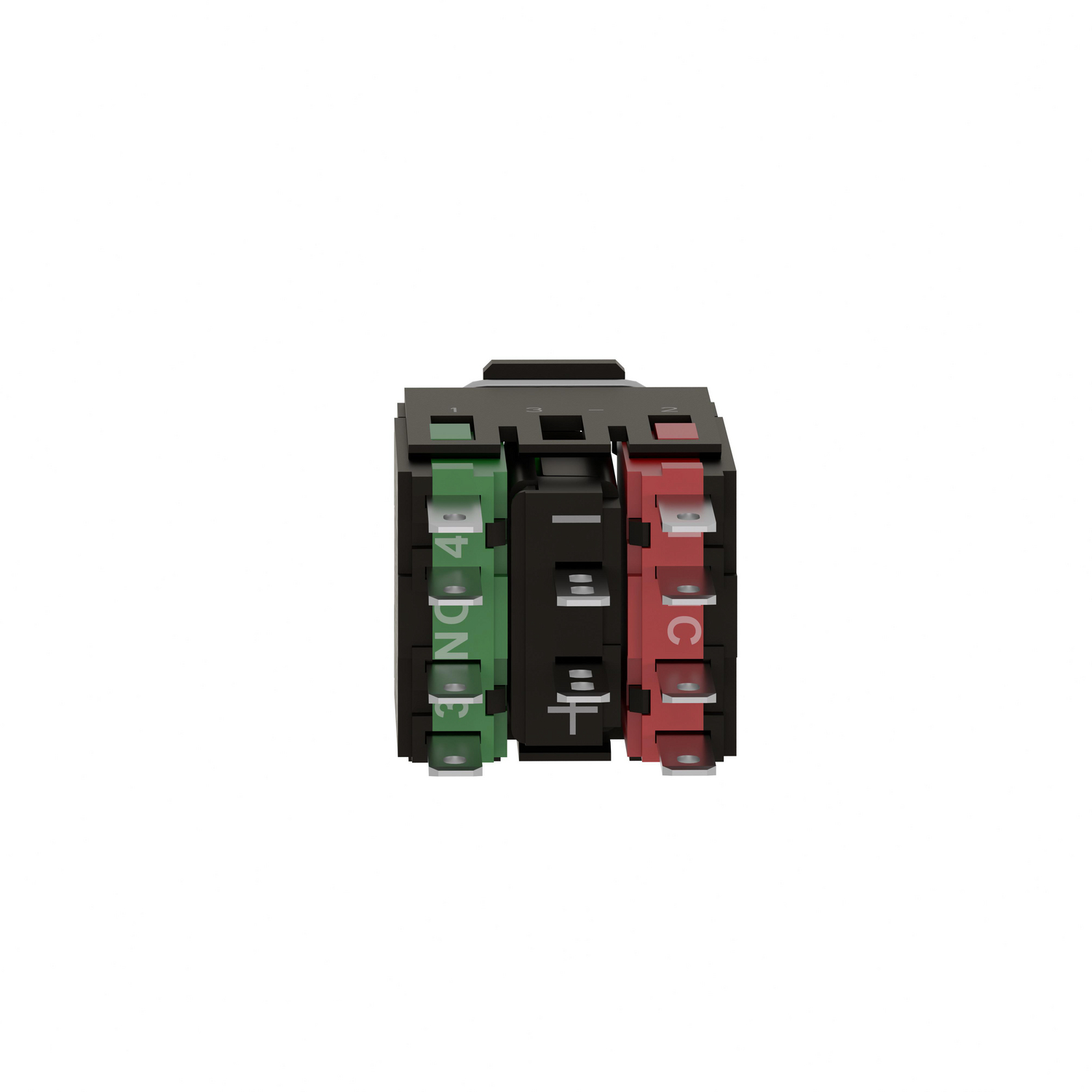

This Harmony ZB6ZB35B is a green light block with body/fixing collar and integral LED 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights. It complies with the RoHS directive related to the management of electronic and electrical waste.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bulb base | integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
| Device short name | ZB6 |
| Light source colour | green |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | Faston connector, connection size: 2.8 x 0.5 mm |
| Fixing collar material | plastic |
| Product or component type | complete body for illuminated push-button |
| Light source | LED |
| Range of product | Harmony XB6 |
| Complementary | |
| CAD overall depth | 51 mm |
| CAD overall width | 24 mm |
| Electrical reliability | λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Compatibility code | ZB6 |
| Supply voltage limits | 6-30 V AC/DC |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300 |
| Signalling type | steady |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Surge withstand | 2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5 |
| Electrical durability | 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Current consumption | 15 mA |
| CAD overall height | 18 mm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.009 kg |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 2 mm (NO changing electrical state), 1 mm (NC changing electrical state) |
| Short-circuit protection | 6 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Operating force | 2.5 N NC changing electrical state, 1.6 N NO changing electrical state |
| Terminals description ISO n°1 | (11-12)NC |
| Contacts usage | standard |
| Environment | |
| Electromagnetic emission | class B conforming to IEC 55011 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6, 6 kV on contact (on metal parts) conforming to IEC 61000-2-6 |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, JIS C 4520, IEC 60947-1, UL 508, IEC 60947-5-5, JIS C 852 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL, CCC, CSA, GOST |
