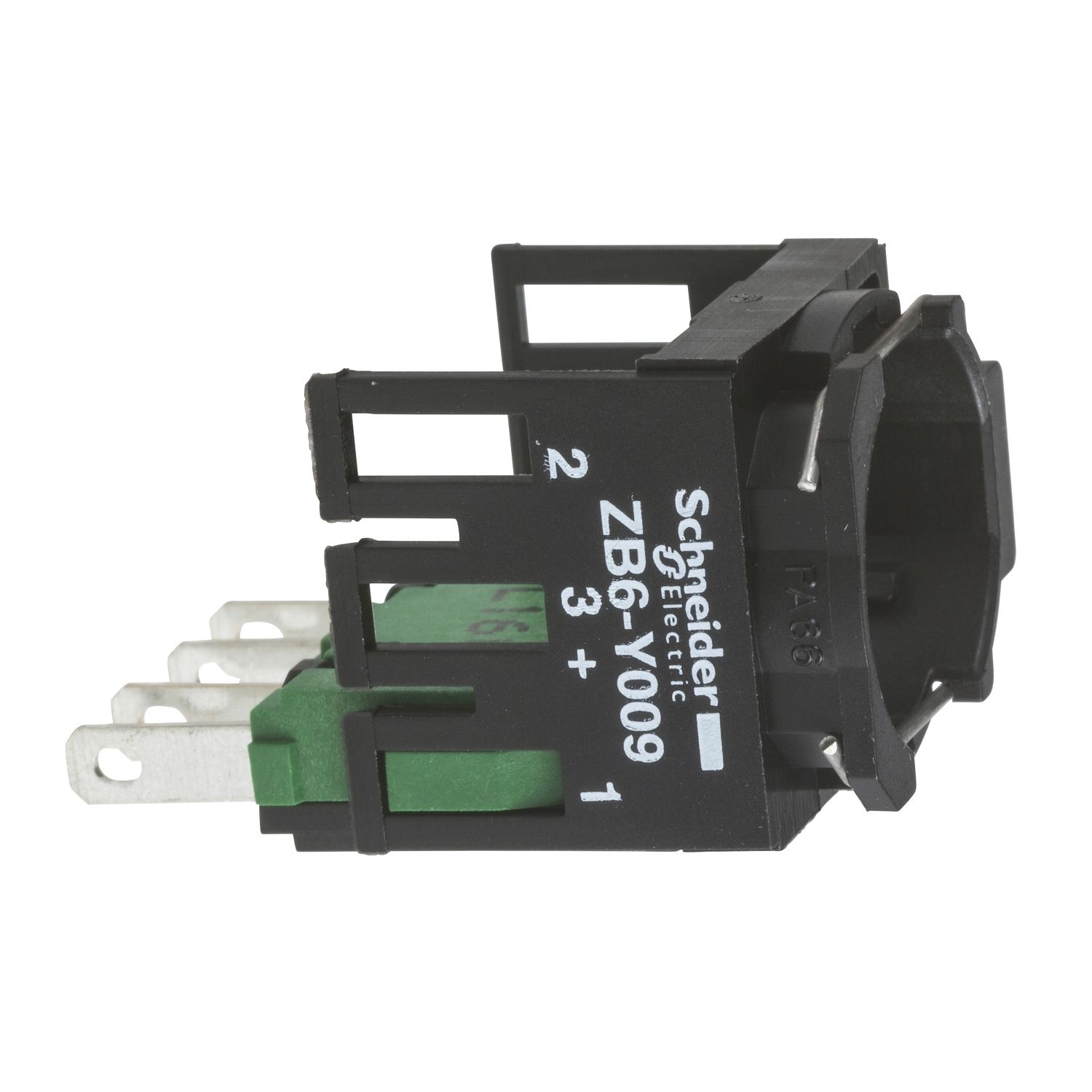

This Harmony ZB6Z1B is a single contact block with body/fixing collar 1 NO faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | <= 250 V |
| Device short name | ZB6 |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO |
| Connections - terminals | Faston connector, connection size: 2.8 x 0.5 mm, Faston connector |
| Fixing collar material | plastic |
| Product or component type | complete body for push-buttons or selector switches |
| Range of product | Harmony XB6 |
| Complementary | |
| CAD overall depth | 40 mm |
| CAD overall width | 18 mm |
| Electrical reliability | λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Compatibility code | ZB6 |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300 |
| Electrical durability | 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| CAD overall height | 18 mm |
| Net weight | 0.004 kg |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 2 mm (NO changing electrical state) |
| Short-circuit protection | 6 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Operating force | 1.6 N NO changing electrical state |
| Terminals description ISO n°1 | (13-14)NO |
| Contacts usage | standard |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C 4520, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-5, JIS C 852 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CSA, CCC, UL, GOST |
Only registered users can write reviews
Related products

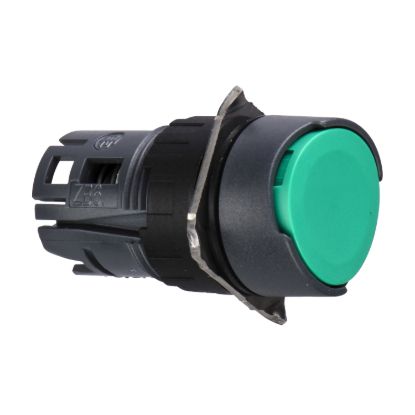

Head for non illuminated push button, Harmony XB6, green flush, 16mm, integral LED, spring return, unmarked
ZB6AA3
Head for non illuminated push button, Harmony XB6, green flush, 16mm, integral LED, spring return, unmarked
$26.73 inc GST
$16.26 inc GST

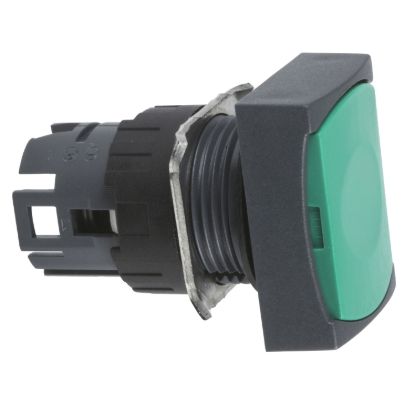

Head for non illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, unmarked
ZB6DA3
Head for non illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, unmarked
$28.49 inc GST
$17.33 inc GST

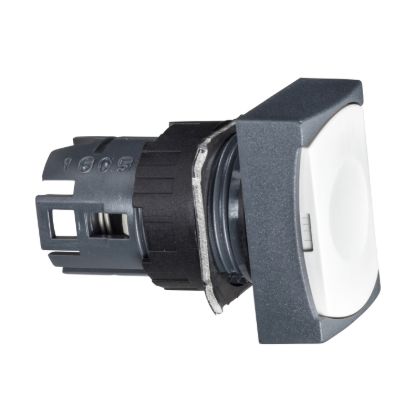

Head for non illuminated push button, Harmony XB6, white rectangular flush, 16mm, integral LED, spring return, unmarked
ZB6DA1
Head for non illuminated push button, Harmony XB6, white rectangular flush, 16mm, integral LED, spring return, unmarked
$28.49 inc GST
$17.33 inc GST

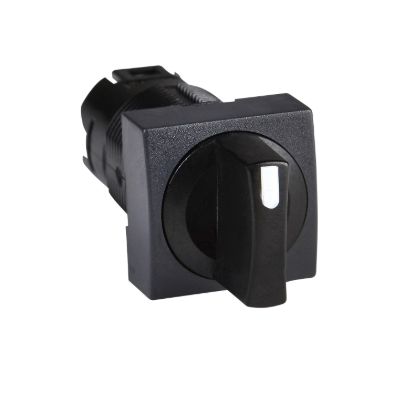

Head for selector switch, Harmony XB6, black square 16mm 2 positions 60degrees, stay put
