Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting diameter | 16 mm |

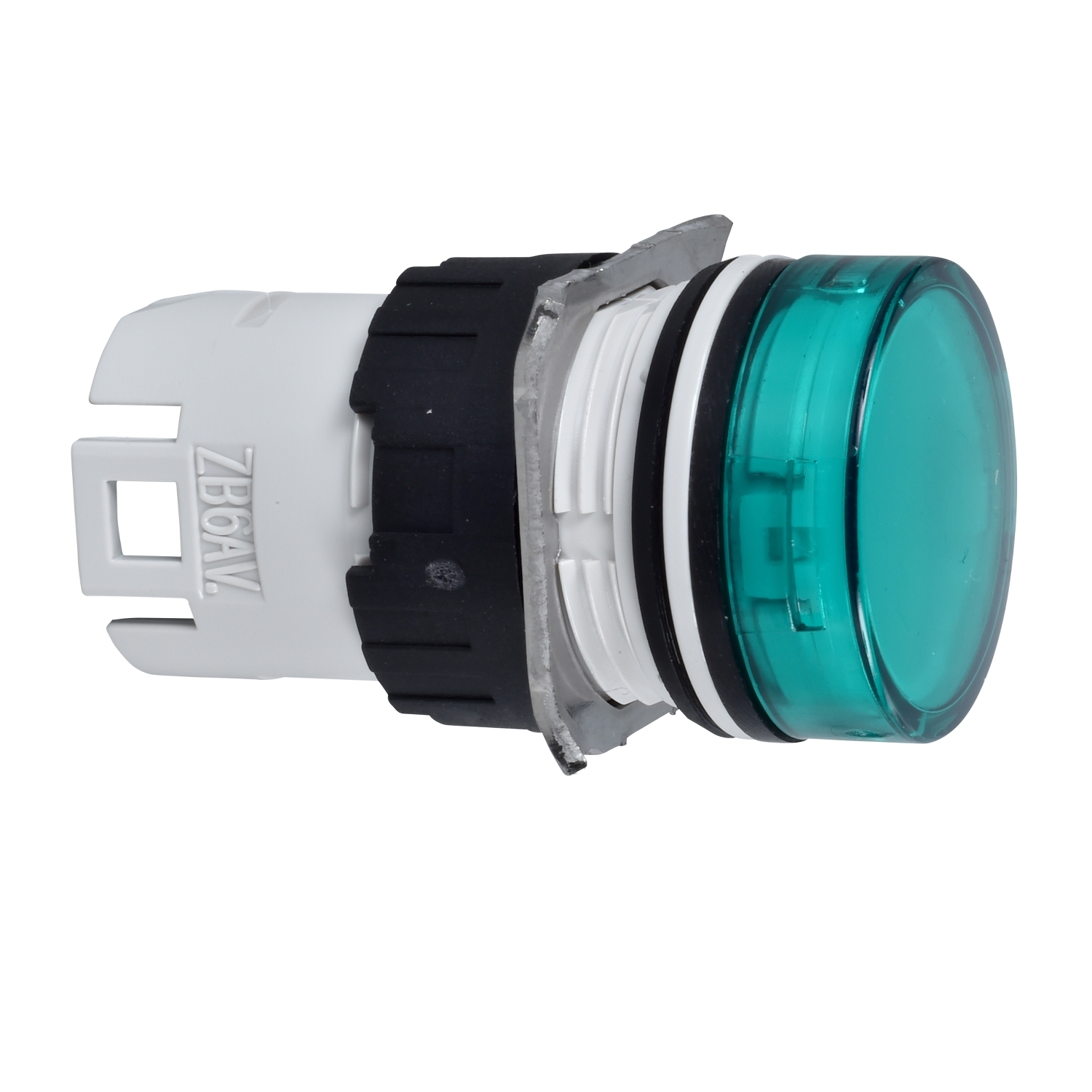

| Product or component type | head for pilot light |
| Shape of signaling unit head | round |
| Bezel material | plastic |
| Range of product | Harmony XB6 |
| Product compatibility | integral LED |
| Device short name | ZB6 |
| Cap/operator or lens colour | green |
| Sale per indivisible quantity | 1 |
| Complementary | |
| CAD overall width | 18 mm |
| CAD overall depth | 33 mm |
| Net weight | 0.015 kg |
| CAD overall height | 18 mm |
| Compatibility code | ZB6 |
| Environment | |
| Standards | IEC 60947-5-5, CSA C22.2 No 14, JIS C 4520, UL 508, JIS C 852, IEC 60947-1, IEC 60947-5-1 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration resistance | +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for operation | -25-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Protective treatment | TC |
| Product certifications | CCC, CSA, UL, GOST |
| NEMA degree of protection | NEMA 13 conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 4X conforming to UL 50, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 4X conforming to CSA C22.2 No 94 |
| Ambient air temperature for storage | -40-70 °C |
| Contractual warranty | |
| Warranty | 18 |
