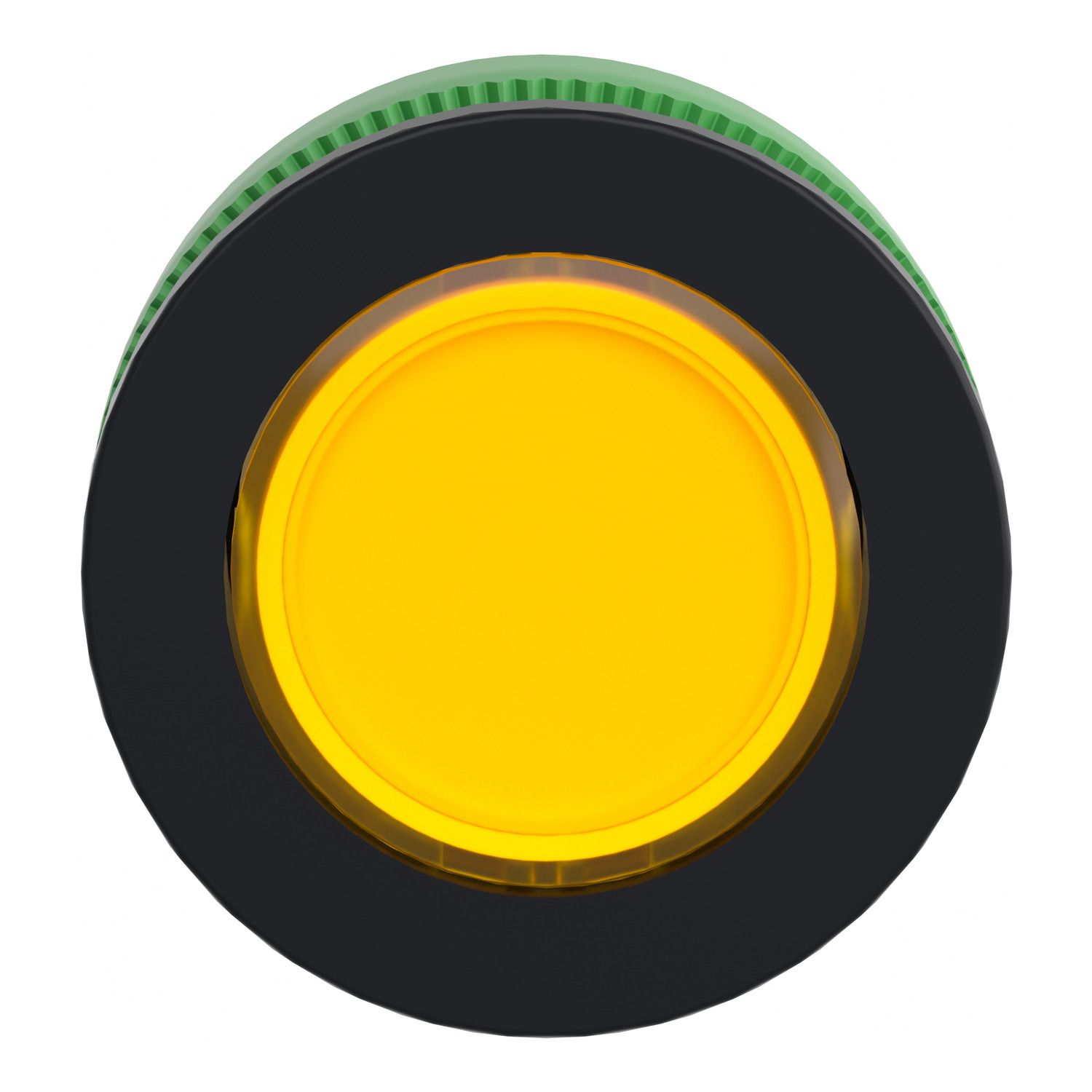

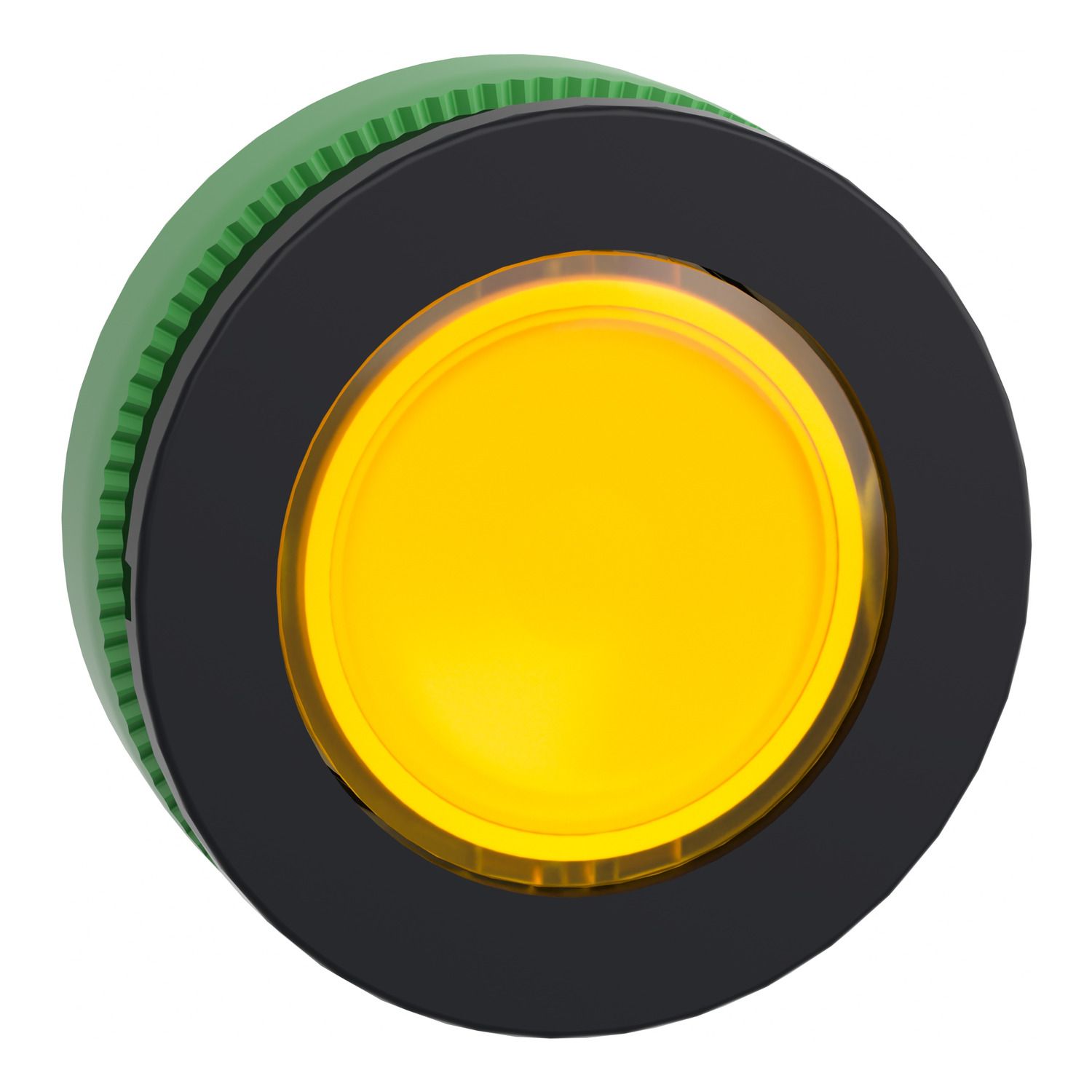

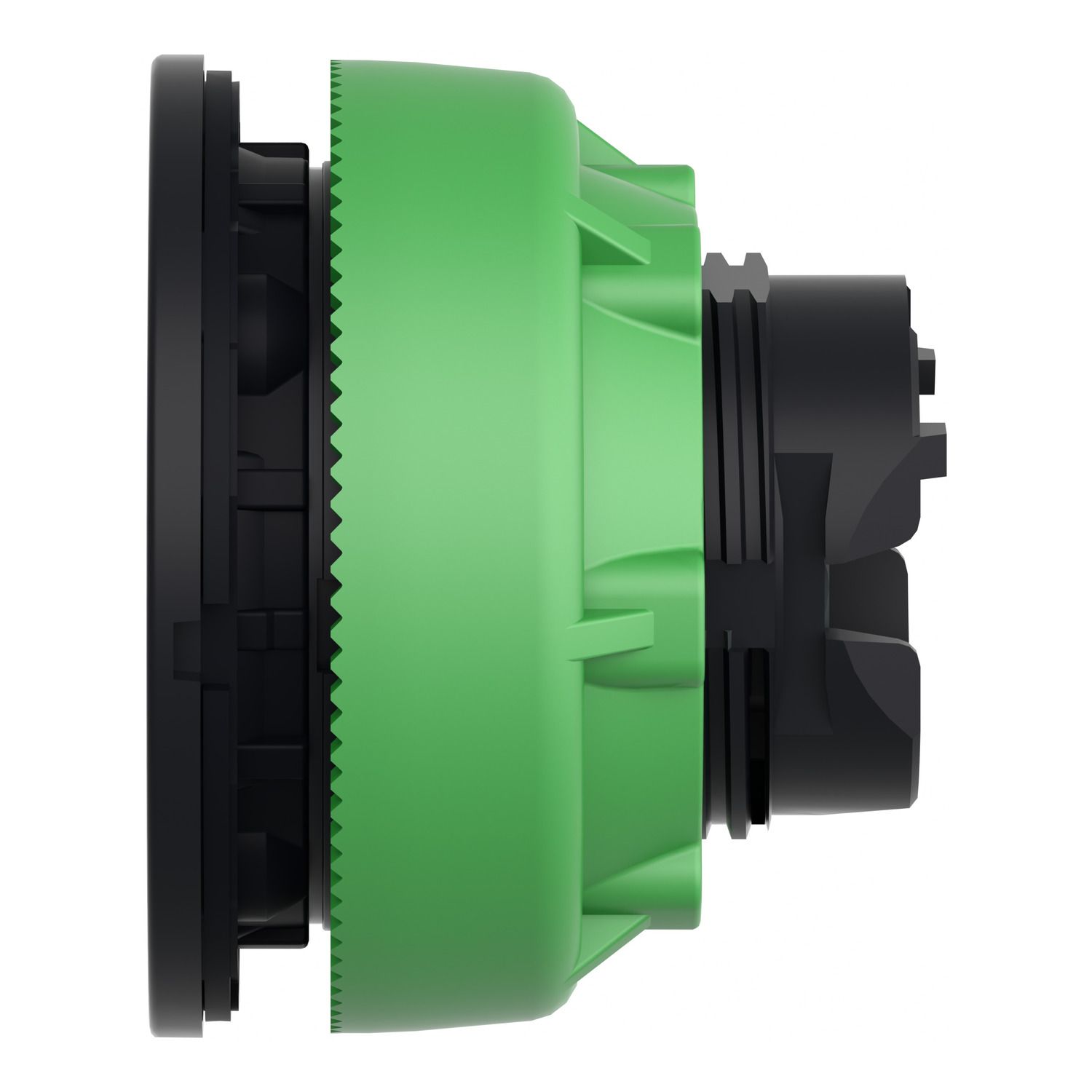

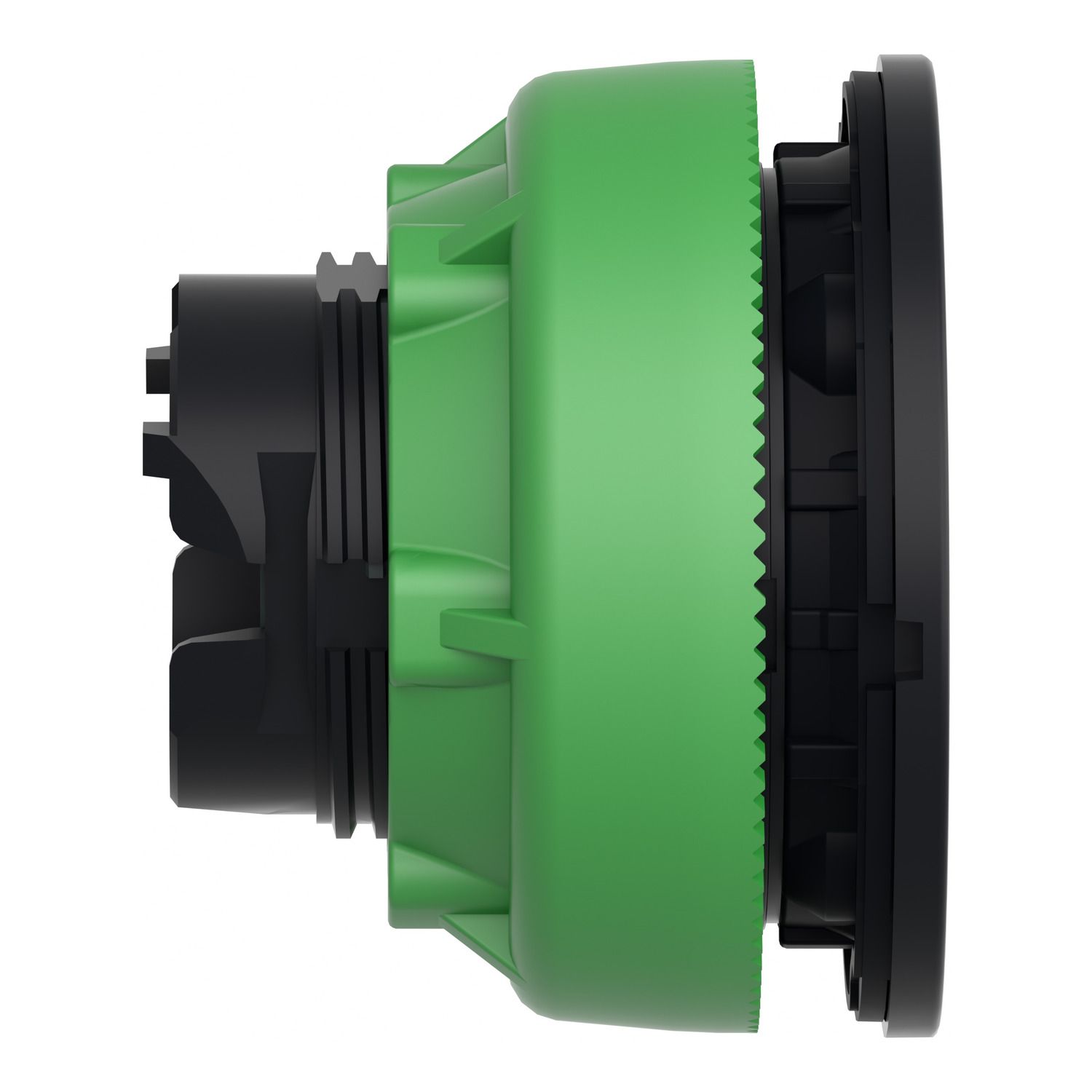

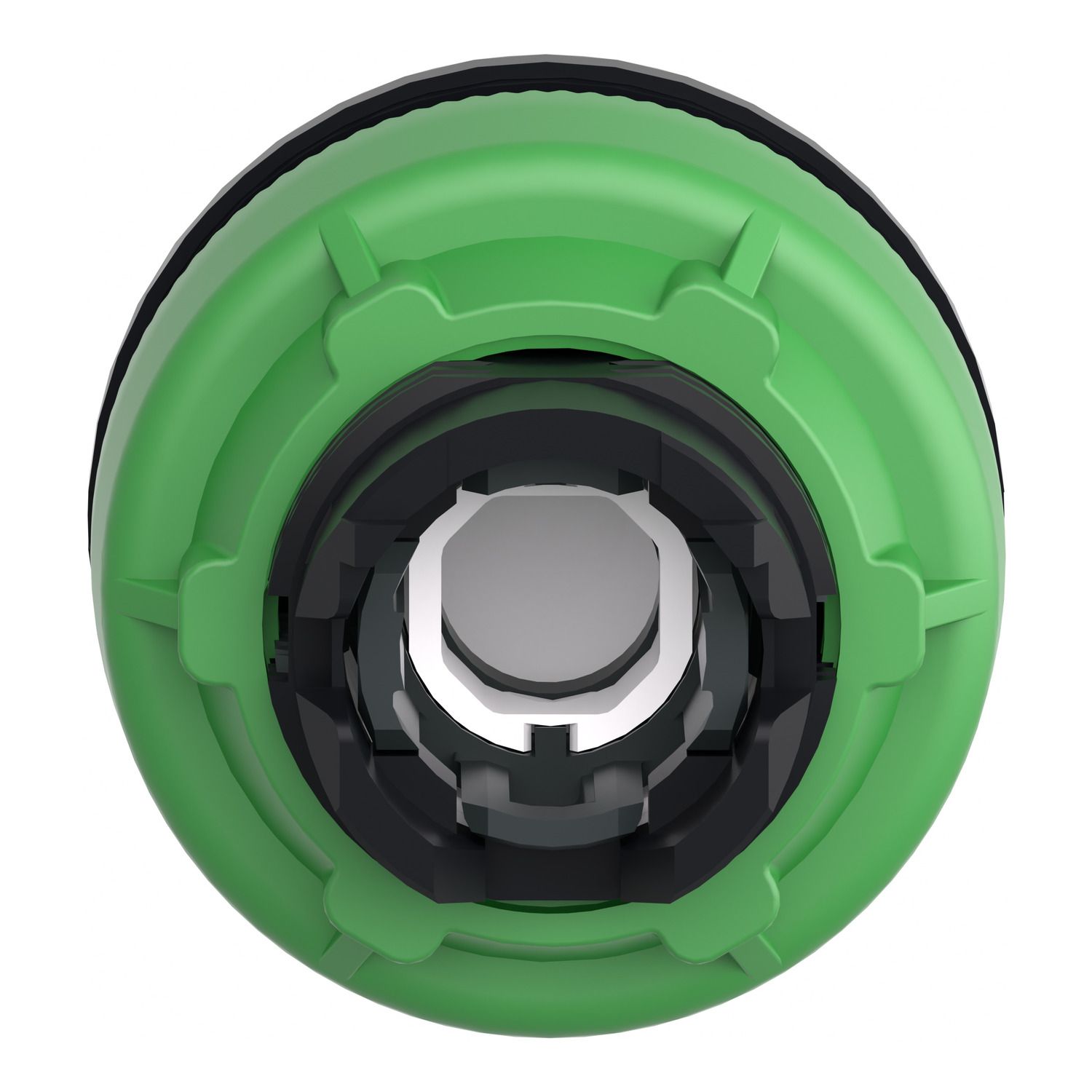

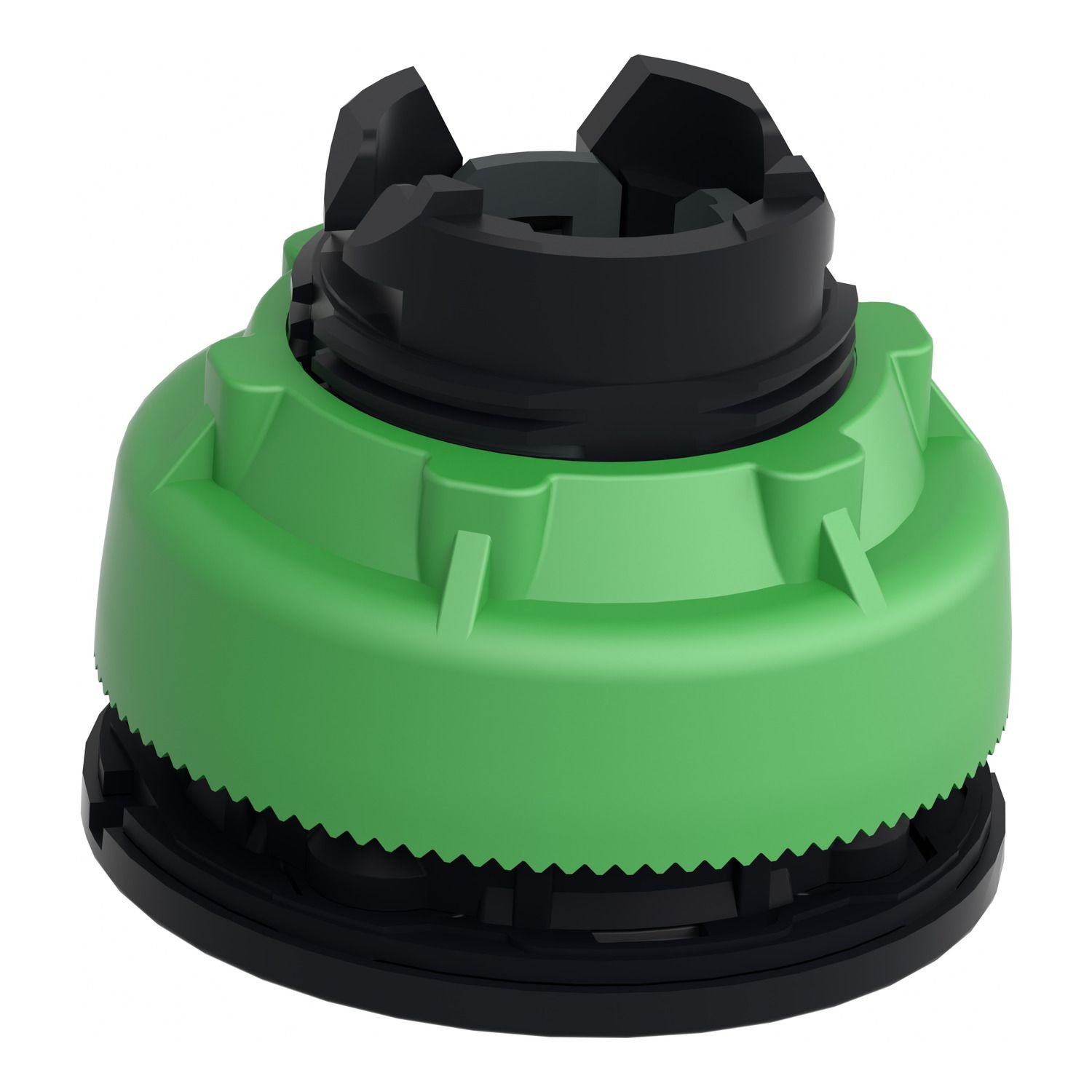

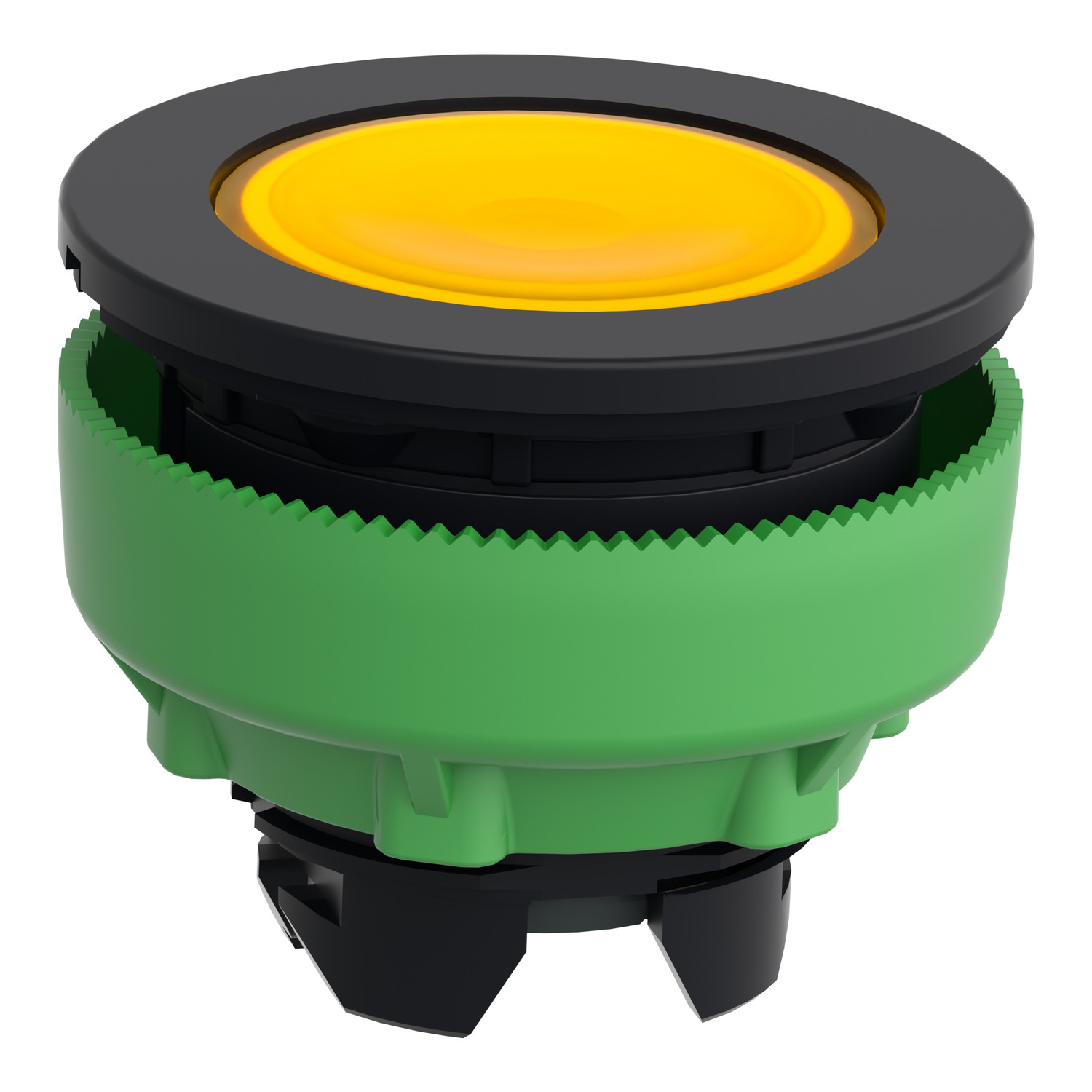

This pilot light head for integral LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | universal LED |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | built-in-flush |
| Cap/operator or lens colour | yellow |
| Shape of signaling unit head | round |
| Product or component type | head for pilot light |
| Mounting diameter | 30.5 mm |
| Range of product | Harmony XB5 |
| Operator additional information | with plain lens |
| Complementary | |
| Group of product | lens fitted integral LED |
| CAD overall depth | 30 mm |
| CAD overall width | 37 mm |
| Customizable | no, 1 |
| Compatibility code | ZB5 |
| Cap/operator or lens colour | yellow |
| GCR BRIDGE | ZB5FVCUST01 |
| Device presentation | basic element |
| CAD overall height | 37 mm |
| Net weight | 0.015 kg |
| Electrical composition code | PF1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED |
| Main group | pilot light |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | ISO 22196:2011, ISO 21702, JIS C8201-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
