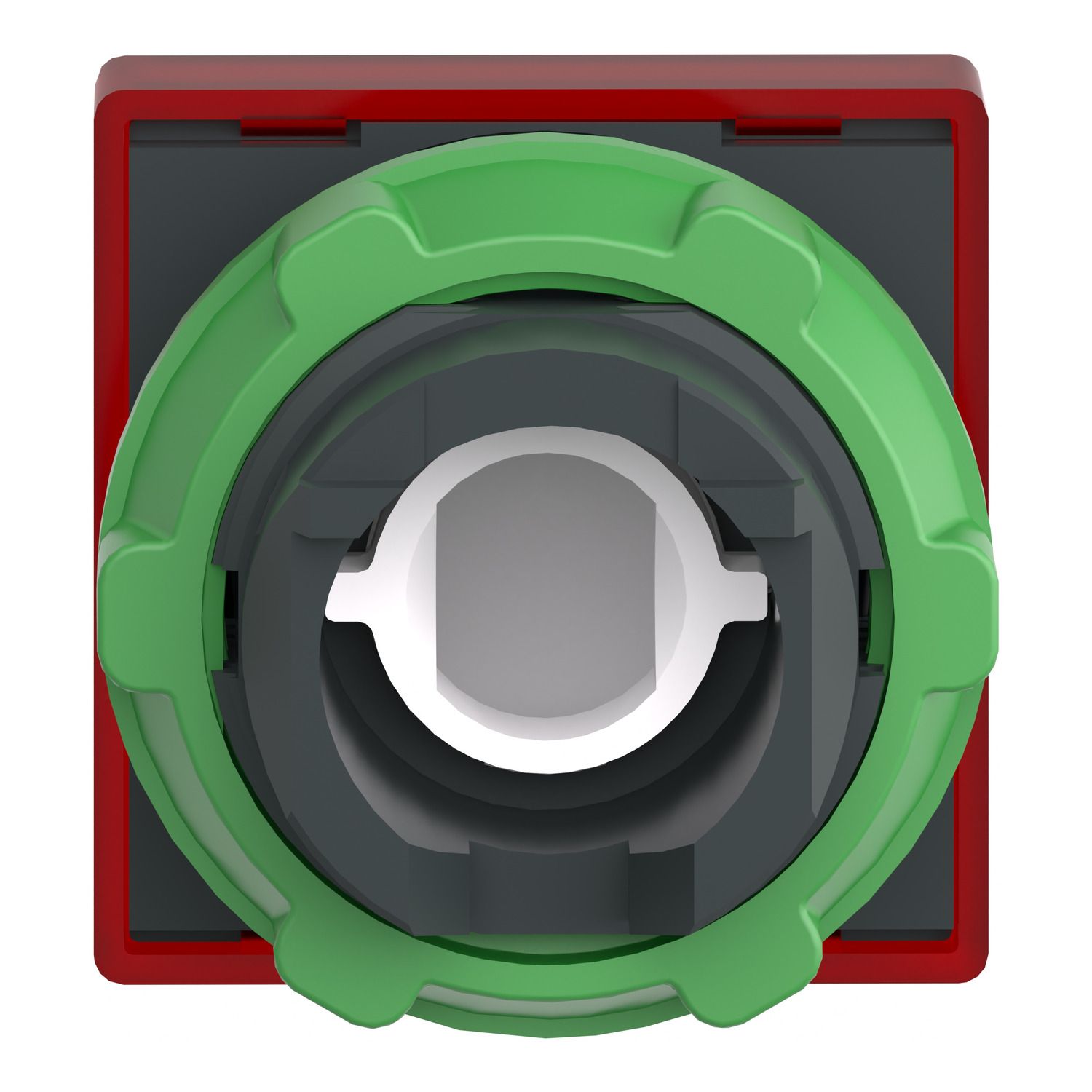

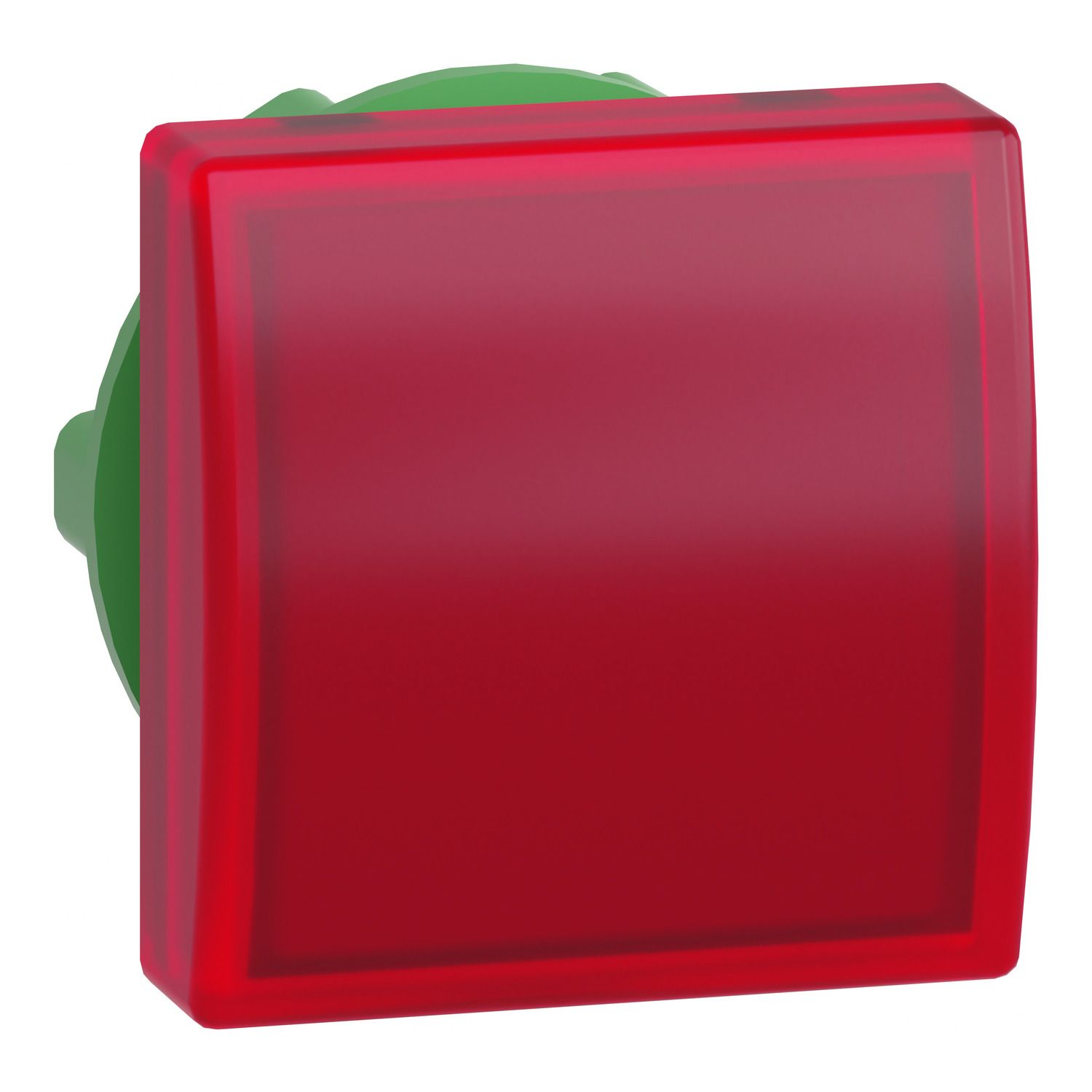

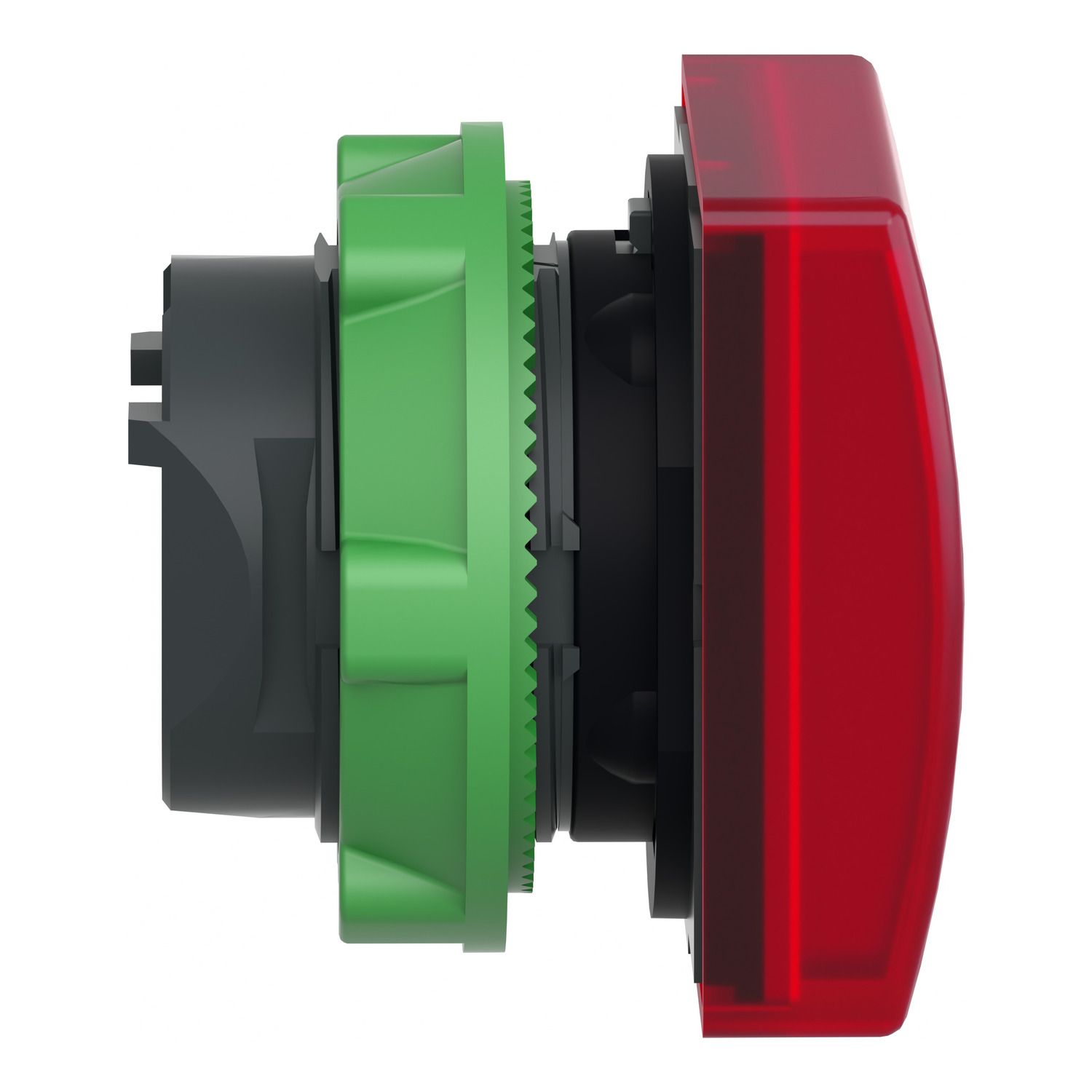

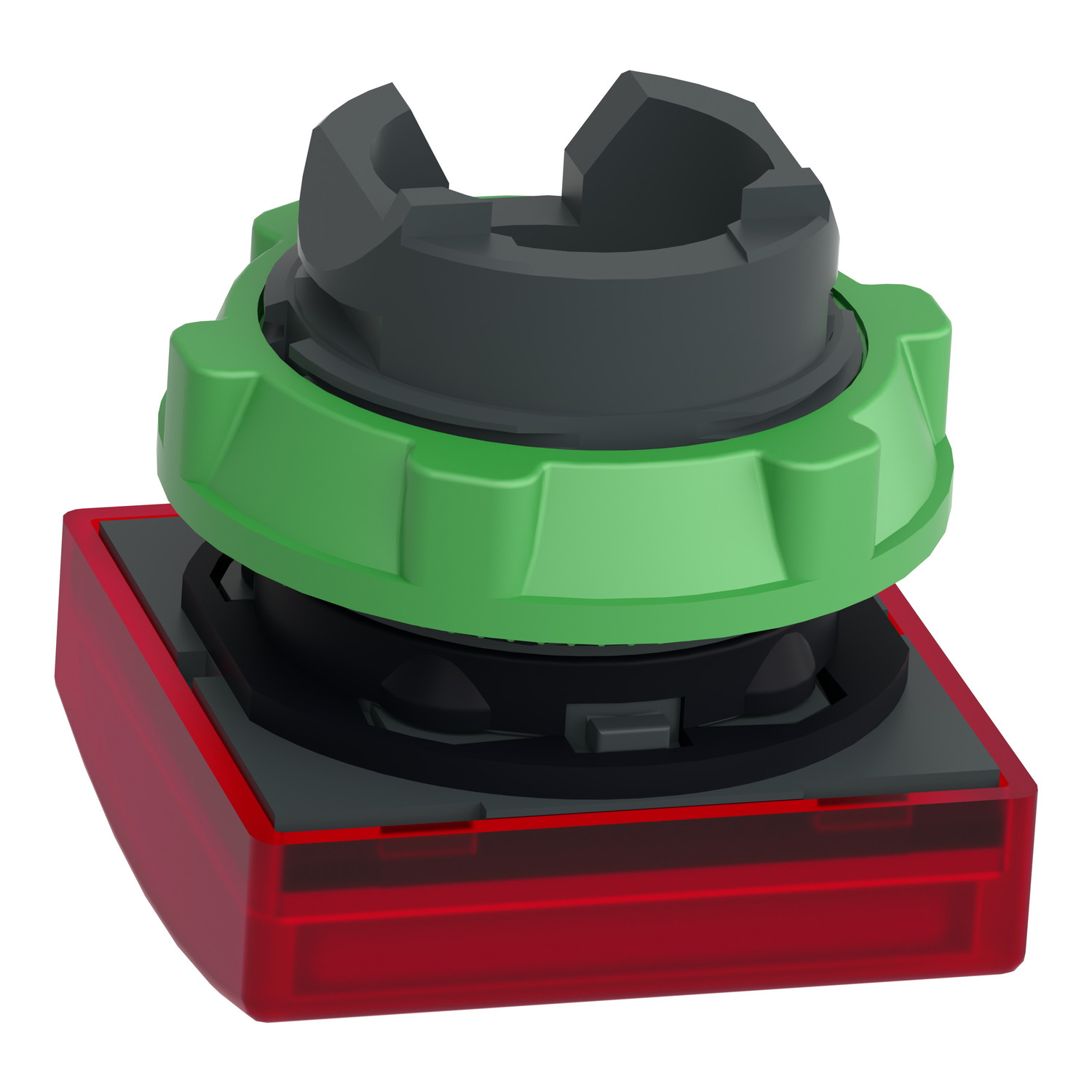

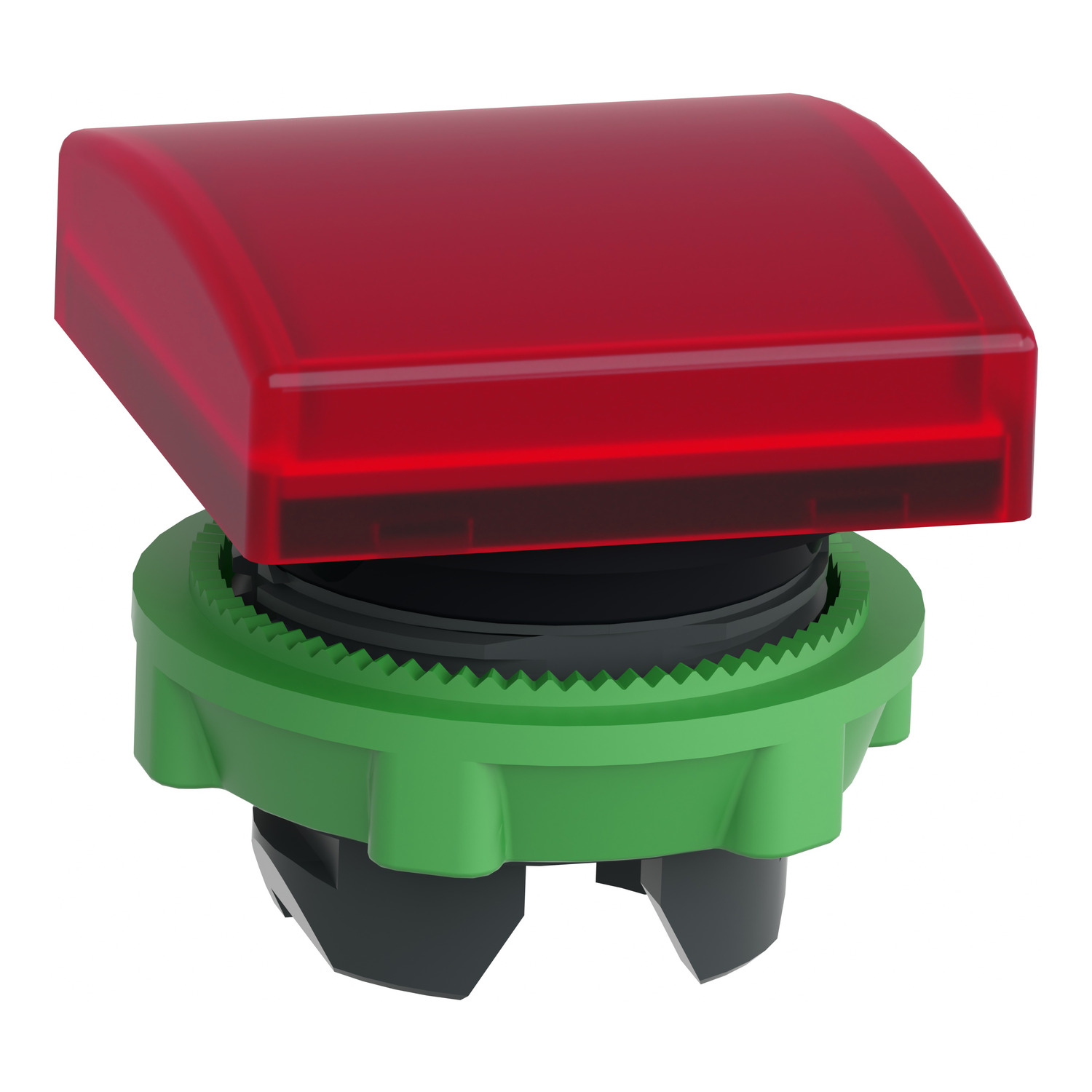

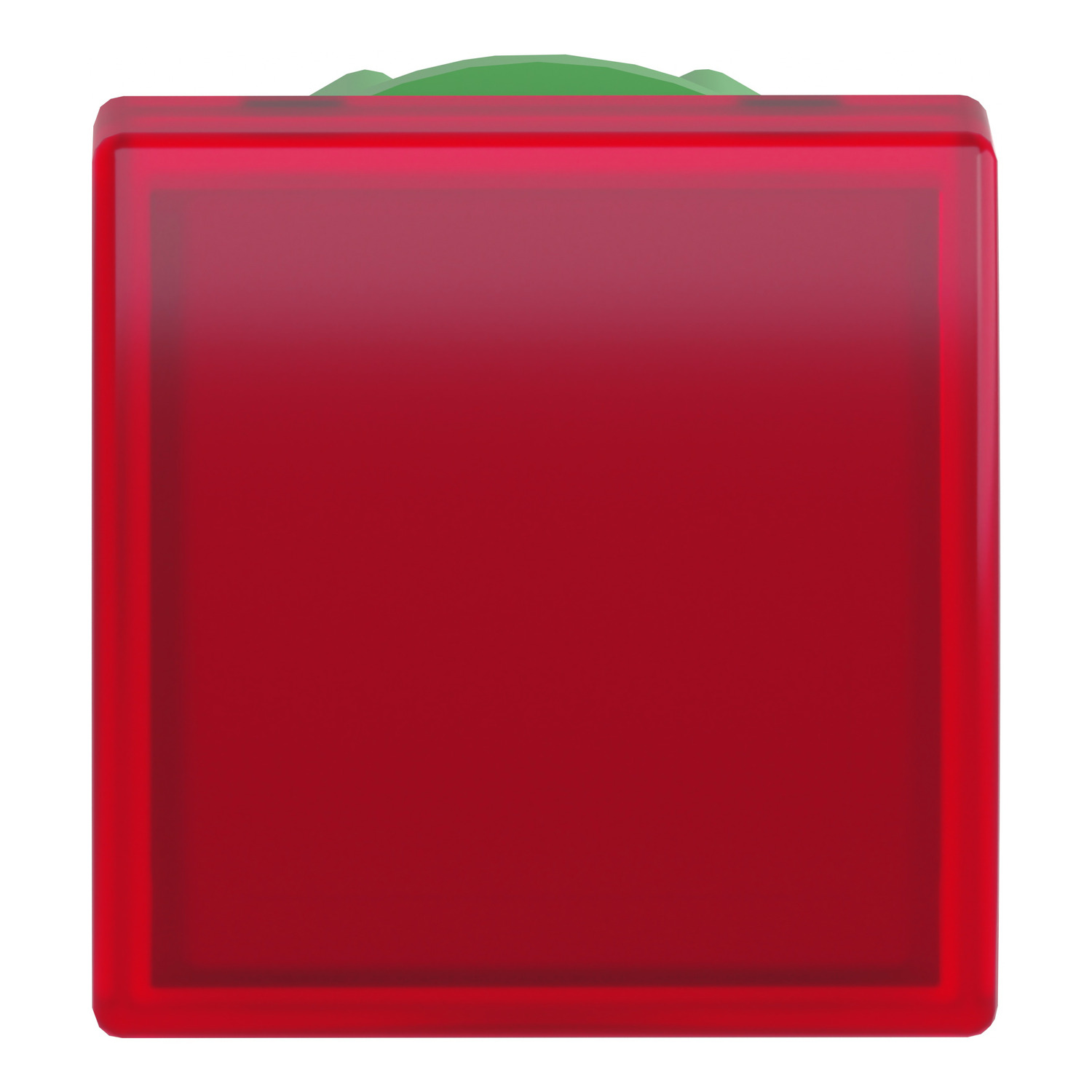

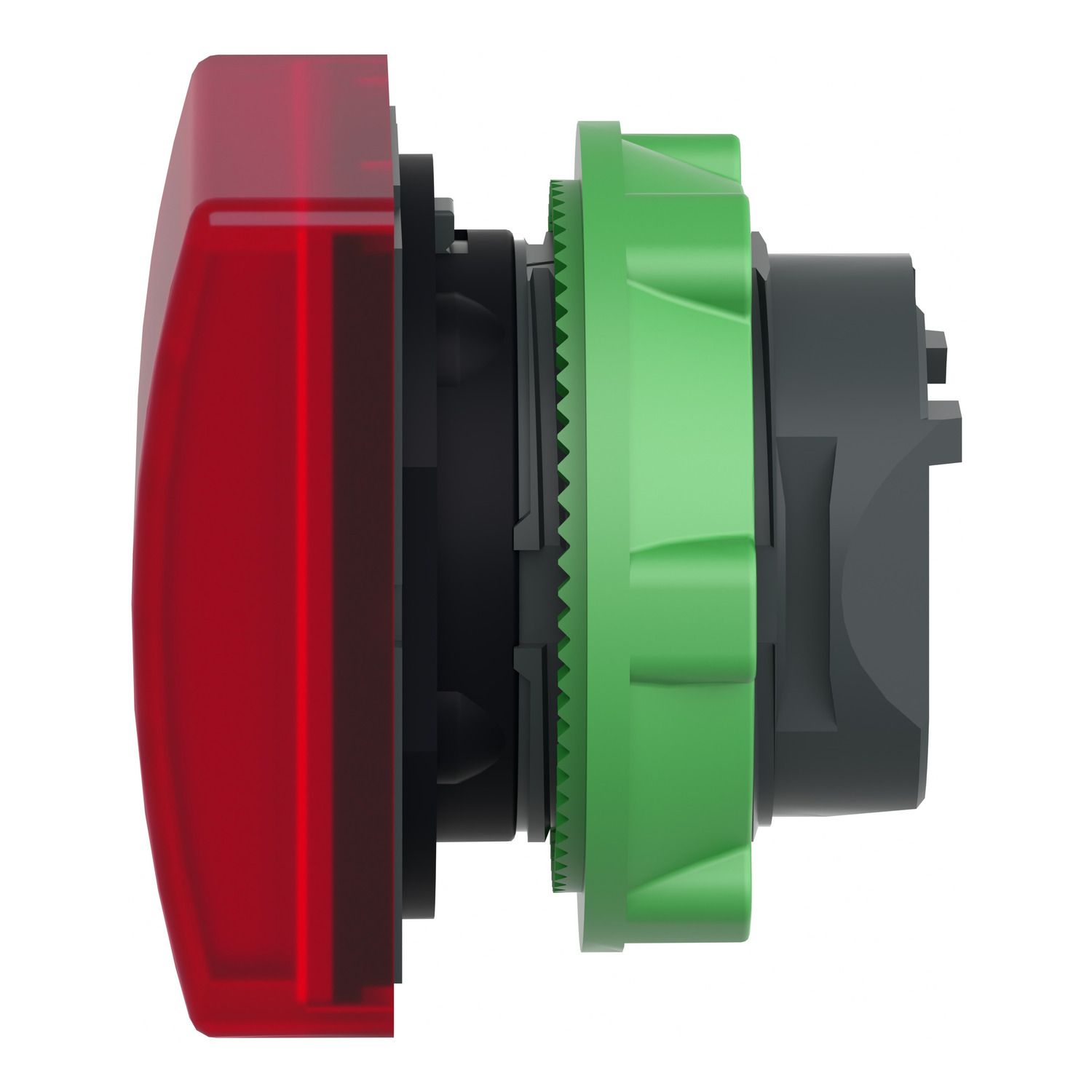

This red plain lens head for integral LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | universal LED |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Cap/operator or lens colour | red |
| Shape of signaling unit head | square |
| Product or component type | head for pilot light |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Operator additional information | with plain lens |
| Complementary | |
| Group of product | lens fitted integral LED |
| CAD overall depth | 29 mm |
| CAD overall width | 30 mm |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Customizable | no, 0 |
| Compatibility code | ZB5 |
| Cap/operator or lens colour | red |
| Device presentation | basic element |
| CAD overall height | 30 mm |
| Net weight | 0.02 kg |
| Electrical composition code | PR1 in rear mounting with integral LED, PF1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED |
| Main group | pilot light |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
