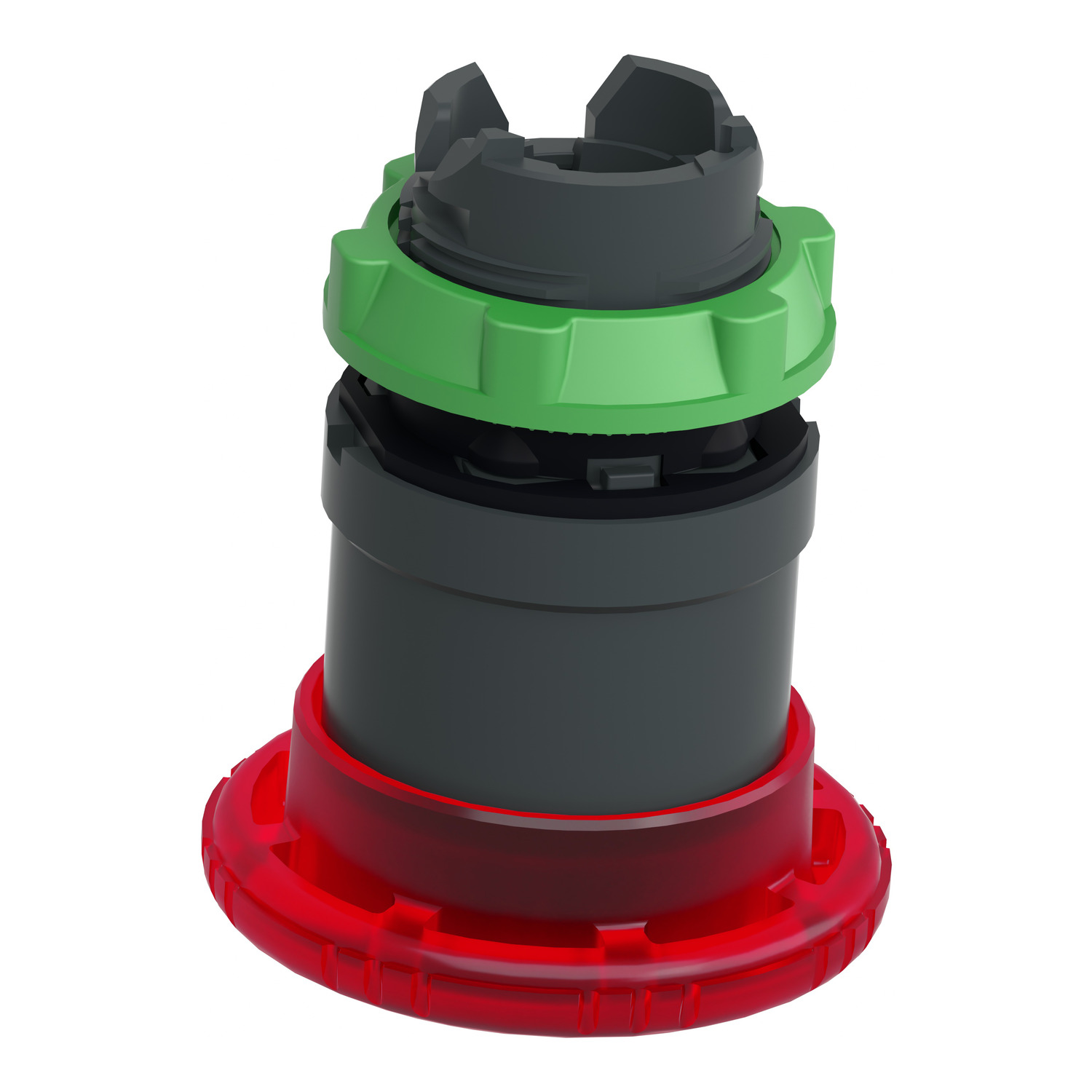

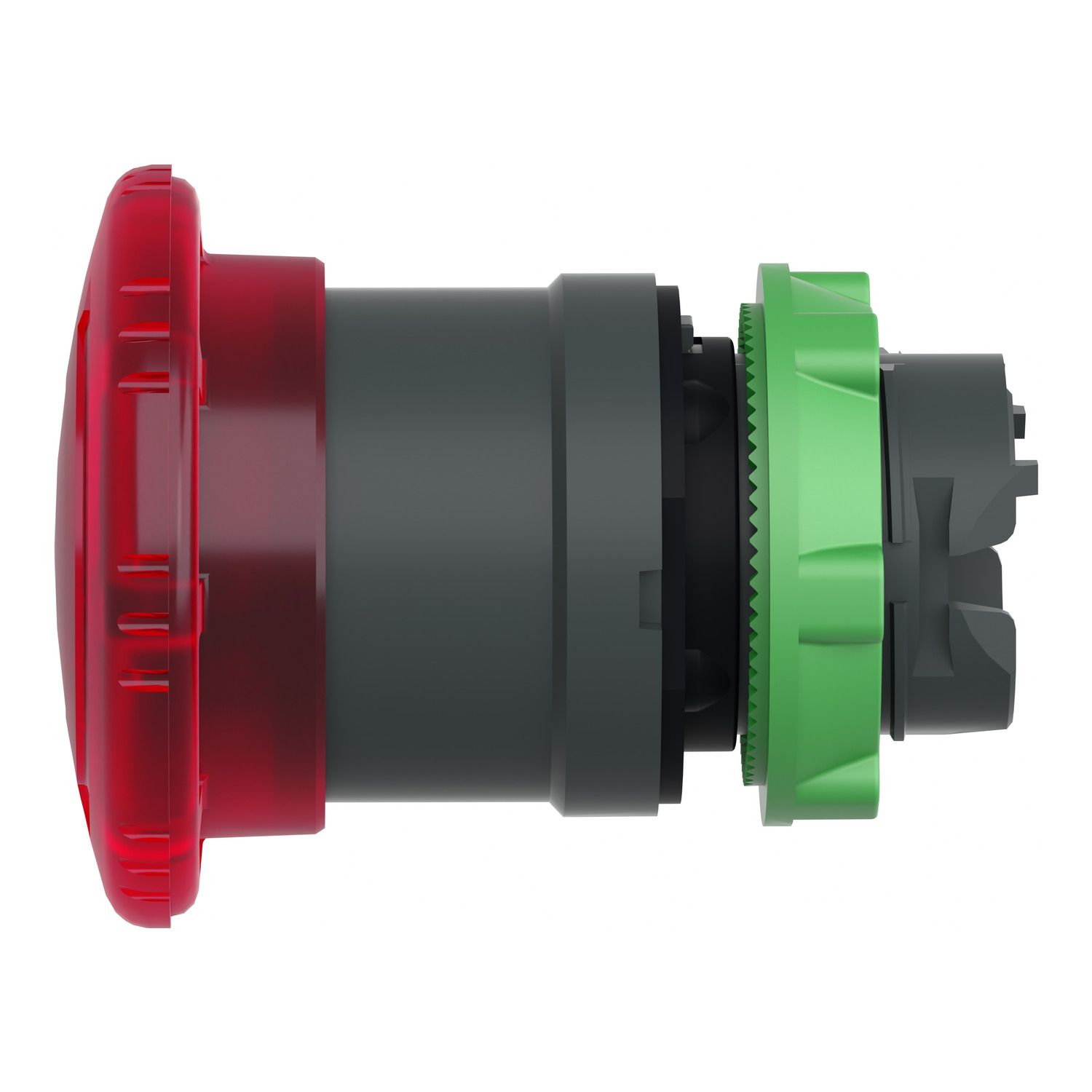

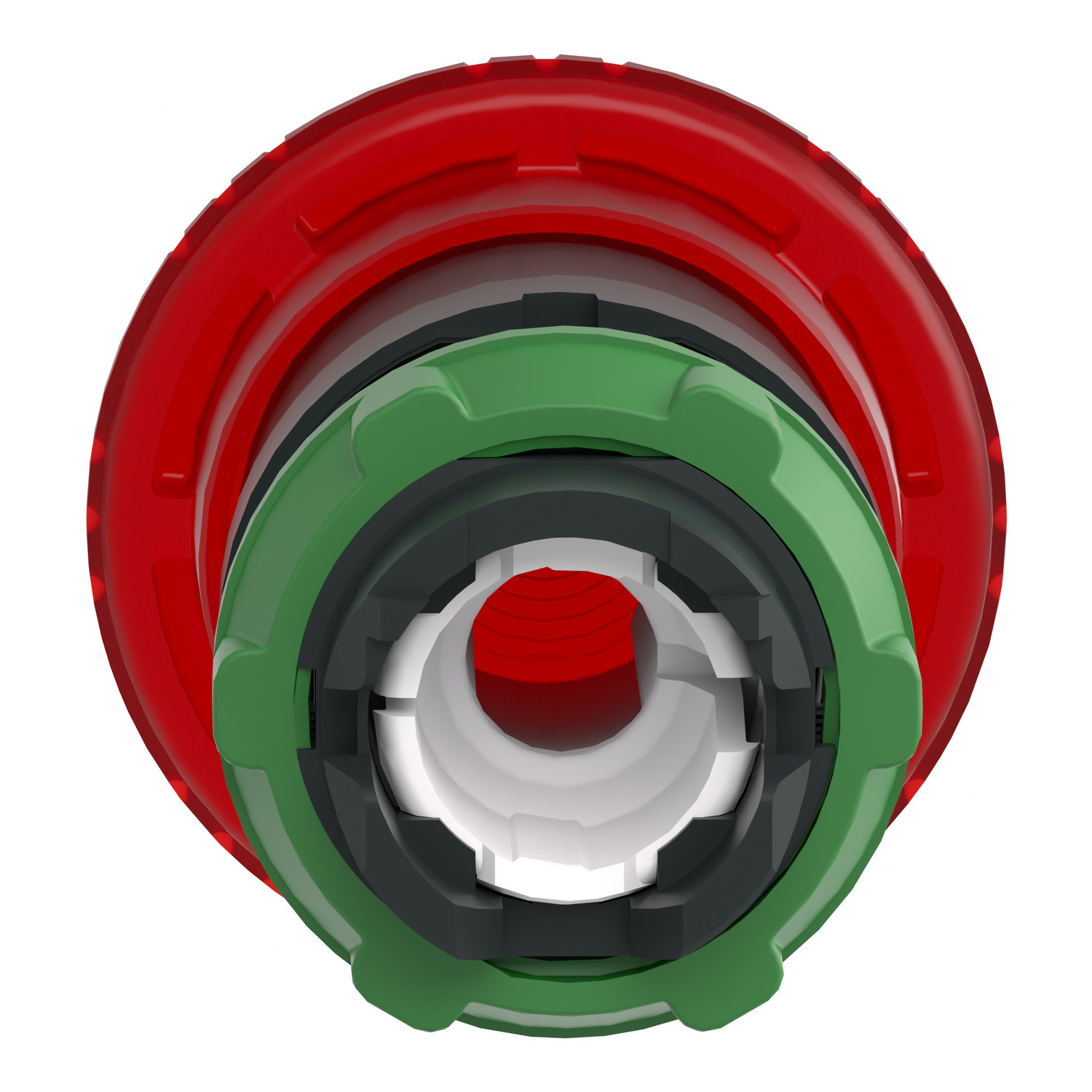

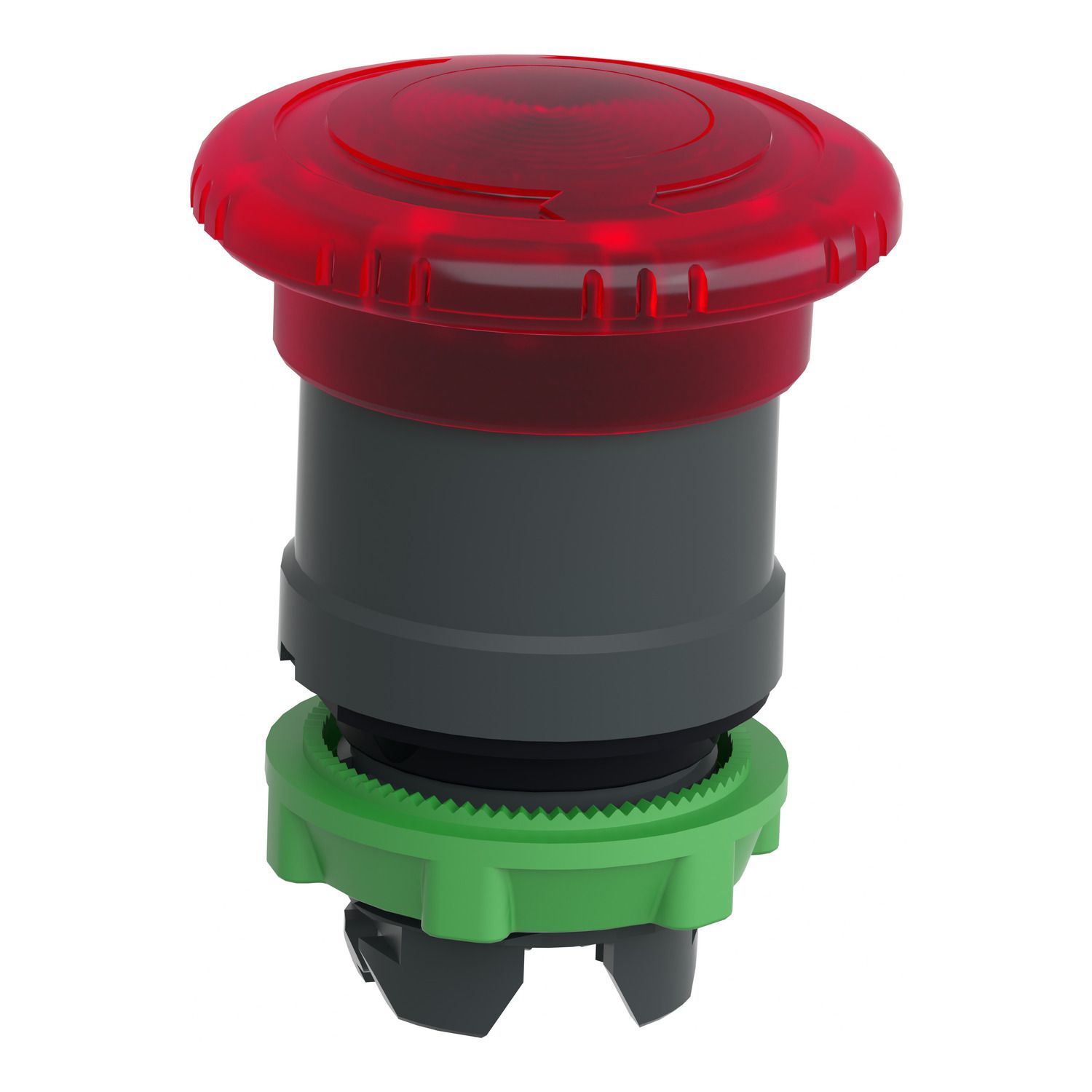

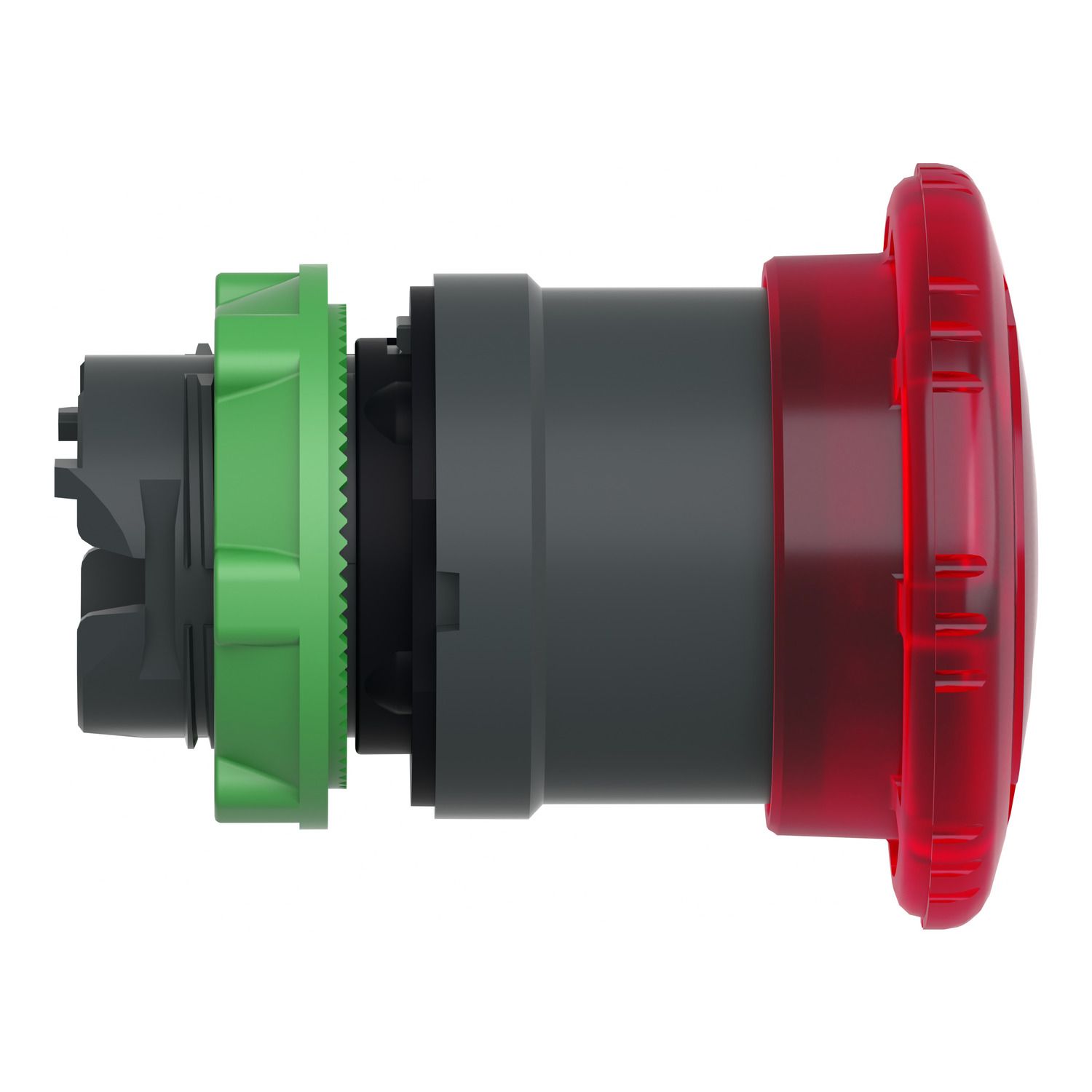

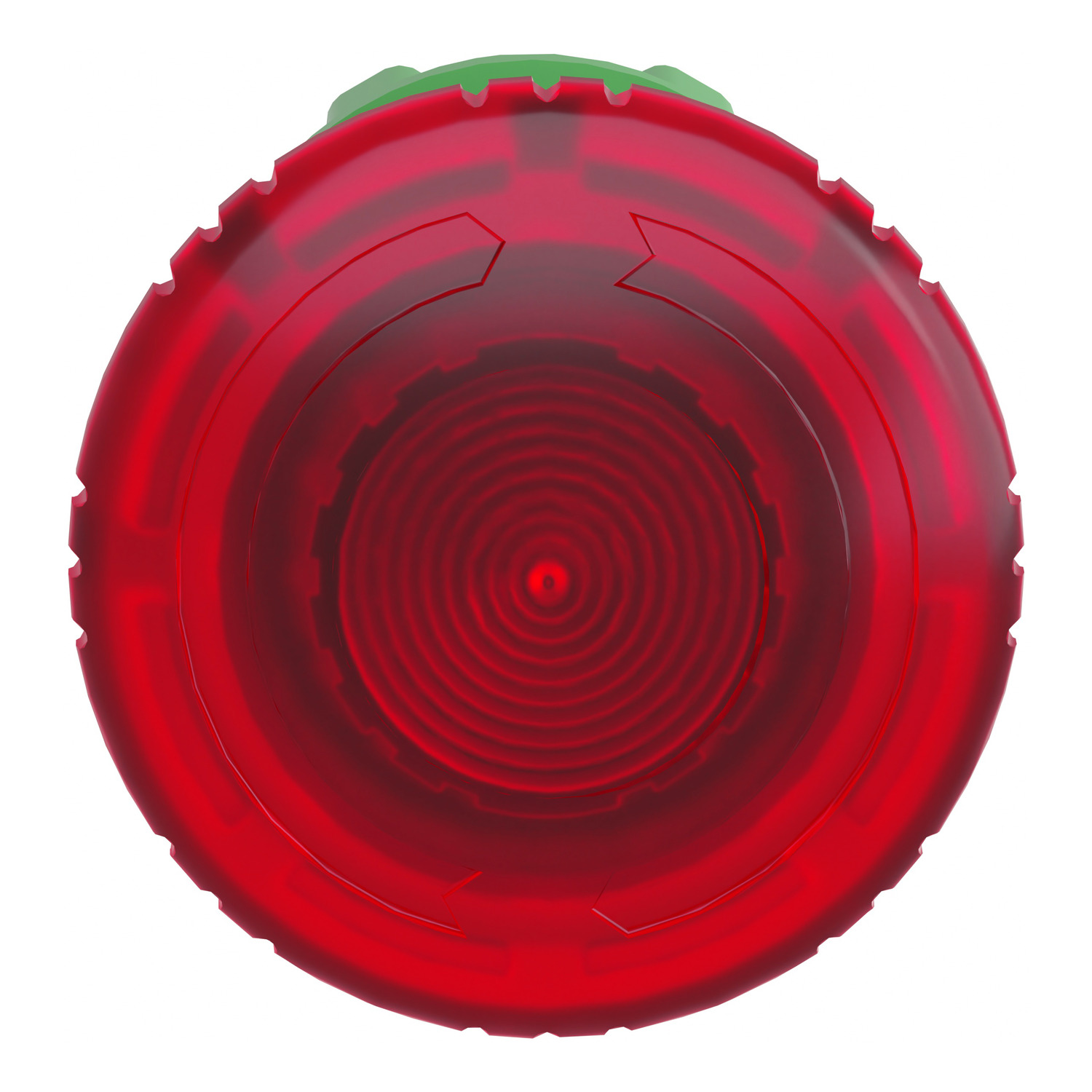

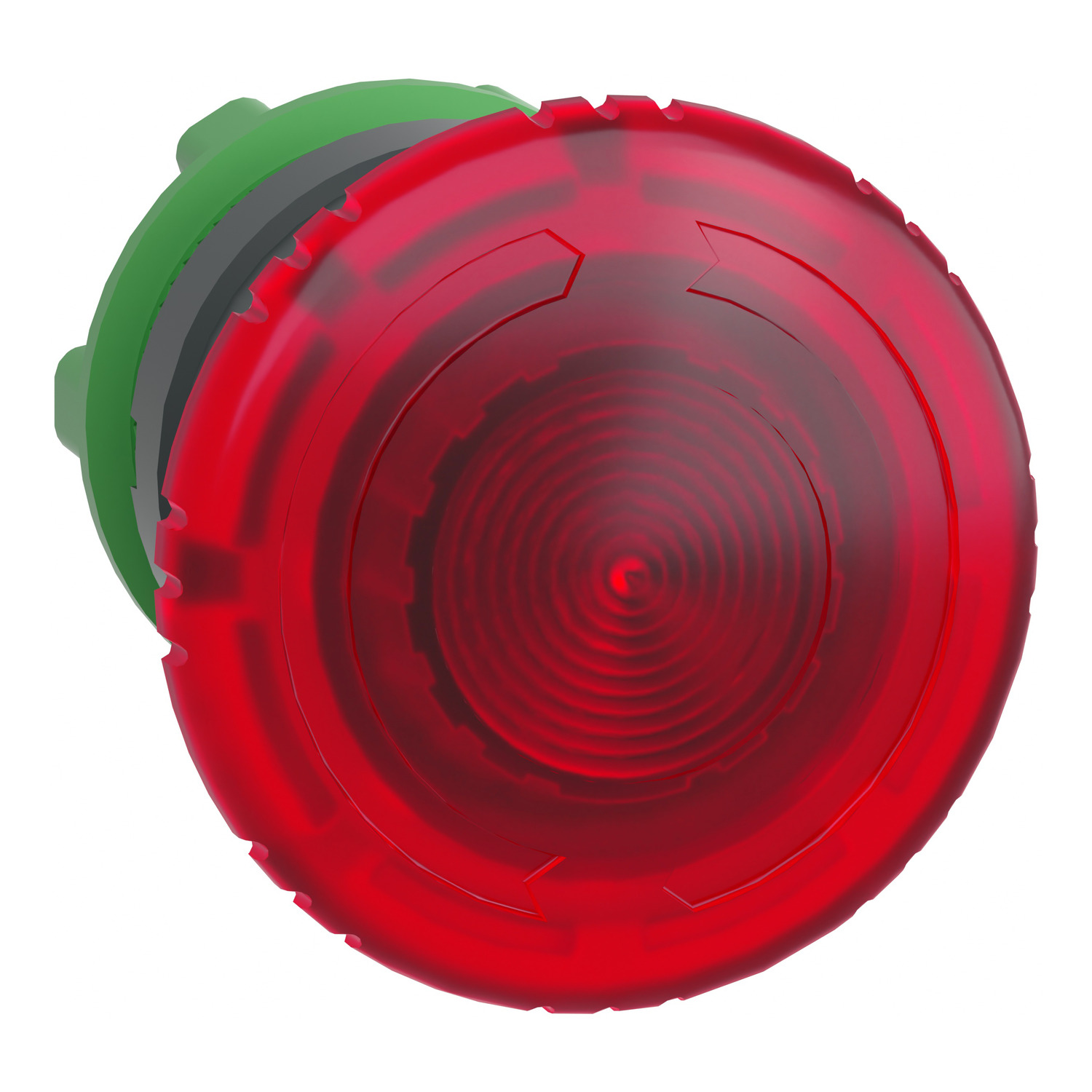

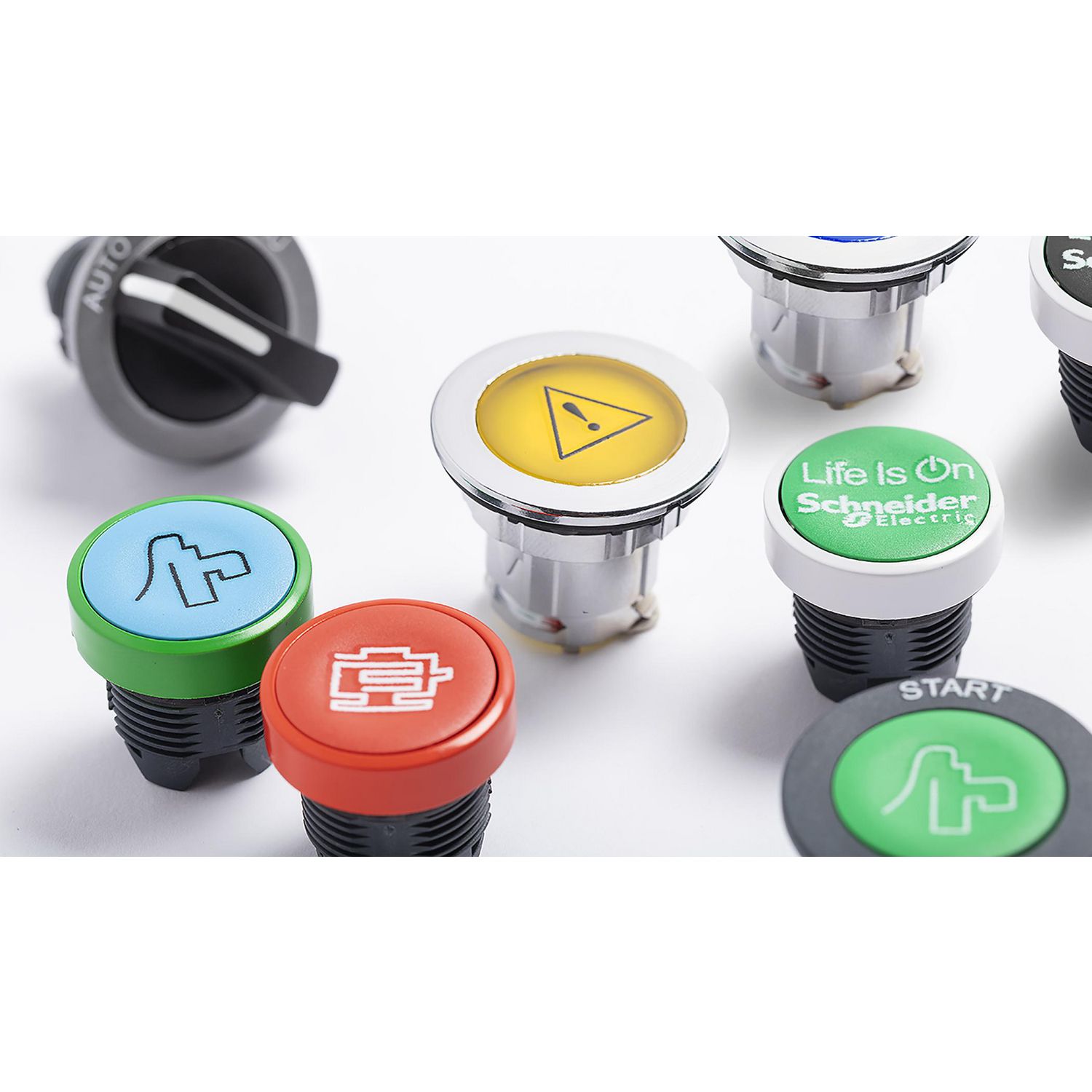

This red illuminated 40mm mushroom shape button head for integral LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | universal LED |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | latching |
| Range of product | Harmony XB5 |
| Reset | turn to release |
| Operator profile | red mushroom Ø 40 mm, unmarked |
| Bezel material | dark grey plastic |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated emergency switching off push-button |
| Mounting diameter | 22 mm |
| Complementary | |
| Group of product | emer swi off illum turn to rel |
| Station name | XALK 1 cut-out, XALD 1 cut-out |
| Compatibility code | ZB5 |
| Mechanical durability | 300000 cycles |
| Device presentation | basic sub-assemblies |
| CAD overall height | 40 mm |
| Customizable | 1, no |
| Electrical composition code | MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer |
| Main group | switching off |
| CAD overall depth | 50 mm |
| CAD overall width | 40 mm |
| Marking | unmarked |
| Cap/operator or lens colour | red |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.022 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 62262 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, GB 14048.5, IEC 60947-1, IEC 60947-5-4 |
| Product certifications | DNV, CSA, GL, BV, LROS (Lloyds register of shipping), UL listed |
