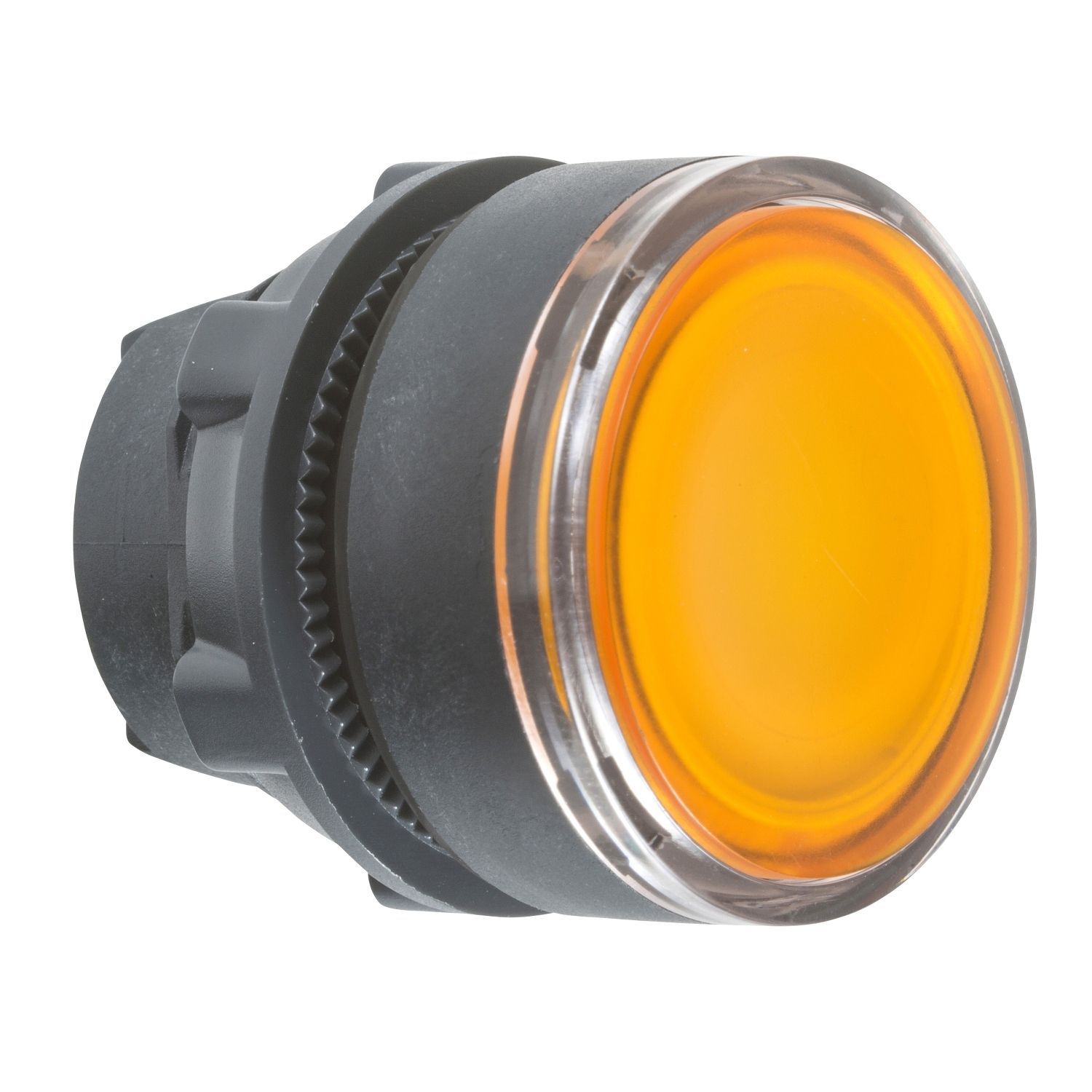

This orange flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | BA 9s |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | spring return |
| Range of product | Harmony XB5 |
| Operator profile | orange flush, unmarked |
| Bezel material | dark grey plastic |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated push-button |
| Mounting diameter | 22 mm |
| Operator additional information | with plain lens |
| Complementary | |
| Group of product | flush push BA9s |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Device presentation | basic sub-assemblies |
| CAD overall height | 29 mm |
| Customizable | 0, no |
| Electrical composition code | MF2 for <2 contacts using single blocks in front mounting with BA 9s, M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer, M8 for <6 contacts using single and double blocks in front mounting with BA 9s, M7 for <6 contacts using single blocks in front mounting with BA 9s |
| Main group | illum push-button |
| CAD overall depth | 32 mm |
| CAD overall width | 29 mm |
| Marking | unmarked |
| Cap/operator or lens colour | orange |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.018 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Standards | JIS C8201-1, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, GB 14048.5 |
| Ambient air temperature for operation | -40-55 °C |
| IK degree of protection | IK05 conforming to EN 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | BV, GL, DNV, LROS (Lloyds register of shipping), CSA, UL listed |
