Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |

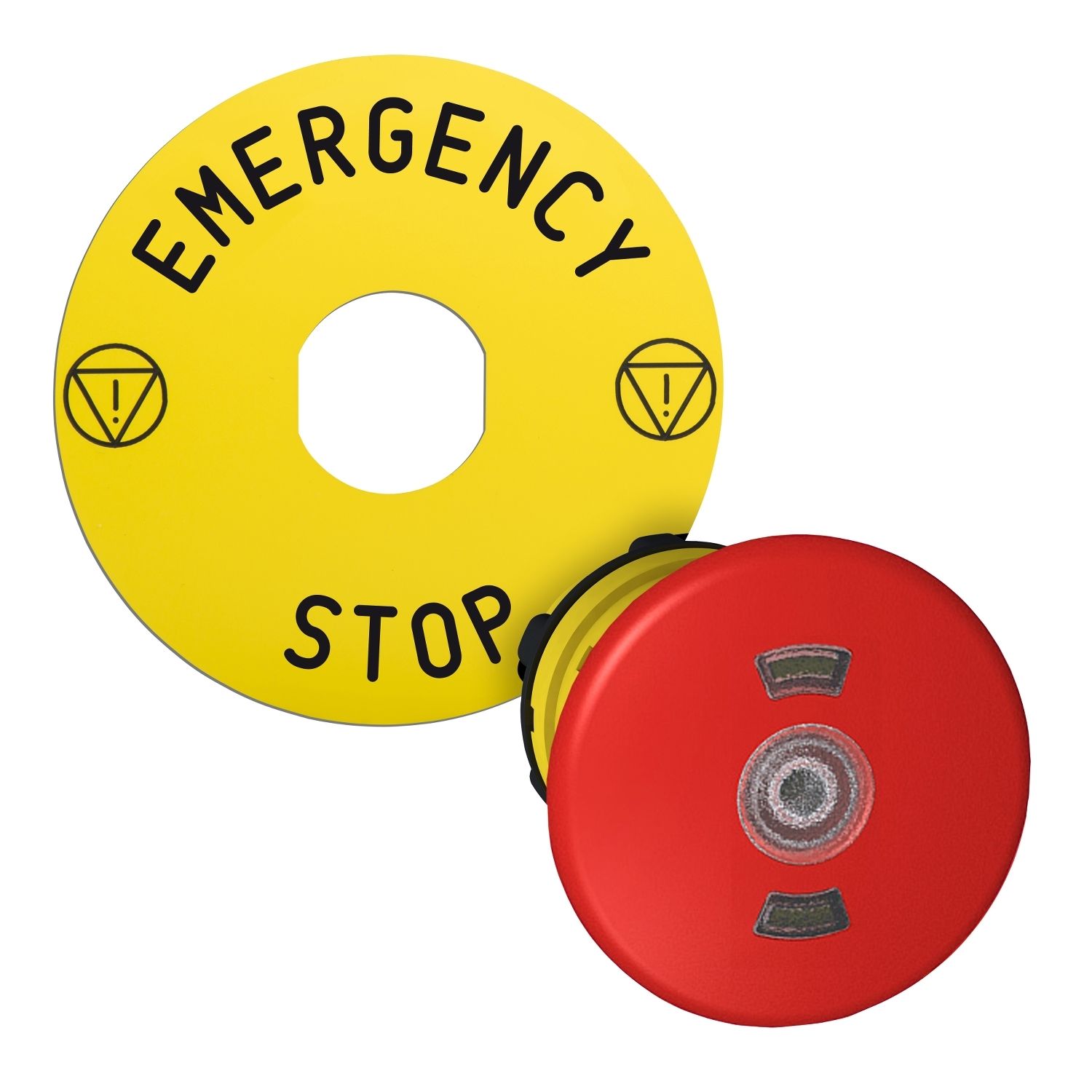

| Operator profile | red mushroom Ø 40 mm, unmarked |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated emergency stop push-button |
| Type of operator | trigger action and mechanical latching with mechanical state indicator |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5, Harmony XALF |
| Reset | push-pull |
| Complementary | |
| Group of product | emergency stop illuminated |
| CAD overall depth | 59 mm |
| CAD overall width | 40 mm |
| Product compatibility | integral LED |
| Station name | XALK 1 cut-out, XALD 1 cut-out |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 500000 cycles |
| Cap/operator or lens colour | red |
| CAD overall height | 40 mm |
| Net weight | 0.034 kg |
| Electrical composition code | MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer |
| Main group | E-stop |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60204-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, ISO 13850, IEC 60947-5-4, UL 508, GB 14048.5, IEC 60947-1 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | UL listed, LROS (Lloyds register of shipping), BV, GL, DNV, CSA |
