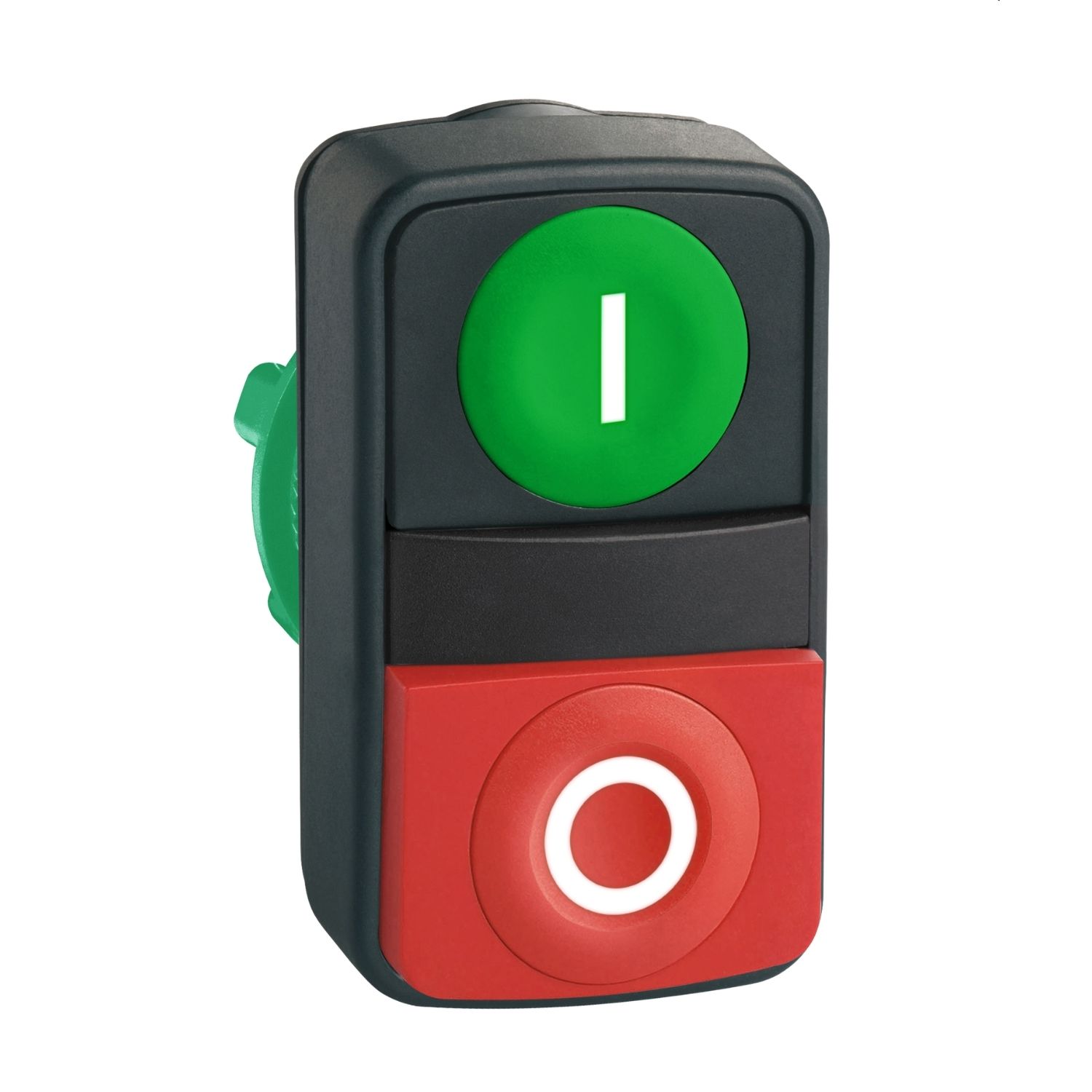

This double head has 1 green and 1 red button and provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Operator profile | 1 flush - 1 projecting push-buttons |
| Shape of signaling unit head | rectangular |
| Product or component type | head for double-headed push-button |
| Operators description | green unmarked - red unmarked |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Group of product | flush/proj unmarked |
| CAD overall depth | 35 mm |
| CAD overall width | 30 mm |
| Station name | XALD 1 cut-out |
| Customizable | no, 0 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 1000000 cycles |
| Operator profile | red projecting, unmarked, green flush, unmarked |
| Cap/operator or lens colour | green/red |
| Device presentation | basic element |
| CAD overall height | 50 mm |
| Net weight | 0.023 kg |
| Colour of marking | black marking when white caps, white marking when green, red or black caps |
| Electrical composition code | SR2 for <2 contacts using single blocks in rear mounting, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting |
| Main group | double head |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP69K conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | UL listed, LROS (Lloyds register of shipping), GL, CSA, DNV, BV |
