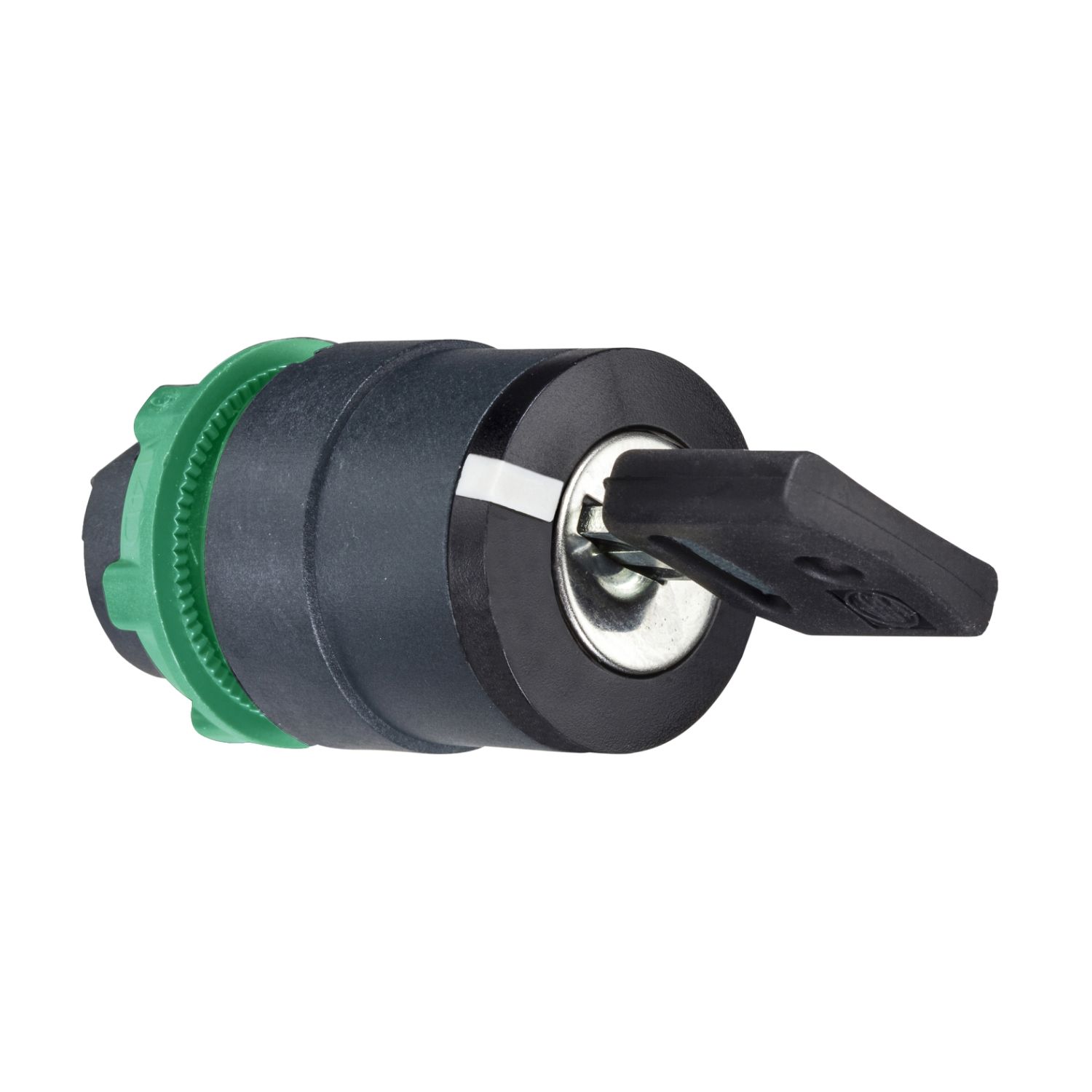

This head with key (key no.520E) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Type of keylock | key 520E |
| Device short name | ZB5 |
| Operator position information | 2 positions 90° |
| Operator profile | black key switch |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Key withdrawal position | left |
| Head type | standard |
| Shape of signaling unit head | round |
| Product or component type | head for key selector switch |
| Type of operator | stay put |
| Mounting diameter | 22 mm |
| Range of product | Harmony XALF, Harmony XB5 |
| Complementary | |
| Group of product | key switch |
| CAD overall depth | 72 mm |
| CAD overall width | 29 mm |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Customizable | no, 0 |
| Compatibility code | ZB5 |
| Mechanical durability | 1000000 cycles |
| Cap/operator or lens colour | black |
| Device presentation | basic element |
| CAD overall height | 29 mm |
| Net weight | 0.057 kg |
| Electrical composition code | C15 for <1 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting |
| Main group | selector switch |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Product certifications | CSA, GL, DNV, LROS (Lloyds register of shipping), UL listed, BV |
