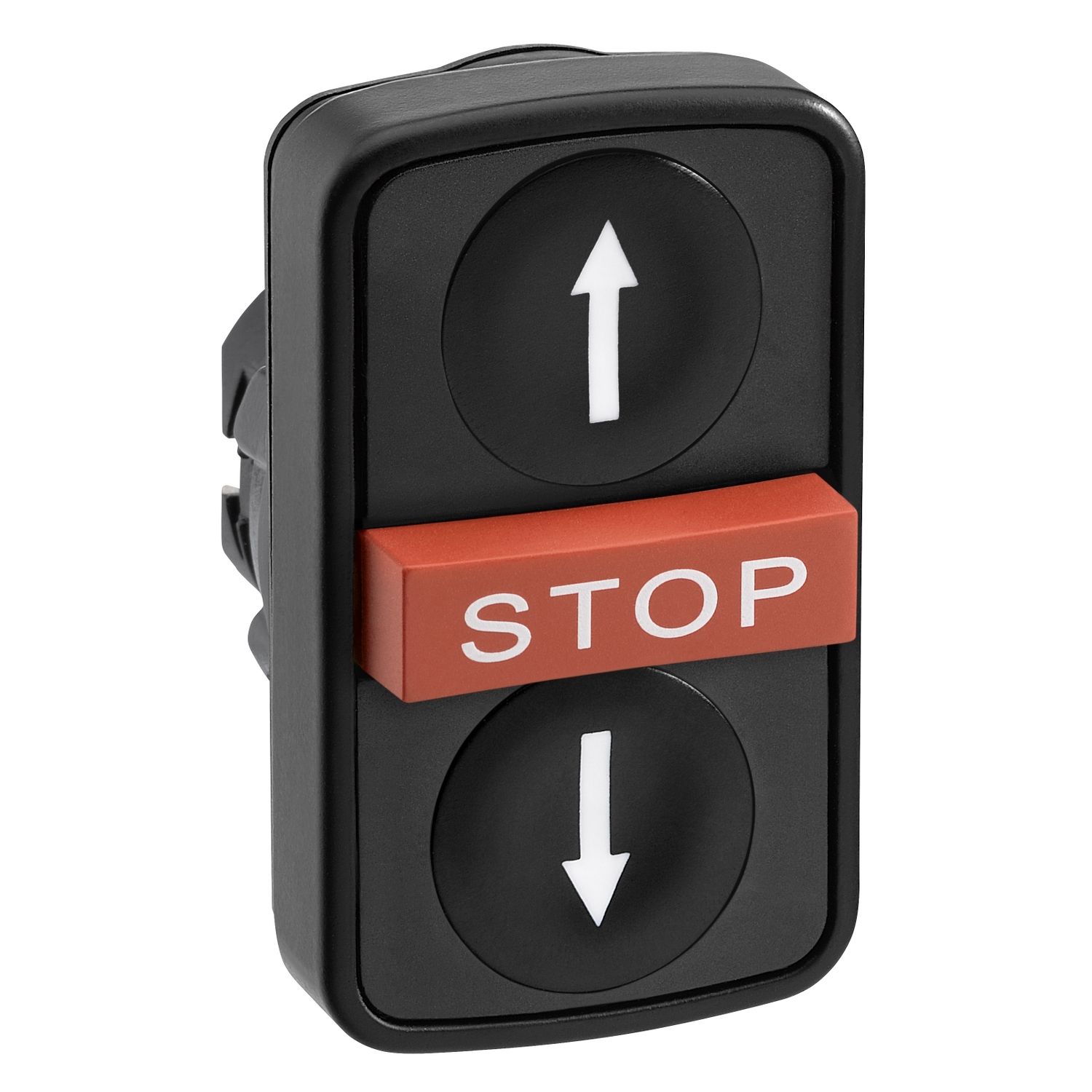

This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Bezel material | dark grey plastic |
| Head type | standard |
| Operator profile | 2 flush - 1 central projecting STOP push-buttons |
| Shape of signaling unit head | rectangular |
| Product or component type | head for triple-headed push-button |
| Operators description | black ''up arrow'' - black ''down arrow'' - red ''STOP'' |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Group of product | flush/proj/flush marked |
| CAD overall depth | 35 mm |
| CAD overall width | 30 mm |
| Station name | XALD 1 cut-out |
| Customizable | no, 0 |
| Marking | up arrow/STOP/down arrow |
| Compatibility code | XB5 |
| Mechanical durability | 1000000 cycles |
| Operator profile | black flush, up arrow (white), black flush, down arrow (white), red projecting, STOP (white) |
| Cap/operator or lens colour | black/red/black |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | basic element |
| CAD overall height | 50 mm |
| Net weight | 0.023 kg |
| Colour of marking | white marking when green, red or black caps, black marking when white caps, white/white/white |
| Electrical composition code | SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting |
| Main group | triple head push-button |
| Environment | |
| Electrical shock protection class | class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | BV, DNV, CSA, LROS (Lloyds register of shipping), GL, UL listed |
