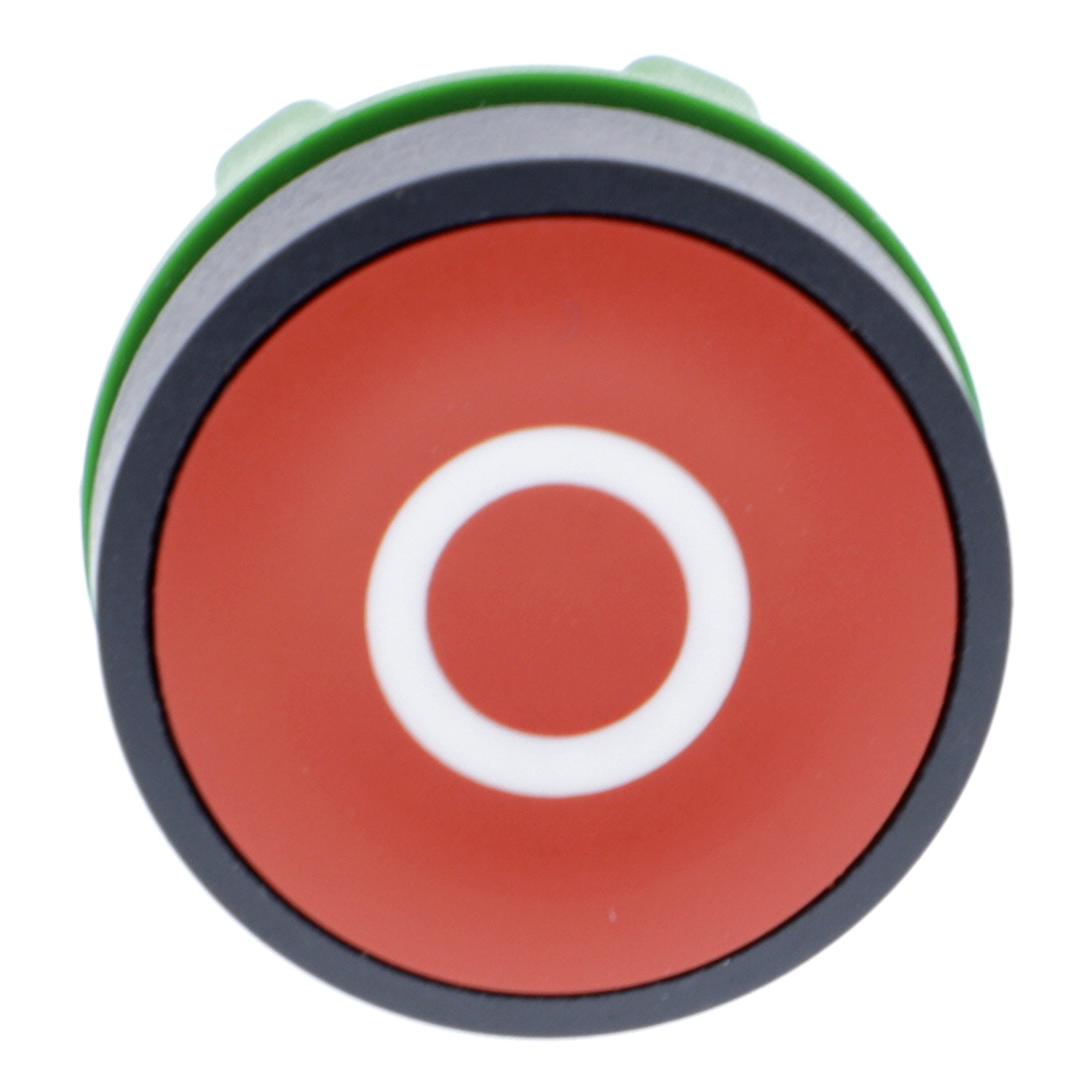

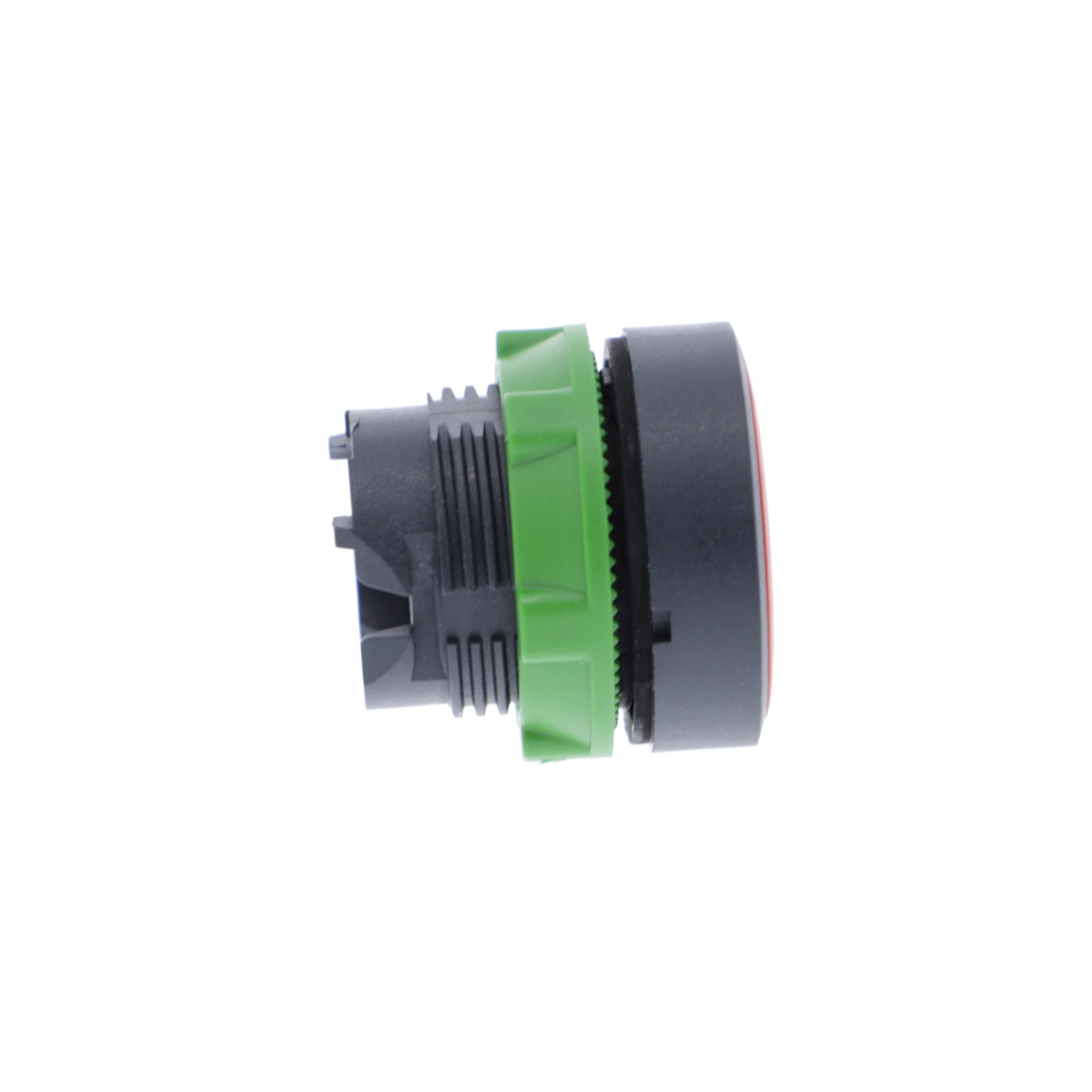

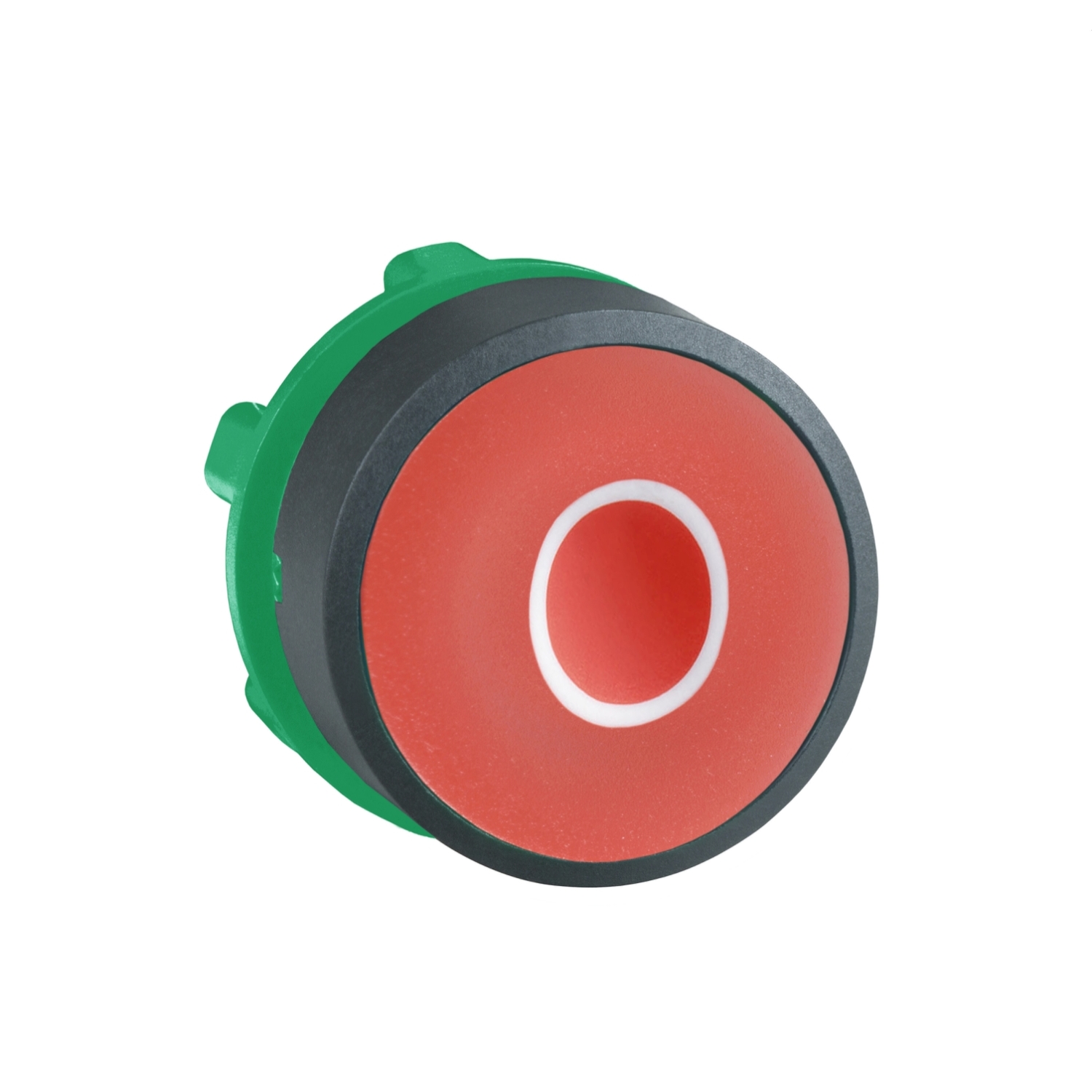

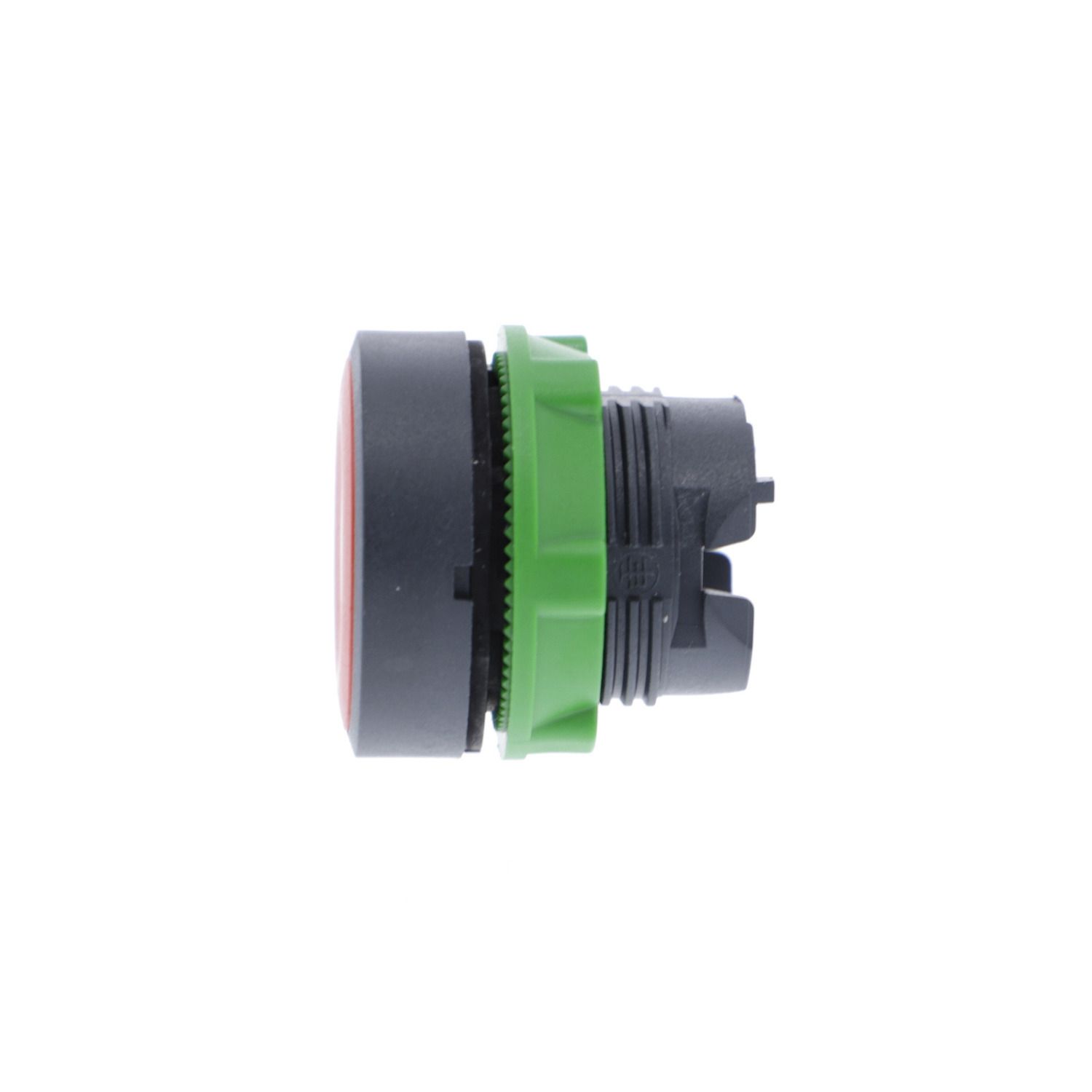

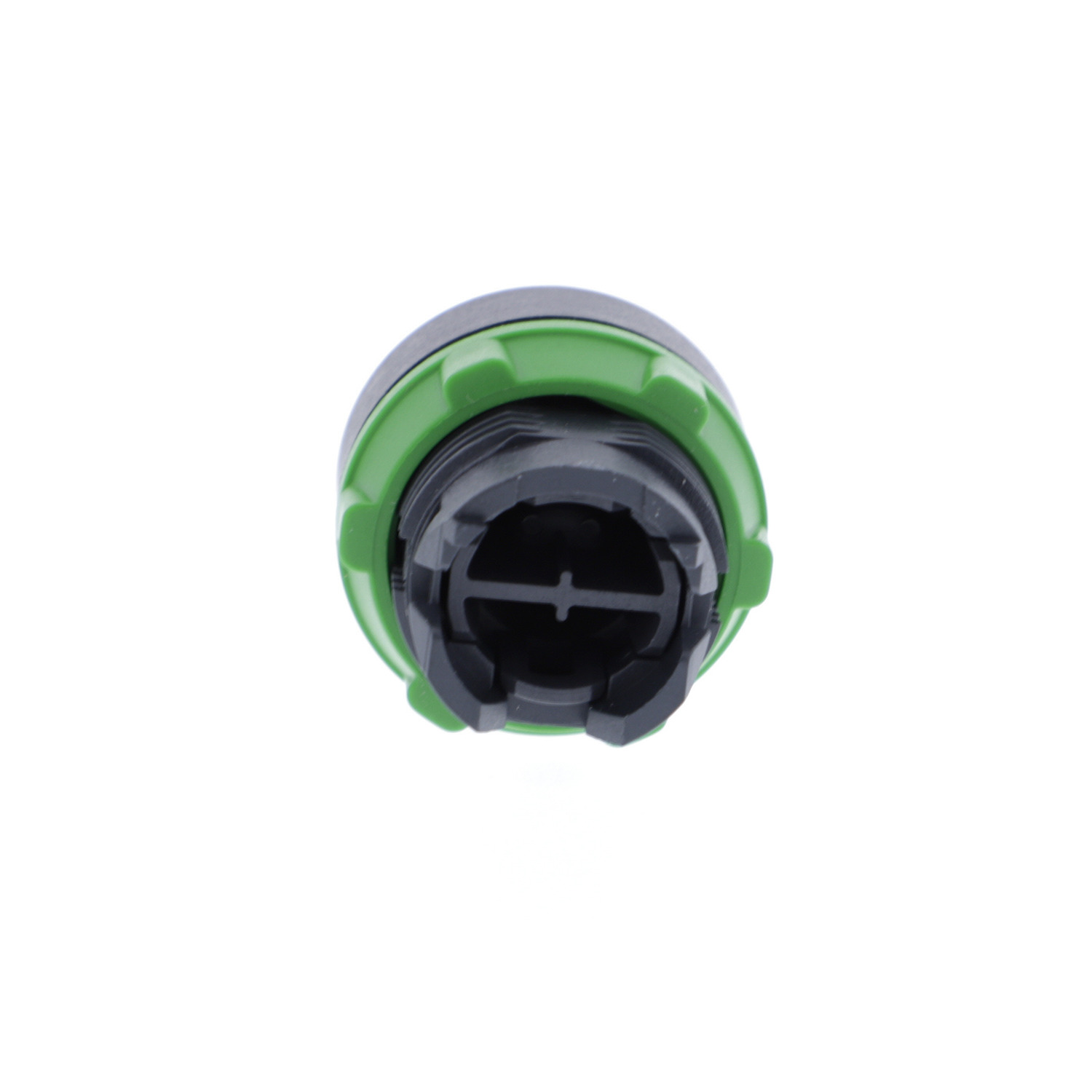

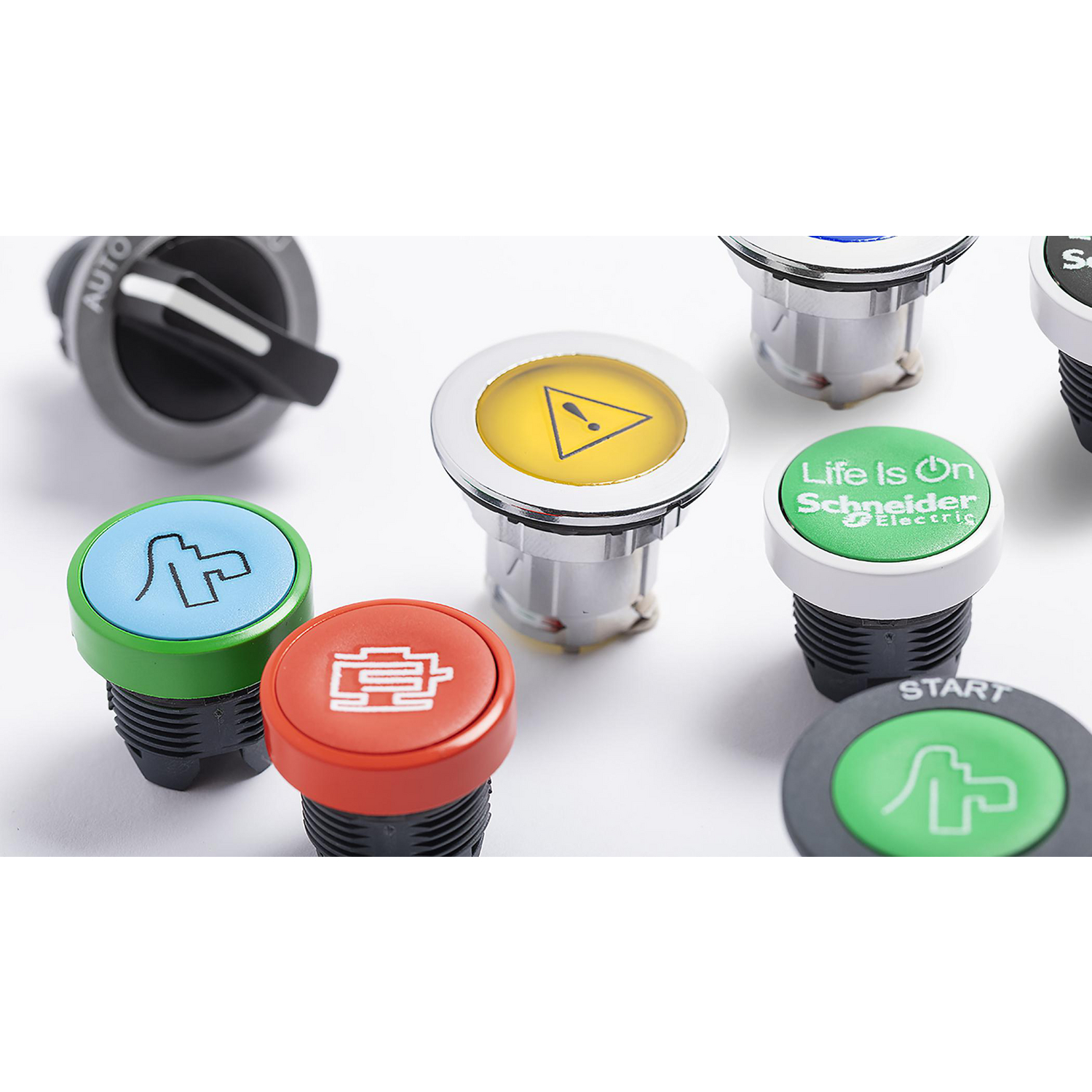

Head for non illuminated push button, Harmony XB5, plastic, flush, red, 22mm, spring return, marked O

Manufacturer: Schneider Electric

SKU: ZB5AA432

GTIN: 3389110904680

Image of product in real life situation

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $26.51 inc GST

Price: $16.13 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Harmony XB5, flush red button head operates with a spring return mechanism. It is marked with a "O" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name	Attribute value
Main
Device short name	ZB5
Operator profile	red flush, O (white)
Bezel material	dark grey plastic
Sale per indivisible quantity	1
Head type	standard
Shape of signaling unit head	round
Product or component type	head for non-illuminated push-button
Type of operator	spring return
Mounting diameter	22 mm
Range of product	Harmony XB5
Complementary
Group of product	flush push with marking
CAD overall depth	28 mm
CAD overall width	29 mm
Station name	XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable	no, 0
Marking	O
Compatibility code	ZB5
Mechanical durability	10000000 cycles
Cap/operator or lens colour	red
Device presentation	basic element
CAD overall height	29 mm
Net weight	0.018 kg
Colour of marking	white
Electrical composition code	SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group	push-button
Environment
Protective treatment	TH
NEMA degree of protection	NEMA 4X, NEMA 13
Overvoltage category	class II conforming to IEC 60536
Ambient air temperature for storage	-40-70 °C
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection	IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards	JIS C8201-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508, JIS C8201-5-1
Ambient air temperature for operation	-40-70 °C
IK degree of protection	IK03 conforming to IEC 50102
Product certifications	BV, LROS (Lloyds register of shipping), GL, UL listed, CSA, DNV
