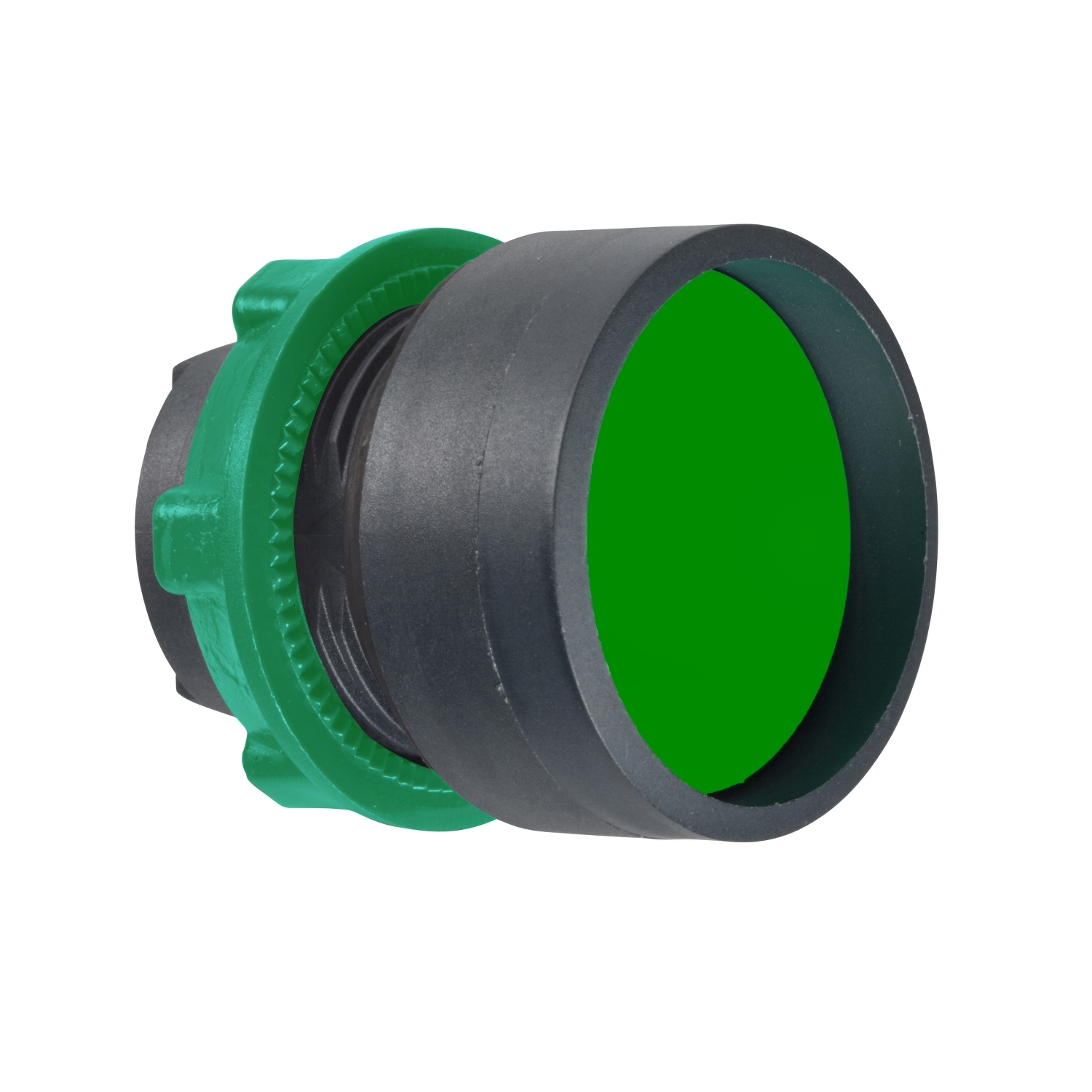

This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Operator profile | green recessed, unmarked |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Shape of signaling unit head | round |
| Product or component type | head for non-illuminated push-button |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Operator additional information | high guard |
| Complementary | |
| Group of product | recessed push |
| CAD overall depth | 31 mm |
| CAD overall width | 29 mm |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Customizable | no, 1 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Cap/operator or lens colour | green |
| GCR BRIDGE | ZB5AACUST03 |
| Device presentation | basic element |
| CAD overall height | 29 mm |
| Net weight | 0.02 kg |
| Electrical composition code | SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting |
| Main group | push-button |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | BV, GL, DNV, UL listed, LROS (Lloyds register of shipping), CSA |
