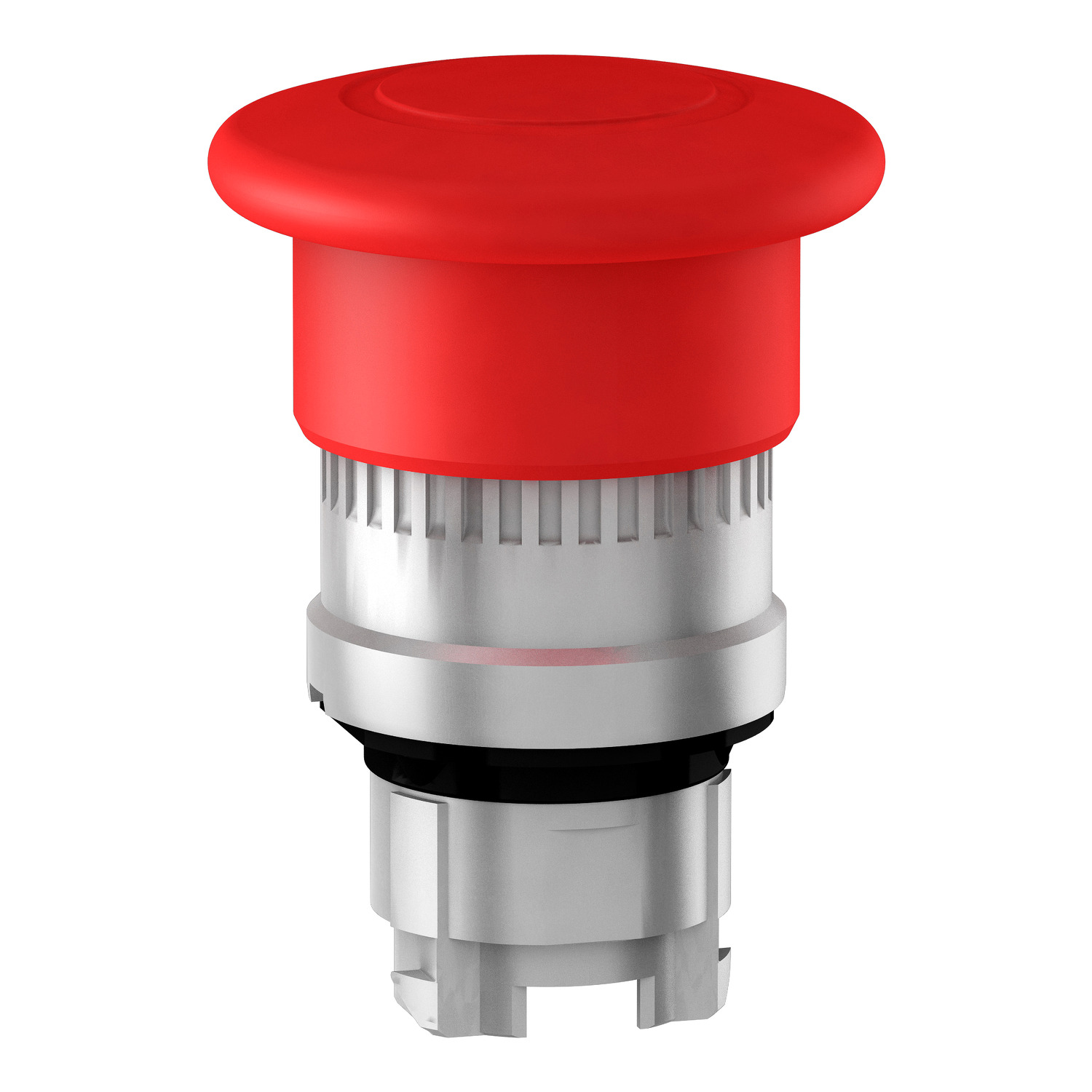

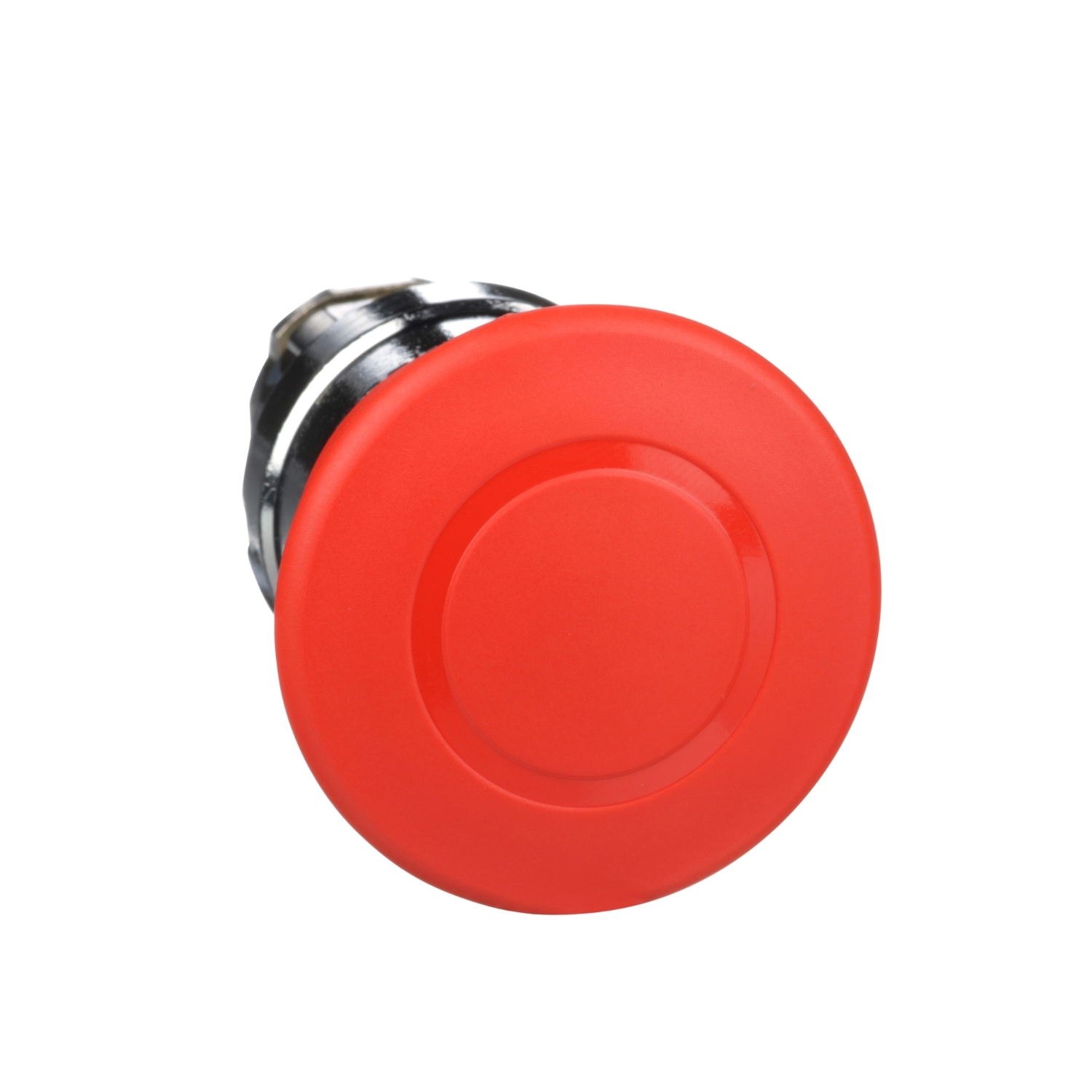

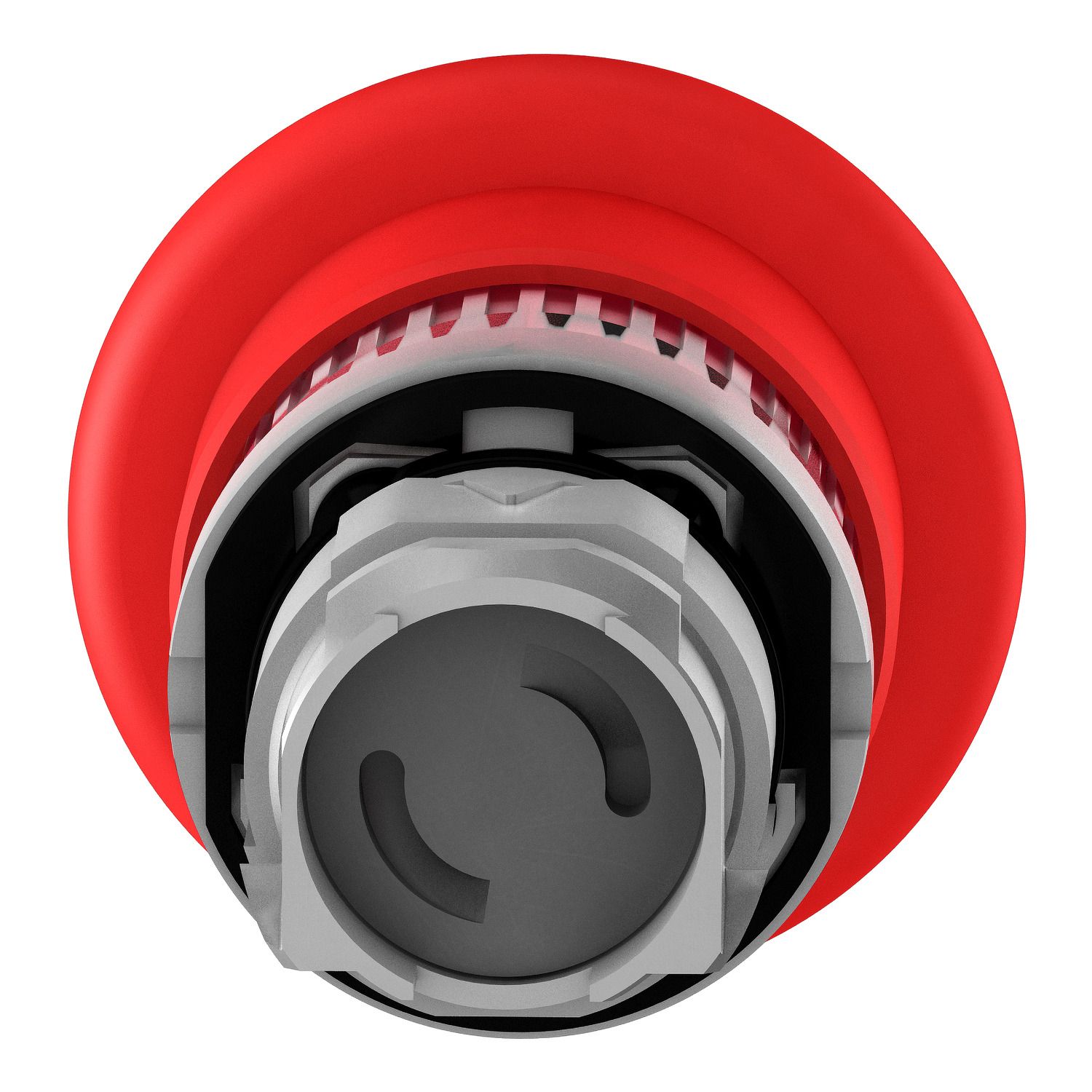

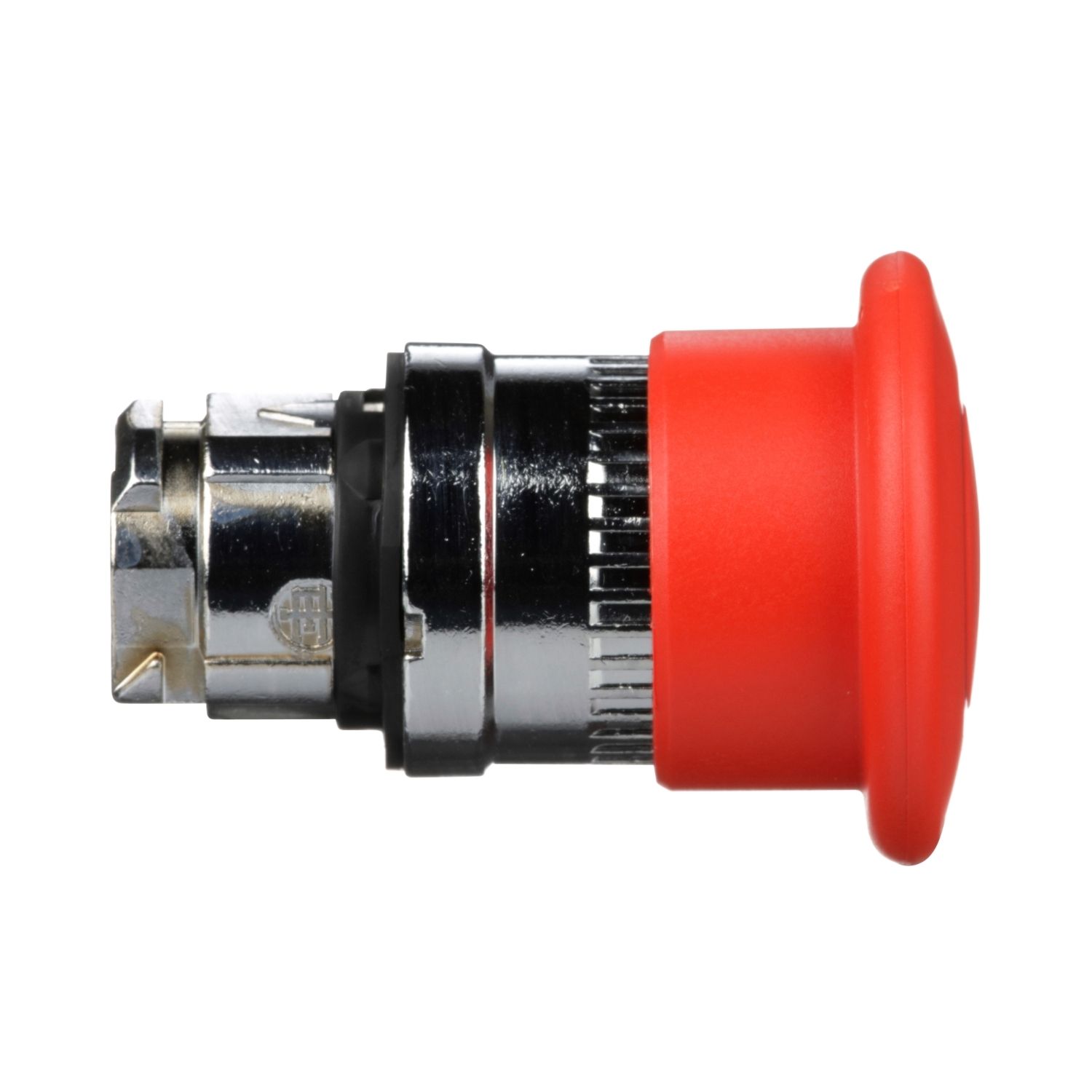

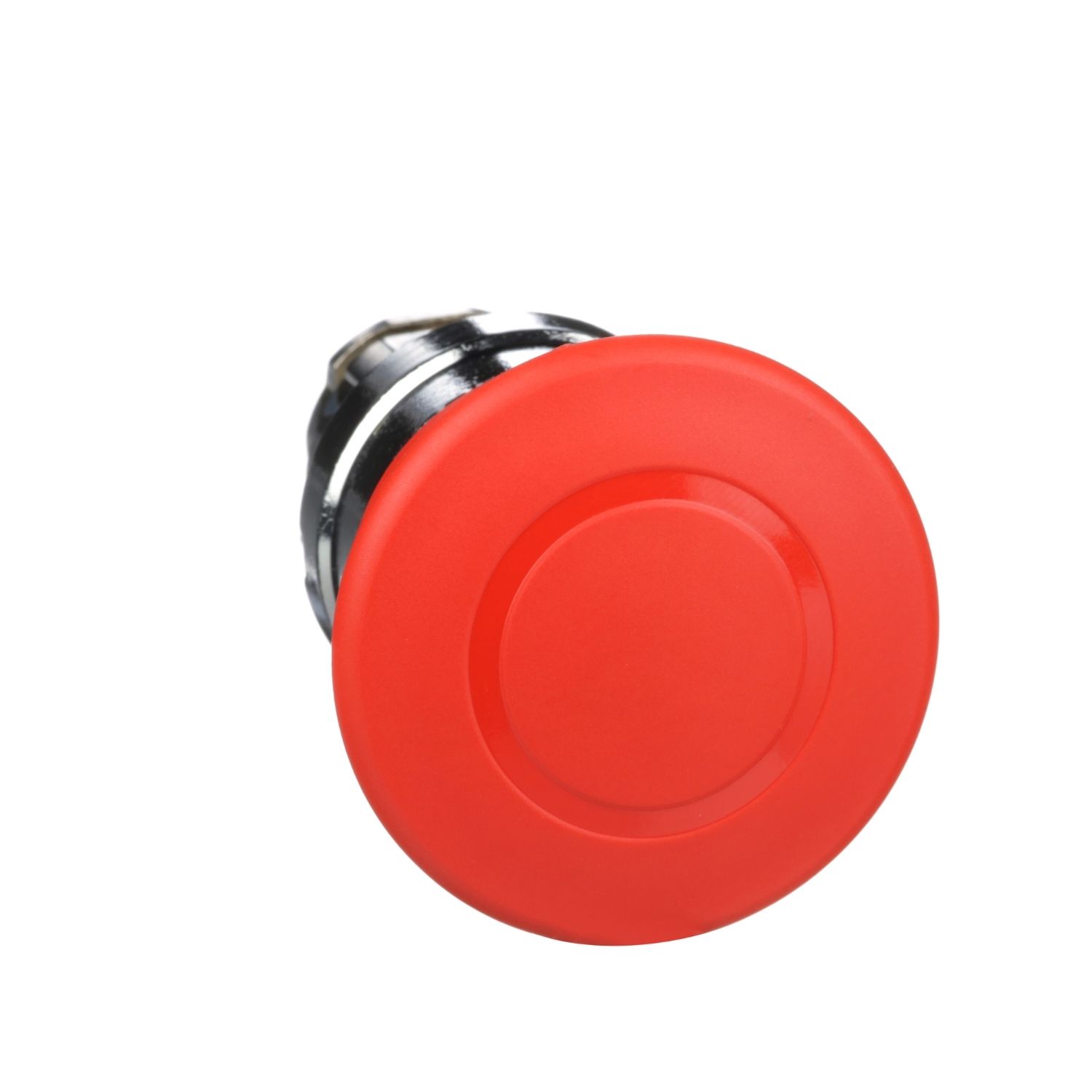

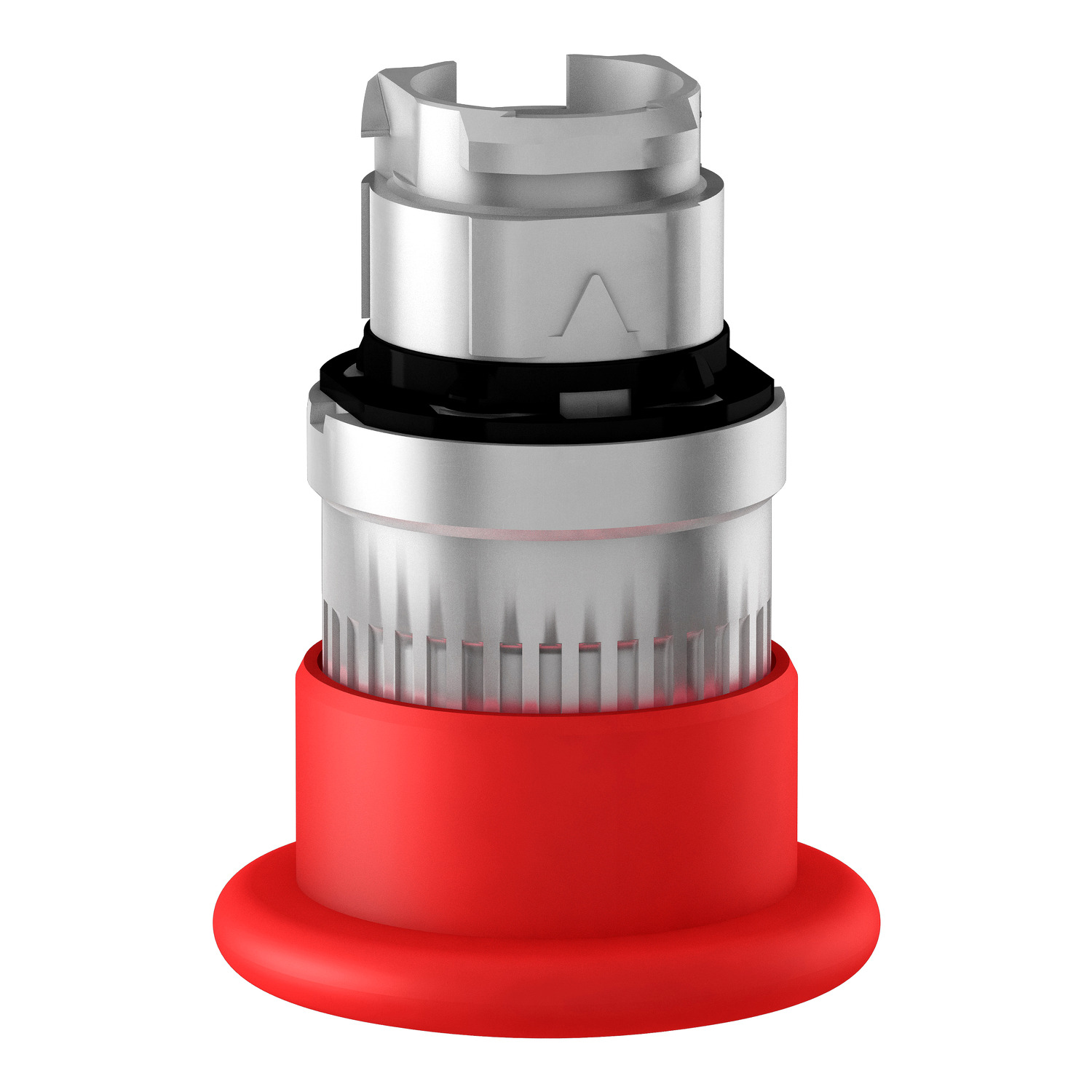

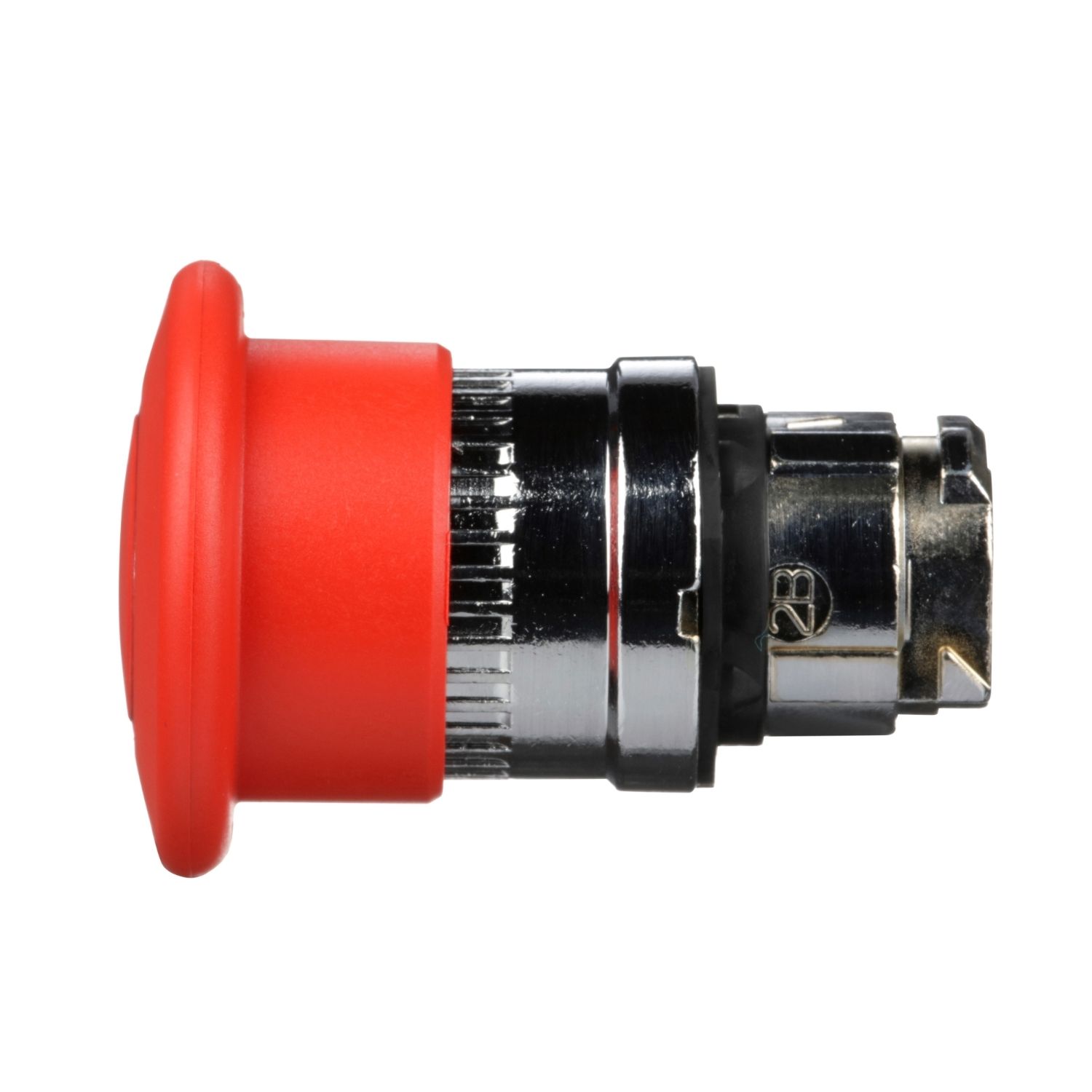

This Harmony XB4, Emergency stop 40mm mushroom red button head operates with a latched push-pull mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator trigger action and mechanical latching
Range of product Harmony XB4
Reset push-pull
Operator profile red mushroom Ø 40 mm, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for emergency switching off push-button
Mounting diameter 22 mm
Complementary
Group of product emergency stop pull to release
Compatibility code ZB4
Mechanical durability 300000 cycles
Device presentation basic element
CAD overall height 40 mm
Customizable 0, no
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting
Main group E-stop
CAD overall depth 56 mm
CAD overall width 40 mm
Marking unmarked
Cap/operator or lens colour red
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.078 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 61140
NEMA degree of protection NEMA 12, NEMA 4, NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, IEC 60364-5-53, CSA C22.2 No 14, IEC 60204-1, UL 508, ISO 13850, IEC 60947-5-4, GB 14048.5, IEC 60947-5-1
Product certifications BV, UL listed, CSA, DNV, GL, LROS (Lloyds register of shipping)
