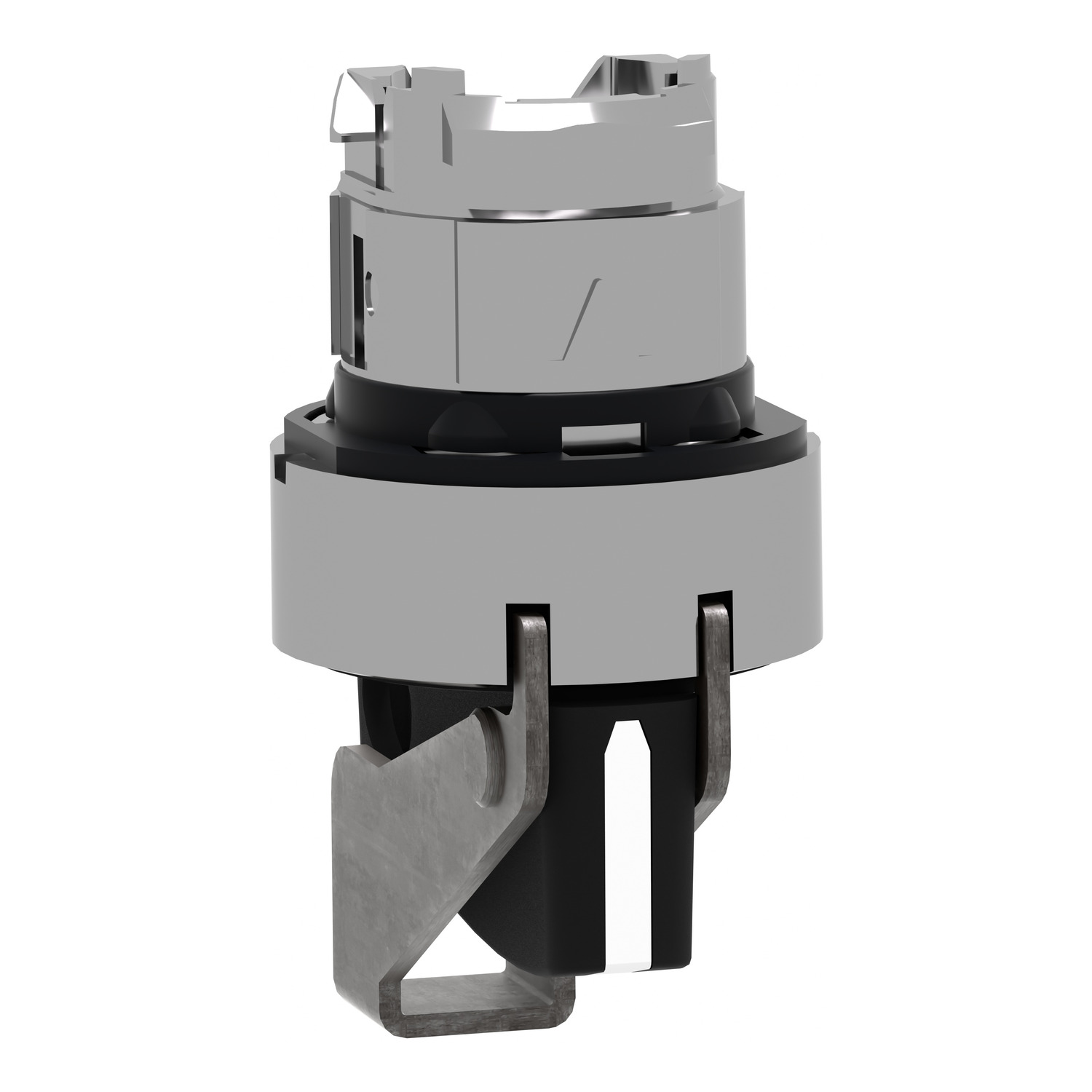

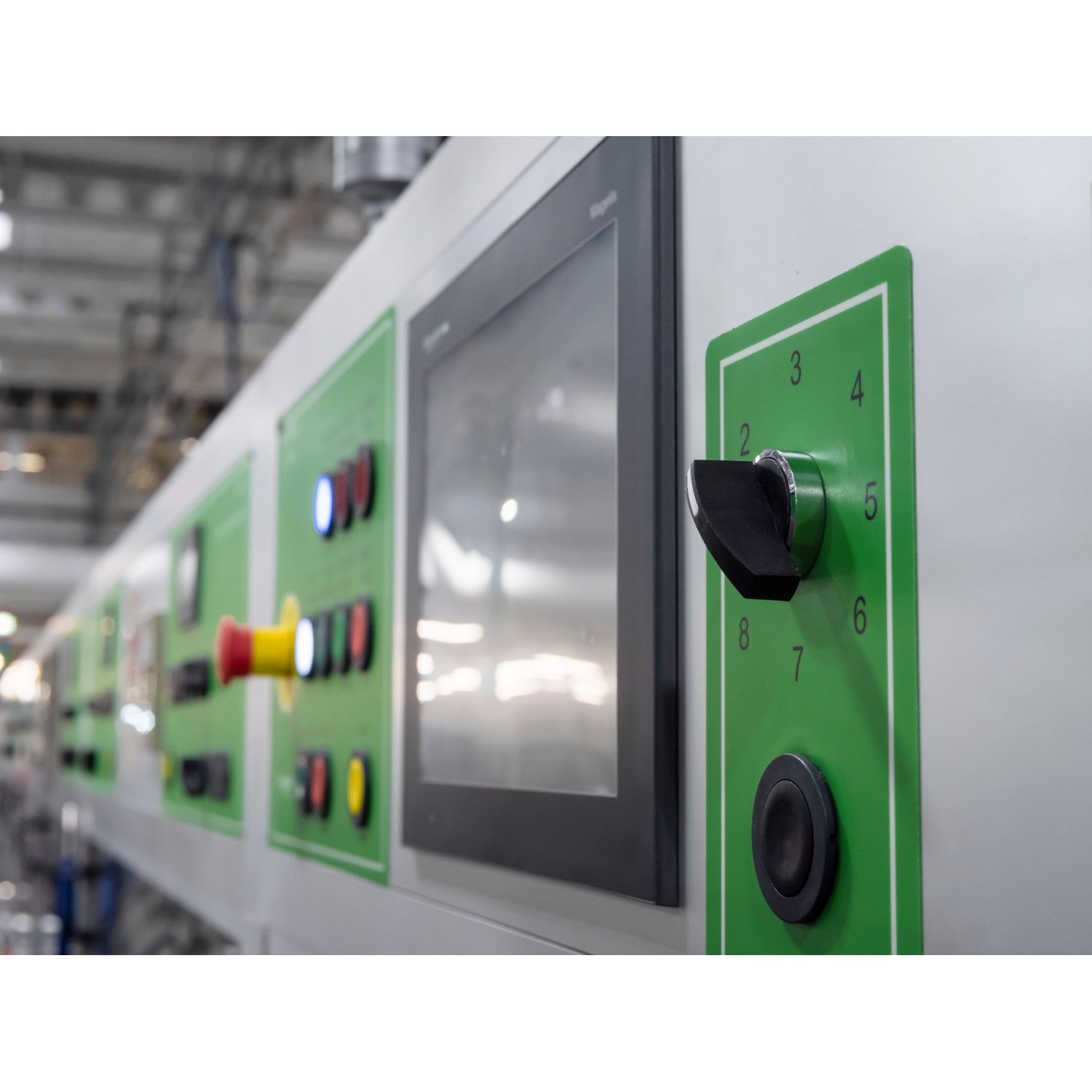

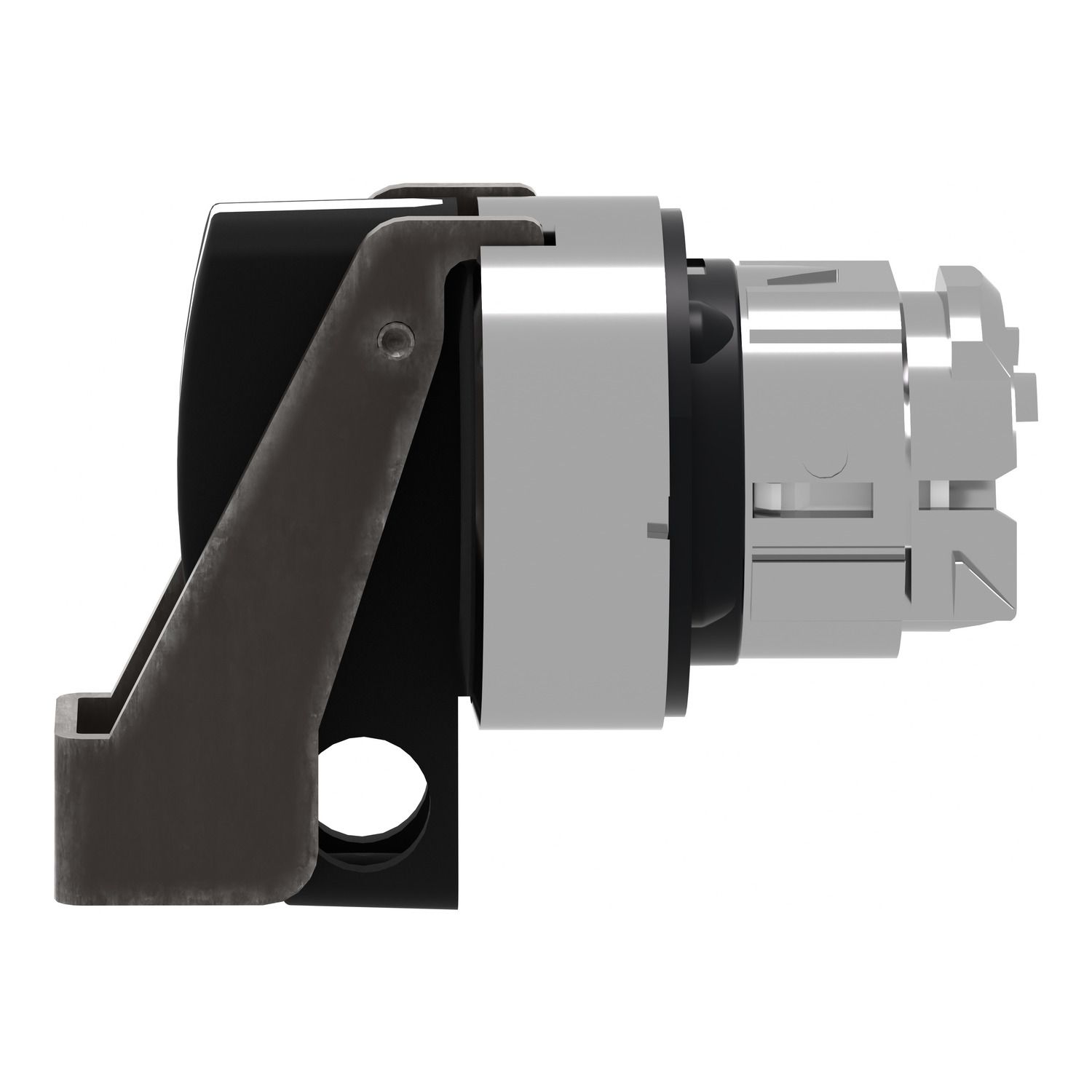

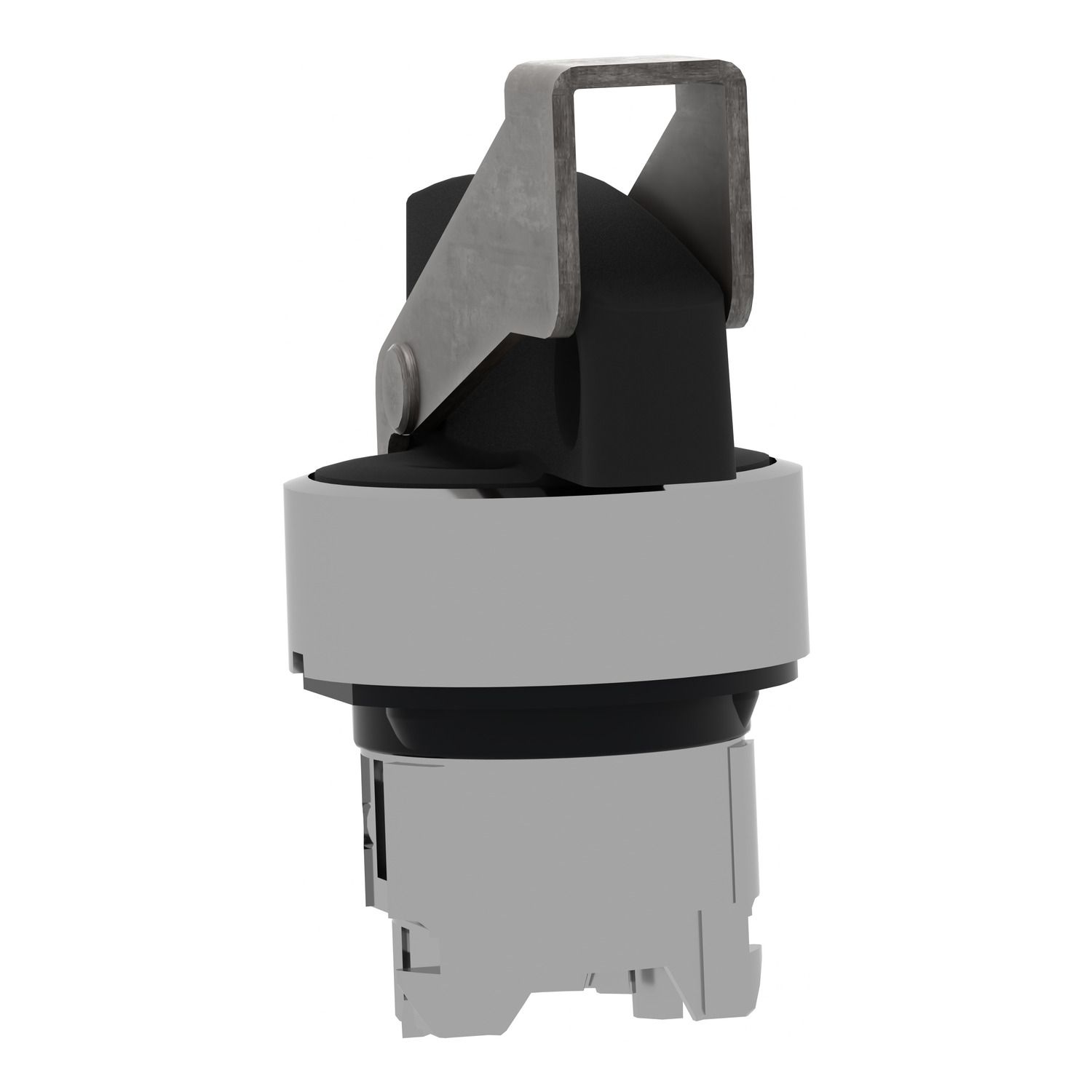

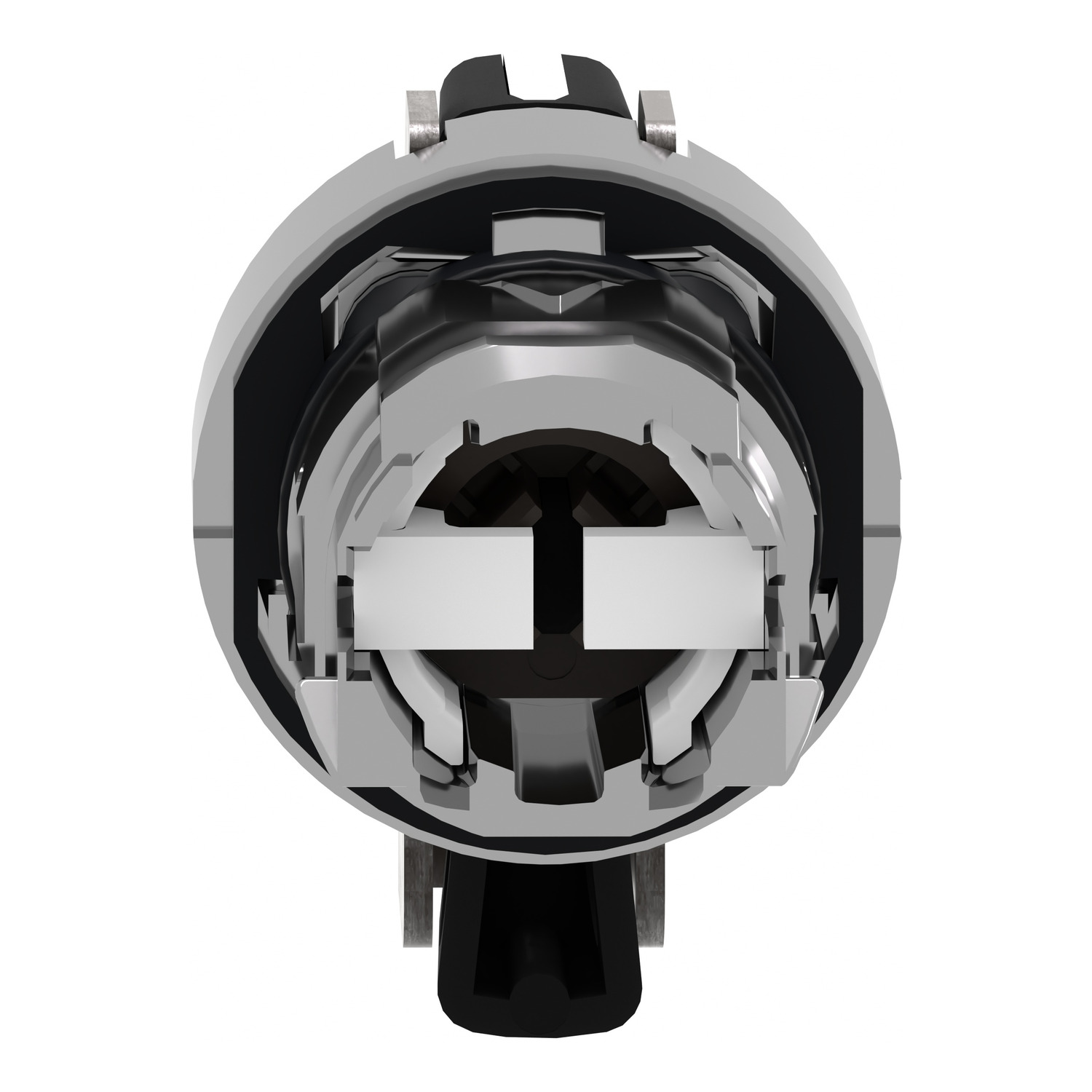

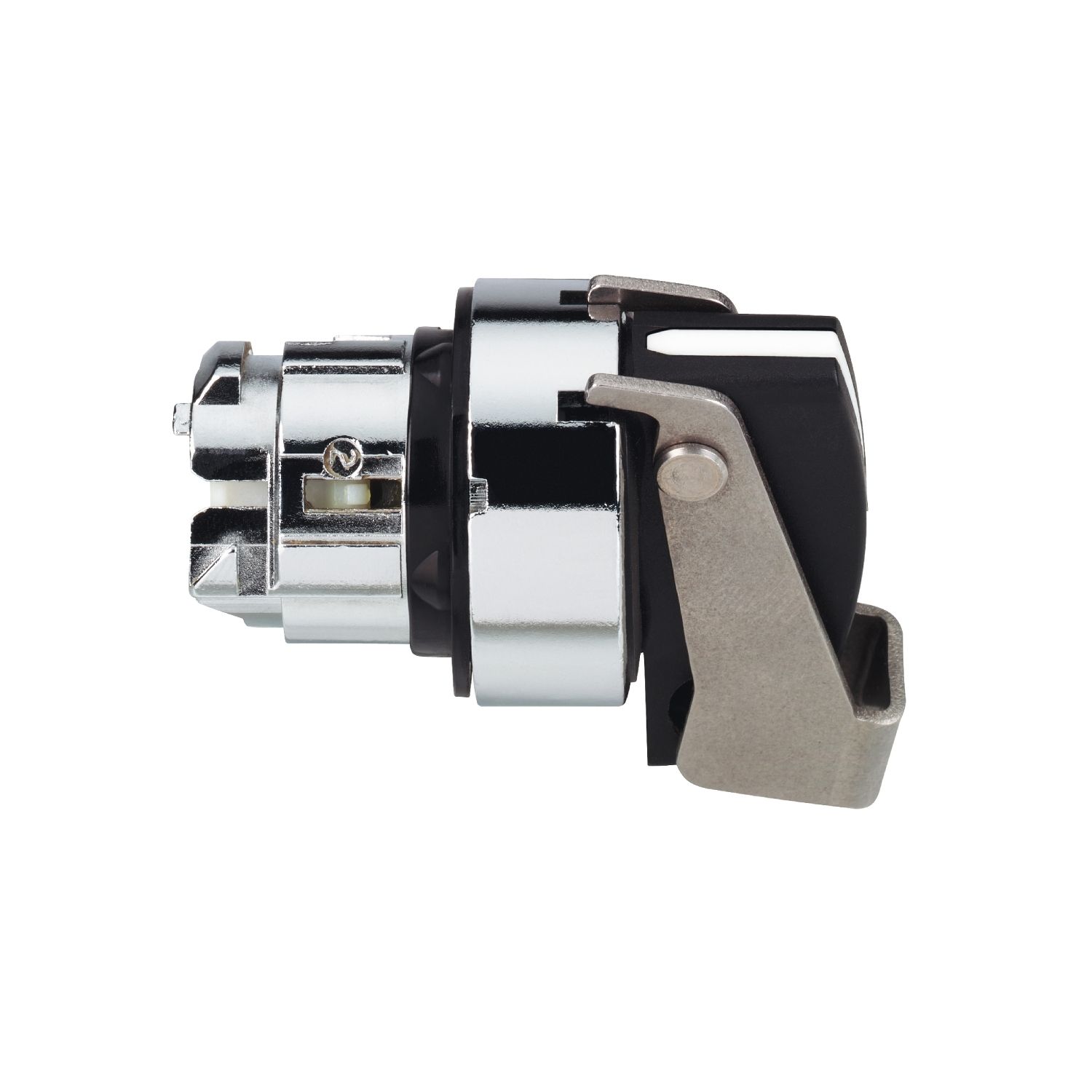

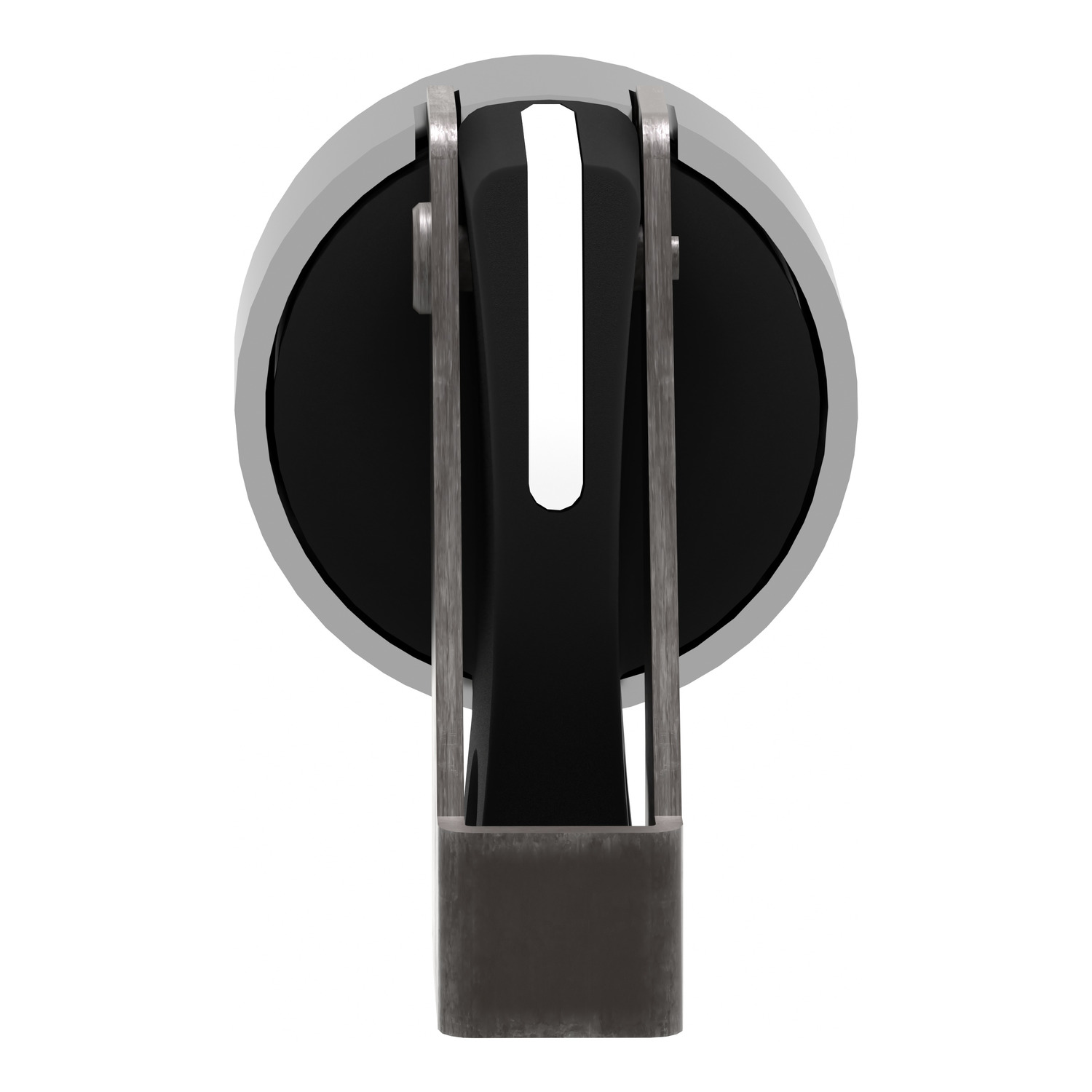

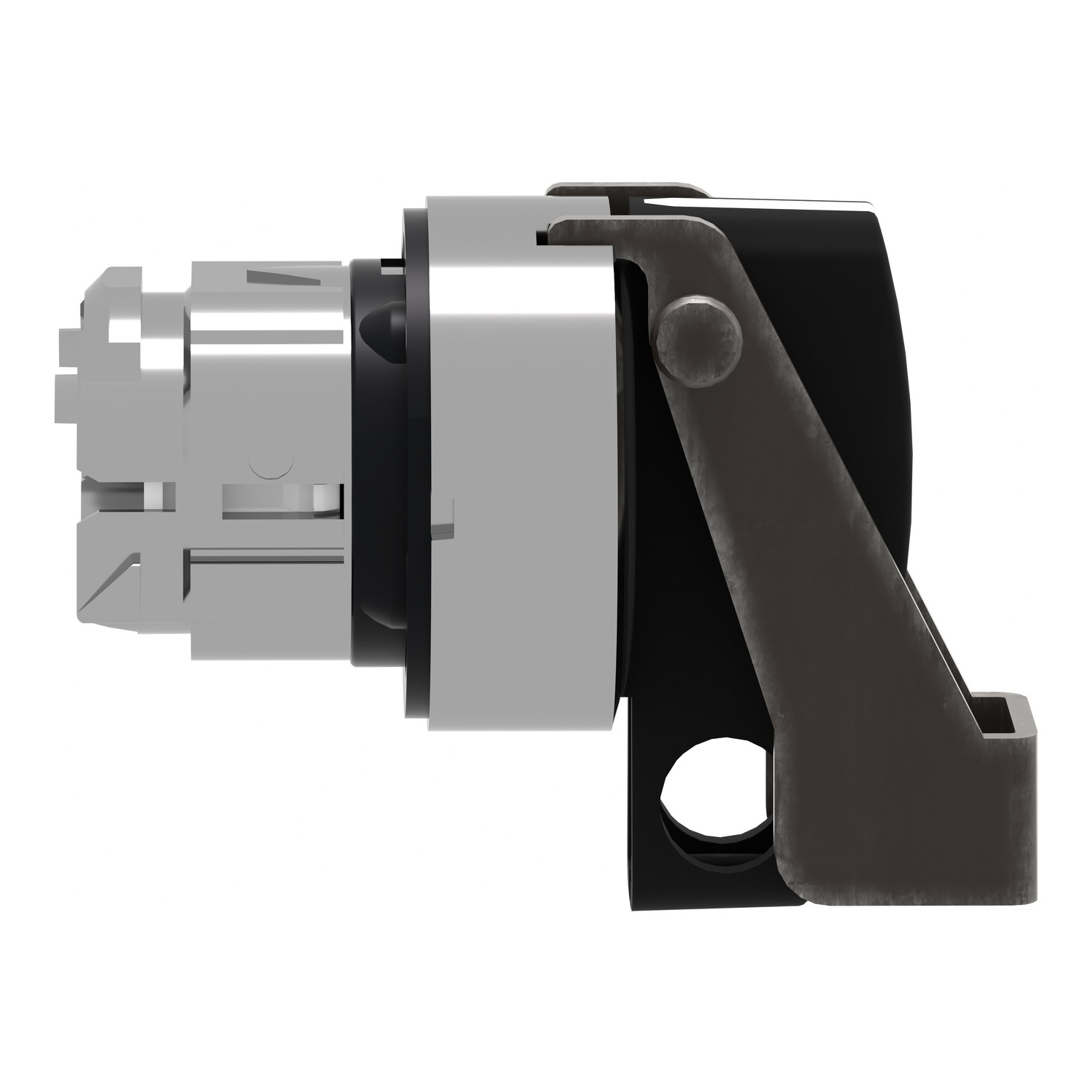

This Harmony XB4, black selector switch head with padlockable long handle has 3 positions, operates with stay-put mechanism with locking on left, center and right position. This switch head provides an ergonomic interface for controlling your machines. It is supplied with padlockable long handle to provide a secure manner for your authorized staff to make change in an operation. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB4 |
| Locking position | on the left, right or center |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | stay put |
| Range of product | Harmony XB4 |
| Operator position information | 3 positions +/- 45° |
| Operator profile | black long handle |
| Bezel material | chromium plated metal |
| Shape of signaling unit head | round |
| Product or component type | head for selector switch |
| Mounting diameter | 22 mm |
| Operator additional information | padlockable |
| Complementary | |
| Group of product | long handle padlockable |
| Compatibility code | ZB4 |
| Mechanical durability | 1000000 cycles |
| Device presentation | basic element |
| CAD overall height | 38 mm |
| Customizable | 0, no |
| Electrical composition code | C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting |
| Main group | selector switch |
| CAD overall depth | 50 mm |
| CAD overall width | 29 mm |
| Cap/operator or lens colour | black |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.048 kg |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class I conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, UL 508, JIS C8201-5-1 |
| Product certifications | GL, UL listed, LROS (Lloyds register of shipping), DNV, BV, CSA |
