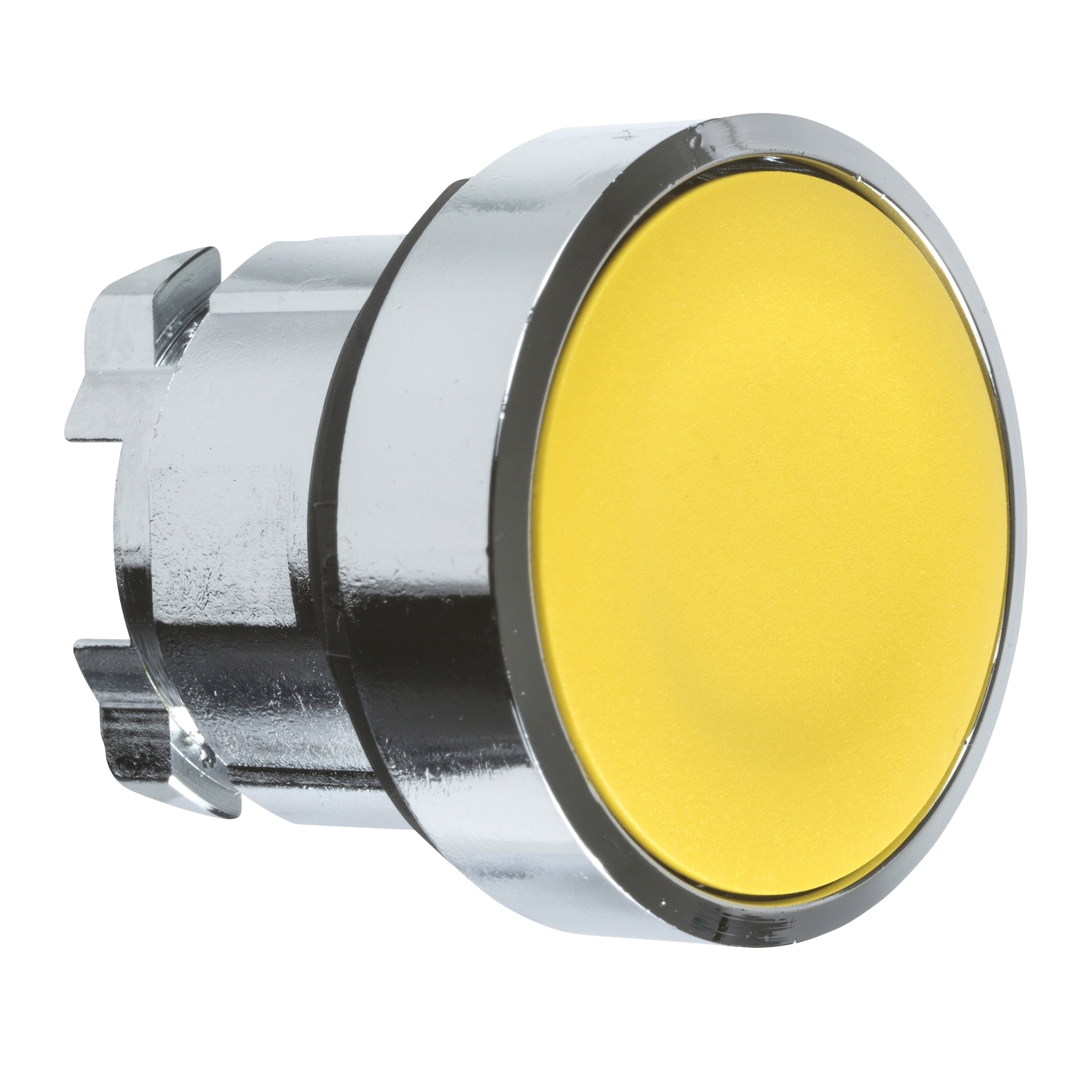

Head for illuminated push button, Harmony XB4, metal, yellow flush, 22mm, push-push, unmarked
Manufacturer: Schneider Electric
SKU: ZB4BH05
GTIN: 3389110122701
Old price: $50.16 inc GST
$30.52 inc GST
Supported cards
Supported cards
This Harmony XB4, flush yellow button head operates with a latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator push-push
Range of product Harmony XB4
Operator profile yellow flush, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Complementary
Group of product flush push-push non illum
Compatibility code ZB4
Mechanical durability 2000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 1, no
Electrical composition code C9 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 28 mm
CAD overall width 29 mm
Marking unmarked
Cap/operator or lens colour yellow
GCR BRIDGE ZB4BHCUST01
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-5
Product certifications UL listed, BV, CSA, GL, LROS (Lloyds register of shipping), DNV
